Major Repair Kit 8917MRK, New Style, for Welch Rotary Vane Vacuum Pump 8917A, 8917MRK

Major Repair Kit 8917MRK, New Style, for Welch Rotary Vane Vacuum Pump 8917A, 8917MRK

Major Repair Kit for Model 8917A.

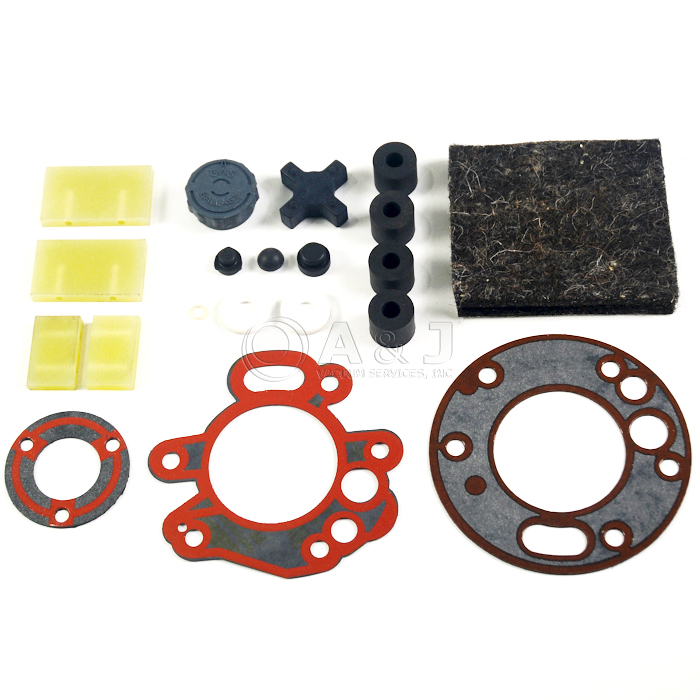

Major Repair Kit includes:

616049  Vane,Intake,Gx, qty.2

616052  Vane,Exhaust,Gx, qty.2

2620793 Washer,Lock,#10,Plated, qty.3

410643  Gasket,Shaft Seal, qty.1

412732  Key,Woodruff,Steel,#403, qty.1

412962  Seal,Shaft,3/8", qty.1

412963  O'ring,Viton,2.57 X 1.78 Mm, qty.2

412996  Spring,Vane,Compression,S/S, qty.4

413005  O'ring,Viton,4.47 X 1.78 Mm, qty.1

413175  Gasket,Washer,Nylon, qty.1

413390  Seal,Shaft,3/4", qty.1

612118a Valve,Gas Ballast,Viton, qty.1

612130a O'ring,Viton,17.12 X 2.62 Mm, qty.1

612157a O'ring,Viton,3.68 X 1.78 Mm, qty.1

612204a Spring,Gas Ballast,Comp.,S/S, qty.1

616002  Seat,Drain Valve,Teflon, qty.2

616030  Knob,Gas Ballast, qty.1

616038  Spider,Coupler,Buna,Black, qty.1

616057  Valve,By-Pass Poppet,Interstg. , qty.1

616058  Valve,Poppet,Exhaust, qty.1

616059  Spring,Exhaust Valve,Comp.,S/S, qty.1

616084  Pad,Drip,Felt, qty.1

616093  Washer,Thrust, qty.1

616215  Assy,Seal,Shaft,17mm, qty.1

619426  Spring,Plunger,Compression,S/S , qty.1

619526  O'ring,Viton,75.87 X 2.62 Mm, qty.1

620014  Key,Woodruff,Steel,#202, qty.1

620274  Orfice,Hose Barb,.014", qty.1

660194  O'ring,Viton,158.42 X 2.62 Mm, qty.1

660197  O'ring,Viton,6.07 X 1.78 Mm, qty.2

660199  Gasket,Case, qty.1

660200  O'ring,Viton,28.17 X 3.53 Mm, qty.1

660204  O'ring,Viton,58.42 X 2.62 Mm, qty.1

660207  O'ring,Viton,71.12 X 2.62 Mm, qty.1

660211  Foot,Rubber,Base, qty.4

660212  O'ring,Viton,23.47 X 2.62 Mm, qty.2

660225  O'ring,Shaped,Ring,Viton, qty.1

619282a O'ring,Viton,7.65 X 1.78 Mm, qty.1

616385  Gasket,Module, qty.1

619560a Valve,By-Pass,Exhaust, qty.1
