- PN 8917K02
- Oustanding Quality
- For Models 8907A, 8912A, 8917A
- Minor Repair Kit

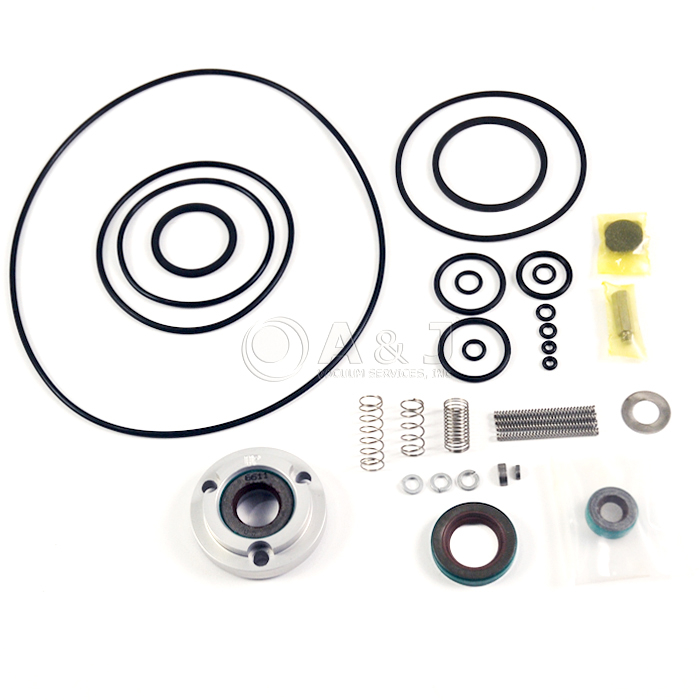

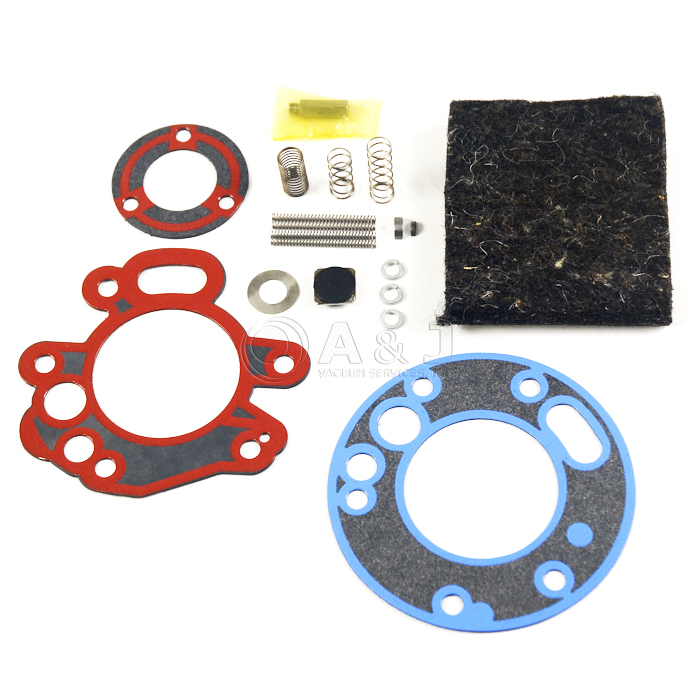

Minor Repair Kit 8917K02 for Welch Rotary Vane Vacuum Pumps 8907A, 8912A, 8917A, 8917K02
Minor Repair Kit for Models 8907A, 8912A, 8917A.
Minor Repair Kit includes:
2620793 Washer,Lock,#10,Plated, qty.3
410643 Gasket,Shaft Seal, qty.1
412732 Key,Woodruff,Steel,#403, qty.1
412962 Seal,Shaft,3/8", qty.1
412963 O'ring,Viton,2.57 X 1.78 Mm, qty.2
412996 Spring,Vane,Compression,S/S, qty.4
413005 O'ring,Viton,4.47 X 1.78 Mm, qty.1
413175 Gasket,Washer,Nylon, qty.1
413390 Seal,Shaft,3/4", qty.1
612118a Valve,Gas Ballast,Viton , qty.1
612130a O'ring,Viton,17.12 X 2.62 Mm, qty.1
612157a O'ring,Viton,3.68 X 1.78 Mm, qty.1
612204a Spring,Gas Ballast,Comp.,S/S, qty.1
616002 Seat,Drain Valve,Teflon, , qty.2
616030 Knob,Gas Ballast, qty.1
616038 Spider,Coupler,Buna,Black, qty.1
616057 Valve,By-Pass Poppet,Interstg. , qty.1
616058 Valve,Poppet,Exhaust, qty.1
616059 Spring,Exhaust Valve,Comp.,S/S , qty.1
616084 Pad,Drip,Felt, qty.1
616093 Washer,Thrust, qty.1
616215 Assy,Seal,Shaft,17mm, qty.1
619426 Spring,Plunger,Compression,S/S , qty.1
619526 O'ring,Viton,75.87 X 2.62 Mm, qty.1
620014 Key,Woodruff,Steel,#202, qty.1
620274 Orfice,Hose Barb,.014", qty.1
660194 O'ring,Viton,158.42 X 2.62 Mm, qty.1
660197 O'ring,Viton,6.07 X 1.78 Mm, qty.2
660199 Gasket,Case, qty.1
660200 O'ring,Viton,28.17 X 3.53 Mm, qty.1
660204 O'ring,Viton,58.42 X 2.62 Mm, qty.1
660207 O'ring,Viton,71.12 X 2.62 Mm, qty.1
660211 Foot,Rubber,Base, qty.4
660212 O'ring,Viton,23.47 X 2.62 Mm, qty.2
660225 O'ring,Shaped,Ring,Viton, qty.1
619282a O'ring,Viton,7.65 X 1.78 Mm, qty.1
616385 Gasket,Module, qty.1
619560a Valve,By-Pass,Exhaust, qty.1
A&J Vacuum Repairs / Rebuilds and Services all Welch 8905, 8910, 8907, 8912, 8917 Vacuum Pumps including belt driven Welch pumps service pumps and all other Welch vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Minor Repair Kit 8917K02 for Welch Rotary Vane Vacuum Pumps 8907A, 8912A, 8917A, 8917K02
Minor Repair Kit for Models 8907A, 8912A, 8917A.
Minor Repair Kit includes:
2620793 Washer,Lock,#10,Plated, qty.3
410643 Gasket,Shaft Seal, qty.1
412732 Key,Woodruff,Steel,#403, qty.1
412962 Seal,Shaft,3/8", qty.1
412963 O'ring,Viton,2.57 X 1.78 Mm, qty.2
412996 Spring,Vane,Compression,S/S, qty.4
413005 O'ring,Viton,4.47 X 1.78 Mm, qty.1
413175 Gasket,Washer,Nylon, qty.1
413390 Seal,Shaft,3/4", qty.1
612118a Valve,Gas Ballast,Viton , qty.1
612130a O'ring,Viton,17.12 X 2.62 Mm, qty.1
612157a O'ring,Viton,3.68 X 1.78 Mm, qty.1
612204a Spring,Gas Ballast,Comp.,S/S, qty.1
616002 Seat,Drain Valve,Teflon, , qty.2
616030 Knob,Gas Ballast, qty.1
616038 Spider,Coupler,Buna,Black, qty.1
616057 Valve,By-Pass Poppet,Interstg. , qty.1
616058 Valve,Poppet,Exhaust, qty.1
616059 Spring,Exhaust Valve,Comp.,S/S , qty.1
616084 Pad,Drip,Felt, qty.1
616093 Washer,Thrust, qty.1
616215 Assy,Seal,Shaft,17mm, qty.1
619426 Spring,Plunger,Compression,S/S , qty.1
619526 O'ring,Viton,75.87 X 2.62 Mm, qty.1
620014 Key,Woodruff,Steel,#202, qty.1
620274 Orfice,Hose Barb,.014", qty.1
660194 O'ring,Viton,158.42 X 2.62 Mm, qty.1
660197 O'ring,Viton,6.07 X 1.78 Mm, qty.2
660199 Gasket,Case, qty.1
660200 O'ring,Viton,28.17 X 3.53 Mm, qty.1
660204 O'ring,Viton,58.42 X 2.62 Mm, qty.1
660207 O'ring,Viton,71.12 X 2.62 Mm, qty.1
660211 Foot,Rubber,Base, qty.4
660212 O'ring,Viton,23.47 X 2.62 Mm, qty.2
660225 O'ring,Shaped,Ring,Viton, qty.1
619282a O'ring,Viton,7.65 X 1.78 Mm, qty.1
616385 Gasket,Module, qty.1
619560a Valve,By-Pass,Exhaust, qty.1
A&J Vacuum Repairs / Rebuilds and Services all Welch 8905, 8910, 8907, 8912, 8917 Vacuum Pumps including belt driven Welch pumps service pumps and all other Welch vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
