Oerlikon / Leybold Turbovac TW 70 LS Turbo Pump, 800005V0954
Condition:
Remanufactured
Call us for Availability
Item#:PN57794
Mfr Part#:800005V0954
Manufacturer:Leybold
Price upon request
CONTACT US
Features:

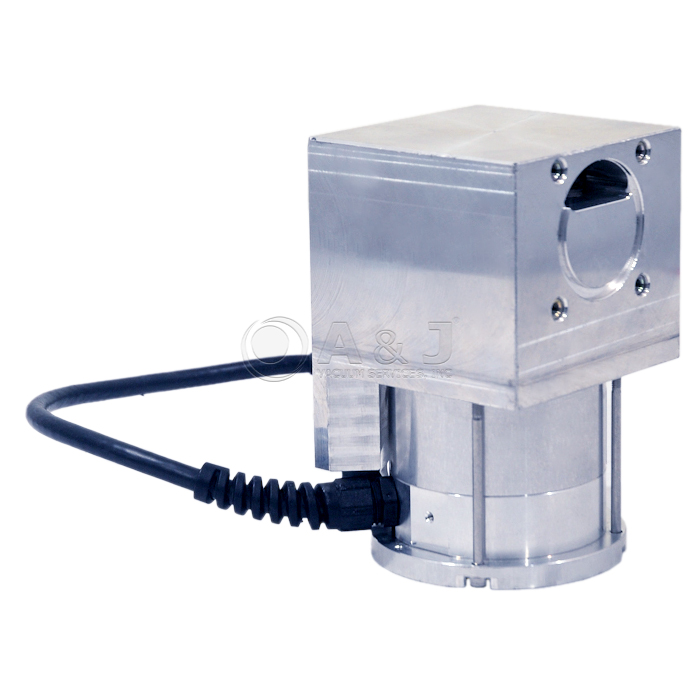

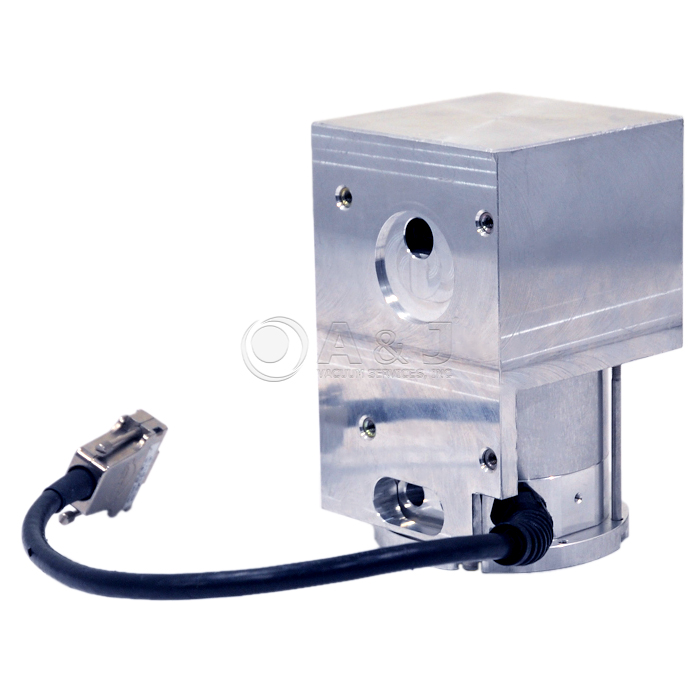

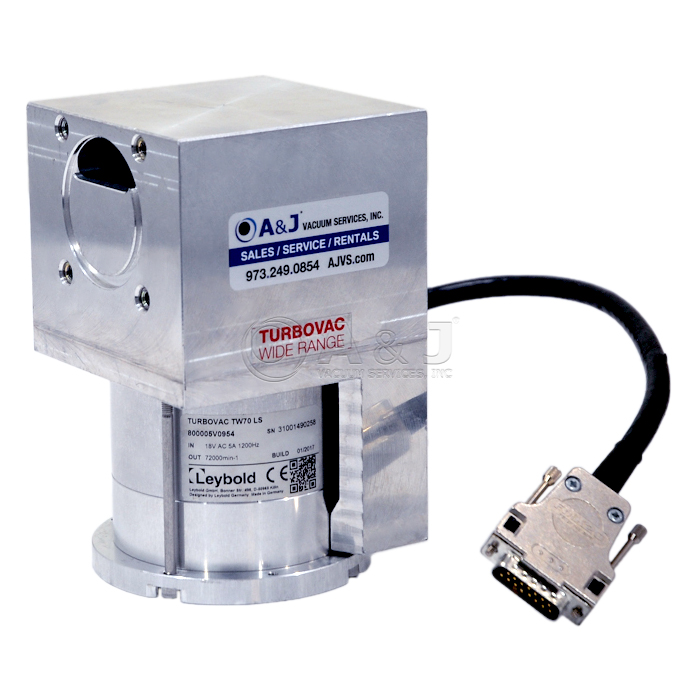

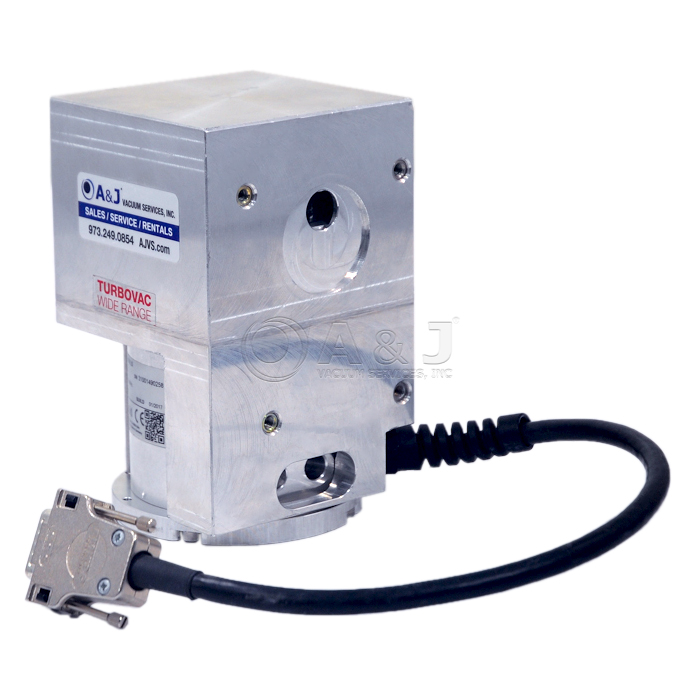

Oerlikon / Leybold Turbovac TW 70 LS Turbo Pump, 800005V0954

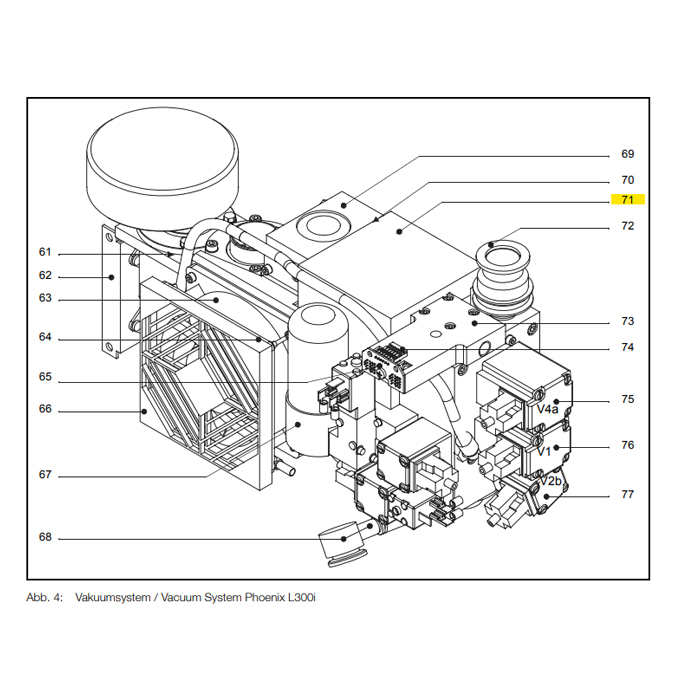

Replacement turbo pump for the Phoenix L300i Leak Detector.
Leybold Turbovac TW70LS Features:
- Designed for usage with the L300i Leak Detector
- Integrated or external frequency converter
- Compact design
- Operation in any orientation
- High foreline tolerance
- Low operating costs
- Space-saving
- Oil-free pump for generating clean high and ultra-high vacuum conditions
Turbovac TW70 LS / 800005V0954 Overview:
The TURBOVAC TW 70LS is a wide-range turbomolecular pump engineered to evacuate vacuum chambers to high vacuum pressure levels. It is designed for use with air and clean gases. Operation requires a TURBO.DRIVE 400 frequency converter and a suitable forevacuum pump.
The pump primarily consists of the pump housing, a multi-stage rotor with corresponding stator assemblies, and the drive unit.
The rotor features two sections: the initial stage is a turbomolecular rotor, followed by a Holweck stage. Compared to conventional turbomolecular designs, the Holweck stage significantly increases the allowable forevacuum pressure.
A&J Vacuum repair / rebuild and service all Leybold TW70H 800005V0954 Turbo Pumps, Oerlikon TW 70H Pumps Leybold TMP Turbo Pump Service, Sogevac Pump Repair, Leybold Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Oerlikon / Leybold Turbovac TW 70 H Turbo Pump, 800005V0954 / E800005V0954
Leybold Turbovac TW 70 H Technical Data:
- Pumping speed (without inlet screen) for -
- N2: 60 l·s-1
- Ar: 56 l·s-1
- He: 52 l·s-1
- H2: 40 l·s-1
- Ultimate pressure -
- With two-stage, oil-sealed rotary vane pump: < 2·10-10 mbar
- With ECODRY M 15: < 4·10-10 mbar
- With diaphragm pump: < 5·10-9 mbar
- Max. permissible forevacuum pressure with N2 -
- Without purge gas: 20 mbar
- With 0.4 mbar·l·s-1 (24 sccm) purge gas: 8 mbar
- Max. gas throughput with water cooling -
- N2: 1.9 mbar·l·s-1
- Ar: 2.4 mbar·l·s-1
- H2: 1.3 mbar·l·s-1
- He: 1.9 mbar·l·s-1
- Weight -
- Pump: 2.3 kg | 5.1 lb
- Pump with TURBO.DRIVE 400: 3.0 kg | 7 lb
- Pump with TURBO.DRIVE 400 and air cooler: 3.2 kg | 7.1 lb
- Pump with TURBO.DRIVE 400 and water cooler: 3.3 kg | 7.3 lb
- Recommended forevacuum pumps -
- TRIVAC: D 2.5 E
- Diaphragm pump DIVAC: 0.8 T
- Operating speed: 72,000 rpm
- Run-up time: 1.5 min
- Forevacuum connection: DN 16 KF or Camozzi coupling
- Type of protection: IP 20
- Noise level: < 46 dB(A)
- Ambient temperature -
- During operation: + 15 - + 45 °C
- Storage: – 15 - + 70 °C
- Max. rel. air humidity: approx. 95% (non-condensing)
- Cooling water connections: G 1/8"
A&J Vacuum repair / rebuild and service all Leybold TW70H 800005V0954 Turbo Pumps, Oerlikon TW 70H Pumps Leybold TMP Turbo Pump Service, Sogevac Pump Repair, Leybold Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN17337
Mfr Part#:800073V0003
Condition: Out of Stock
New
$2,100.00
Item#:PN17677
Mfr Part#:800073V0003
Condition: Out of Stock
Remanufactured
Out of Stock
Price upon request
Item#:PN18229
Mfr Part#:800102V1002
Condition: Out of Stock
New
$105.00
Item#:PN18600
Mfr Part#:800073V0008
Condition: In Stock
Remanufactured
In Stock
$895.00
Item#:PN20072
Mfr Part#:800073V0003
Condition: Ships Within 1-3 Days
Demo
Ships Within 1-3 Days
$1,350.00
Item#:PN23251
Mfr Part#:800100V0001
Condition: Out of Stock
Discontinued
$1,727.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
