- Inlet Flange: NW 25
- Exhaust Flange: NW 25
- Ultimate Vacuum: 3 · 10-2 mbar
- Pumping speed 3.59 CFM
Shopping Cart ( )

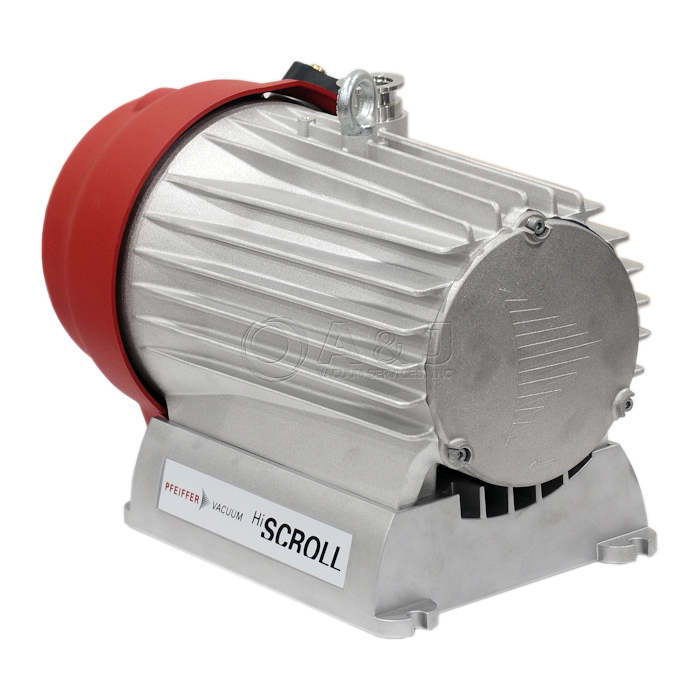

Pfeiffer HiScroll 6 Dry Scroll Pump with Manual Gas Ballast, Pressure Sensor Included, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, 2000026561 / PD S10 010 B / PDS10010B
Condition:
New
Item#:PN23775
Mfr Part#:2000026561 / PD S10 010 B / PDS10010B
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiScroll 6 Dry Scroll Pump with Manual Gas Ballast, Pressure Sensor Included, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, 2000026561 / PD S10 010 B / PDS10010B
Power Cable not Included ! PN00834
Pfeiffer HiScroll 6 Features:
- Increased drive efficiency compared to previous dry scroll pumps.
- Completely dry and oil-free operation.
- Low noise emissions, minimal vibration, and compact design.
- Integrated safety valve and hermetically sealed pump system for safe operation.
- Easily interfaces with other intelligent products via RS-485 and ProfiNet.
- Low cost of operation due to high quality components and long maintenance intervals.
Pfeiffer HiScroll6 / PD S10 010 B Overview:
The Pfeiffer HiScroll 6 is from the newest generation of completely oil free, dry scroll pumps. The HiScroll pumps have IPM (Interior Permanent Magnet) synchronus motors that achieve greater efficiency of up to 15% compared to conventional drive pumps. This translates to lower temperatures at maximum performance through reduced heat generation and minimal cooling requirements. The HiScroll 6 is ideal for compact systems and environments where cooling efficiency is important.
The Pfeiffer Vacuum HiScroll 6 features adaptive cooling control to ensure optimal cooling in various operating conditions. This system is also able to reduce noise emissions by throttling the pump when full performance of the HiScroll is not required. An integrated pressure sensor (optional, please see HiScroll 6 with Integrated Sensor PD S10 010) enables intelligent speed control and performance monitoring. HiScroll Intelligent control also allows the HiScroll6 to set and hold specific pressures by using automatic regulation of the pumping speed. By not constantly running the pump at full speed, wear is reduced. This allows you to extend your maintenance intervals over time.
The Pfeiffer HiScroll series is able to easily connect with other Pfeiffer products such as their turbo pumps, display control units, and other external systems via the RS-485 or ProfiNet interface.
Pfeiffer HiScroll6 Scope of Delivery:
- Scroll pump with electronic drive unit
- Protective cap for vacuum connection
- Protective cover for the exhaust connection
- Operating instructions
Pfeiffer HiScroll6 Applications:
- Accelerators
- Coating
- Gas recovery
- Laboratories
- Leak detection
- Mass spectromery
- Semiconductor technology
- Vacuum drying
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000 B, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer HiScroll 6 Dry Scroll Pump with Manual Gas Ballast, Pressure Sensor Included, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, 2000026561 / PD S10 010 B / PDS10010B
Pfeiffer HiScroll 6 Technical Data:
| Ambient temperature | 5 – 40 °C | 41 – 104 °F | 278.15 – 313.15 K |
| Certification | cTUVus certified according to UL / CSA 61010-1 Semi S2 compatible Semi S8 compatible |
| Connection flange (in) | DN 25 ISO-KF |
| Connection flange (out) | DN 25 ISO-KF |
| Cooling method | Air (Forced convection) |
| Current, max. | 4 A |
| Dimensions (L x W x H) | 380 x 220 x 257 mm | 14.96 x 8.66 x 10.12 inch |
| Emission sound pressure level (EN ISO 2151) | ≤48 dB(A) |
| Exhaust pressure, max. | 1500 hPa | 1,125 Torr | 1,500 mbar |
| Gas ballast | Yes |
| Gas ballast flow stage 1 | 11 l/min |
| Gas ballast flow stage 2 | 16 l/min |
| Gas ballast pressure | 1500 hPa | 1,125 Torr | 1,500 mbar |

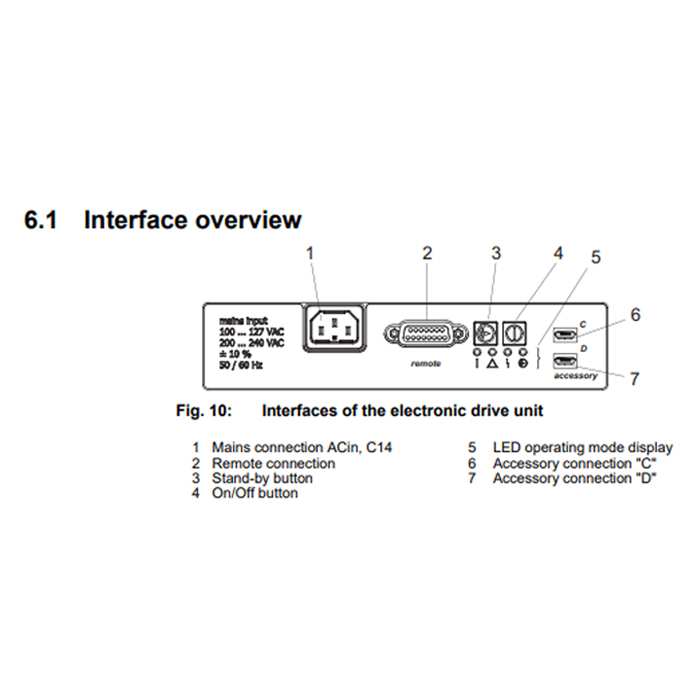

| I/O interfaces | RS-485 |
| Input voltage(s) | 100 – 127 / 200 – 240 V AC (±10 %), 50/60 Hz |
| Intake pressure max. | 1100 hPa | 825 Torr | 1,100 mbar |
| Integral leak rate | 5 · 10-7 Pa m³/s | 3.75 · 10-6 Torr l/s | 5 · 10-6 mbar l/s |
| Mains cable | No |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Motor protection | Internal |
| Motor type | 1-phase motor |
| Nominal rotation speed | 2500 rpm | 2,500 min-1 |
| Operating altitude, max. | 3000 m |
| Protection degree | Type 1 IP40 |

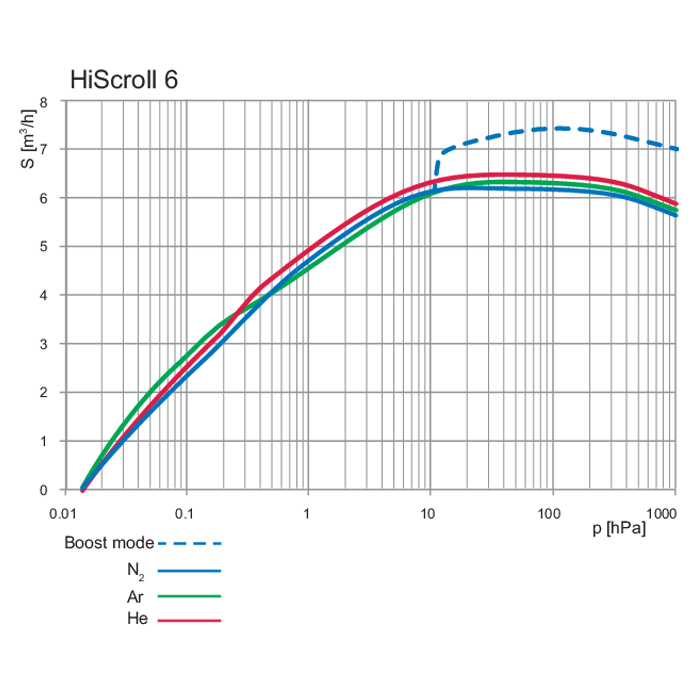

| Pumping speed | 6.1 m³/h | 3.59 cfm | 101.67 l/min |
| Rated current consumption | 100 V – 127 V: 4 A | 200 V – 240 V: 2 A |
| Rotation speed | 1000 – 3000 rpm | 1,000 – 3,000 min-1 |
| Switch | Yes |
| Ultimate pressure | 1.5 · 10-2 hPa | 1.125 · 10-2 Torr | 1.5 · 10-2 mbar |
| Ultimate pressure for gas ballast stage 1 | 7 · 10-2 hPa | 5.25 · 10-2 Torr | 7 · 10-2 mbar |
| Ultimate pressure for gas ballast stage 2 | 4 · 10-1 hPa | 0.3 Torr | 0.4 mbar |
| Weight approx. | 19 kg | 41.89 lb |
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000 B, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
