- PM P02 810 G / 200000569R
- Special Inlet Flange
- Special Outlet Flange
- Fully Remanufactured !!!
Shopping Cart ( )

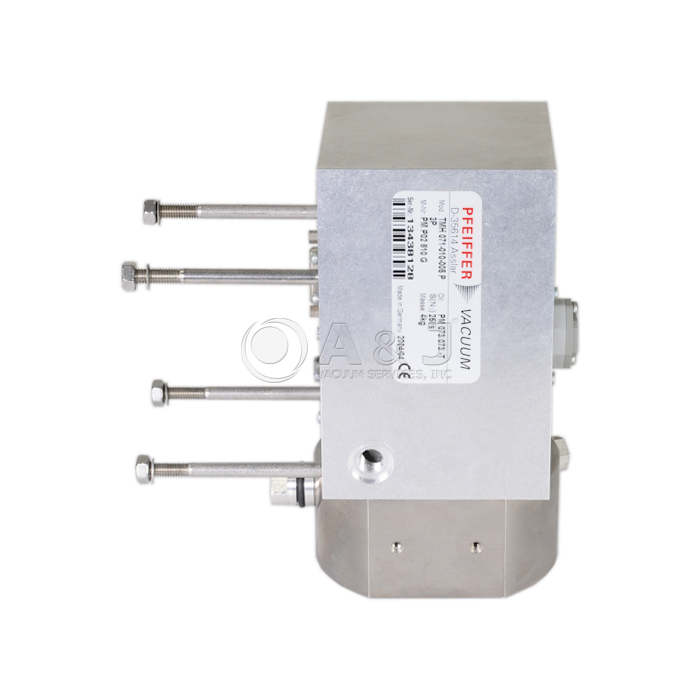

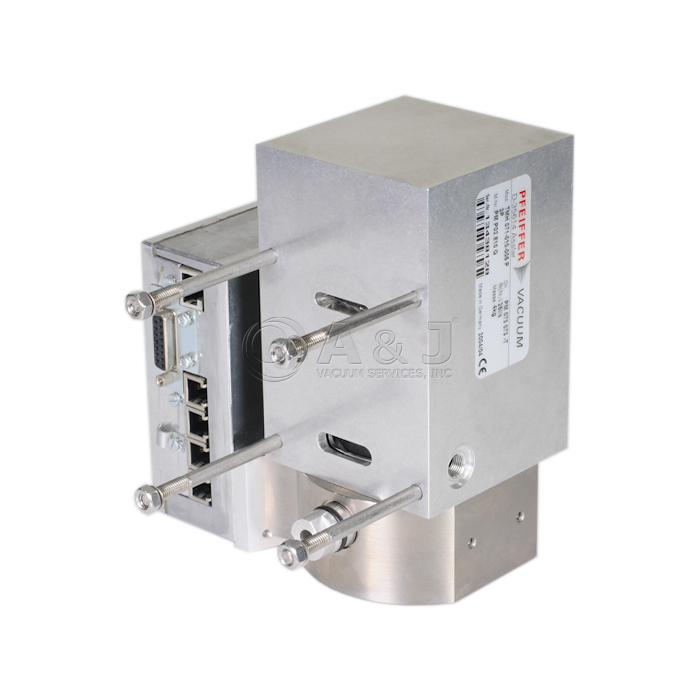

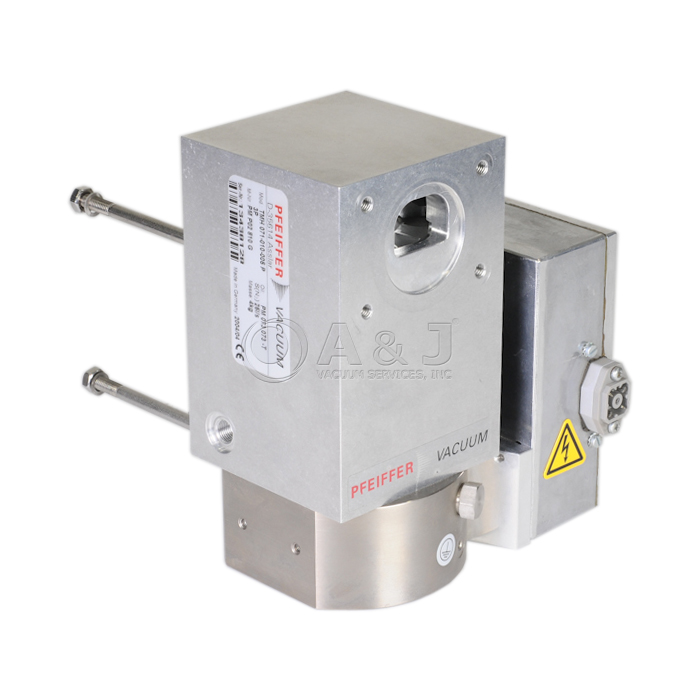

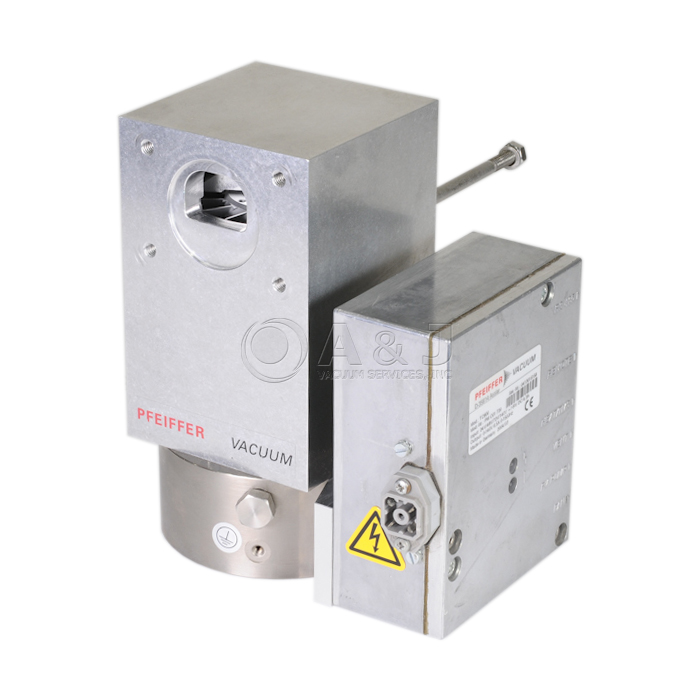

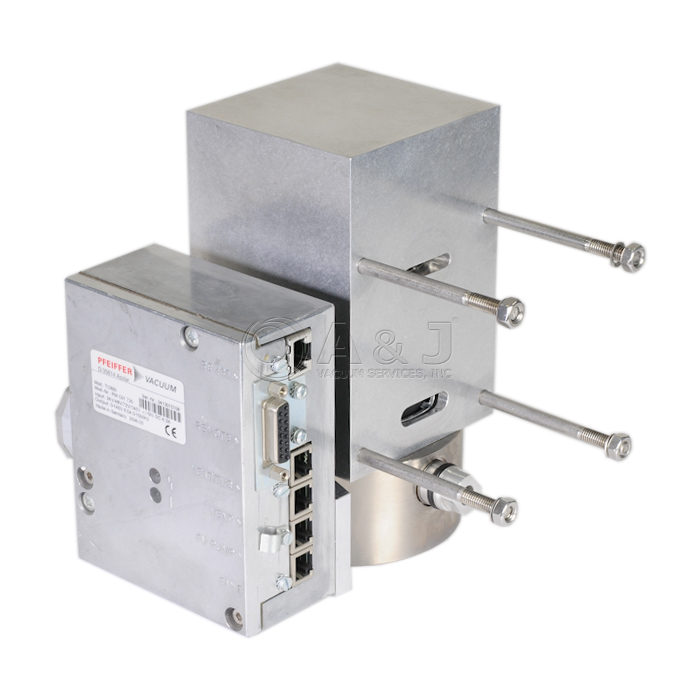

Pfeiffer Vacuum TMH 071-010-005 P Turbo Pump with TC 600 Turbo Controller PMC01720, Pfeiffer HLT Leak Detector Turbo Pump, PMP02810G / 2000016930 / PM C01 720 / PMC01720
Condition:
Remanufactured
In Stock
Item#:PN20466
Mfr Part#:PMP02810G / 2000016930 / PM C01 720 / PMC01720
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum TMH 071-010-005 P Turbo Pump with TC 600 Turbo Controller PMC01720, Pfeiffer HLT Leak Detector Turbo Pump, PMP02810G / 2000016930 / PM C01 720 / PMC01720
Pfeiffer TMH 071-010-005 P Features:
- Pumping Speed: 60 l/s
- Special Flange
- Special Outlet Flange
- Ultimate pressure with Rotary Vane Pump: < 1 x 10-10 mbar
- Air or Water Cooling Available
TMH 071-010-005 P / PMP02810G Overview:
The Pfeiffer TMH 071 010 005 P / PM P02 810 G has been design especialy for Pfeiffer HLT series helium leak detectors and Inficon UL1000 Leak Detectors p/n 200000569R
The Pfeiffer TMH071-010-005 P / PMP02810 G is fully remanufactured, and ready to be installed inside Pfeiffer HLT Leak detector.
This TMH 071 turbo pump has a free of wear permanent magnetic bearing at high vacuum side and oil lubricated ceramic bearing at the backing side.
The TMH071-010-005 comes with TC 600 Turbo Pump controller / PMC01720 / 200000569R
is designed with "P" Purge gas connection for the prevention of the ingress of aggressive gases into the motor and bearing arena.
The Pfeiffer Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
This Turbo Pump is designed for a wide range of applications in the research and industry fields.
The Pfeiffer TMH 071-010-005 operates on 24VDC and it is designed to be used with TPS Power supply or DCU 100 / PMC01694
A&J Vacuum also repair / rebuild and service all Pfeiffer TMH 071-010-005 P Turbo Pumps along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum TMH 071-010-005 P Turbo Pump with TC 600 Turbo Controller PMC01720, Pfeiffer HLT Leak Detector Turbo Pump, PMP02810G / 2000016930 / PM C01 720 / PMC01720
Pfeiffer TMH 071-010-005 P Technical Data:
- Pumping Speed: 60 l/s
- Special Flange
- Special Outlet Flange
- Ultimate pressure with Rotary Vane Pump: < 1 x 10-10 mbar
- Air or Water Cooling Available
A&J Vacuum also repair / rebuild and service all Pfeiffer TMH 071-010-005 P Turbo Pumps along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer_TMH071P_TMU071P_TC600.pdf
Inficon UL5000 Helium Leak Detector Operation Manual
Pfeiffer TMH 071, TMU 071 TMH071, TMU071 with TC600 Operation Manual
Inficon UL1000, UL1000 FAB Helium Leak Detector Manual
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
