Pfeiffer Vacuum DUO20 Major Overhaul Kit, 2000021217 / PK E32 011 -T / PKE32011-T

Condition: New

In Stock

Item#:PN12606

Mfr Part#:2000021217 / PK E32 011 -T / PKE32011-T

Manufacturer:Pfeiffer Vacuum

PRICE:

$1,370.00

Web savings:

$180.00

YOU PAY:

$1,190.00

Add to cart

Request a repair estimate Request sales quote Financing available

New Pfeiffer Vacuum DUO20 Major Overhaul Kit, 2000021217 / PK E32 011 -T / PKE32011-T

Features:

OEM Kit
PK E32 011-T / PKE32011-T
Full Major Kit
Pfeiffer

Overview
Specifications
Parts Lists
Service & Repair

Pfeiffer Vacuum DUO20 Major Overhaul Kit, 2000021217 / PK E32 011 -T / PKE32011-T

Pfeiffer Vacuum DUO20 Major Overhaul Kit Features:

OEM Pfeiffer DUO 20 Major kit includes combined Set of Seals PKE30008-AT and Overhaul Kit PKE320011-T.

This spare parts kit is required to perform maintenance Level 3 on your rotary vane pump.
Contains all necessary seals for correct assembly after complete disassembly and cleaning
Contains all wear parts of the coupling, the pumping system and the high vacuum safety valve
To perform the necessary work, we recommend that you refer to the maintenance instructions. Improper execution of necessary work may result in damage to your product.

A&J Vacuum repair / rebuild and service all Pfeiffer DUO20, DUO 20 Pumps along with all other Pfeiffer DUO20 Vacuum Pumps and all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

This item is non-returnable/non-refundable

Pfeiffer Vacuum DUO20 Major Overhaul Kit, 2000021217 / PK E32 011 -T / PKE32011-T

Pfeiffer Vacuum DUO20 Major Overhaul Kit Technical Data:

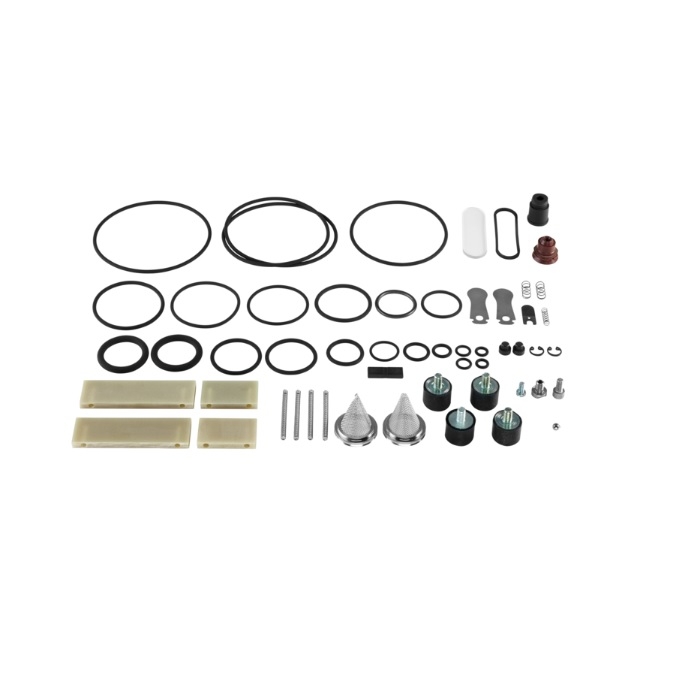

List of parts (refer to images to see which parts are included) -

2 - Rotor
3 - Hydraulic pump
4 - Pump cylinder
5 - Support plate
6 - Bearing cover
7 - Vanes, rough stage
8 - Vanes, medium stage
9 - Hydraulic vane
10 - Compression spring, vanes
18 - Magnetic coupling, drive side
20 - Magnetic coupling, pump side
22 - Washer
24 - Can
27 - Intermediate flange for motor
30 - Housing, vacuum safety valve
32 - Valve plate, vacuum safety valve
34 - Valve cover, vacuum safety valve
35 - Strainer
36 - Cover plate
42 - Gas ballast valve housing
44 - Silencer nozzle
51 - Plate spring
76 - Rapid action coupling
96 - Exhaust valve, (stage 1)
101 - Punched disk
102 - Valve plate
104 - Valve plate
106 - Hydraulic piston
108 - Compression spring
110 - Sight glass
113 - O-ring
114 - Rubber foot
116 - Flange
138 - O-ring
141 - O-ring
144 - O-ring
145 - O-ring
147 - O-ring
148 - O-ring
149 - O-ring
152 - O-ring
154 - O-ring
155 - O-ring
156 - O-ring
158 - O-ring
162 - O-ring
180 - Allan head screw
183 - Allan head screw
184 - Allan head screw
185 - Allan head screw
188 - Allan head screw
193 - Compression spring, over pressure valve
195 - Ball
198 - Operating fluid drain screw
204 - Circlip
207 - Compression spring
208 - Washer
220 - Screw
250 - Compression spring
252 - Allan head screw

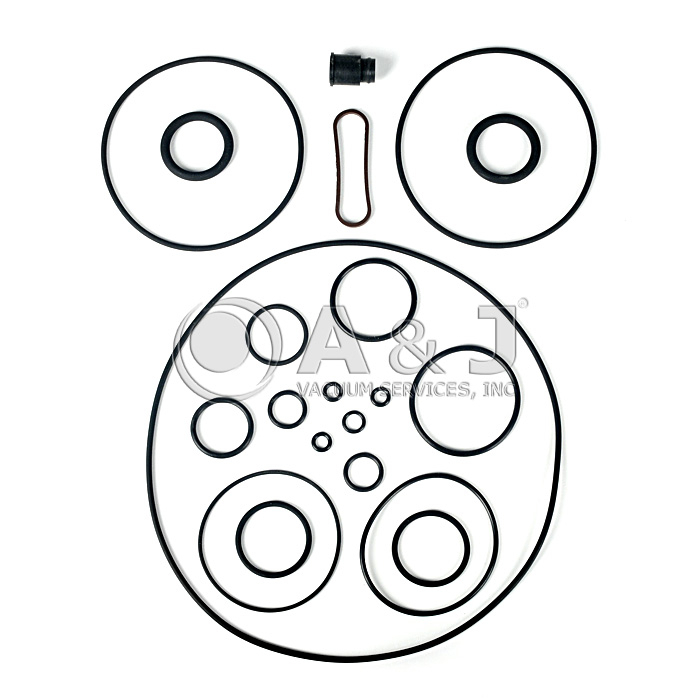

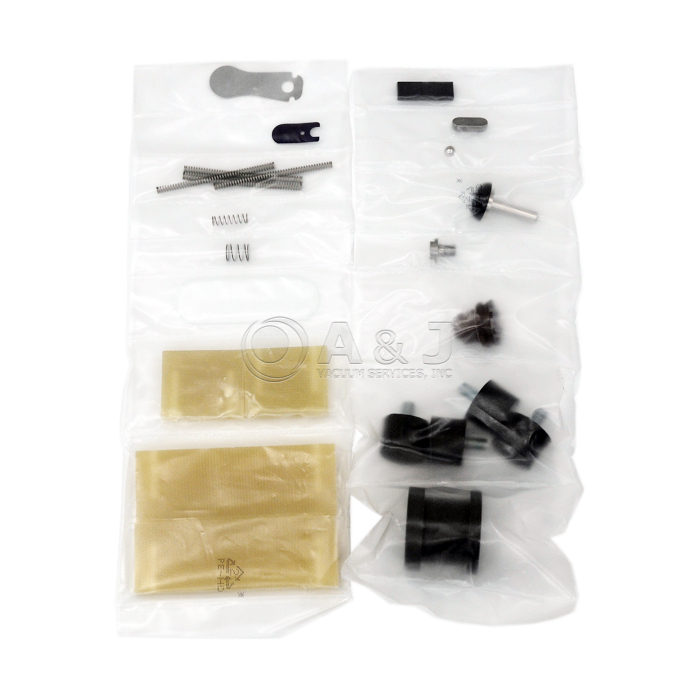

Pfeiffer Vacuum DUO 20 Seal kit PKE30008-AT, PK E30 008-AT Pfeiffer Vacuum DUO 20 Major overhaul kit PKE32011-T, PK E32 011-T
