- P/N 52613FR
- Meets or Exceeds OEM specifications
Shopping Cart ( )
Varian SD200 Major Repair / Rebuild Kit, 52613FR
Condition:
New
In Stock
Item#:PN19908
Mfr Part#:52613FR
Manufacturer:Varian
Features:
Varian SD 200 Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 52613FR
Overview:
Varian SD200, SD 200 Major Repair/Rebuild Kit includes everything needed for major overhauls on the Varian SD200 Rotary Vane Vacuum Pump.
A&J Vacuum also repair / rebuild and service all Varian Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.

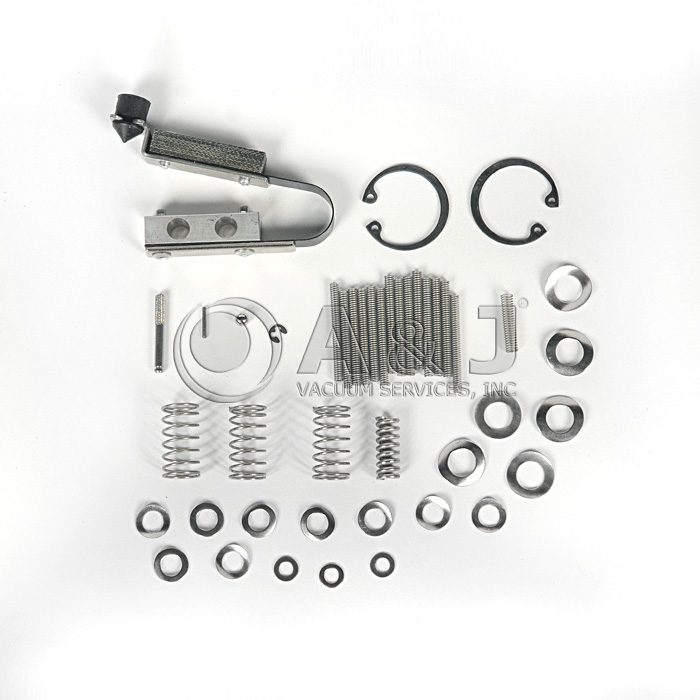

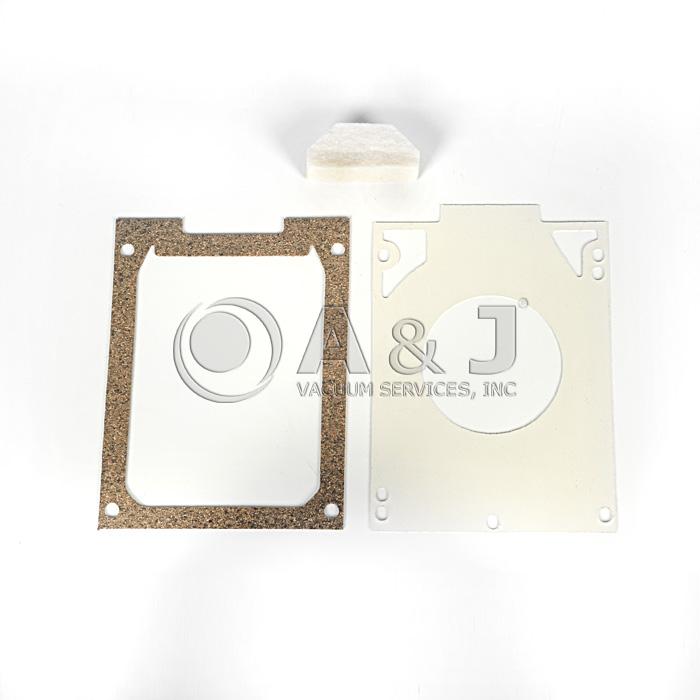

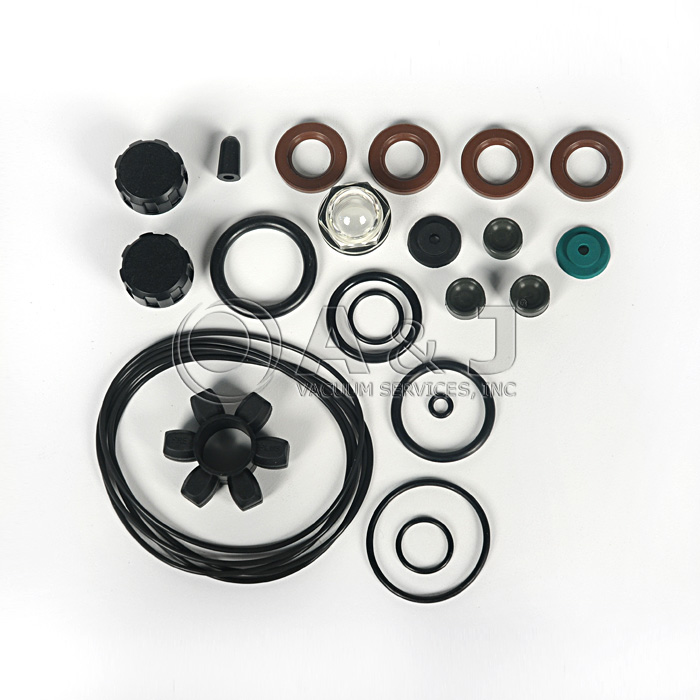

Varian SD-200 Major Repair/Rebuild Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
| ASB Lever | 52750 | 1 |
| Valve Spring | A52541 | 3 |
| Coupling | A52553 | 1 |
| Fan Plate Gasket | A52555 | 1 |
| Exhaust Clapper | A52557 | 1 |
| Gas Ballast Valve - Viton | A52562 | 1 |
| Gas Ballast Valve - Buna | A52562B | 1 |
| Gas Ballast Spring | A52563 | 1 |
| Ball Spring | A52564 | 1 |
| Exhaust Clapper | A52642 | 1 |
| Exhaust Valve | A52655 | 3 |
| Oil Case Gasket | A52755 | 1 |
| Felt Pad | A52990 | 1 |
| Vane Spring | A53040 | 6 |

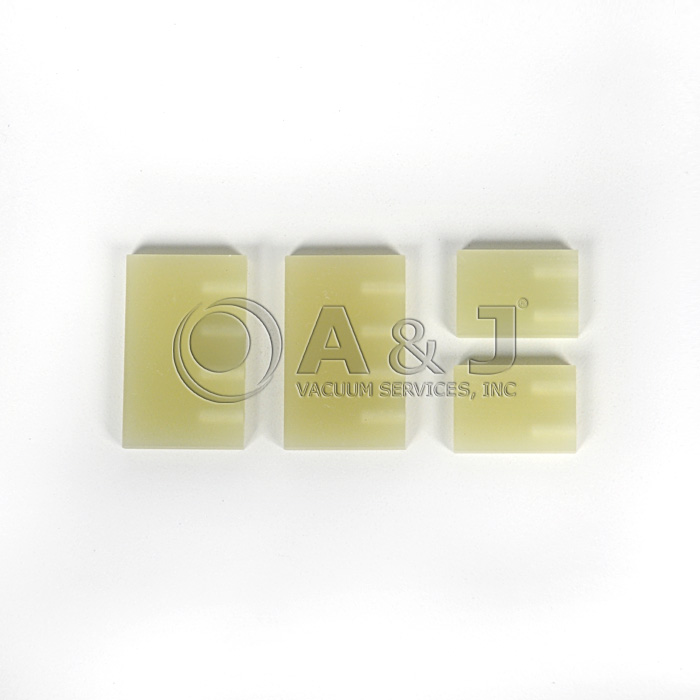

| 1st Stage Vane | A53106G | 2 |
| Pin | A71050 | 1 |
| Clip | A71161 | 1 |
| Nut | A71211 | 4 |
| Nut | A71214 | 3 |
| Flat Washer M4 | A73339 | 3 |
| Waved Washer M6 | A73454 | 9 |
| Waved Washer M8 | A73455 | 6 |
| Stage O-Ring | A79030 | 5 |
| O-Ring | A79238 | 1 |
| O-Ring | A82056 | 1 |
| Viton Shaft Seal | A82063 | 3 |
| Double Lip Viton Shaft Seal | A82063-01 | 1 |
| O-Ring | A82105 | 1 |
| O-Ring | A82120 | 1 |
| O-Ring | A82122 | 1 |
| Steel Ball | A82522 | 1 |
| Drain Plug | A82604 | 2 |
| Sight Glass | A83546 | 1 |
| Clip | A83653 | 2 |
| 2nd Stage Vane | A83946G | 2 |
| O-Ring | A84149 | 2 |
THERE ARE NO RETURNS ON THIS PRODUCT.
Varian SD 200 Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 52613FR
A&J Vacuum also repair / rebuild and service all Varian Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
