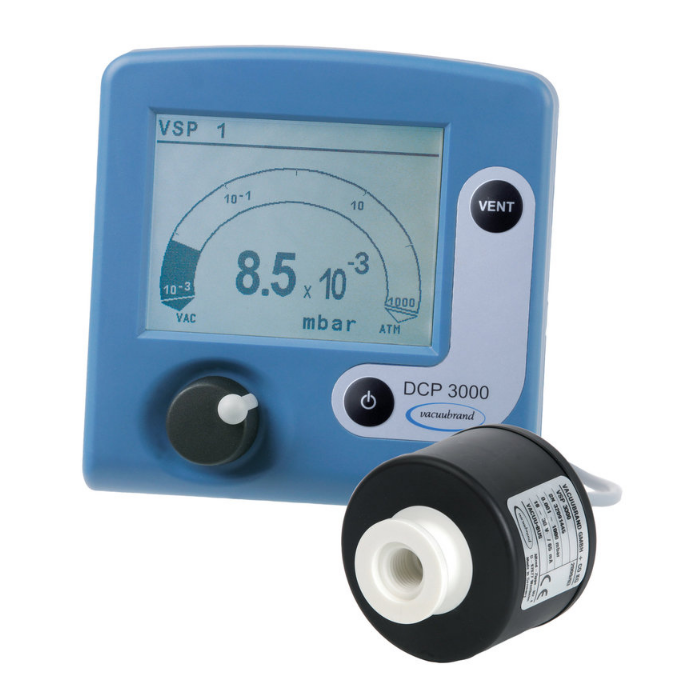

Vacuubrand DCP 3000 Vacuum Gauge with VSP 3000 Pirani Vacuum Sensor, 100-230V/50-60Hz, 20683190 / 683190
Condition:
New
Item#:PN19324
Mfr Part#:20683190 / 683190
Manufacturer:BRANDTECH / Vacuubrand
Features:
Vacuubrand DCP3000 Vacuum Gauge with VSP3000 Pirani Vacuum Sensor, 100-230V/50-60Hz, 683190, also known as Brandtech DCP 3000
Vacuubrand DCP3000 Overview:
The Vacuubrand DCP 3000 Vacuum Gauge is an outstanding product to be used for Rough and fine vacuum. A large and user friendly illuminated display shows the measured values of all vacuum sensors by a simple turn of a button.

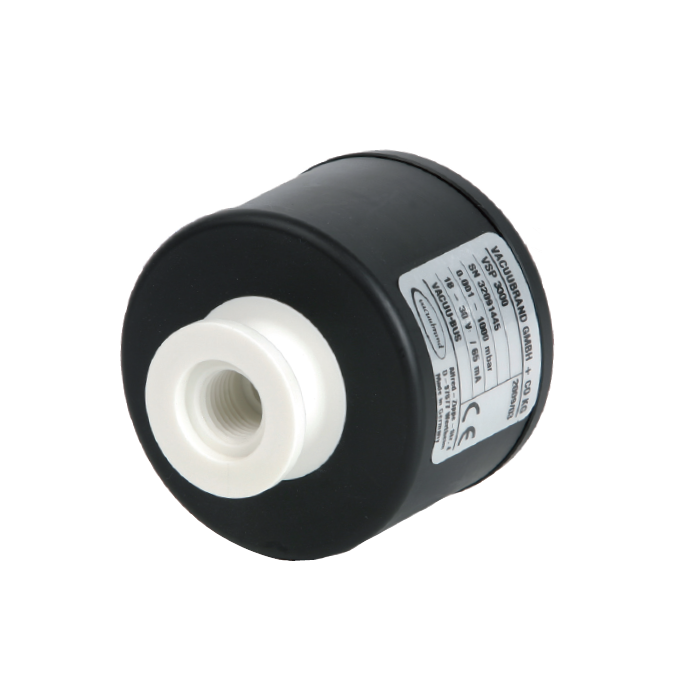

The Vacuubrand VSP 3000 (636163) Pirani vacuum sensor with unique ceramic diaphragm measures from atmospheric pressure down to 10-3 mbar. Vacuubrand VSK3000 sensor features a much better chemical resistance and ruggedness than conventional Pirani sensors with their fragile metallic spiral-wound filament.
Vacuubrand DCP 3000 offers simultaneous connection of up to eight vacuum sensors which alloes flexable measuring on the spot.
The DCP3000 is equipped with VACUU·BUS® (Digital Bus System) feature which allows the gauge to communicate with external components.
The Vacuubrand DCP 3000 / 683190 offers fully automatic configuration, unified plug connections and cable lenghts up to 30 meters
Vacuubrand DCP3000 Features:
- brand new rugged VSP 3000 vacuum sensor made of plastics and ceramics with high chemical resistance
- outstanding measuring accuracy, temperature and long term stability
- VSP 3000 with wide measurement range from atmospheric pressure to fine vacuum
- up to four gauge heads VSK 3000 (Atm. - 0.1 mbar) and four VSP 3000 (Atm. - 10-3 mbar) can be simultaneously connected
- for vacuum control from atmospheric pressure down to 10-3 mbar combine the CVC 3000 vacuum controller with gauge head VSP 3000 and vacuum solenoid valves of type VV-B. Suitable complete packages for fine vacuum control are available.
A&J Vacuum Services offers full repair/service of Vacuubrand , along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Vacuubrand DCP3000 Vacuum Gauge with VSP3000 Pirani Vacuum Sensor, 100-230V/50-60Hz, 683190, also known as Brandtech DCP 3000
Vacuubrand DCP3000 Technical Data:
| Technical data | Unit | Set DCP 3000 + VSP 3000 |
|---|---|---|
| Vacuum sensor | VSP 3000 | |
| Cable length of vacuum sensor | m | 2 |
| Upper measuring limit | mbar/torr | 1 x 103 / 7.5 x 102 |
| Lower measuring limit | mbar/torr | 1 x 10-3 / 1 x 10-3 |
| Measurement principle | Thermal conductivity (Pirani), chemically resistant plastics / ceramics | |
| Accuracy of measurement | +- 15% of indicated value in the range 0.01-10 mbar/hPa/torr | |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. media temp. for continuous operation / short times | °C | 40 / 80 |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Degree of protection | IP 20 | |
| Degree of protection of front side (also built-in version) | IP 42 | |
| Max. power for VACUU·BUS® (24V DC) | 4 A | |
| Cable length of external power supply | m | 2 |
| Interface | RS 232C | |
| Dimensions (L x W x H) | mm | 144 x 124 x 114 |
| Weight | kg | 0.44 |
| Items supplied | Vacuum gauge with external vacuum sensor VSP 3000, ready for operation, with wall-plug power supply and manual. |
A&J Vacuum Services offers full repair/service of Vacuubrand , along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
