- PN 636657
- Ceramic diaphragm (alumina)
- Ambient temperature range (operation) °C 10 - 40
- Ambient temperature range (storage) °C -10 - 60
Shopping Cart ( )

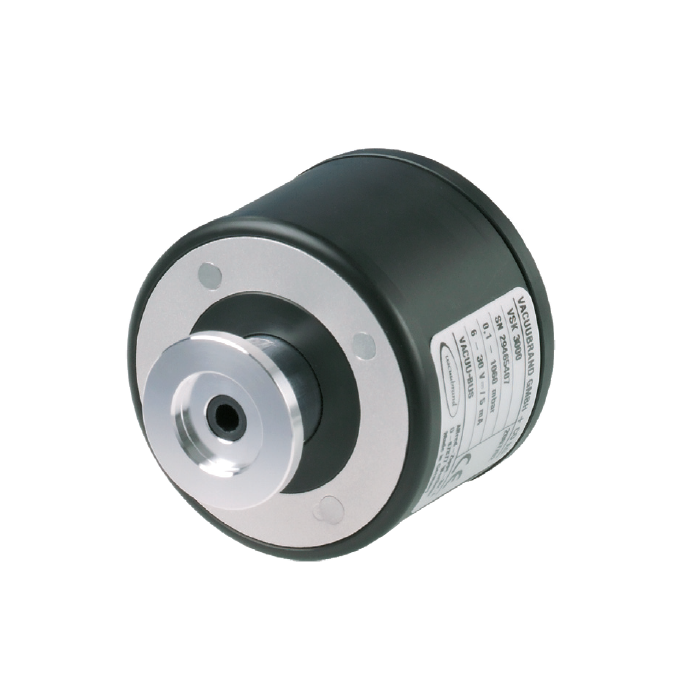

Vacuubrand VSK 3000 Capacitive gauge head, 636657 / 20636657
Condition:
Discontinued
Item#:PN18846
Mfr Part#:636657 / 20636657
Manufacturer:Vacuubrand
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Vacuubrand VSK 3000 Capacitive gauge head 636657 / 20636657, also known as Brandtech VSK3000
This product has been discontinued and replaced by PN24265 / 20640530
Vacuubrand VSK 300 Overview:
The Vacuubrand VSK 3000 vacuum sensor with ceramic diaphragm measures from atmospheric pressure down to 0.1 Mbar.
VSK300 displays absolute pressure independent of gas type, Vacuubrand VSK pirani gauge is very corrosion resistant and has an outstanding accuracy and long term stability.
VSK 300 ofers Simultaneous connection of up to eight vacuum sensors allows flexible measuring on the spot.
Vacuubrand VSK 300 Features:
- up to four gauge heads VSK 3000 (Atm. - 0.1 mbar) and four VSP 3000 (Atm. - 10-3 mbar) can be simultaneously connected
- VSK 3000 capacitive alumina ceramic diaphragm vacuum sensor with very high chemical resistance, offers gas-type independent absolute pressure measurement
- outstanding measuring accuracy, temperature and long term stability
- rugged, splash-water proof vacuum sensor, also for rough operating conditions
- relative pressure measurement option (VSK 3000) and data logger feature (up to 32,000 values, readout via RS 232C)
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Vacuubrand VSK 3000 Capacitive gauge head 636657, also known as Brandtech VSK3000
Vacuubrand VSK 300 Technical Data:
| Vacuum sensor | VSK 3000 | |
| Cable length of vacuum sensor | m | 2 |
| Upper measuring limit | mbar/torr | 1080 / 810 |
| Lower measuring limit | mbar/torr | 0.1 / 0.1 |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure | |
| Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) | |
| Temperature coefficient | < 0.07 mbar/hPa/0.05 torr /K | |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. media temp. for continuous operation / short times | °C | 40 / 80 |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Degree of protection | IP 20 | |
| Degree of protection of front side (also built-in version) | IP 42 | |
| Max. power for VACUU·BUS® (24V DC) | 4 A | |
| Cable length of external power supply | m | 2 |
| Interface | RS 232C | |
| Dimensions (L x W x H) | mm | 144 x 124 x 114 |
| Weight | kg | 0.44 |
| NRTL certification | Canada and the USA | |
| ATEX-approval | II 3/- G IIC T3 X Internal Atm. only |
