- PN721003 / 20721003
- Max. Pumping Speed at 50/60 Hz: 0.7 m3/h | 0.5 cfm
- Ultimate Vacuum (abs.): 100 mbar
- Perfect for Labs

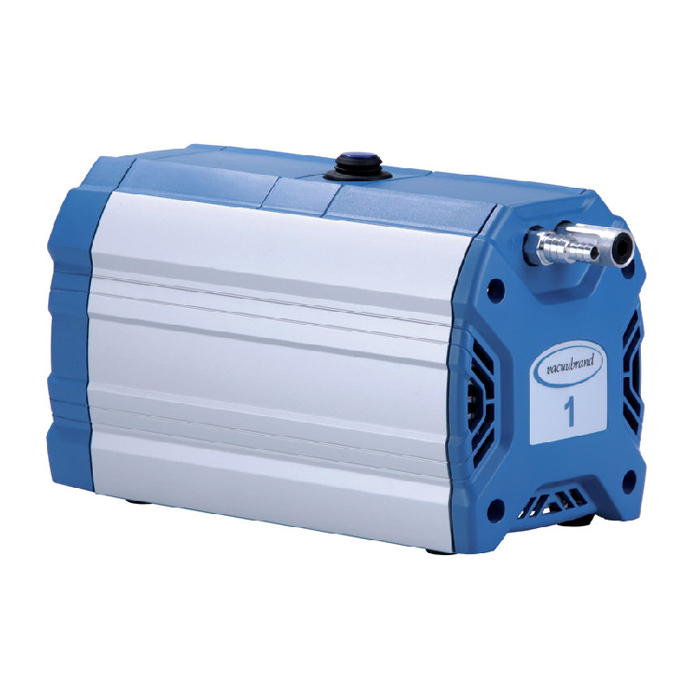

Vacuubrand ME 1 Diaphragm Pump, 100 - 120V / 50 - 60Hz, US Power Cord, 0.5 CFM, 100 mbar, 721003 / 20721003
Vacuubrand ME 1 Features:
- Whisper quiet
- Quick and simple to use
- Top mounted on/off button
- Ultra low vibration
- High chemical resistance
- Space saver
- Maintenance free drive system
ME 1 / 20721003 Overview:
Vacuubrand ME 1 Pump is very popular in many common applications used in chemistry, vacuum sample preperation, microbiology research, waste water control and many other analytical processes.
The newly designed Vacuubrand ME 1 pump offers high performance, light compact design, and easy to use solution which is ideal for vacuum filtrations.
This new development was based on succesful design of Vacuubrand MD 1 which provides well proven and long diaphragm life time. ME1 is very quiet and is designed with the thought of laboratory use and space saving in every lab.
Vacuubrand ME 1 is also available in a chemical corrosion resistant version.
ME1 Scope of Delivery:
- Pump completely mounted
- Manual
ME1 Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand ME 1 Diaphragm Pump, 100 - 120V / 50 - 60Hz, US Power Cord, 0.5 CFM, 100 mbar, 721003 / 20721003
Vacuubrand ME 1 Technical Data:

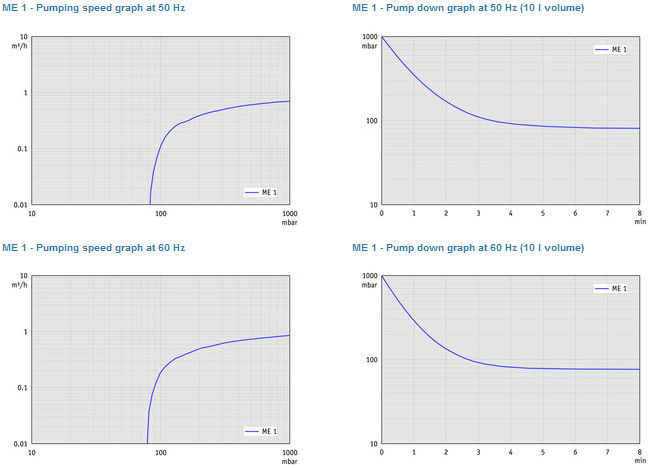

- Max. pumping speed 50 Hz: 0.7 m3/h
- Max. pumping speed 60 Hz: 0.5 cfm
- Ultimate vacuum: 100 mbar / 75 torr
- Number of heads: 1
- Number of stages: 1
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: Silencer / G1/8"
- Rated motor power: 0.04 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min-1
- Protection class IEC 60529: IP 40

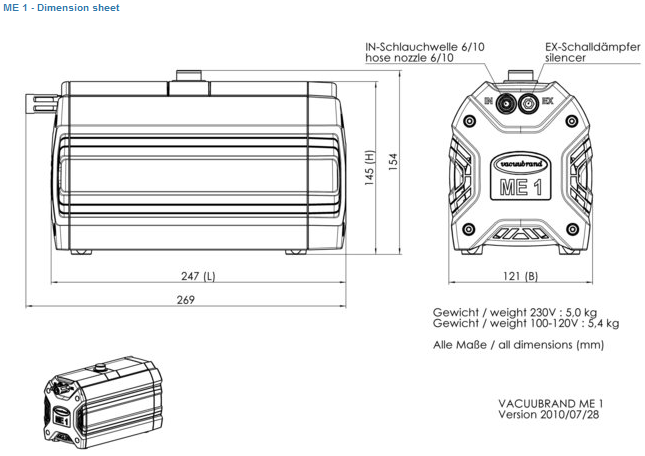

- Dimension L in mm: 270 mm
- Dimension B in mm: 121 mm
- Dimension H in mm: 155 mm
- Weight: 5.4 kg | 12 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 49 dBA
- NRTL certification: Yes
- Rated mains voltage range 1: 100-115 V
- Rated mains voltage range 2: 120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 60 Hz
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand ME1 ME1C MZ 1C Diaphragm Pump Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Vacuubrand ME 1 Diaphragm Pump, 100 - 120V / 50 - 60Hz, US Power Cord, 0.5 CFM, 100 mbar, 721003 / 20721003
Vacuubrand ME 1 Features:
- Whisper quiet
- Quick and simple to use
- Top mounted on/off button
- Ultra low vibration
- High chemical resistance
- Space saver
- Maintenance free drive system
ME 1 / 20721003 Overview:
Vacuubrand ME 1 Pump is very popular in many common applications used in chemistry, vacuum sample preperation, microbiology research, waste water control and many other analytical processes.
The newly designed Vacuubrand ME 1 pump offers high performance, light compact design, and easy to use solution which is ideal for vacuum filtrations.
This new development was based on succesful design of Vacuubrand MD 1 which provides well proven and long diaphragm life time. ME1 is very quiet and is designed with the thought of laboratory use and space saving in every lab.
Vacuubrand ME 1 is also available in a chemical corrosion resistant version.
ME1 Scope of Delivery:
- Pump completely mounted
- Manual
ME1 Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Specifications
Vacuubrand ME 1 Diaphragm Pump, 100 - 120V / 50 - 60Hz, US Power Cord, 0.5 CFM, 100 mbar, 721003 / 20721003
Vacuubrand ME 1 Technical Data:

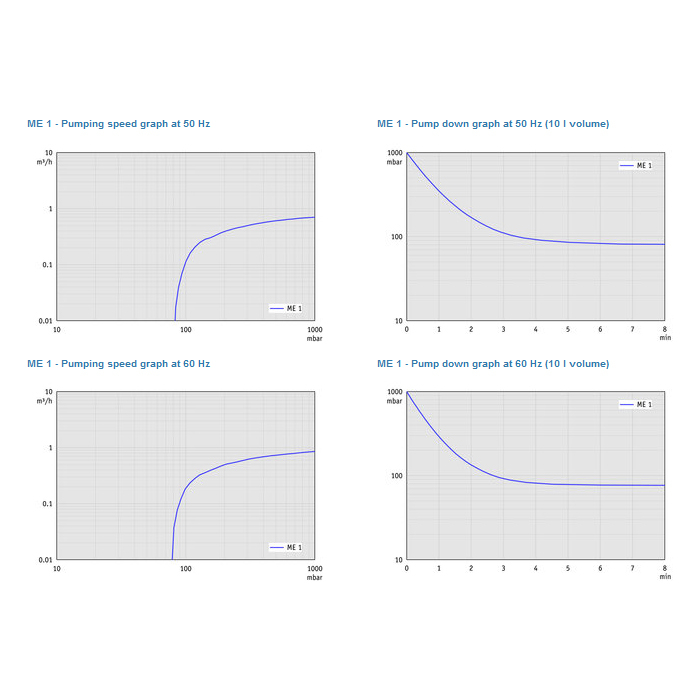

- Max. pumping speed 50 Hz: 0.7 m3/h
- Max. pumping speed 60 Hz: 0.5 cfm
- Ultimate vacuum: 100 mbar / 75 torr
- Number of heads: 1
- Number of stages: 1
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: Silencer / G1/8"
- Rated motor power: 0.04 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min-1
- Protection class IEC 60529: IP 40

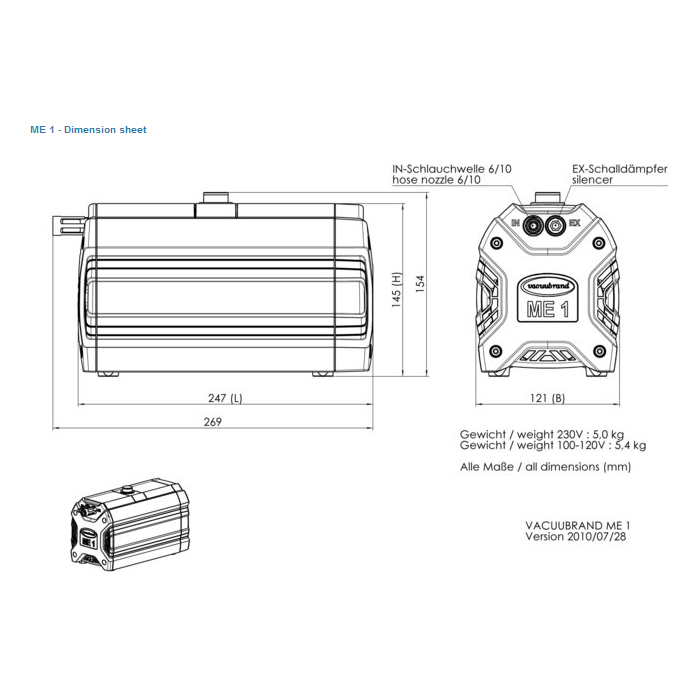

- Dimension L in mm: 270 mm
- Dimension B in mm: 121 mm
- Dimension H in mm: 155 mm
- Weight: 5.4 kg | 12 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 49 dBA
- NRTL certification: Yes
- Rated mains voltage range 1: 100-115 V
- Rated mains voltage range 2: 120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 60 Hz
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Service & Repair
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
