- PN 20741003
- Max. Pumping Speed at 50/60 Hz: 16.4 m3/h | 9.6 CFM
- Ultimate Vacuum (abs.): 70 mbar
- Simple to Use
Shopping Cart ( )
Vacuubrand ME 16 NT Diaphragm Pump, 120V / 50 - 60Hz, US Power Cord, 9.6 CFM, 70 mbar, 741003 / 20741003
Condition:
New
Item#:PN19554
Mfr Part#:741003 / 20741003
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Vacuubrand ME 16 NT Diaphragm Pump, 120V / 50 - 60Hz, US Power Cord, 9.6 CFM, 70 mbar, 741003 / 20741003
Vacuubrand ME 16 NT Features:
- Super quiet
- Ultra low vibration
- High chemical resistance
- Space saver
- Simple to use
- Maintenance free drive system
ME 16 NT / 20741003 Overview:
Vacuubrand ME 16C NT is the one stage chemical resistant version diaphragm pump with excellent performance and continuous dry vacuum pumping of gases and vapors at low vacuum requirement.
ME 16C NT New Technology pumps are ideal for pumping vacuum ovens, several vacuum manifolds, filtration process. One stage design provides the combination of low ultimate vacuum and high pumping speed.
ME 16C NT provides a particularly high performance together with a compact design. Accessories such as inlet separator (AK) for protection of the pump and exhaust vapor condenser (EK) for solvent recovery can be mounted on this pump later, if the need arises. Eight-cylinder NT pumps feature quiet operation, smooth and easy to clean surfaces.
ME16NT Scope of Delivery:
- Pump completely mounted
- Manual
ME16NT Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Vacuubrand ME 16 NT Diaphragm Pump, 120V / 50 - 60Hz, US Power Cord, 9.6 CFM, 70 mbar, 741003 / 20741003

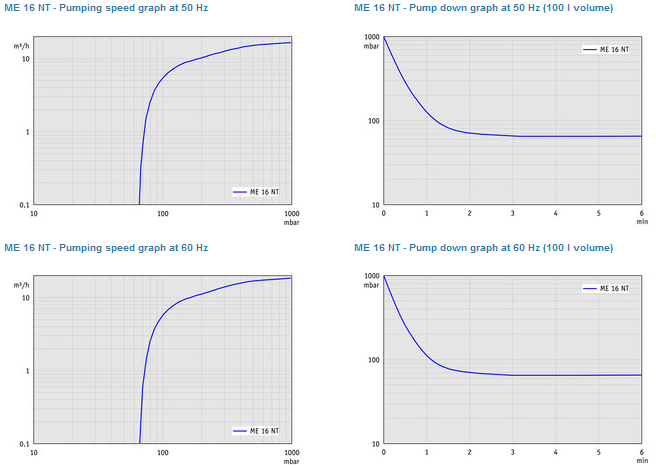

Vacuubrand ME 16 NT Technical Data:
- Max. pumping speed 50 Hz: 16.4 m3/h
- Max. pumping speed 60 Hz: 9.6 cfm
- Ultimate vacuum: 70 mbar / 53 torr
- Number of heads: 8
- Number of stages: 1
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: small flange KF DN 25
- Outlet connection: G1/2"
- Rated motor power: 0.53 kW
- Rated motor speed at 50/60 Hz: 1650 min-1
- Protection class IEC 60529: IP 40
- Dimension L in mm: 554 mm
- Dimension B in mm: 260 mm
- Dimension H in mm: 359 mm
- Weight: 30.3 kg | 69 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 54 dBA
- NRTL certification: No
- Rated mains voltage range 1: 120 V
- Mains frequency 1: 50-60 Hz
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand ME16NT MD12NT MV10NT Diaphragm Pump Operation Manual
Vacuubrand ME16 MD8 MD12 MV10 Diaphragm Pump Instruction Manual ME 16, MD 8, MD 12, MV 10
Vacuubrand ME16NT Manual
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
