Busch R5 Series RA 0025B and RA 0040B Rotary Vane Pump Gasket Kit, BGK003B
Condition:
New
In Stock
Item#:PN10478
Mfr Part#:BGK003B
Manufacturer:Busch
Features:
Busch R5 Series RA 0025B and RA 0040B Rotary Vane Vacuum Pump Gasket Kit, BGK003B
The robustness and operational reliability of oil-lubricated R5 rotary vane vacuum pumps have long made them the industry standard. BGK 003B
Rotary vane technology has been continuously developed and optimized by Busch over the decades, with the emphasis on operational reliability and efficiency. R5 rotary vane vacuum pumps are known throughout the industry for their modern and energy-efficient vacuum generation, in a wide range of applications. Whether for intermittent or continuous use, you can rely on the R5.
These compact R5 vacuum pumps owe their robustness to proven rotary vane technology with recirculating oil lubrication. This guarantees a consistently high vacuum level which can cope with the toughest operating conditions. When fitted with a gas-ballast valve (optional), vapors can be pumped without condensation.

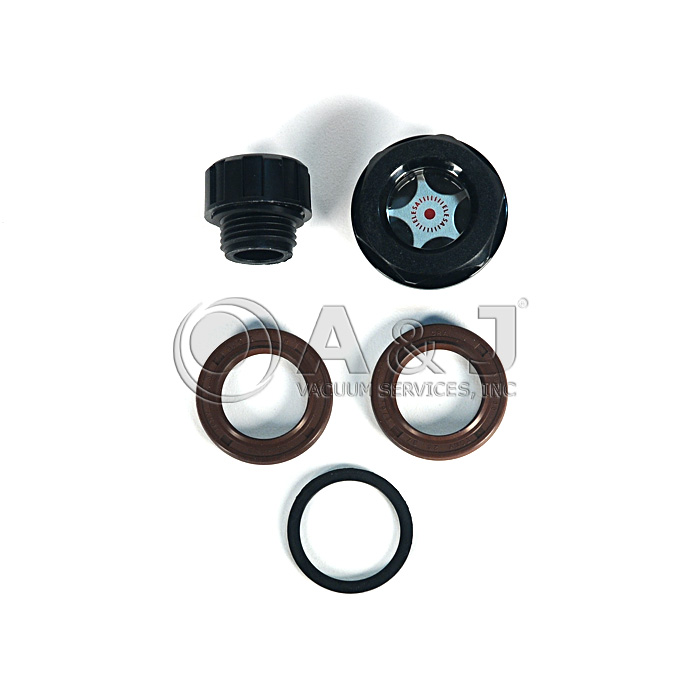

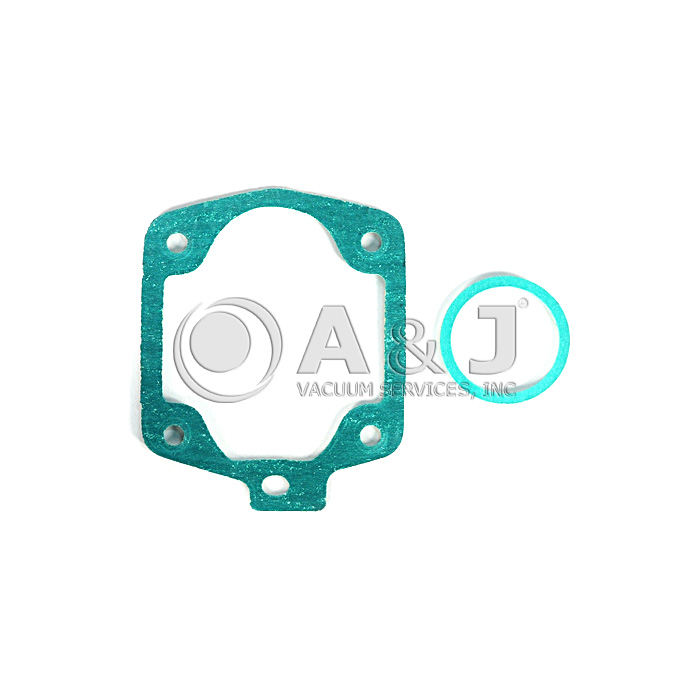

Busch BGK003B Gasket Kit Components:
| Description | Part number | QTY |
| Gasket Exhaust | 48010500 | 1 |
| Gasket Oil Fill Plug | 48202000 | 1 |
| Gasket Oil Sight Glass | 48023100 | 1 |
| Gasket Ring | 48401700 | 1 |
| Gasket Ring | 48403400 | 1 |
| Gasket Ring Copper | 48402900 | 1 |
| Gasket Ring | 48406200 | 1 |
| Plug Oil Drain, 1/2" Nylon | 710000010 | 1 |
| Sight Glass Gasket 3/4" BSP | 550045 | 1 |
| Screen Inlet | 53400900 | 1 |
| O Ring Viton 108 X 3 MM | 48653700 | 1 |
| O Ring Viton 22 X 2 MM | 48650500 | 1 |
| O Ring Viton 35 X 4 MM | 48651200 | 1 |
| O Ring Viton 44 X 3 MM | 48655900 | 1 |
| O Ring Viton 45 X 2.5 MM | 48651600 | 1 |
| O Ring Viton 55 X 3 MM | 48652100 | 1 |
| O Ring Viton 65 X 3 MM | 48652600 | 1 |
| Seal Shaft Viton | 48700500 | 1 |
| Sight Glass 206 OC | 83623 | 1 |
THERE ARE NO RETURNS ON THIS PRODUCT.
Busch R5 Series RA 0025B and RA 0040B Rotary Vane Vacuum Pump Gasket Kit, BGK003B
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
