Busch R5 Series RB 0012B and RB 0021B Rotary Vane Vacuum Pump Overhaul Kit, BMK004
The robustness and operational reliability of oil-lubricated R5 rotary vane vacuum pumps have long made them the industry standard. BMK 004
Rotary vane technology has been continuously developed and optimized by Busch over the decades, with the emphasis on operational reliability and efficiency. R5 rotary vane vacuum pumps are known throughout the industry for their modern and energy-efficient vacuum generation, in a wide range of applications. Whether for intermittent or continuous use, you can rely on the R5.
These compact R5 vacuum pumps owe their robustness to proven rotary vane technology with recirculating oil lubrication. This guarantees a consistently high vacuum level which can cope with the toughest operating conditions. When fitted with a gas-ballast valve (optional), vapors can be pumped without condensation.

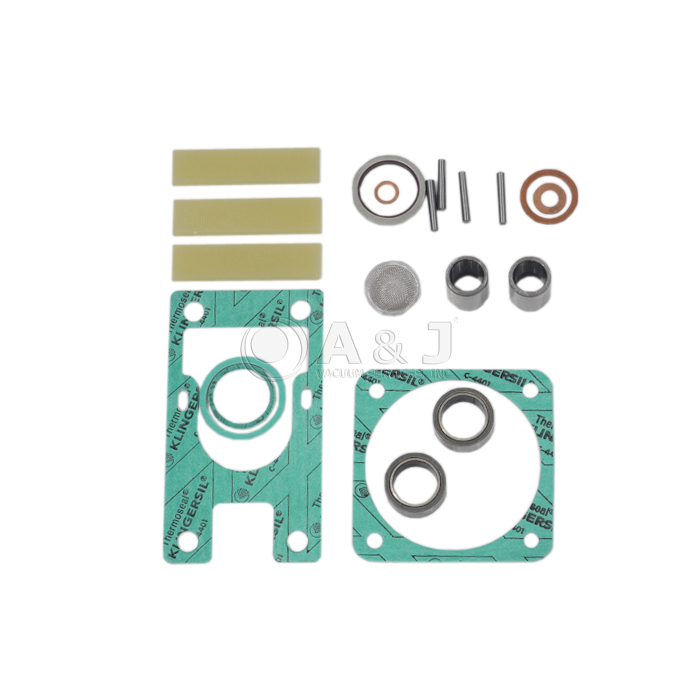

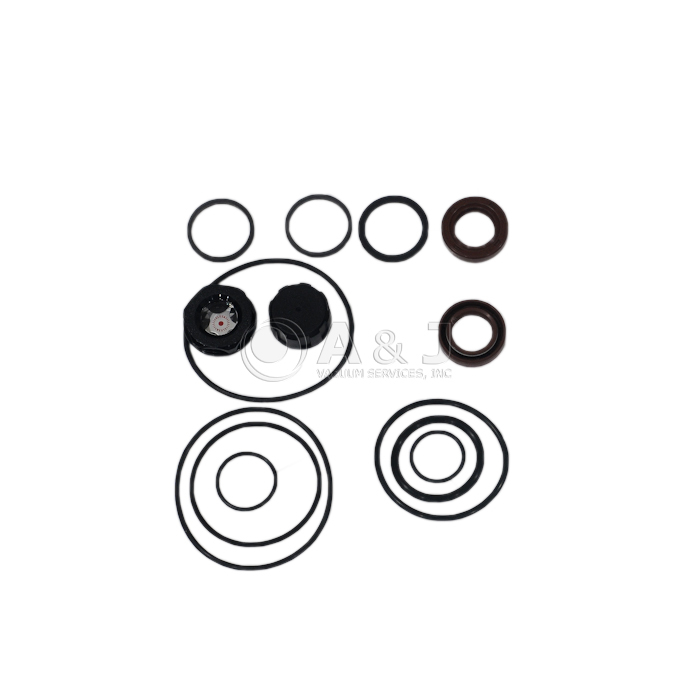

Busch BMK004 Overhaul Kit Components:
| Description | Part number | QTY |
| Assy Bearing Teflon | 947501331 | 2 |
| Bearing Sleeve | 472105768 | 2 |
| Gasket Cylinder | 48011200 | 1 |
| Gasket Exhaust | 48010400 | 1 |
| Gasket Oil Fill Plug | 48202000 | 1 |
| Gasket Oil Sight Glass | 48023100 | 1 |
| Gasket Ring | 48401700 | 1 |
| Gasket Ring | 48403400 | 1 |
| Sight Glass Gasket 27 x 32 x 2 (G 3/4) | 48027100 | 1 |
| Plug Oil Drain, 1/2" Nylon | 710000010 | 1 |
| Oil Sight Glass 3/4" BSP | 550045 | 1 |
| PIN Taper | 43700100 | 4 |
| Strainer Baffle | 53702300 | 1 |
| Screen Inlet | 53405600 | 1 |
| O Ring Viton 22 X 2 MM | 48650500 |
1 |
| O Ring Viton 35 X 4 MM | 48651200 |
1 |
| O Ring Viton 72 X 2.5 MM | 48656400 |
2 |
| O Ring Viton 25 X 2 MM | 48656100 | 1 |
| O Ring Viton 56 X 2.5 MM | 48663500 | 1 |
| O Ring Viton 55 X 3 MM | 48652100 | 1 |
| Ring Support | 71071000 | 2 |
| Seal Shaft Viton | 48700200 | 2 |
| Seal Dowty Viton 27X | 484130591 | 1 |
| Vane GX 1ST Stage, RHO | 71030100 | 3 |
THERE ARE NO RETURNS ON THIS PRODUCT.
Busch R5 Series RB 0012B and RB 0021B Rotary Vane Vacuum Pump Overhaul Kit, BMK004
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
