- Edwards Maintenance Kit
- for Edwards E2M8 Vacuum Pump
- High Quality Parts
- PN 36201800ED
Shopping Cart ( )
Edwards, Maintenance Kit for Edwards E2M8 Vacuum Pump, PN 36201800ED
Condition:
New
In Stock
Item#:PN01494
Mfr Part#:36201800ED
Manufacturer:Edwards Vacuum
Features:
Edwards, Maintenance Kit for Edwards E2M8 Vacuum Pump, PN 36201800E
Overview

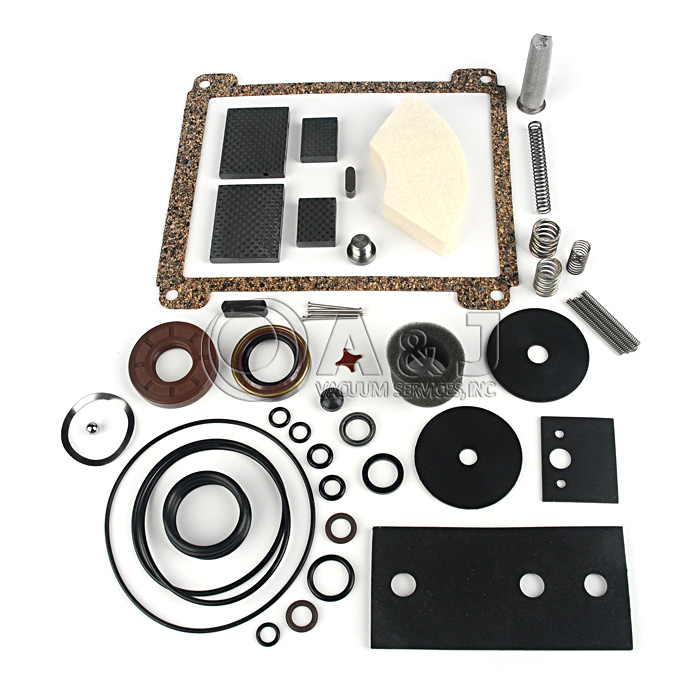

The Edwards Vacuum E2M8 Major Maintenance Kit includes everything needed for maintenance overhauls on the Edwards Vacuum E2M8 Rotary Vane Vacuum Pump.
Edwards Vacuum E2M8 Maintenance Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
|
Drain Plug |
E00714012 |
1 |
|
Filter Seal |
E00906042 |
1 |
|
Vane Spring |
E00906077 |
4 |
|
Dowty Seal |
E02104001 |
1 |
|
Viton Shaft Seal |
E02109066 |
1 |
|
Viton Shaft Seal |
E02109067 |
1 |
|
O-Ring |
E02120004 |
3 |
|
O-Ring |
E02120028 |
2 |
|
O-Ring |
E02120041 |
1 |
|
O-Ring |
E02120077 |
2 |
|
O-Ring |
E02124086 |
1 |
|
O-Ring |
E02125013 |
1 |
|
O-Ring |
E02125026 |
3 |
|
O-Ring |
E02126116 |
2 |
|
Ballast Valve |
E11301045 |
1 |
|
2nd Stage Vane |
E20402079G |
2 |
|
1st Stage Vane |
E20402085G |
2 |
|
Oil Pump Vane |
E20402158G |
1 |
|
Steel Ball |
E20414003 |
1 |
|
Waved Washer |
E218990201 |
1 |
|
Felt Pad |
E22302013 |
1 |
|
Oil Filter |
E22305003 |
1 |
|
Key |
E24301010 |
1 |
|
Ballast Filter |
E25907200 |
1 |
|
Button Valve |
E26501017 |
1 |
|
Ballast Spring |
E27102010 |
1 |
|
Valve Spring LV |
E27102016 |
1 |
|
Valve Spring HV |
E27102029 |
1 |
|
Distributor Spring |
E27102032 |
1 |
|
Distributor Rubber |
E27159414 |
1 |
|
Valve Rubber |
E27159417 |
1 |
|
Distributor Rubber |
E27159440 |
1 |
|
Oil Case Gasket |
E27159616 |
1 |
|
Spring Pin |
E29203003 |
4 |
A&J Vacuum Service, Inc. repairs/rebuilds and services all Edwards E2M Series Vacuum Pumps, including E2M 2, E2M 5, E2M 8, E2M 12 Rotary Vane Pumps. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards, Maintenance Kit for Edwards E2M8 Vacuum Pump, PN 36201800E
Overview
The Edwards Vacuum E2M8 Major Maintenance Kit includes everything needed for maintenance overhauls on the Edwards Vacuum E2M8 Rotary Vane Vacuum Pump.
Edwards Vacuum E2M8 Maintenance Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
|
Drain Plug |
E00714012 |
1 |
|
Filter Seal |
E00906042 |
1 |
|
Vane Spring |
E00906077 |
4 |
|
Dowty Seal |
E02104001 |
1 |
|
Viton Shaft Seal |
E02109066 |
1 |
|
Viton Shaft Seal |
E02109067 |
1 |
|
O-Ring |
E02120004 |
3 |
|
O-Ring |
E02120028 |
2 |
|
O-Ring |
E02120041 |
1 |
|
O-Ring |
E02120077 |
2 |
|
O-Ring |
E02124086 |
1 |
|
O-Ring |
E02125013 |
1 |
|
O-Ring |
E02125026 |
3 |
|
O-Ring |
E02126116 |
2 |
|
Ballast Valve |
E11301045 |
1 |
|
2nd Stage Vane |
E20402079G |
2 |
|
1st Stage Vane |
E20402085G |
2 |
|
Oil Pump Vane |
E20402158G |
1 |
|
Steel Ball |
E20414003 |
1 |
|
Waved Washer |
E218990201 |
1 |
|
Felt Pad |
E22302013 |
1 |
|
Oil Filter |
E22305003 |
1 |
|
Key |
E24301010 |
1 |
|
Ballast Filter |
E25907200 |
1 |
|
Button Valve |
E26501017 |
1 |
|
Ballast Spring |
E27102010 |
1 |
|
Valve Spring LV |
E27102016 |
1 |
|
Valve Spring HV |
E27102029 |
1 |
|
Distributor Spring |
E27102032 |
1 |
|
Distributor Rubber |
E27159414 |
1 |
|
Valve Rubber |
E27159417 |
1 |
|
Distributor Rubber |
E27159440 |
1 |
|
Oil Case Gasket |
E27159616 |
1 |
|
Spring Pin |
E29203003 |
4 |
A&J Vacuum Service, Inc. repairs/rebuilds and services all Edwards E2M Series Vacuum Pumps, including E2M 2, E2M 5, E2M 8, E2M 12 Rotary Vane Pumps. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
