Stokes 013 Major Repair Kit
Condition:
New
Item#:PN01569
Mfr Part#:4240771KIT
Manufacturer:Stokes
Features:

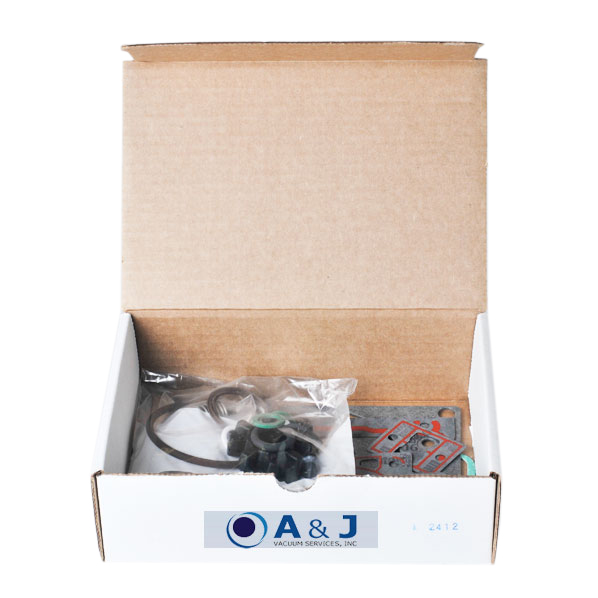

Stokes 013 Major Kit
This is a repair kit for Stokes 013. We also do minor and major repairs for all Stokes Rotary Vane Vacuum Pumps.
Stokes 013 Major Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
| Bearing End | 428-217-001 | 1 |
| Bushing, Front plate | 428219001 | 2 |
| Coupling Spider, L-075 | 085039449 | 1 |
| Gasket Case | 4279502 | 1 |
| Key Steel, 3/4" x 3/16" | 427649001 | 1 |
| Ball Steel | 01855 | 1 |
| O-ring Viton 19.05 x 3.53mm | 085039252 | 1 |
| O-ring Viton 41.28 x 2.62mm | 085039189 | 1 |
| O-ring Viton 41.28 x 5.33mm | 085039191 | 1 |
| O-ring Viton 644 x .087" | 085037672 | 2 |
| O-ring Viton I-I3/I6 id x 3/32" | 085018635 | 1 |
| O-ring Viton 12.70 x 2.62mm | 085027613 | 1 |
| O-ring Viton 26.64 X 2.62 MM | 085040204 | 1 |
| PIN Gerotor Drive | 427-647-002 | 1 |
| Seal Lip Oil | 085039187 | 1 |
| Seal Shaft Lip Viton | 085039263 | 1 |
| Compression Spring SS | 085-040-224 | 1 |
| Compression Spring S/S | 085039272 | 1 |
| Compression Spring S/S | 085039280 | 6 |
| Spring Exhaust valve | 429314001 | 4 |
| Valve Exhaust | 429345001 | 4 |
| Valve Gas ballast Disc Teflon | 427716001 | 1 |
| Valve Rubber Anti Suck Back | 429925001 | 1 |
| Vane GX 1ST Stage | 427605IG | 2 |
| Vane GX 2ND Stage | 427606IG | 2 |
THERE ARE NO RETURNS ON THIS PRODUCT.
This item is non-returnable/non-refundable
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
