- PN 36301131
- Oustanding Quality
- Clean & Overhaul Kit
- E1M18, E2M18
Shopping Cart ( )
Edwards E1M18, E2M18 Rotary Vane Vacuum Pump Clean & Overhaul Kit, 36301131
Condition:
New
In Stock
Item#:PN07275
Mfr Part#:36301131
Manufacturer:Edwards Vacuum
Features:
Edwards E1M18, E2M18 Rotary Vane Vacuum Pump Clean & Overhaul Kit, 36301131
E1M18, E2M18 Clean & Overhaul Kit / 36301131 Overview:
The New Edwards Vacuum E1M18, E2M18 Rotary Vane Vacuum Pump Kit includes everything needed for major overhauls on the Edwards Vacuum E1M18, E2M18 Rotary Vane Vacuum Pump.

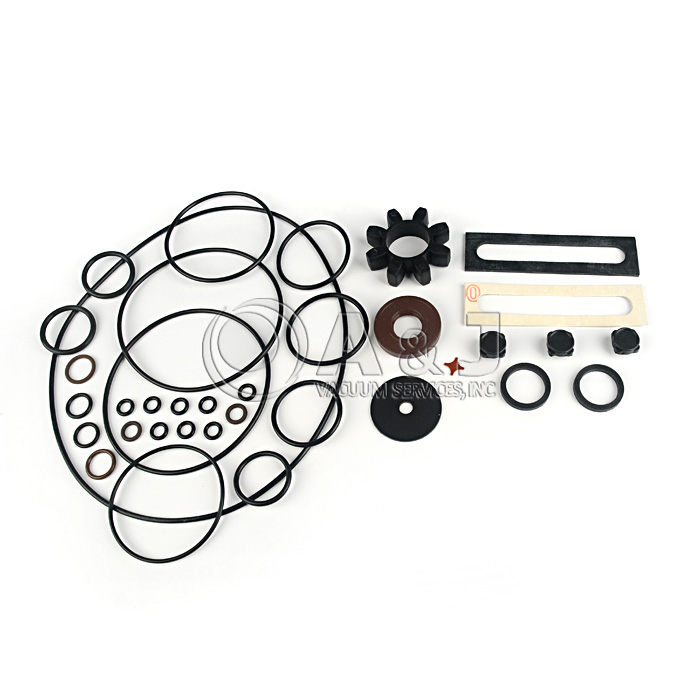

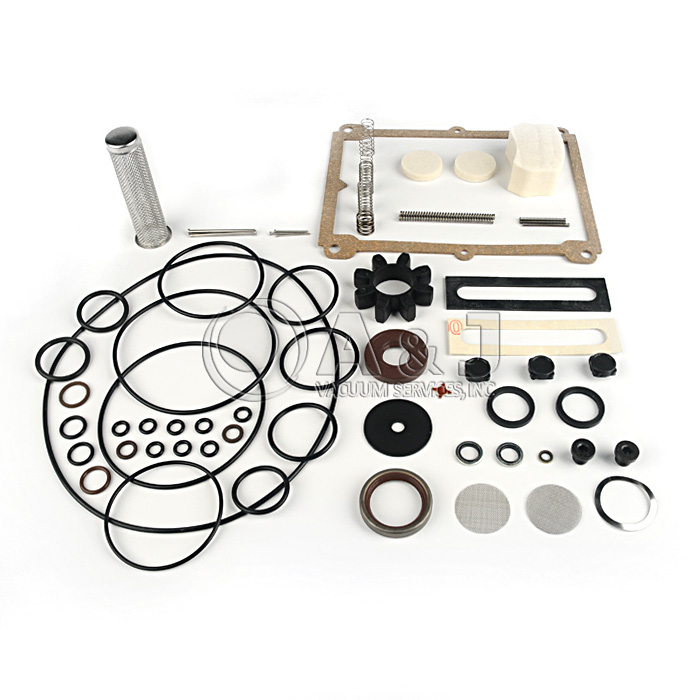

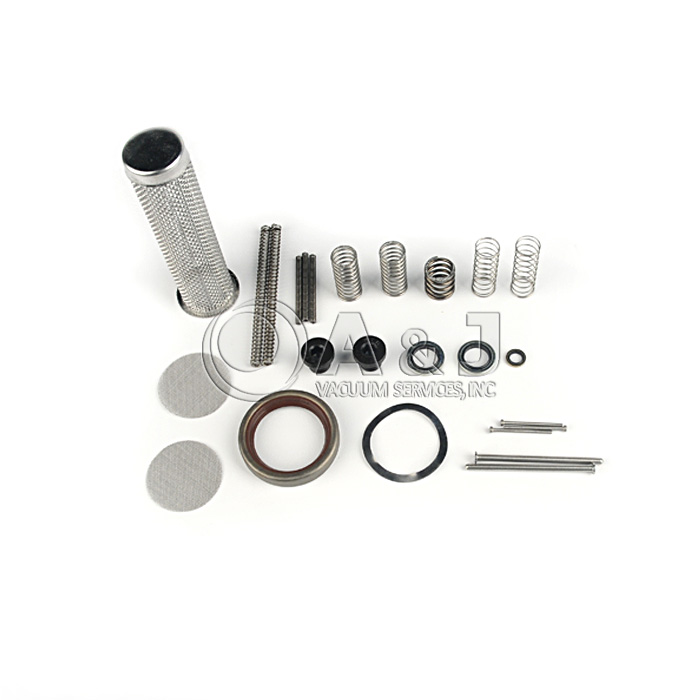

Edwards Vacuum PN 36301131 / E1M18, E2M18 Clean & Overhaul Kit contains the following parts (Quantity -- Description -- Part Number):
- 1 -- O-ring, 15.6 x 2.4 mm - Viton -- 02120037
- 1 -- O-ring, 61.6 x 2.4 mm - Buna -- 02120057
- 1 -- O-ring, 27.5 X 3 mm - Buna -- 02120067
- 1 -- O-ring, 35.5 X 3 mm - Buna -- 02120072
- 2 -- O-ring, 44.5 X 3 mm - Buna -- 02120078
- 2 -- O-ring, 99.5 x 3 mm - Buna -- 02120089

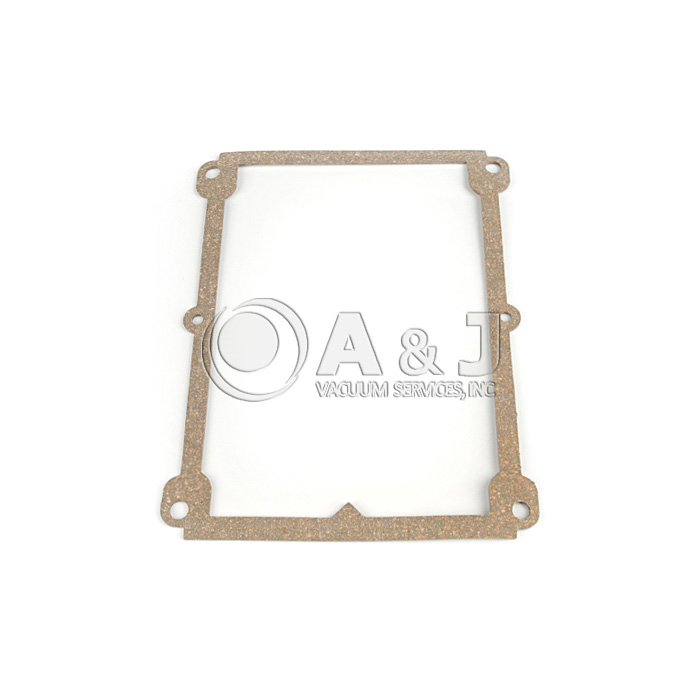

- 1 -- Oil Box Gasket, Edwards, E1/E2M -- 27159635
- 2 -- Spring Pin, Edwards, E1/E2M, E1M18, E2M18 -- 29203002
- 2 -- O-ring, 28.17 x 3.53 mm - Viton -- 02125026
- 3 -- Spring, Stainless Steel, Edwards, E1/E2M -- 00906077
- 2 -- Plug Oil Drain Steel, Edwards, E1/E2M -- 00714012
- 3 -- Blade Spring Pin, Edwards, E1/E2M -- 29203003
- 1 -- Distributor Spring - Edwards, E1/E2M -- 27102032
- 1 -- O-ring, 69.5 x 3 mm - Viton -- 02122083
- 1 -- Plug, Oil Drain, RV pump, Edwards, Pfeiffer -- 25908119
- 1 -- O-ring, 15.3 x 2.4 mm - Viton -- 02122037
- 1 -- Filter Assembly E2M 18/28 -- A22305008
- 2 -- Oil Filter Seal -- A01403030
- 2 -- Valve Spring, E1/E2M -- 27102033
- 1 -- O-ring, 13.6 x 2.4 mm - Viton -- 02120035
- 8 -- O-ring, 6.6 x 2.4 mm - Buna -- 02120028
- 2 -- Shaft Seal, Edwards, E1/E2M -- 02109067
- 1 -- Edwards Shaft Seal, Viton -- 02109064
- 1 -- Dowty Seal-Edwards E1/E2M -- 02104012
- 2 -- Dowty Seal, Edwards, E1/E2M -- 02104001
- 1 -- O-ring, 194.5 x 3 mm - Viton -- 02122108
- 2 -- O-ring, 7.59 x 2.62 mm - Viton -- 02126116
- 2 -- Gas Ballast Filter-Edwards E1/E2M -- 02308043
- 2 -- Gas Ballast Filter-Edwards E1/E2M -- 02308044
- 1 -- Waved Washer -- 218990201

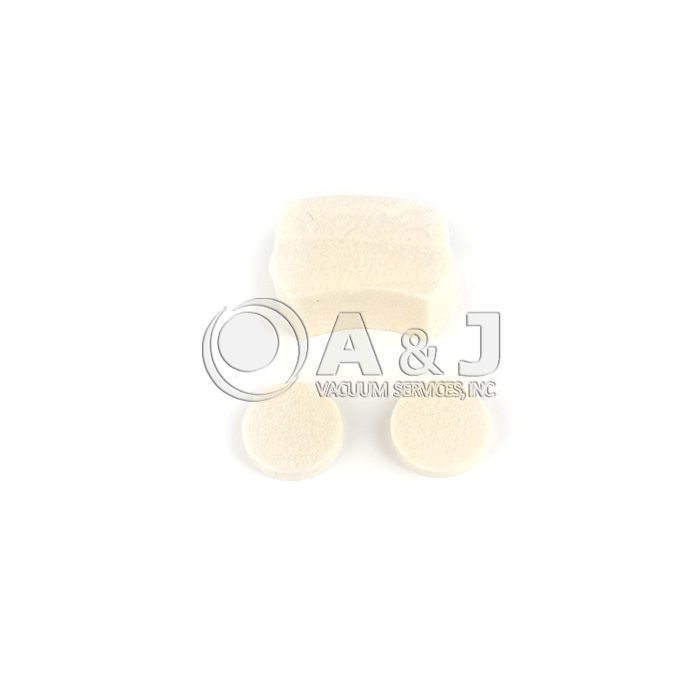

- 1 -- Felt Pad, Edwards, E1/E2M, E1M18, E2M18, E2M28, E2M30 -- 22302017
- 3 -- Valve Pad, Edwards, E1/E2M -- 26501029
- 1 -- Coupling Element, Edwards, Welch, E1/E2M, CRVpro -- 26501032
- 2 -- Exhaust Valve Spring - Edwards, E1/E2M -- 27102030
- 1 -- Distributor, Rubber, Edwards, E1/E2M, E1M18, E2M18 -- 27159430
- 1 -- Ballast Valve PTFE - A11301045
- 2 -- Spring, Edwards, E1/E2M -- 00307046
- 1 -- O-ring, 11.6 x 2.4 mm - Buna -- 02120033
A&J Vacuum Service, Inc. repairs/rebuilds and services all Edwards E2M Series Vacuum Pumps, including E2M 2, E2M 5, E2M 8, E2M 12, E2M 18, E2M 28/30 Rotary Vane Pumps. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards E1M18, E2M18 Rotary Vane Vacuum Pump Clean & Overhaul Kit, 36301131
E1M18, E2M18 Clean & Overhaul Kit / 36301131 Overview:
The New Edwards Vacuum E1M18, E2M18 Rotary Vane Vacuum Pump Kit includes everything needed for major overhauls on the Edwards Vacuum E1M18, E2M18 Rotary Vane Vacuum Pump.
Edwards Vacuum PN 36301131 / E1M18, E2M18 Clean & Overhaul Kit contains the following parts (Quantity -- Description -- Part Number):
- 1 -- O-ring, 15.6 x 2.4 mm - Viton -- 02120037
- 1 -- O-ring, 61.6 x 2.4 mm - Buna -- 02120057
- 1 -- O-ring, 27.5 X 3 mm - Buna -- 02120067
- 1 -- O-ring, 35.5 X 3 mm - Buna -- 02120072
- 2 -- O-ring, 44.5 X 3 mm - Buna -- 02120078
- 2 -- O-ring, 99.5 x 3 mm - Buna -- 02120089
- 1 -- Oil Box Gasket, Edwards, E1/E2M -- 27159635
- 2 -- Spring Pin, Edwards, E1/E2M, E1M18, E2M18 -- 29203002
- 2 -- O-ring, 28.17 x 3.53 mm - Viton -- 02125026
- 3 -- Spring, Stainless Steel, Edwards, E1/E2M -- 00906077
- 2 -- Plug Oil Drain Steel, Edwards, E1/E2M -- 00714012
- 3 -- Blade Spring Pin, Edwards, E1/E2M -- 29203003
- 1 -- Distributor Spring - Edwards, E1/E2M -- 27102032
- 1 -- O-ring, 69.5 x 3 mm - Viton -- 02122083
- 1 -- Plug, Oil Drain, RV pump, Edwards, Pfeiffer -- 25908119
- 1 -- O-ring, 15.3 x 2.4 mm - Viton -- 02122037
- 1 -- Filter Assembly E2M 18/28 -- A22305008
- 2 -- Oil Filter Seal -- A01403030
- 2 -- Valve Spring, E1/E2M -- 27102033
- 1 -- O-ring, 13.6 x 2.4 mm - Viton -- 02120035
- 8 -- O-ring, 6.6 x 2.4 mm - Buna -- 02120028
- 2 -- Shaft Seal, Edwards, E1/E2M -- 02109067
- 1 -- Edwards Shaft Seal, Viton -- 02109064
- 1 -- Dowty Seal-Edwards E1/E2M -- 02104012
- 2 -- Dowty Seal, Edwards, E1/E2M -- 02104001
- 1 -- O-ring, 194.5 x 3 mm - Viton -- 02122108
- 2 -- O-ring, 7.59 x 2.62 mm - Viton -- 02126116
- 2 -- Gas Ballast Filter-Edwards E1/E2M -- 02308043
- 2 -- Gas Ballast Filter-Edwards E1/E2M -- 02308044
- 1 -- Waved Washer -- 218990201
- 1 -- Felt Pad, Edwards, E1/E2M, E1M18, E2M18, E2M28, E2M30 -- 22302017
- 3 -- Valve Pad, Edwards, E1/E2M -- 26501029
- 1 -- Coupling Element, Edwards, Welch, E1/E2M, CRVpro -- 26501032
- 2 -- Exhaust Valve Spring - Edwards, E1/E2M -- 27102030
- 1 -- Distributor, Rubber, Edwards, E1/E2M, E1M18, E2M18 -- 27159430
- 1 -- Ballast Valve PTFE - A11301045
- 2 -- Spring, Edwards, E1/E2M -- 00307046
- 1 -- O-ring, 11.6 x 2.4 mm - Buna -- 02120033
A&J Vacuum Service, Inc. repairs/rebuilds and services all Edwards E2M Series Vacuum Pumps, including E2M 2, E2M 5, E2M 8, E2M 12, E2M 18, E2M 28/30 Rotary Vane Pumps. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
