- P/N 36001800ED
- Major Overhaul Kit
- Vanes included
- Viton Seals
Shopping Cart ( )
Edwards E2M2 Vacuum Pump Major Repair / Service Rebuild Kit, 36001800ED
Condition:
New
In Stock
Item#:PN16809
Mfr Part#:36001800
Manufacturer:Edwards Vacuum
Features:
Edwards E2M2 Vacuum Pump Major Repair / Service Rebuild Kit, 36001800ED

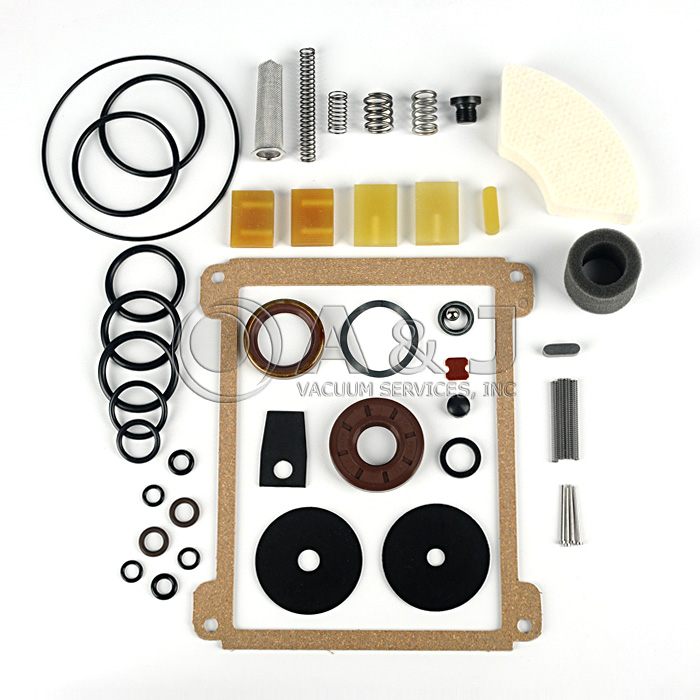

The Edwards E2M2 Major Overhaul Kit includes everything needed for major overhauls on the Edwards E2M2 Rotary Vane Pump.
We also do minor and major repairs for all Edwards Rotary Vane Pumps.

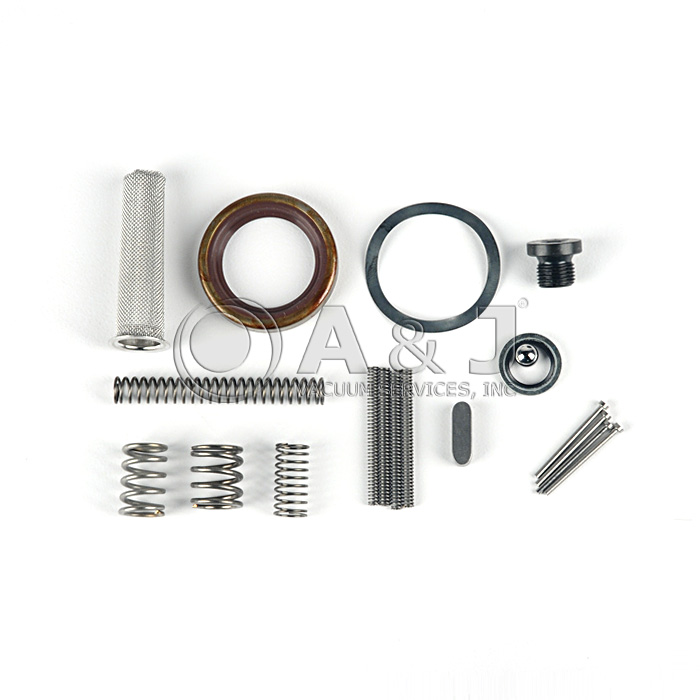

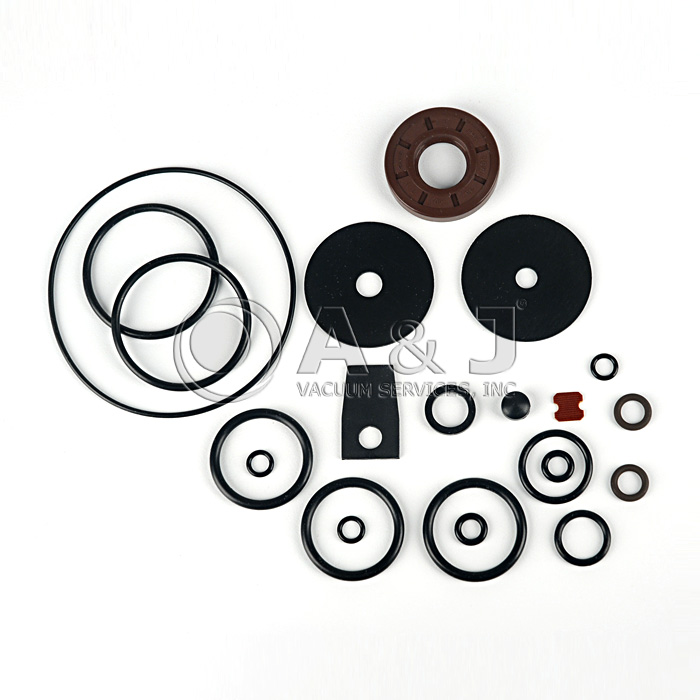

The Edwards E2M2 / 36001800 Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
|
Drain Plug |
E00714012 | 1 |
| Filter Seal | E00906042 | 1 |
| Vane Spring | E00906077 | 4 |
| Dowty Seal | E02104001 | 1 |
| Viton Shaft Seal | E02109066 | 1 |
| Viton Shaft Seal | E02109067 | 1 |
| O-Ring | E02120004 | 3 |
| O-Ring | E02120028 | 2 |
| O-Ring | E02120041 | 1 |
| O-Ring | E02120077 | 2 |
| O-Ring | E02124086 | 1 |
| O-Ring | E02125013 | 1 |
| O-Ring | E02125026 | 3 |
| O-Ring | E02126116 | 2 |
| Ballast Valve | E11301045 | 1 |
| Steel Ball | E20414003 | 1 |
| Waved Washer | E218990201 | 1 |
| Felt Pad | E22302013 | 1 |
| Oil Filter | E22305003 | 1 |
| Shaft Key | E24301010 | 1 |
| Ballast Valve | E25906600 | 1 |
| Ballast Filter | E25907200 | 1 |
| Button Valve | E26501017 | 1 |
| Ballast Spring | E27102010 | 1 |
| Spring | E27102016 | 1 |
| Spring | E27102029 | 1 |
| Distributor Spring | E27102032 | 1 |
| Distributor Rubber | E27159414 | 1 |
| Valve Rubber | E27159417 | 1 |
| Valve Rubber | E27159418 | 1 |
| Distributor Rubber | E27159440 | 1 |

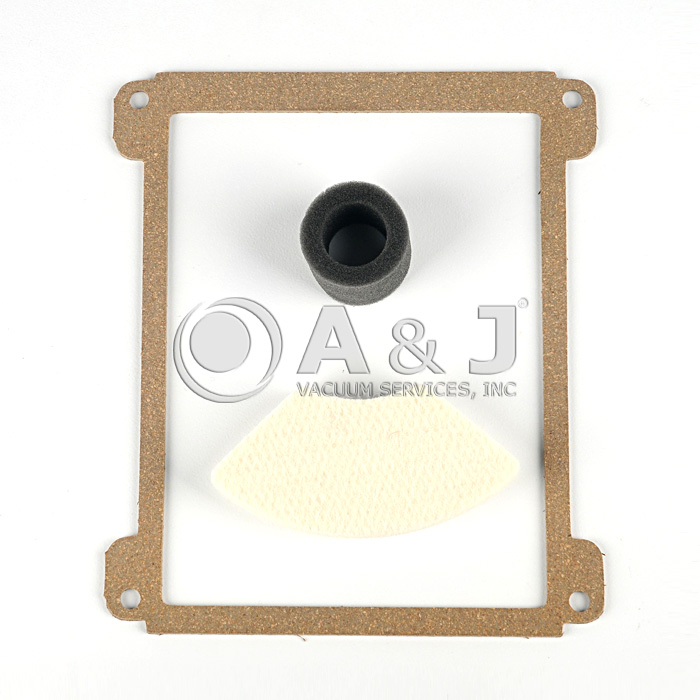

| Oil Case Gasket | E27159616 | 1 |
| Spring Pin | E29203003 | 4 |

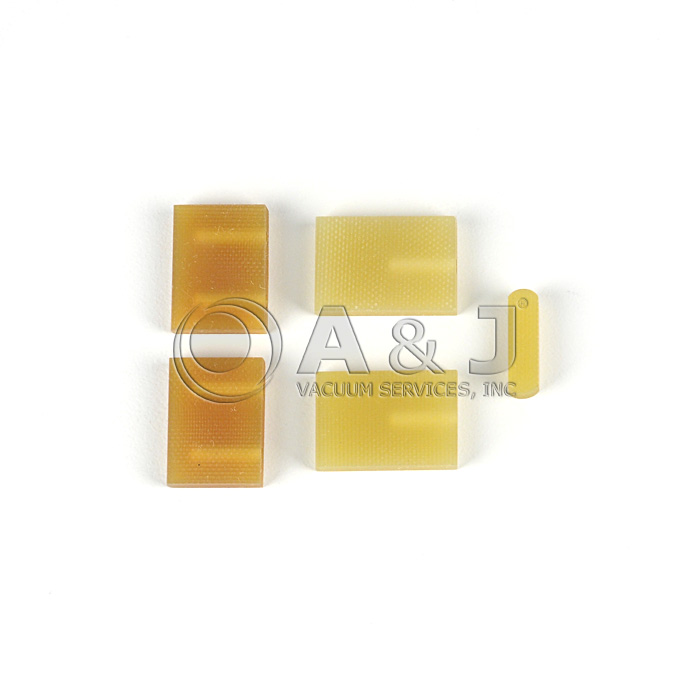

| First Stage Vane | E20402081G | 2 |
| Second Stage Vane | E20402079G | 2 |
| Oil Pump Vane | E20402158G |
A&J Vacuum Repair / Rebuild and Service Edwards E2M2 Vacuum Pumps and Turbo Pumps along with all other Edwards Vacuum Rotary Vane Pumps, Edwards Dry Scroll Pump repair, Edward Pump Repair and all other Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards E2M2 Vacuum Pump Major Repair / Service Rebuild Kit, 36001800ED
The Edwards E2M2 / 36001800 Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
|
Drain Plug |
E00714012 | 1 |
| Filter Seal | E00906042 | 1 |
| Vane Spring | E00906077 | 4 |
| Dowty Seal | E02104001 | 1 |
| Viton Shaft Seal | E02109066 | 1 |
| Viton Shaft Seal | E02109067 | 1 |
| O-Ring | E02120004 | 3 |
| O-Ring | E02120028 | 2 |
| O-Ring | E02120041 | 1 |
| O-Ring | E02120077 | 2 |
| O-Ring | E02124086 | 1 |
| O-Ring | E02125013 | 1 |
| O-Ring | E02125026 | 3 |
| O-Ring | E02126116 | 2 |
| Ballast Valve | E11301045 | 1 |
| Steel Ball | E20414003 | 1 |
| Waved Washer | E218990201 | 1 |
| Felt Pad | E22302013 | 1 |
| Oil Filter | E22305003 | 1 |
| Shaft Key | E24301010 | 1 |
| Ballast Valve | E25906600 | 1 |
| Ballast Filter | E25907200 | 1 |
| Button Valve | E26501017 | 1 |
| Ballast Spring | E27102010 | 1 |
| Spring | E27102016 | 1 |
| Spring | E27102029 | 1 |
| Distributor Spring | E27102032 | 1 |
| Distributor Rubber | E27159414 | 1 |
| Valve Rubber | E27159417 | 1 |
| Valve Rubber | E27159418 | 1 |
| Distributor Rubber | E27159440 | 1 |
| Oil Case Gasket | E27159616 | 1 |
| Spring Pin | E29203003 | 4 |
| First Stage Vane | E20402081G | 2 |
| Second Stage Vane | E20402079G | 2 |
| Oil Pump Vane | E20402158G |
A&J Vacuum Repair / Rebuild and Service Edwards E2M2 Vacuum Pumps and Turbo Pumps along with all other Edwards Vacuum Rotary Vane Pumps, Edwards Dry Scroll Pump repair, Edward Pump Repair and all other Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
