Alcatel 2004AC Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 53015
Condition:
New
Item#:PN01406
Mfr Part#:53015
Manufacturer:Adixen / Alcatel
Features:
Overview:

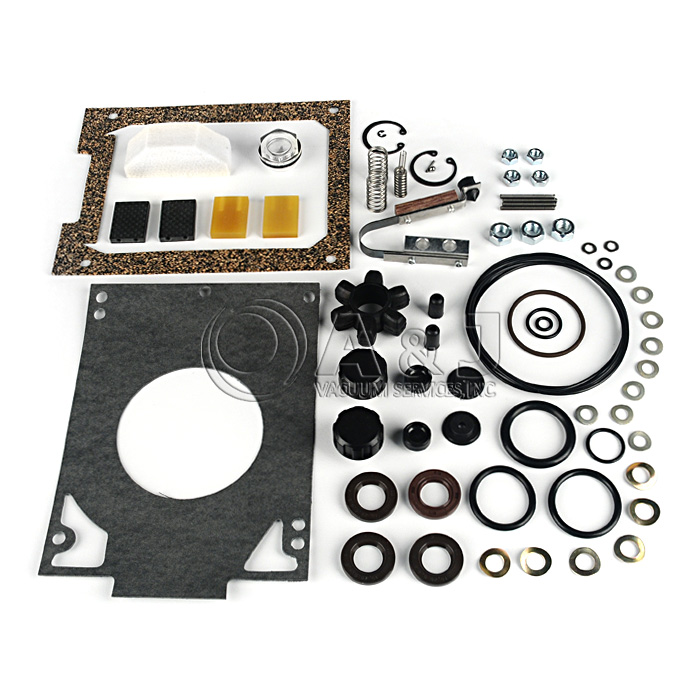

The Alcatel 2004AC Rotary Vane Vacuum Pump Major Repair Kit includes everything needed for major overhauls on the Alcatel 2004AC Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Alcatel Rotary Vane Vacuum Pumps.
Alcatel / Adixen 2004AC Rotary Vane Vacuum Pump contains the following parts:
| DESCRIPTION | PART NO. | QTY |

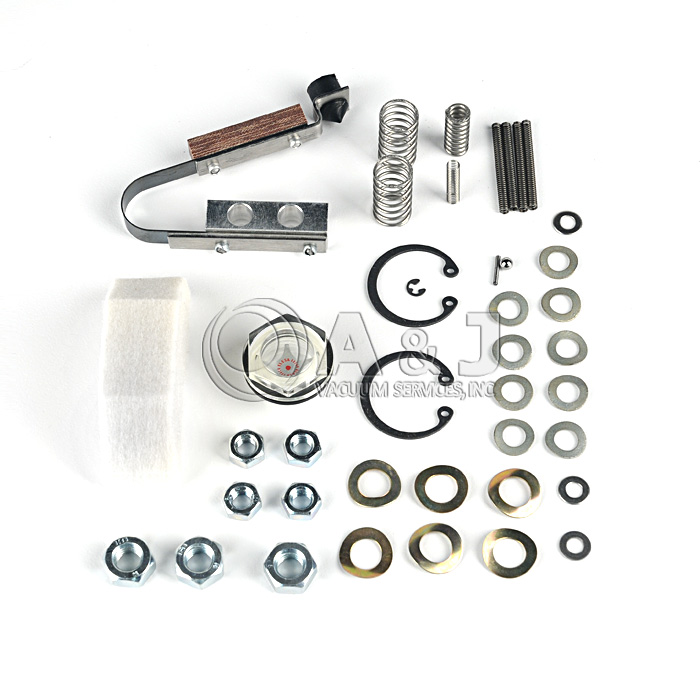

| ASB Lever | 52700 | 1 |
| Valve Spring | A52541 | 2 |
| Coupling | A52553 | 1 |
| Fan Plate Gasket | A52555 | 1 |
| Exhaust Clapper | A52557 | 1 |
| Gas Ballast Valve | A52562 | 1 |
| Gas Ballast Spring | A52563 | 1 |
| Ball Spring | A52564 | 1 |
| Viton Exhaust Clapper | A52642 | 1 |
| Buna Exhaust Clapper | A52642B | 1 |
| Exhaust Valve | A52655V | 2 |
| Oil Case Gasket | A52755 | 1 |
| Felt Pad | A52990 | 1 |
| Vane Spring | A53040 | 4 |
| Pin | A71050 | 1 |
| Clip | A71161 | 1 |
| Nut | A71211 | 4 |
| Nut | A71214 | 3 |
| Flat Washer M4 | A73339 | 3 |
| Waved Washer M6 | A73454 | 9 |
| Waved Washer M8 | A73455 | 6 |

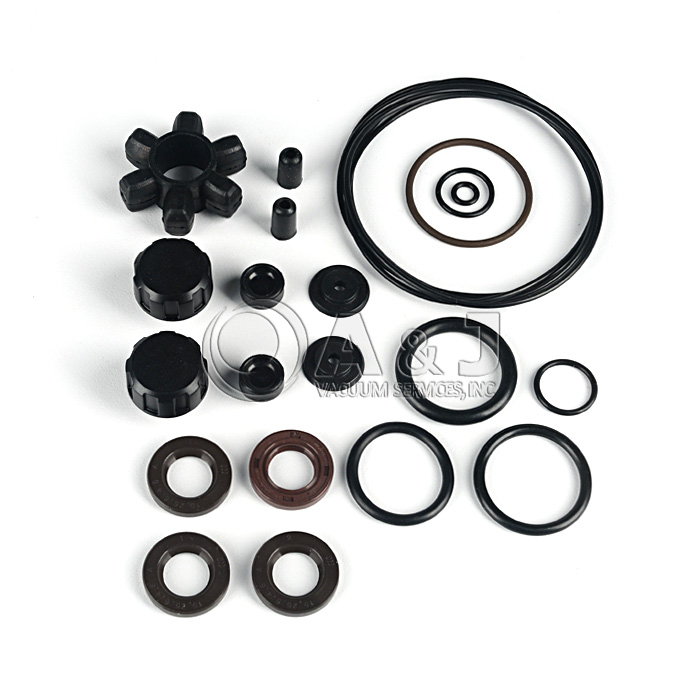

| O-Ring | A82004 | 1 |
| O-Ring | A82025 | 1 |
| Stage O-Ring | A82033 | 5 |
| O-Ring | A82056 | 1 |
| Viton Shaft Seal | A82063 | 3 |
| Double Lip Viton Shaft Seal | A82063-01 | 1 |
| O-Ring | A82208 | 2 |
| O-Ring | A82253 | 1 |
| Steel Ball | A82522 | 1 |
| Drain Plug | A82604 | 2 |
| Sight Glass | A83546 | 1 |
| C-Clip | A83653 | 2 |

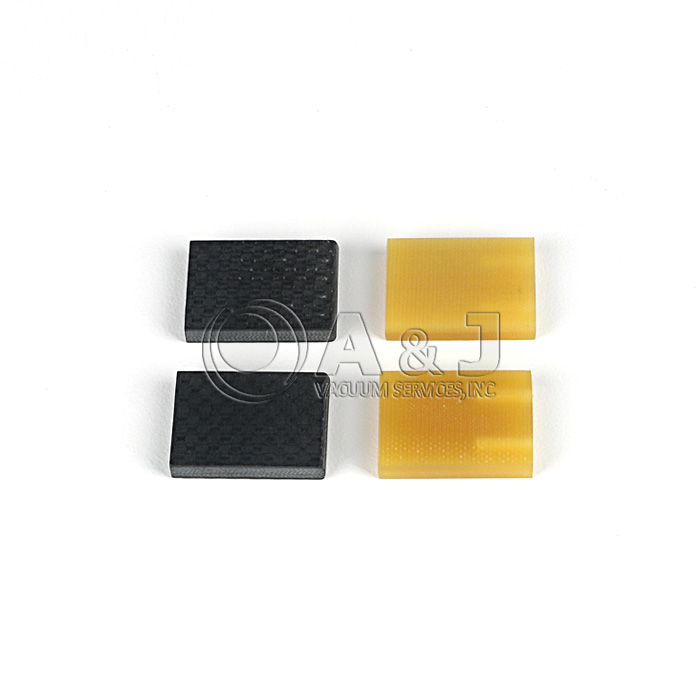

| 2nd Stage Vane | A83946G | 4 |
| O-Ring | E02124025 | 1 |
THERE ARE NO RETURNS ON THIS PRODUCT.
This item is non-returnable/non-refundable
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
