- Pumping Speed at 50 Hz: 17.4 cfm
- Pumping Speed at 60 Hz: 20.9 cfm
- Ultimate Pressure: < 2x10-3 mbar
- Inlet / Outlet Flange: DN 25 KF
Shopping Cart ( )

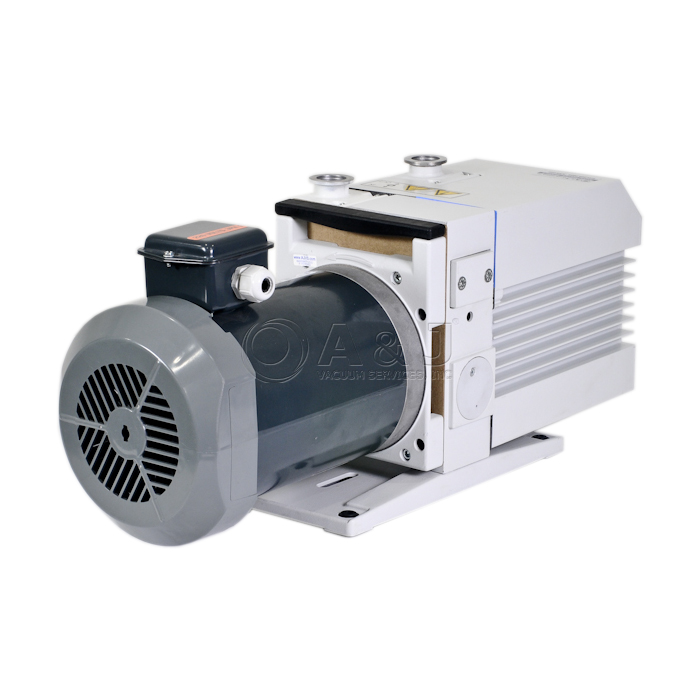

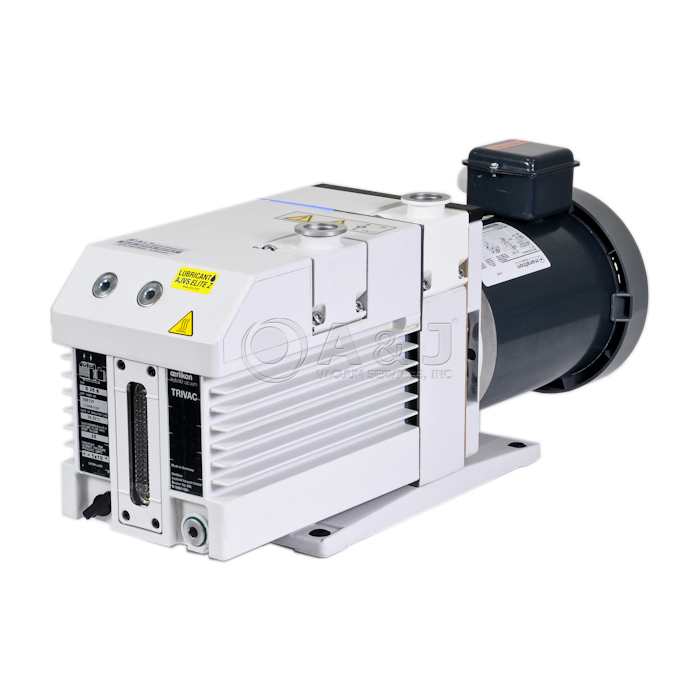

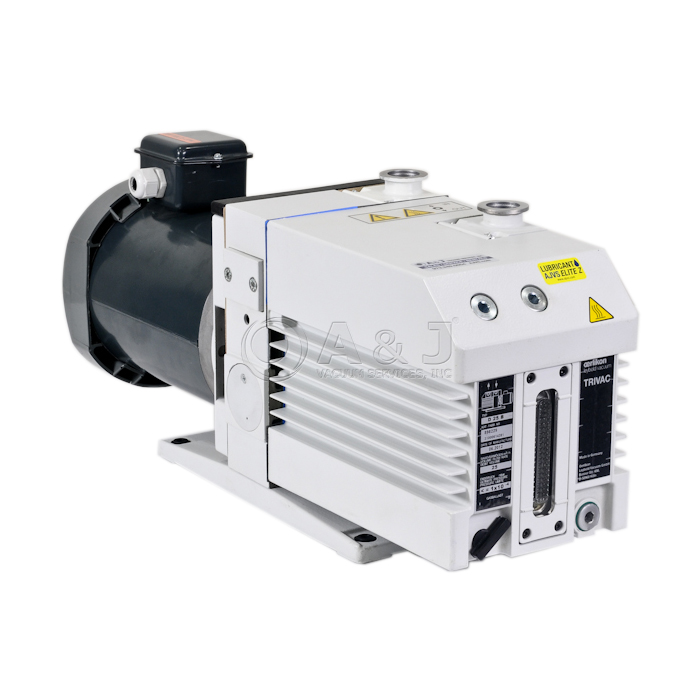

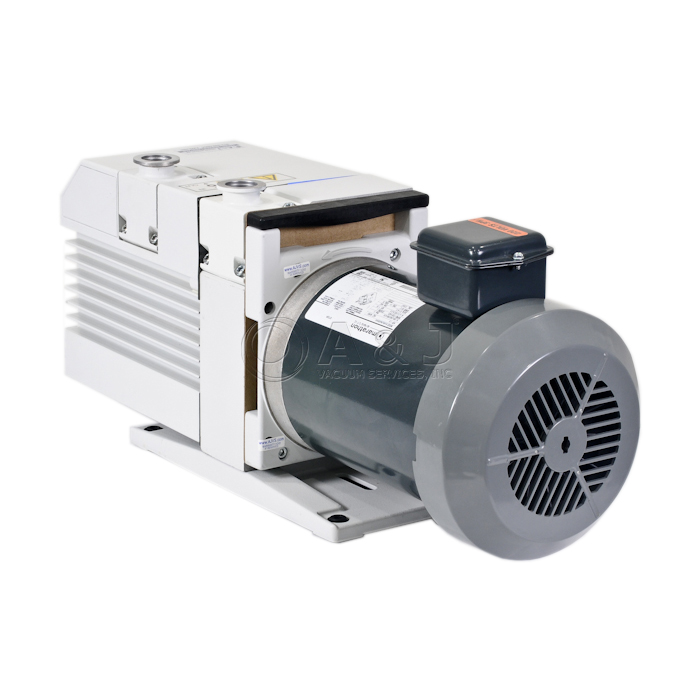

Leybold D25B TRIVAC Vacuum Pump, 3-Phase, 200 - 240 V, 380 - 400 V, 50 Hz | 200 - 240 V, 380 - 480 V, 60 Hz, 18 CFM, 11276 / 898229
Condition:
Remanufactured
Call us for Availability
Item#:PN20621
Mfr Part#:11276 / 898229
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold D25B TRIVAC Vacuum Pump, 3-Phase, 200 - 240 V, 380 - 400 V, 50 Hz | 200 - 240 V, 380 - 480 V, 60 Hz, 18 CFM, 11276 / 898229
D25B TRIVAC / 11276 Overview:
The LEYBOLD TRIVAC D25B vacuum pumps are oil lubricated vacuum pumps. Each Leybold D25B pump 11276 can be wired for low 230V or 400 V 50/60 Hz. The Leybold D 25 B is a excellent vacuum pump for vapor handling. The Leybold D25B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D25B is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D 25 B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D8 oil requirement 0.6 L min, 1.4 L max. The TRIVAC D25 Pump has grate water vapor capacity of 476 g/h.
Leybold D 25 B pumps are also very quiet with noise level of 52 db(A) without gas ballast, and 56 db(A) with gas ballast open. Both Inlet and Exhaust ports are DN 25 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D16B vane vacuum pumps are available with different motors with other voltage options listed below.
D25B Applications:
- Vacuum Ovens
- Leak detectors and Leak detector systems
- Surface analysis instruments
- Scanning electron microscopes
- Load lock
- Spectroscopy
- University Research Labs
- As a backing pump for turbomolecular pump systems
- Beam welding
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D25B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold D25B TRIVAC Vacuum Pump, 3-Phase, 200 - 240 V, 380 - 400 V, 50 Hz | 200 - 240 V, 380 - 480 V, 60 Hz, 18 CFM, 11276 / 898229
Leybold D25B TRIVAC Technical Data:

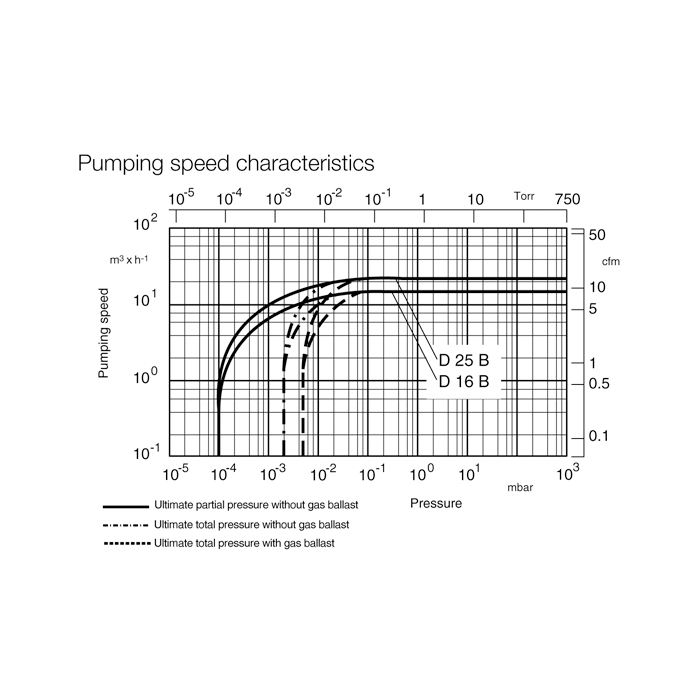

| Nominal pumping speed (50Hz | 60Hz) | 29.5 m3/h (17.4 cfm) | 35.4 m3/h (20.9 cfm) |
| Pumping speed (50Hz | 60Hz) | 25.7 m3/h (15.1 cfm) | 30.8 m3/h (18.2 cfm) |
| Ultimate partial pressure without gas ballast (50Hz | 60Hz) | 10-4 mbar (0.75 x 10-4 Torr) | 10-4 mbar (0.75 x 10-4 Torr) |
| Ultimate total pressure without gas ballast (50Hz | 60Hz) | < 2 x 10-3 mbar (< 1.5 x 10-3 Torr) | < 2 x 10-3 mbar (< 1.5 x 10-3 Torr) |
| Ultimate total pressure with gas ballast (50Hz | 60Hz) | < 5 x 10-3 mbar (< 3.8 x 10-3 Torr) | < 5 x 10-3 mbar (< 3.8 x 10-3 Torr) |
| Water vapor tolerance (50Hz | 60Hz) | 25.0 mbar (18.8 Torr) | 25.0 mbar (18.8 Torr) |
| Water vapor capacity (50Hz | 60Hz) | 305 g/h (0.672 lbs/h) | 370 g/h (0.816 lbs/h) |
| Oil filling, min. / max. (50Hz | 60Hz) | 0.5 / 1.0 l (0.5 / 1.1 qt) | 0.5 / 1.0 l (0.5 / 1.1 qt) |
|
Noise level to DIN 45 635, without / with gas ballast (50Hz | 60Hz) |
54 / 56 dB(A) | 54 / 56 dB(A) |
| Admissible ambient temperature (50Hz | 60Hz) | +12 to +40 °C (+54 to +104 °F) | +12 to +40 °C (+54 to +104 °F) |
| Motor rating (50Hz | 60Hz) | 750 W (1 HP) | 750 W (1 HP) |
| Nominal speed (50Hz | 60Hz) | 1425 rpm | 1730 rpm |
| Type of protection (50Hz | 60Hz) | IP 55 | IP 55 |
| Connections, Intake and Exhaust (50Hz | 60Hz) | 25 KF | 25 KF |
| Weight (50Hz | 60Hz) | 32.3 kg (71.2 lbs) | 32.3 kg (71.2 lbs) |
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of Trivac D25B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
