- Vacuum connection: DN 16 ISO-KF
- Measurement range: 5.0 x 10-5 to 1500 Torr
- Output voltage: 0.61 - 10 V log
- Electrical connection: 8 pol. RJ45 / FCC68
Shopping Cart ( )

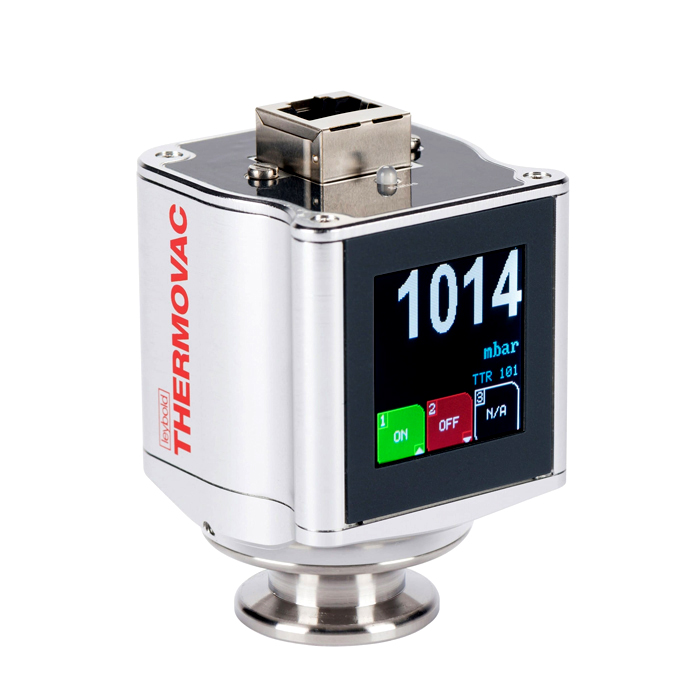

Leybold TTR 101 N with Display, Thermovac Vacuum Gauge, DN 16 ISO-KF, 230354V02, TTR101N
Condition:
Discontinued
Item#:PN23169
Mfr Part#:230354V02
Manufacturer:Leybold
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Leybold TTR 101 N with Display, Thermovac Vacuum Gauge, DN 16 ISO-KF, 230354V02, TTR101N
Leybold TTR 101 N Thermovac Overview:
The THERMOVAC TTR 101 N models utilize a thermal conductivity MEMSPirani combined with a silicon membrane Piezo They offer superior accuracy and gas type independent readings between 10 mbar and 1500 mbar
Leybold TTR 101N Technology
Operation of the THERMOVAC transmitters is based on the thermal conductivity principle after Pirani. Different versions offer set point relays for improved process control. The THERMOVAC series is equipped with a LED-ring (360°) showing the sensor status. Benefits
- New MEMS-Pirani for high resistance
- Fast response and high accuracy: time saving and highly reliable
- Optimized price-to-performance ratio
Leybold TTR 101 N Sensor Technology
Dust and other particles may cause measurement errors and reduced lifetime Therefore we recommend the installation of a fine filter in critical applications Fine filters are listed in chapter “General”, para “Connection Accessories for Small Flanges”
Typical Leybold TTR 101N applications
The THERMOVAC TTR 101 N transmitters can be used in any application that requires absolute pressure measurement and switching capabilities
- General vacuum measurement and control from low to medium vacuum pressure - Safety circuits in vacuum systems
- Control of high vacuum ionization gauges
- Analytical Instrumentation
- Research and development
- Vacuum Drying
- System process control
- Vacuum furnaces and sintering
- Coating
- Process industry

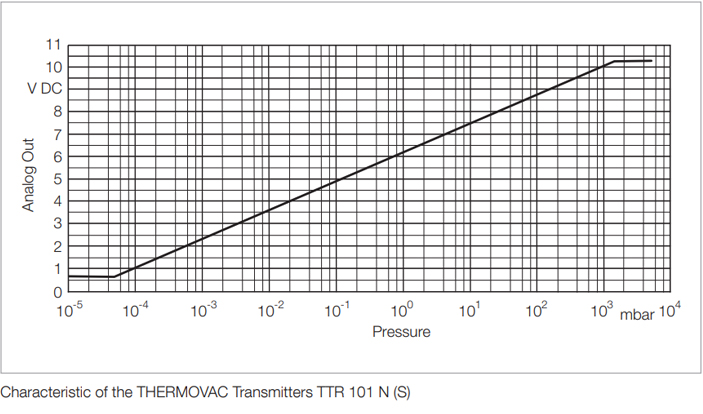

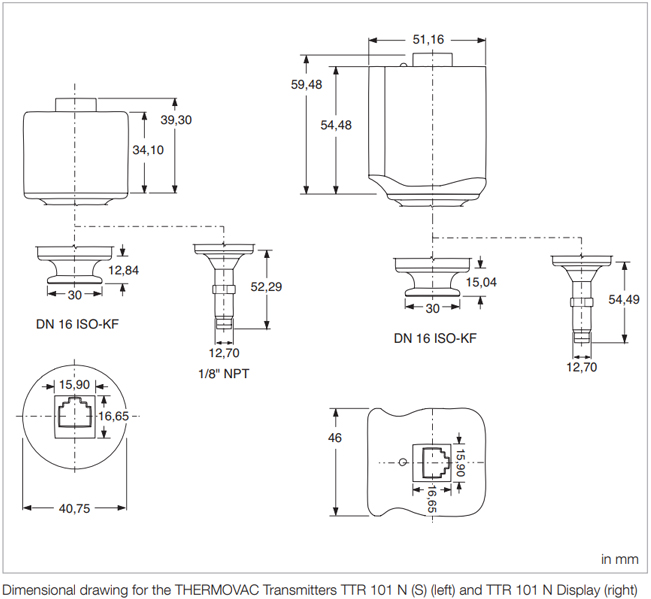

Leybold TTR101 N Dimensions:
Click Here for Leybold ThermoVac TTR101N Transmitter Operating Manual
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
Leybold TTR 101 N with Display, Thermovac Vacuum Gauge, DN 16 ISO-KF, 230354V02, TTR101N
Leybold TTR 101N Thermovac Technical Data:

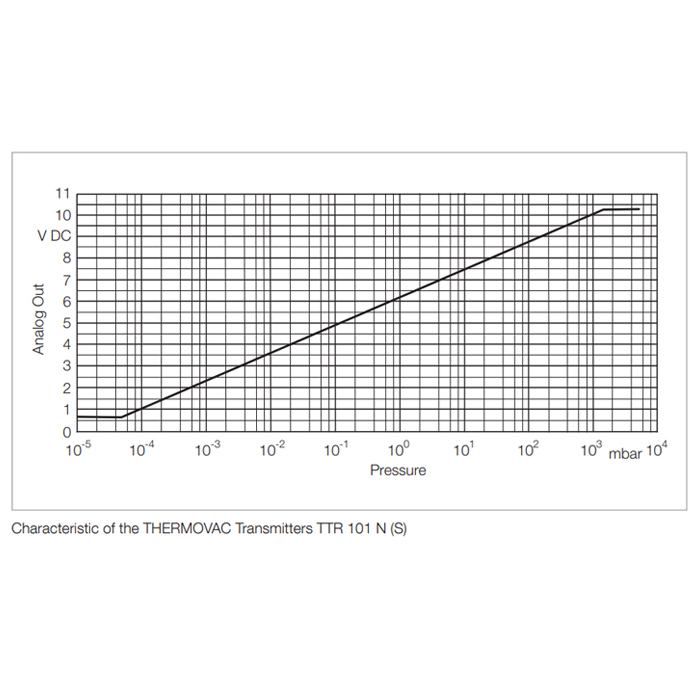

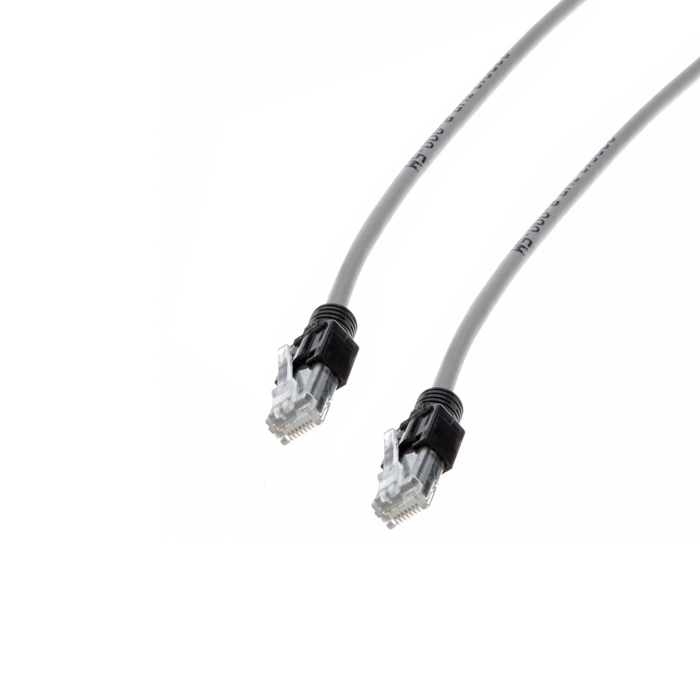

| Vacuum connection: | DN 16 ISO-KF |
| Measurement range: | 5.0 x 10-5 to 1500 Torr |
| Supply voltage: | 9 - 30 VDC |
| Output voltage: | 0.61 - 10 V log |
| Electrical connection: | 8 pol. RJ45 / FCC68 |
| Connecting cable: | Type A |
| Dimensions: | see dimension sheet |
| Weight: | 0.17 kg |

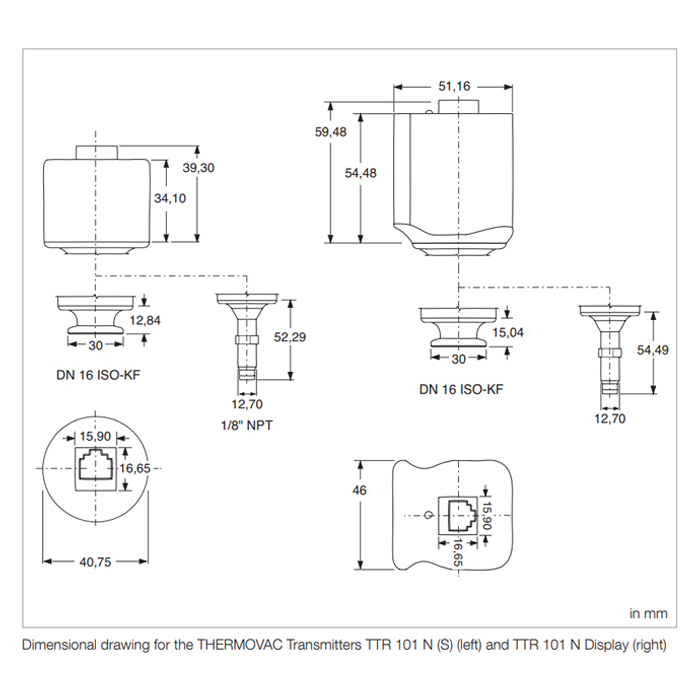

Leybold TTR101 N Dimensions:
Click Here for Leybold ThermoVac TTR101N Transmitter Operating Manual
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
