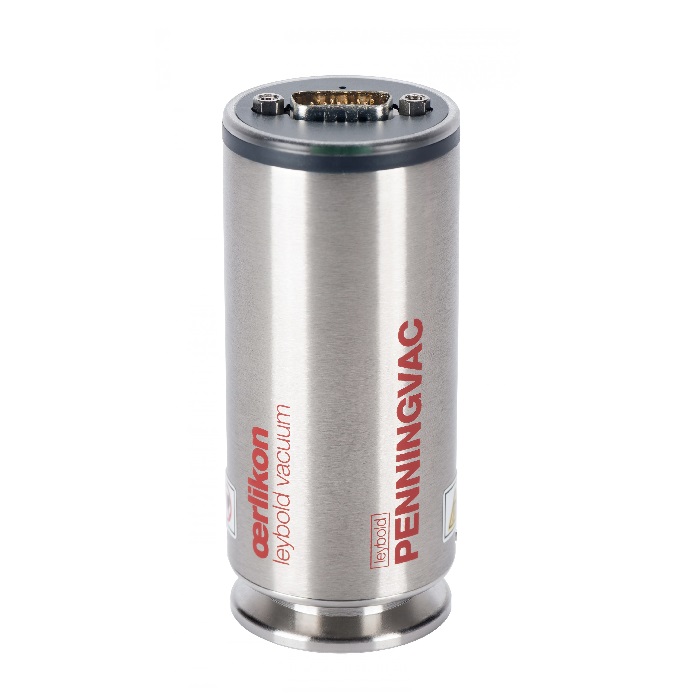

Leybold PTR 90 N SP - RS232 Penningvac Vacuum Gauge, DN 25 ISO-KF 230088V02, PTR90N
Leybold PTR 90 N Penningvac Overview:
The Leybold Penningvac PTR 90N Vacuum Gauge head combines the cold cathode ionization principle with the Pirani measurement system and mey be operated with modern display and operation instruments.
The Leybold PTR 90 transmeters offer the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar.
The Leybold Penningvac PTR 90N 230088V02 Transmiters are equipped with rugged cold cathode measurement cell for integration within programmable systems. They offer a high level of reproducibility combined with low tendency to collect contamination even in argon operation.
Leybold PTR Technology
PTR 90 N Transmitter versions with RS232 digital communication interface (P/N: 230088V02) or EtherCAT digital communication interface (P/N: 230089V02) can set up transmitter parameters and provide real time pressure measurement. Please see the Communication Protocol 300544663 (RS232) and 300544664 (EtherCAT) for further details. Transmitter versions with an Integrated touchscreen display (P/N: 2300085V02) have the possibility to monitor essential transmitter parameters. Please see Operatin Manual 300544657_002_A1 chapter 6.4 for further details.
Each PTR 90 N transmitter is individually tested throughout the measuring range before leaving the factory. A test report is included in the package. In addition, each transmitter pressure reading is individually temperature-compensated within the specified operating temperature range.
The PTR 90 N Vacuum transmitters can be used in a variety of applications as standalone unist or with Graphix controllers (P/N: 230680V01, 230681V01, 230682V01) and the Display controllers (P/N: 230001, 230024, 230025). All PENNINGVAC transmitters are backward compatible with Graphix, Display and Center controllers
The Leybold PTR90N have up to three mechanical relays which can be used for process control, for example interlocking valves or pumps. The analog voltage output can be interfaced to external analog equipment for pressure readout or control.
Leybold PTR 90 Sensor Technology
PTR 90 N transmiter contain two separate sensor elements. The MEMS Pirani (MEMS = Micro-Electro-MechanicalSystem) sensor element is based on measurement of thermal conductivity. The MEMS Pirani sensor consists of a silicon chip with a heated resistive element forming one surface of a cavity.
A cover on top of the chip forms the other surface of the cavity. Due to the geometry of the sensor, convection cannot take place within the cavity and consequently the sensor is insensitive to mounting position. Gas molecules are passed by diffusion only to the heated element where the heat loss of the gas is measured. The cold cathode inverted magnetron utilizes a high voltage anode, cathode and a permanent magnet.
Electrons are accelerated towards the anode and will ionize molecules by collision. The magnetic field deflects the electrons, causing them to spiral as they move across the magnetic field to the anode. This spiraling movement increases the opportunity for them to encounter and ionize the molecules. The ionization of the molecules creates an electric current as a function of the pressure. Both sensor elements are very robust and can withstand high G-forces and fast inrushes of air.
Typical Leybold PTR 90N applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Leybold PTR90 N Dimensions:
Click Here for PenningVac PTR90N Trnasmitter Operating Manual
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

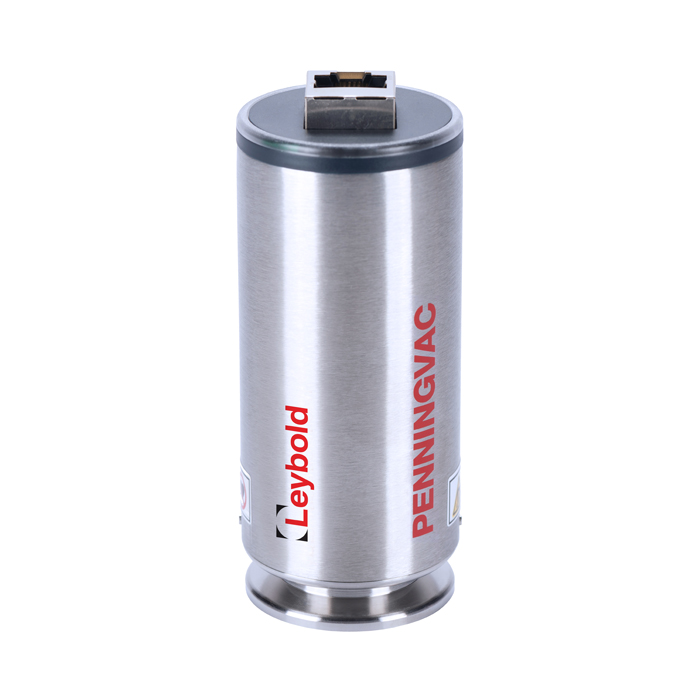

Leybold PTR 90 N Penningvac Vacuum Gauge, DN 25 ISO-KF 230070V02, PTR90N
Leybold PTR 90 N Penningvac Overview:
The Leybold Penningvac PTR 90N Vacuum Gauge head combines the cold cathode ionization principle with the Pirani measurement system and mey be operated with modern display and operation instruments.
The Leybold PTR 90 transmeters offer the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar.
The Leybold Penningvac PTR 90N 230088V02 Transmiters are equipped with rugged cold cathode measurement cell for integration within programmable systems. They offer a high level of reproducibility combined with low tendency to collect contamination even in argon operation.
Leybold PTR Technology
PTR 90 N Transmitter versions with RS232 digital communication interface (P/N: 230088V02) or EtherCAT digital communication interface (P/N: 230089V02) can set up transmitter parameters and provide real time pressure measurement. Please see the Communication Protocol 300544663 (RS232) and 300544664 (EtherCAT) for further details. Transmitter versions with an Integrated touchscreen display (P/N: 2300085V02) have the possibility to monitor essential transmitter parameters. Please see Operatin Manual 300544657_002_A1 chapter 6.4 for further details.
Each PTR 90 N transmitter is individually tested throughout the measuring range before leaving the factory. A test report is included in the package. In addition, each transmitter pressure reading is individually temperature-compensated within the specified operating temperature range.
The PTR 90 N Vacuum transmitters can be used in a variety of applications as standalone unist or with Graphix controllers (P/N: 230680V01, 230681V01, 230682V01) and the Display controllers (P/N: 230001, 230024, 230025). All PENNINGVAC transmitters are backward compatible with Graphix, Display and Center controllers
The Leybold PTR90N have up to three mechanical relays which can be used for process control, for example interlocking valves or pumps. The analog voltage output can be interfaced to external analog equipment for pressure readout or control.
Leybold PTR 90 Sensor Technology
PTR 90 N transmiter contain two separate sensor elements. The MEMS Pirani (MEMS = Micro-Electro-MechanicalSystem) sensor element is based on measurement of thermal conductivity. The MEMS Pirani sensor consists of a silicon chip with a heated resistive element forming one surface of a cavity.
A cover on top of the chip forms the other surface of the cavity. Due to the geometry of the sensor, convection cannot take place within the cavity and consequently the sensor is insensitive to mounting position. Gas molecules are passed by diffusion only to the heated element where the heat loss of the gas is measured. The cold cathode inverted magnetron utilizes a high voltage anode, cathode and a permanent magnet.
Electrons are accelerated towards the anode and will ionize molecules by collision. The magnetic field deflects the electrons, causing them to spiral as they move across the magnetic field to the anode. This spiraling movement increases the opportunity for them to encounter and ionize the molecules. The ionization of the molecules creates an electric current as a function of the pressure. Both sensor elements are very robust and can withstand high G-forces and fast inrushes of air.
Typical Leybold PTR 90N applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Leybold PTR90 N Dimensions:
Click Here for PenningVac PTR90N Trnasmitter Operating Manual
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

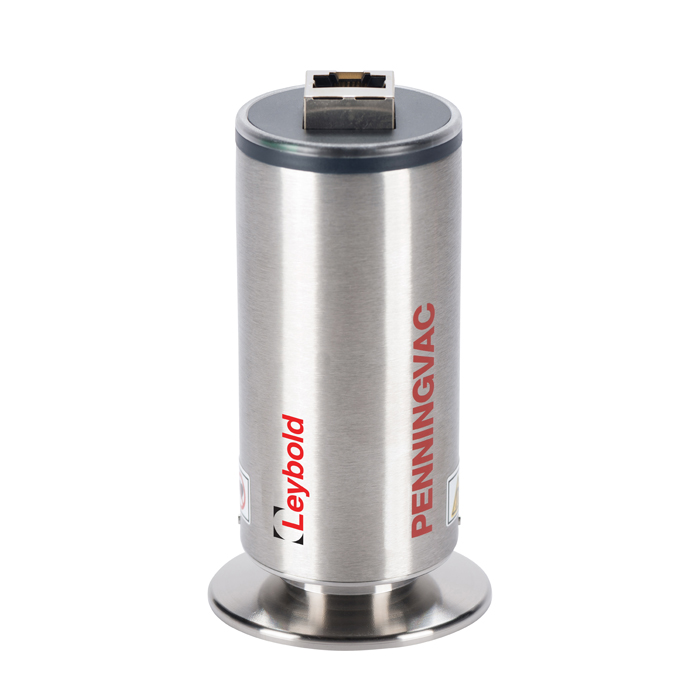

Leybold PTR 90 N Penningvac Vacuum Gauge, DN 40 ISO-KF 230071V02, PTR90N
Leybold PTR 90 N Penningvac Overview:
The Leybold Penningvac PTR 90N Vacuum Gauge head combines the cold cathode ionization principle with the Pirani measurement system and mey be operated with modern display and operation instruments.
The Leybold PTR 90 transmeters offer the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar.
The Leybold Penningvac PTR 90N 230071V02 Transmiters are equipped with rugged cold cathode measurement cell for integration within programmable systems. They offer a high level of reproducibility combined with low tendency to collect contamination even in argon operation.
Leybold PTR Technology
PTR 90 N Transmitter versions with RS232 digital communication interface (P/N: 230088V02) or EtherCAT digital communication interface (P/N: 230089V02) can set up transmitter parameters and provide real time pressure measurement. Please see the Communication Protocol 300544663 (RS232) and 300544664 (EtherCAT) for further details. Transmitter versions with an Integrated touchscreen display (P/N: 2300085V02) have the possibility to monitor essential transmitter parameters. Please see Operatin Manual 300544657_002_A1 chapter 6.4 for further details.
Each PTR 90 N transmitter is individually tested throughout the measuring range before leaving the factory. A test report is included in the package. In addition, each transmitter pressure reading is individually temperature-compensated within the specified operating temperature range.
The PTR 90 N Vacuum transmitters can be used in a variety of applications as standalone unist or with Graphix controllers (P/N: 230680V01, 230681V01, 230682V01) and the Display controllers (P/N: 230001, 230024, 230025). All PENNINGVAC transmitters are backward compatible with Graphix, Display and Center controllers
The Leybold PTR90N have up to three mechanical relays which can be used for process control, for example interlocking valves or pumps. The analog voltage output can be interfaced to external analog equipment for pressure readout or control.
Leybold PTR 90 Sensor Technology
PTR 90 N transmiter contain two separate sensor elements. The MEMS Pirani (MEMS = Micro-Electro-MechanicalSystem) sensor element is based on measurement of thermal conductivity. The MEMS Pirani sensor consists of a silicon chip with a heated resistive element forming one surface of a cavity.
A cover on top of the chip forms the other surface of the cavity. Due to the geometry of the sensor, convection cannot take place within the cavity and consequently the sensor is insensitive to mounting position. Gas molecules are passed by diffusion only to the heated element where the heat loss of the gas is measured. The cold cathode inverted magnetron utilizes a high voltage anode, cathode and a permanent magnet.
Electrons are accelerated towards the anode and will ionize molecules by collision. The magnetic field deflects the electrons, causing them to spiral as they move across the magnetic field to the anode. This spiraling movement increases the opportunity for them to encounter and ionize the molecules. The ionization of the molecules creates an electric current as a function of the pressure. Both sensor elements are very robust and can withstand high G-forces and fast inrushes of air.
Typical Leybold PTR 90N applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays

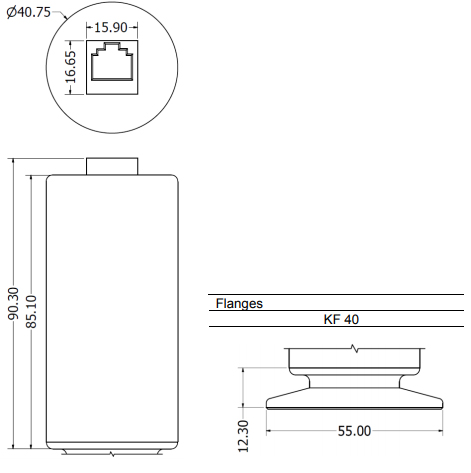

Leybold PTR90 N Dimensions:
Click Here for PenningVac PTR90N Trnasmitter Operating Manual
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

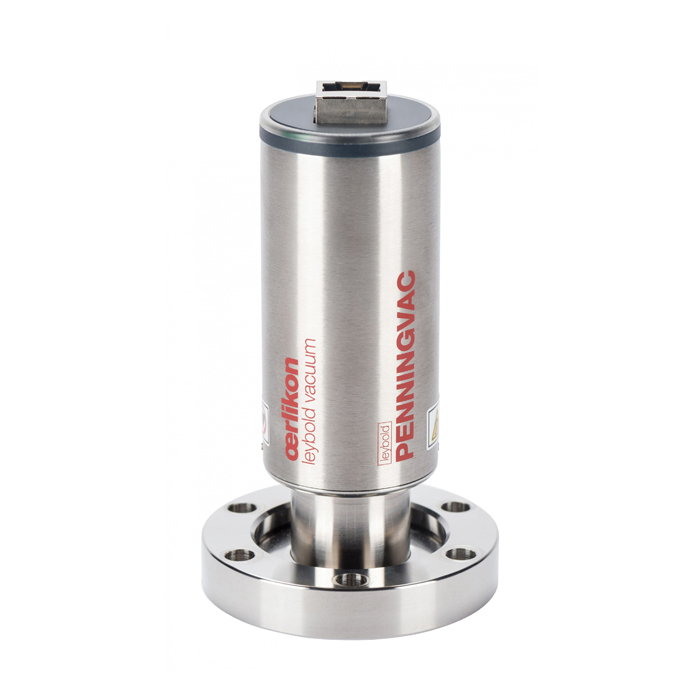

Leybold PTR 90 N Penningvac Vacuum Gauge, DN 40 CF 230072V02, PTR90N
Leybold PTR 90 N Penningvac Overview:
The Leybold Penningvac PTR 90N Vacuum Gauge DN 40 CF Conflat Flange head combines the cold cathode ionization principle with the Pirani measurement system and mey be operated with modern display and operation instruments.
The Leybold PTR 90 transmeters offer the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar.
The Leybold Penningvac PTR 90N 230072V02 Transmiters are equipped with rugged cold cathode measurement cell for integration within programmable systems. They offer a high level of reproducibility combined with low tendency to collect contamination even in argon operation.
Leybold PTR Technology
PTR 90 N Transmitter versions with RS232 digital communication interface (P/N: 230088V02) or EtherCAT digital communication interface (P/N: 230089V02) can set up transmitter parameters and provide real time pressure measurement. Please see the Communication Protocol 300544663 (RS232) and 300544664 (EtherCAT) for further details. Transmitter versions with an Integrated touchscreen display (P/N: 2300085V02) have the possibility to monitor essential transmitter parameters. Please see Operatin Manual 300544657_002_A1 chapter 6.4 for further details.
Each PTR 90 N transmitter is individually tested throughout the measuring range before leaving the factory. A test report is included in the package. In addition, each transmitter pressure reading is individually temperature-compensated within the specified operating temperature range.
The PTR 90 N Vacuum transmitters can be used in a variety of applications as standalone unist or with Graphix controllers (P/N: 230680V01, 230681V01, 230682V01) and the Display controllers (P/N: 230001, 230024, 230025). All PENNINGVAC transmitters are backward compatible with Graphix, Display and Center controllers
The Leybold PTR90N have up to three mechanical relays which can be used for process control, for example interlocking valves or pumps. The analog voltage output can be interfaced to external analog equipment for pressure readout or control.
Leybold PTR 90 Sensor Technology
PTR 90 N transmiter contain two separate sensor elements. The MEMS Pirani (MEMS = Micro-Electro-MechanicalSystem) sensor element is based on measurement of thermal conductivity. The MEMS Pirani sensor consists of a silicon chip with a heated resistive element forming one surface of a cavity.
A cover on top of the chip forms the other surface of the cavity. Due to the geometry of the sensor, convection cannot take place within the cavity and consequently the sensor is insensitive to mounting position. Gas molecules are passed by diffusion only to the heated element where the heat loss of the gas is measured. The cold cathode inverted magnetron utilizes a high voltage anode, cathode and a permanent magnet.
Electrons are accelerated towards the anode and will ionize molecules by collision. The magnetic field deflects the electrons, causing them to spiral as they move across the magnetic field to the anode. This spiraling movement increases the opportunity for them to encounter and ionize the molecules. The ionization of the molecules creates an electric current as a function of the pressure. Both sensor elements are very robust and can withstand high G-forces and fast inrushes of air.
Typical Leybold PTR 90N applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Leybold PTR90 N Dimensions:
Click Here for PenningVac PTR90N Trnasmitter Operating Manual
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

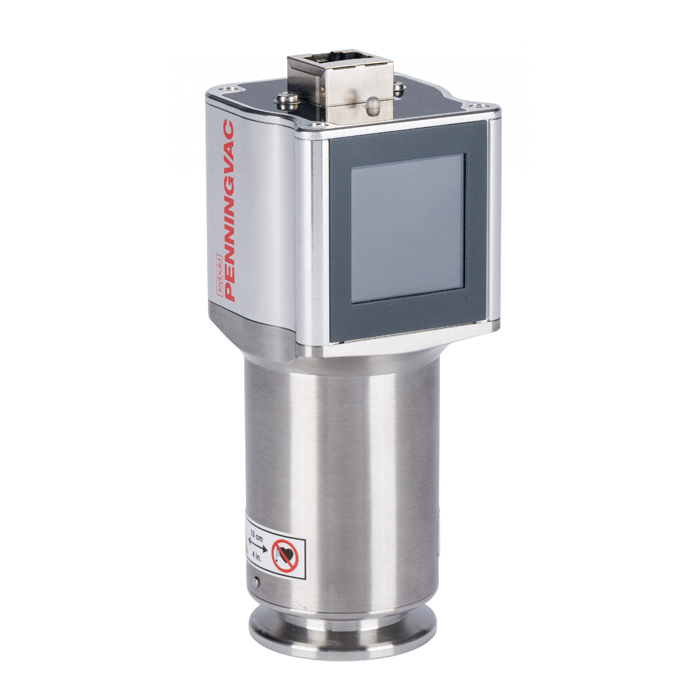

Leybold PTR 90 N with Display Penningvac Vacuum Gauge, DN 25 ISO-KF 230085V02, PTR90N
Leybold PTR 90 N Penningvac Overview:
The Leybold Penningvac PTR 90N Vacuum Gauge DN 25 ISO Flange head combines the cold cathode ionization principle with the Pirani measurement system and mey be operated with modern display and operation instruments.
The Leybold PTR 90 transmeters offer the capability of single port pressure measurement in the range from atmosphere to 10-9 mbar.
The Leybold Penningvac PTR 90N 230085V02 Transmiters are equipped with rugged cold cathode measurement cell for integration within programmable systems. They offer a high level of reproducibility combined with low tendency to collect contamination even in argon operation.
Leybold PTR Technology
PTR 90 N Transmitter versions with RS232 digital communication interface (P/N: 230088V02) or EtherCAT digital communication interface (P/N: 230089V02) can set up transmitter parameters and provide real time pressure measurement. Please see the Communication Protocol 300544663 (RS232) and 300544664 (EtherCAT) for further details. Transmitter versions with an Integrated touchscreen display (P/N: 2300085V02) have the possibility to monitor essential transmitter parameters. Please see Operatin Manual 300544657_002_A1 chapter 6.4 for further details.
Each PTR 90 N transmitter is individually tested throughout the measuring range before leaving the factory. A test report is included in the package. In addition, each transmitter pressure reading is individually temperature-compensated within the specified operating temperature range.
The PTR 90 N Vacuum transmitters can be used in a variety of applications as standalone unist or with Graphix controllers (P/N: 230680V01, 230681V01, 230682V01) and the Display controllers (P/N: 230001, 230024, 230025). All PENNINGVAC transmitters are backward compatible with Graphix, Display and Center controllers
The Leybold PTR90N have up to three mechanical relays which can be used for process control, for example interlocking valves or pumps. The analog voltage output can be interfaced to external analog equipment for pressure readout or control.
Leybold PTR 90 Sensor Technology
PTR 90 N transmiter contain two separate sensor elements. The MEMS Pirani (MEMS = Micro-Electro-MechanicalSystem) sensor element is based on measurement of thermal conductivity. The MEMS Pirani sensor consists of a silicon chip with a heated resistive element forming one surface of a cavity.
A cover on top of the chip forms the other surface of the cavity. Due to the geometry of the sensor, convection cannot take place within the cavity and consequently the sensor is insensitive to mounting position. Gas molecules are passed by diffusion only to the heated element where the heat loss of the gas is measured. The cold cathode inverted magnetron utilizes a high voltage anode, cathode and a permanent magnet.
Electrons are accelerated towards the anode and will ionize molecules by collision. The magnetic field deflects the electrons, causing them to spiral as they move across the magnetic field to the anode. This spiraling movement increases the opportunity for them to encounter and ionize the molecules. The ionization of the molecules creates an electric current as a function of the pressure. Both sensor elements are very robust and can withstand high G-forces and fast inrushes of air.
Typical Leybold PTR 90N applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Leybold PTR90 N with Display Dimensions:
Click Here for PenningVac PTR90N Trnasmitter Operating Manual
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

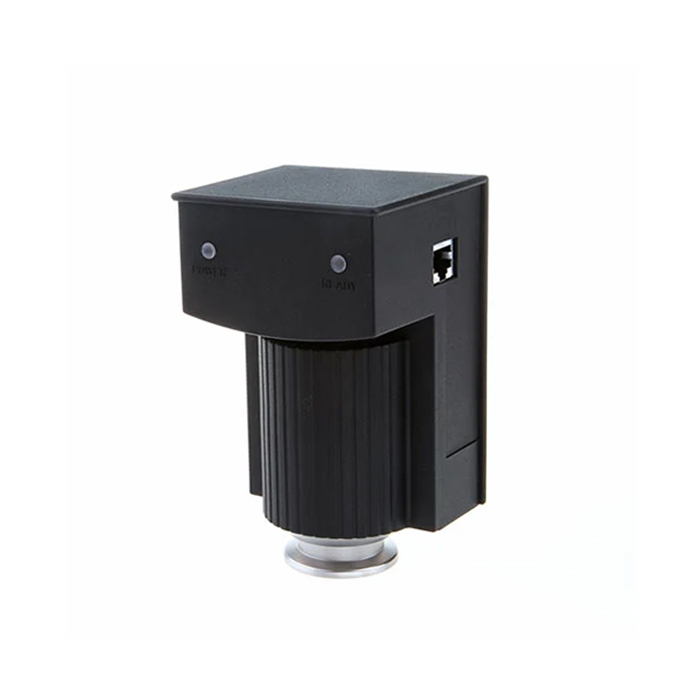

Leybold Penningvac PTR 225 N Vacuum Gauge, DN 25 ISO-KF 15734V02, PTR225N
Principle of measurement
Cold cathode ionization after the inverted magnetron principle
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*

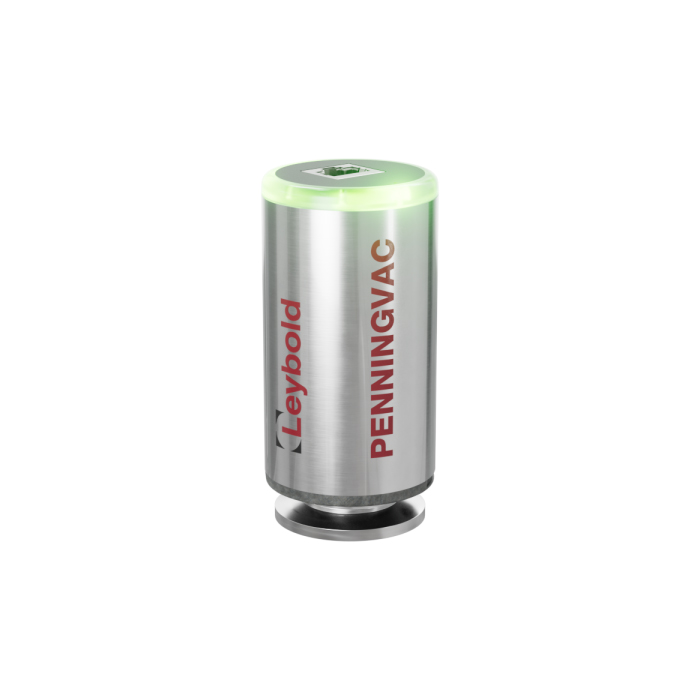

Leybold PTR 90 RN Penningvac Vacuum Gauge, DN 25 ISO-KF, 23L0021100
Leybold PTR90RN Penningvac Overview:
The Leybold PTR90 RN is the direct replacement to the previous generation PTR90N gauges. This model has been upgraded with an LED ring light that indicates vacuum ranges, and also features the latest innovations in reliability and functionality. These gauges are backwards compatible with previous generation PTR setups.
Leybold PTR 90RN Benefits
With the extended focus on creating efficient vacuum processes, measurement and control is becoming increasingly important. As more reliance is put on the measurement system to control and realize these efficiencies, "Fit and Forget" products are needed, and that's what Leybold provides.
- Easy monitoring and control
- Robust cold cathode technology at the core
- Flexible choices for flange type, output, and interfaces
- Easy serviceability
- Leybold in-house manufacturing
- Digital and analogue interface options
- Reliable and accurate filament technology
- Reduced footprint
- Backwards compatibility and common voltage scaling
- Adaptive LED pressure indication
- Wide range power supply for 15 V to 48 V integration
Leybold PTR-90 RN Applications
- Industrial Applications
- Great for a wide variety of industrial processes ranging from glass coating to industrial furnaces.
- The robust cold cathode and filament pirani eliminates issues due to dust and particulate contamination ensuring the longevity of the gauge.
- Medical and Pharmaceutical Applications
- "Fit and forget" design supports consistent performance and flexibility of interfaces from early development right through to serial production.
- Reduced down time and consistency from batch to batch and from scan to scan.
- Research and Development Applications
- The wide variety of options for flange type, communication protocols and more allows freedom of choice across many diverse R&D applications.
- The wide variety of options for flange type, communication protocols and more allows freedom of choice across many diverse R&D applications.
- Analytical Instruments Applications
- Miniaturized gauging with reduced magnetic stray field and increased output option help you deliver increased control without compromise.
- Cutting edge technology with the latest improvements in reliability, functionality, and reduced footprint.
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold PTR 225 Penningvac Vacuum Gauge, DN 25 ISO-KF 15734, PTR225
Principle of measurement
Cold cathode ionization after the inverted magnetron principle
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
