- Vacuum connection: DN 16 CF
- Measurement range: 5.0 x 10-5 to 1000 Torr
- Output voltage: 0.61 - 10 V log
- Electrical connection: 8 pol. RJ45 / FCC68
Shopping Cart ( )
Leybold TTR 91 N Thermovac Vacuum Gauge, DN 16 CF 230036V02, TTR91N
Condition:
New
Item#:PN23164
Mfr Part#:230036V02
Manufacturer:Leybold
Features:
Leybold TTR 91 N Thermovac Vacuum Gauge, DN 16 CF 230036V02, TTR91N
Leybold TTR 91 N Thermovac Overview:
The THERMOVAC Transmitters are active sensors using the unique MEMS-Pirani technology (Micro-Electro-Mechanical-Systems) They offer analog voltage output and the S-versions offer set point relays for improved process control For chemical and aggressive applications, the C-versions are equipped with a Parylene HT®- coated sensor The THERMOVAC series is also equipped with a LED-ring (360°) showing the status of the sensor The TTR 911 N and 916 N have a touch display and/or digital interfaces available.
Leybold TTR 91N Technology
Operation of the THERMOVAC transmitters is based on the thermal conductivity principle after Pirani. Different versions offer set point relays for improved process control. The THERMOVAC series is equipped with a LED-ring (360°) showing the sensor status. Benefits
- New MEMS-Pirani for high resistance
- Fast response and high accuracy: time saving and highly reliable
- Optimized price-to-performance ratio
Leybold TTR 91 N Sensor Technology
The THERMOVAC transmitters measurement principle is based on thermal conductivity The transmitters are equipped with a MEMS-Pirani sensing cell that consists of a silicon chip with a heated resistive element The THERMOVAC transmitters with the coated MEMS-Pirani are well suited for harsh processes and therefore more robust than the uncoated versions Built-in relays allow switching functions to be performed directly by the transmitter, without the need of a programmable control An integration of the transmitters in programmable control systems is facilitated by the linear characteristic, which can be defined by entering a simple equation into a PLC or computer
Typical Leybold TTR 91N applications
The THERMOVAC Transmitters offer a high degree of versatility They are suited for applications in the medium and rough vacuum range
Typical applications are:
- Analytical instrumentation
- Research and development
- Vacuum Drying
- Controlling of ionization gauges
- Activation of UHV gauges
- System process control
- Process industry
- Coated versions for improved chemical resistance
- General foreline vacuum measurement

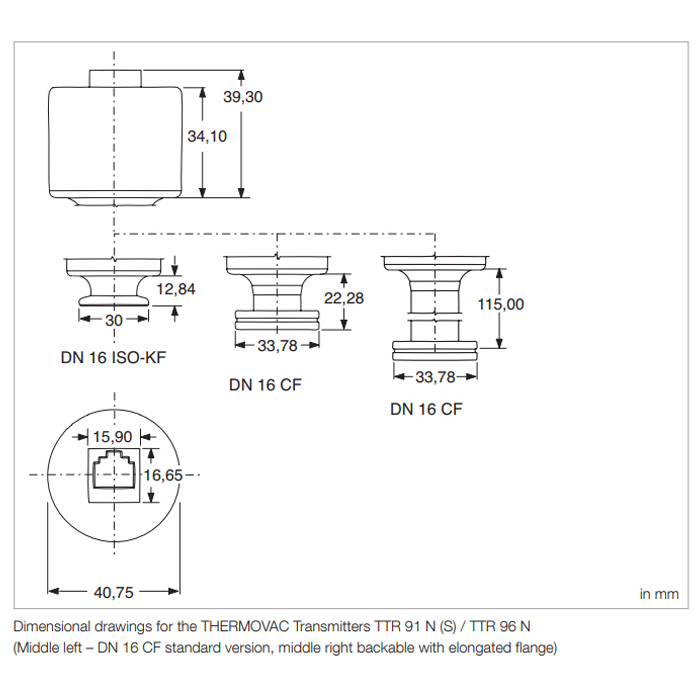

Leybold TTR91 N Dimensions:
Click Here for Leybold ThermoVac TTR91N Transmitter Operating Manual
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
This item is non-returnable/non-refundable
Leybold TTR 91 N Thermovac Vacuum Gauge, DN 16 CF 230036V02, TTR91N
Leybold TTR 91N Thermovac Technical Data:
| Vacuum connection: | DN 16 CF |
| Measurement range: | 5.0 x 10-5 to 1000 Torr |
| Supply voltage: | 9 - 30 VDC |

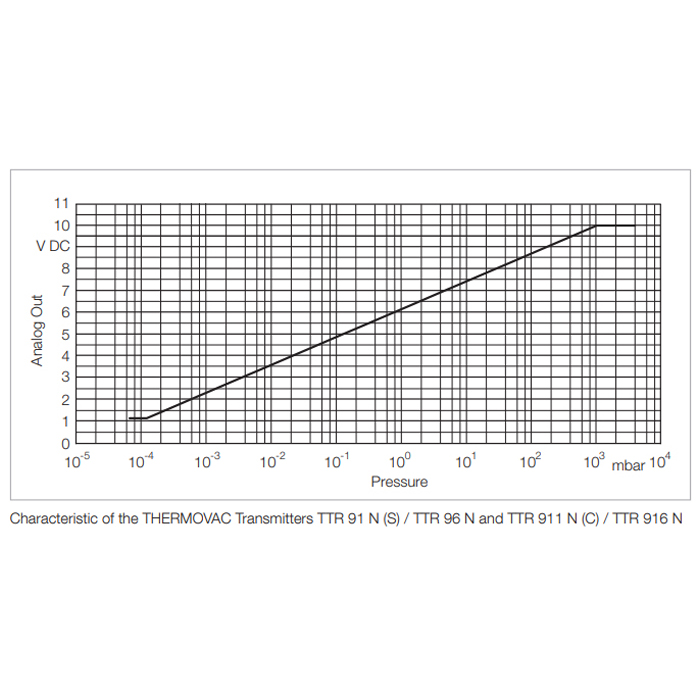

| Output voltage: | 0.61 - 10 V log |
| Electrical connection: | 8 pol. RJ45 / FCC68 |
| Connecting cable: | Type A |
| Dimensions: | see dimension sheet |
| Weight: | 0.17 kg |
Leybold TTR91 N Dimensions:
Click Here for Leybold ThermoVac TTR91N Transmitter Operating Manual
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
