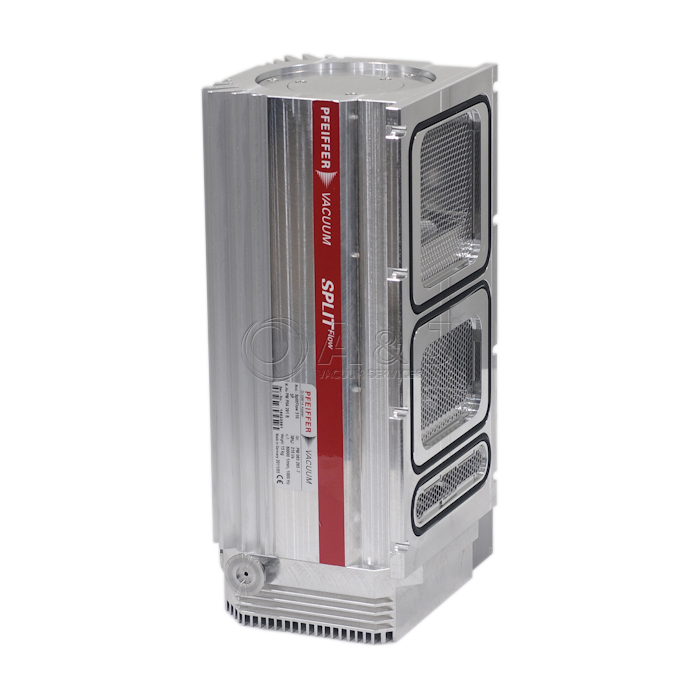

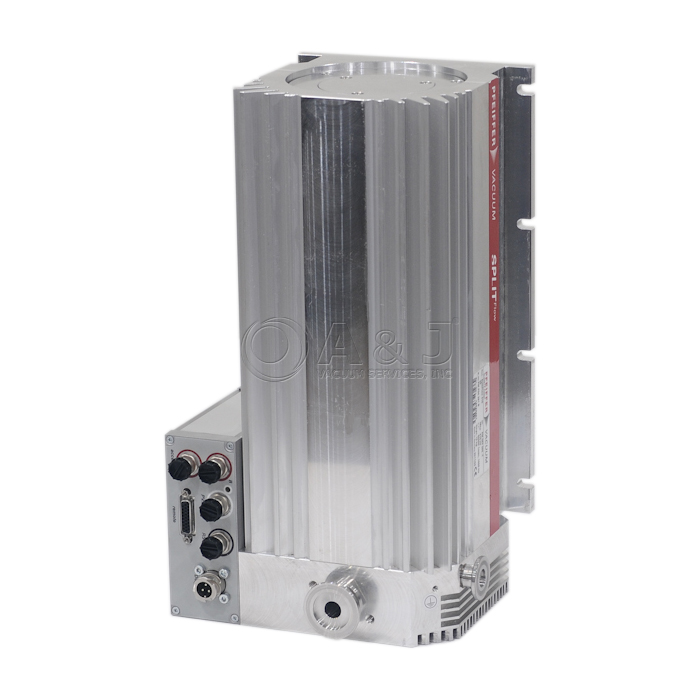

Pfeiffer Splitflow 310 Turbo Pump, with TC 400 Turbo Pump Controller For Shimadzu, PMP04291C / 2000016976 / PM C01 800 A / PMC01800A / S225-14179
Condition:
Remanufactured
In Stock
Item#:PN23904
Mfr Part#:PMP04291C / 2000016976 / PM C01 800 A / PMC01800A / S225-14179
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Splitflow 310 Turbo Pump, with TC 400 Turbo Pump Controller For Shimadzu, PMP04291C / 2000016976 / PM C01 800 A / PMC01800A / S225-14179
Splitflow 310 / PMP04291C Overview:
The Pfeiffer Vacuum Splitflow 310 / PM P04 291 Turbo pump is designed For Shimadzu LC-MS/MS 8050 / and LCMS 8060, S225-14179 and a wide range of applications in research industry, and mass spectrometry.
It has been thoroughly examined and is ready for broad range of applications within the research and mass spectrometry.

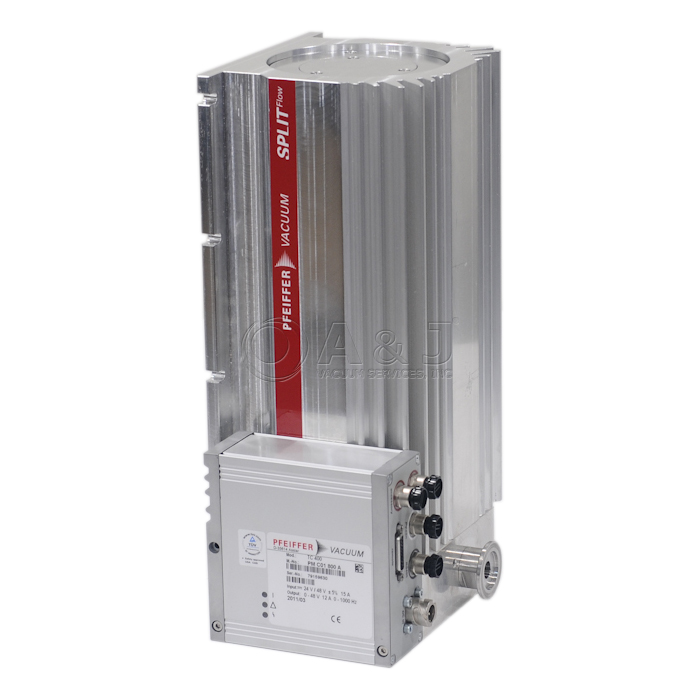

The Pfeiffer Vacuum Split Flow 310 Turbo Pump comes equipped with TC400 Turbo Pump controller, P/N PM C01 800A
The Pfeiffer SplitFlow 310 Turbo Pump comes with an entire 12-Month Warranty.
Pfeiffer Vacuum is a leader in Split flow turbomolecuar pumps built for mass spectrometer and analytical industry.
For Shimadzu LC-MS/MS 8050 / S225--14179
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Splitflow 310 PM P04 291B / PMP04291B Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer Splitflow 310 Turbo Pump, with TC 400 Turbo Pump Controller For Shimadzu, PMP04291C / 2000016976 / PM C01 800 A / PMC01800A / S225-14179

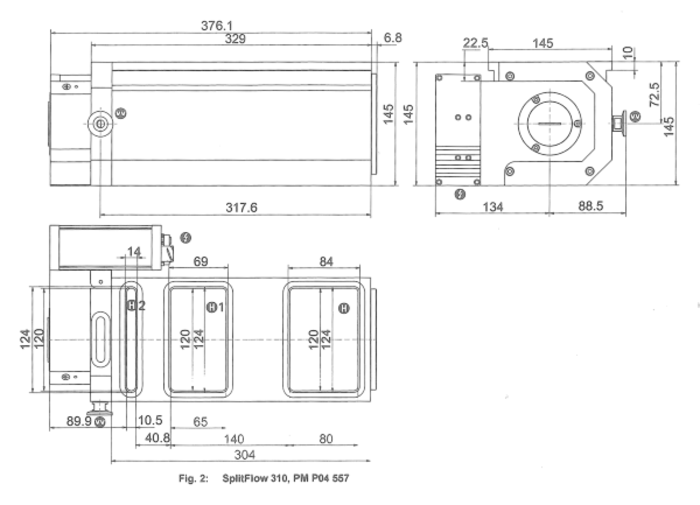

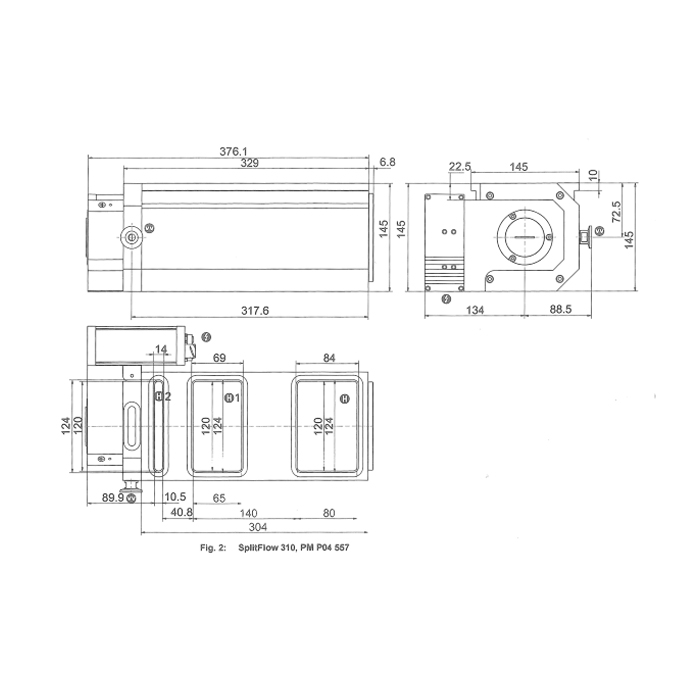

Pfeiffer Splitflow 310 Technical Data:
| Flange (in) | |
| High vacuum connection "H" | 80 x 120 mm |
| Intermediate stage "H1" | 65 x 120 mm |
| Intermediate stage "H2" | 10.5 x 120 mm |
| Flange (out) | DN 16 ISO-KF |
| Rotation speed ± 2 % | 1,000 Hz 60,000 rpm / 60,000 min-1 |
| Standby rotation speed | 667 Hz 40,000 rpm / 40,000 min-1 |
| Run-up time | 3 min |
| Pumping speed | |
| N2 at "H" | 290 l/s |
| He at "H" | 310 l/s |
| N2 at "H1" | 210 l/s |
| He at "H1" | 210 l/s |
| N2 at "H2" | 20 l/s |
| He at "H2" | 20 l/s |
| Compression ratio | |
| N2 (H1/H) | > 1 x 105 |
| He (H1/H) | 3 x 102 |
| N2 (H2/H1) | 6 x 104 |
| He (H2/H1) | 2 x 102 |
| Gas throughput at full rotational speed | |
| N2 at "H1" | 7 hPa l/s |
| He at "H1" | 9 hPa l/s |
| N2 at "H2" | 8.4 hPa l/s |
| He at "H2" | 9 hPa l/s |
| Fore-vacuum max. for N2 gas load zero at "VV" | 10 hPa |
| Fore-vacuum max. for He gas load zero at "VV" | 8 hPa |
| Weight | 13 kg / 29 lbs |
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Splitflow 310 PM P03 621B / PMP04291B Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
