Pfeiffer Vacuum ASM 310 Portable Dry Helium Leak Detector, Field Service Kit, 90-240V, 50/60Hz Universal Voltage, BSAA0000MM9A / 16433M

Pfeiffer Vacuum ASM 310 Portable Dry Helium Leak Detector, Field Service Kit, 90-240V, 50/60Hz Universal Voltage, BSAA0000MM9A / 16433M

Pfeiffer ASM 310 Portable Dry Helium Leak Detector Features:

• ASM310 Portable Leak Detector P/N BSAA0000MM9A
• Pfeiffer RC 10 Wireless Remote Controller P/N 124193
• Standard Pfeiffer Helium Sniffer Probe P/N SNC1E1T1

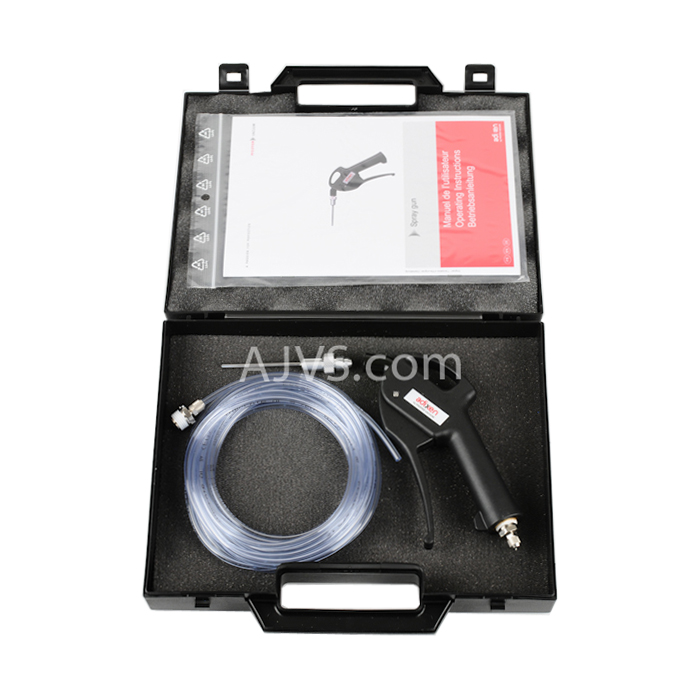

• Standard Pfeiffer Helium Spray Probe P/N 112535

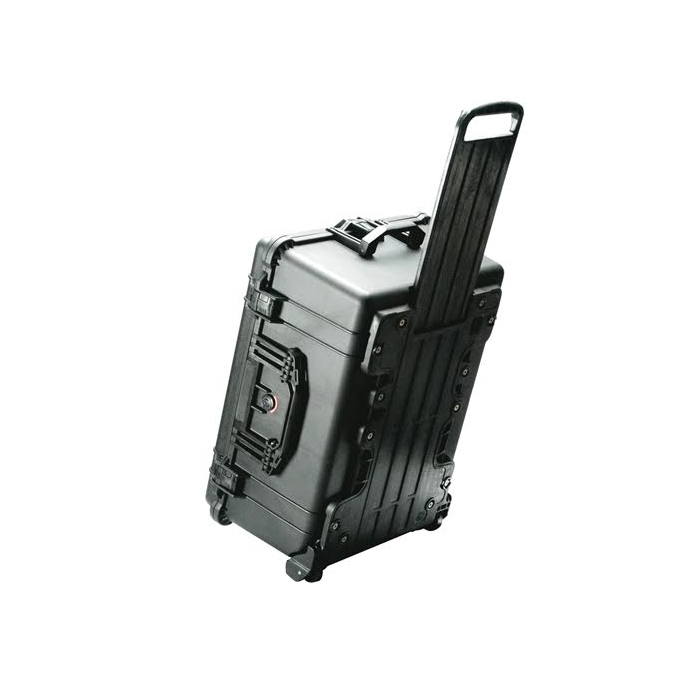

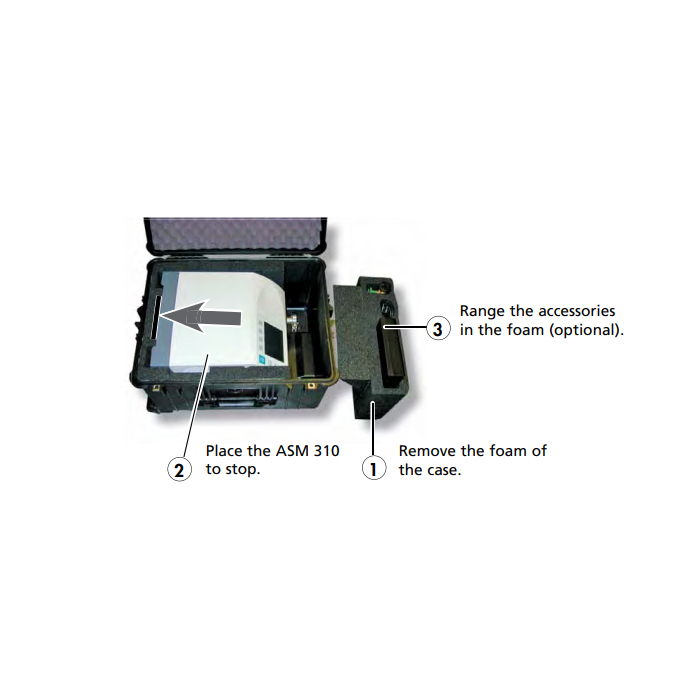

• Shipping / Carring Case with custom fit Foam P/N 119594
• Power Cable, Manuals, ASM310 Tool kit
• Ultra-Light; Weight of Only 21kg (46lbs)
• 1 cfm Dry and Cleaning Roughing Capacity
• 1.1 l/s Helium Pumping Speed at Inlet
• Analyzer Cell Delivery: 3 Years of Operation Before Maintenance is Required
• User-Friendly Interface, Customized to Meet Individual Preferences/Specifications
• Intuitive Menu & Settings Display
• Integrated SD Memory Card for Recording & Downloading Capacities
• Importing Capabilities Guaranteed Through BMP Format

ASM 310 Portable Dry Helium Leak Detector / BSAA0000MM9A Overview:

The Pfeiffer ASM 310 is the lightest unit leak detector of its category. It has various options for importing data such as photos (BMP format). Pfeiffer Vacuum ASM 310 is perfectly suited for leak testing applications where portability is a must. Pfeiffer ASM 310 leak detector can be used to detect permeation through materials, micro-openings, porosities, etc. The means of detection is a tracer gas: Helium. Helium is so light and it can penetrate microscopic cracks very fast. Adixen ASM 310 helium leak detector has a wide measuring range capability.

The Pfeiffer Vacuum ASM 310 Helium Leak Detector combines all the necessary features of a revolutionary leak detector. This version of the Adixen helium leak detector series is the lightest in its category in terms of weight, adding greater portability to the user while providing high sensitivity and pumping capacity. Adixen ASM 310 offers high performance and an oil-free pumping system ideal for eliminating any contamination.

The third generation analyzer cell of the Adixen ASM 310 Helium Leak Detector is carefully designed, thereby enabling excellent stability. It is composed of a light alloy vacuum chamber, ionization module, braking module, and equipped plate module.

The Pfeiffer Vacuum ASM 310 Leak Detector comes with the ability to detect leaks with flows as miniscule as 3 x 10^(-11) mbar l/s. A variety of leak-detecting methods are available with the Adixen ASM 310, including the spray method, sniffing method, and bombing method, all of which are ideally suited for tightly-sealed objects that cannot be directly connected to the leak detector. All of these methods can be utilized to discover the possible location of the leak. Methods should be chosen according to the required measurement range as well as the required test parts.

A&J Vacuum Services offers full repair/service of Pfeiffer Adixen ASM 310 Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
