Pfeiffer Vacuum HiPace 30 Turbo Pump with TC 110 Controller, DN 40-KF, 22 l/s (N2), 2000014761 / PMP05282 / PM P02 282
Condition:
Discontinued
Item#:PN19879
Mfr Part#:2000014761 / PMP05282 / PM P02 282
Manufacturer:Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Pfeiffer Vacuum HiPace 30 Turbo Pump with TC 110 Controller, DN 40-KF, 22 l/s (N2), 2000014761 / PMP05282 / PM P02 282

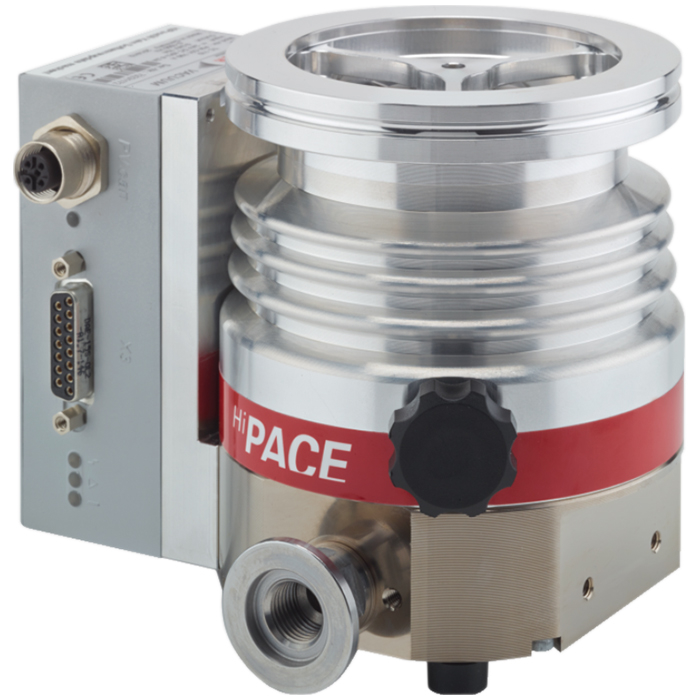

Pfeiffer HiPace 30 Turbo Pump (w/ TC 110 Controller) - Product Overview:
The Pfeiffer HiPace 30 is one of the smallest turbo pumps available on the market.
The Pfeiffer HiPace Series is a complete line of compact, yet powerful turbo pumps featuring pumping speeds ranging from 10 - 2,000 liters per second. The Pfeiffer Vacuum HiPace 10 Turbo Pump models are cost-effective and offer flexible installation in any orientation. The proven bearing system of the HiPace 10 provides unrivaled dependability, while its sophisticated rotor design enables higher pumping speeds, greater backing pump compatibility, improved gas throughputs and a favorable compression rate for light gases.
Pfeiffer Vacuum HiPace 30 Turbo Pump Features:
- Powerful HiPace30 Turbo Pump with a Pumping Speed of up to 32 l/s (N2)
- Integrated TC 110 Drive Electronics
- Start-Up Time of Roughly 1.7 Min
- User-Friendly Installation in Any Orientation
- Highest Compression in this Pumping Speed Class
- Low Weight (2 kg); Ideal for Portable Applications
Pfeiffer Vacuum HiPace 30 Turbo Pump - Characteristic:

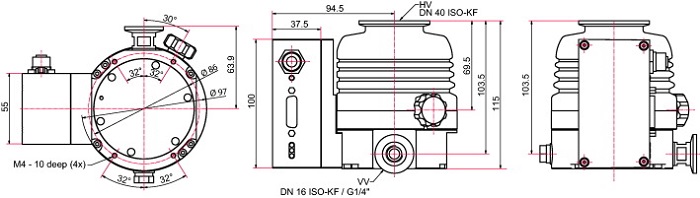

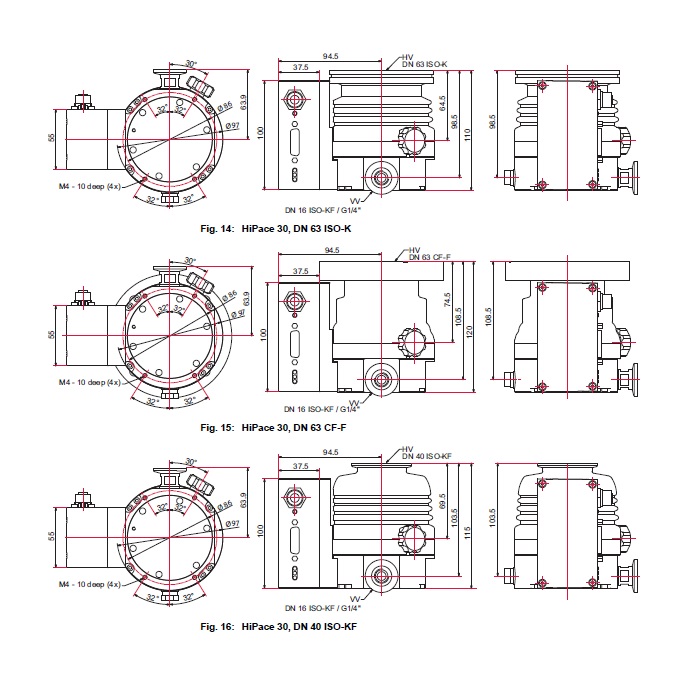

Pfeiffer Vacuum HiPace 30 Turbo Pump - Dimensions:
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 30 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Vacuum HiPace 30 Turbo Pump with TC 110 Controller, DN 40-KF, 22 l/s (N2), 2000014761 / PMP05282 / PM P02 282
Pfeiffer Vacuum HiPace 30 Turbo Pump Technical Specifications:
| Bearing | Hybrid |
| Compression Ratio for Ar | > 1 * 10^11 |
| Compression Ratio for H2 | 3 * 10^5 |
| Compression Ratio for He | 3 * 10^7 |
| Compression Ratio for N2 | > 1 * 10^11 |
| Cooling Method, Optional | Air/Water |
| Cooling Method, Standard | Convection |
| Cooling Water Flow | 75 l/h |
| Cooling Water Flow, Max | 75 l/h |
| Cooling Water Flow, Min | 75 l/h |
| Cooling Water Temperature | 5-25 °C | 41-77 °F | 278-298 K |
| Electronic Drive Unit | TC 110 |
| Flange Model (Inlet) | DN 63 CF-F |
| Flange Model (Outlet) | DN 16 ISO-KF/G ¼" |
| Fore-Vacuum Max. for N2 | 24 hPa | 18 Torr | 24 mbar |
| Gas Throughput at Full Rotational Speed for Ar | 0.22 hPa·l/s |
| Gas Throughput at Full Rotational Speed for H2 | 10 hPa·l/s |
| Gas Throughput at Full Rotational Speed for He | 1.84 hPa·l/s |
| Gas Throughput at Full Rotational Speed for N2 | 0.66 hPa·l/s |
| I/O Interfaces | RS-485, Remote |
| Mounting Orientation | Any |
| Operating Voltage: V DC | 24 (± 5 %) V DC |
| Permissible Magnetic Field Max. | 3 mT |
| Protection Category | IP54 |
| Pumping Speed for Ar | 32 l/s |
| Pumping Speed for H2 | 20 l/s |
| Pumping Speed for He | 24 l/s |
| Pumping Speed for N2 | 32 l/s |
| Rotation Speed ± 2 % | 90,000 rpm | 90,000 min-1 |
| Rotation Speed, Variable | 50 – 100 % |
| Run-up / Start-up Time | 1.7 min |
| Sound Pressure Level | ≤ 48 dB(A) |
| Ultimate Pressure According to PNEUROP | < 5 * 10^[-10] hPa | < 3.75 * 10^[-10] Torr | < 5 * 10^[-10] mbar |
| Venting Connection | G 1/8" |
| Weight | 3.2 kg | 7.05 lb |
