- 40.02 -- 46.5 Pumping Speed
- Input Voltages: 24 VDC
- Ultimate Pressure: 1 · 10-7 mbar
- Built-In TC 80 Electronic Drive Unit
Pfeiffer HiPace 30 Neo with TC 80, DN 40 ISO-KF, PM P090 266 10 / PMP09026610
Pfeiffer HiPace 30 Neo Features:
- 40.02 – 46.5 cfm pumping speed
- Input voltages: 24 VDC
- Ultimate pressure: 1 · 10-7 mbar
- Highest compression in this pumping speed class
- Low weight which is ideal for portable applications
- Long life cycle due to long maintenance intervals
- Built in TC 80 electronic drive unit
Pfeiffer HiPace30 Neo / PM P090 266 10 Overview:
The Pfeiffer HiPace 30 Neo Series is a small yet powerful turbopump featuring pumping speeds of up to 40.02 – 46.5 cfm. The HiPace 30 Neo models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
The turbopump is designed as a compact unit combined with the electronic drive system. Power is supplied via Pfeiffer Vacuum power supply units. An integrated rotor temperature monitoring system reduces the turbopump’s power consumption when the rotor temperature surpasses a defined threshold. Alongside the multifunction interface of the drive unit, the turbopump also features two AccessLink ports for direct connection of Pfeiffer Vacuum accessories.
Pfeiffer HiPace30 Neo Scope of Delivery:
- Turbopump with electronic drive unit
- Protective cap for the high vacuum connection
- Protective cap for the fore vacuum connection
- Sealing plug for AccessLink sockets
- Operating instructions
Pfeiffer HiPace30 Neo Applications:
- Analytical applications
- Illuminant industry
- Optical/glass industry
- Research facilities
- Semiconductor industry
- Vacuum coating technology
- Vacuum metallurgy
- Vacuum leak detection technology
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80 Neo, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer HiPace 30 Neo with TC 80, DN 40 ISO-KF, PM P090 266 10 / PMP09026610
Pfeiffer HiPace 30 Neo Technical Data:
- Bearing: Hybrid
- Compression ratio for Ar: 1 · 10^11
- Compression ratio for H2: 1 · 10^4
- Compression ratio for He: 2 · 10^5
- Compression ratio for N2: 1 · 10^11

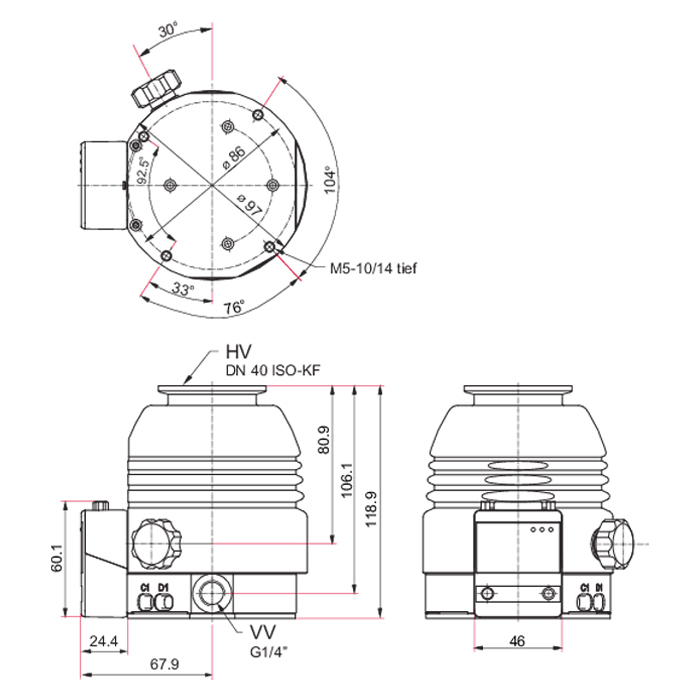

- Connection flange: DN 40 ISO-KF / G 1/4" Thread
- Connection flange (in): DN 40 ISO-KF
- Connection flange (out): G ¼"
- Cooling method: Natural convection
- Cooling method, optional: Water, Air (forced convection)
- Cooling water flow: 75 l/h
- Cooling water temperature: 5 – 25 °C | 41 – 77 °F | 278.15 – 298.15 K
- Current, max.: 5.6 A
- Electronic drive unit: TC 80
- Emission sound pressure level (EN ISO 2151): ≤48 dB(A)
- Fore-vacuum max. for N2: 20 hPa | 15 Torr | 20 mbar
- Gas throughput at final rotation speed for Ar: 0.33 hPa·l/s
- Gas throughput at final rotation speed for H2: 20 hPa·l/s
- Gas throughput at final rotation speed for He: 7.4 hPa·l/s
- Gas throughput at final rotation speed for N2: 3.2 hPa·l/s
- Gas throughput at full rotational speed, short term, for Ar: 3 hPa·l/s
- Gas throughput at full rotational speed, short term, for H2: 20 hPa·l/s
- Gas throughput at full rotational speed, short term, for He: 12.5 hPa·l/s
- Gas throughput at full rotational speed, short term, for N2: 7.5 hPa·l/s
- I/O interfaces: RS-485, Remote
- Input voltage(s): 24 V DC (±10 %)
- Integral leak rate: 2 · 10-8 Pa m³/s | 1.5 · 10-7 Torr l/s | 2 · 10-7 mbar l/s
- Mounting orientation: Arbitrary
- Permissible axial magnetic field max.: 23 mT
- Permissible radial magnetic field max.: 5 mT
- Position of power supply pack: External power supply pack
- Power consumption max.: 110 W
- Protection degree: IP54, Type 12

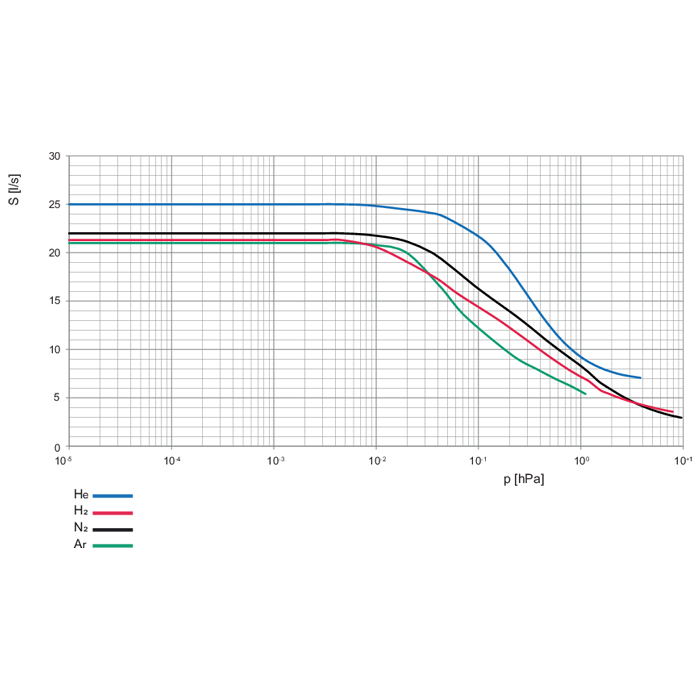

- Pumping speed: 68 – 79 m³/h | 40.02 – 46.5 cfm | 1,133.34 – 1,316.67 l/min
- Pumping speed for Ar: 21 l/s
- Pumping speed for H2: 21 l/s
- Pumping speed for He: 25 l/s
- Pumping speed for N2: 22 l/s
- Rated current consumption: 5 A
- Rotation speed variable: 50 – 100%
- Rotation speed ±2%: 90000 rpm | 90,000 min-1
- Run-up time: 65 s
- Type of electronic drive unit installation: Integrated electronic drive unit
- Ultimate pressure: 1 · 10-7 hPa | 7.5 · 10-8 Torr | 1 · 10-7 mbar
- Venting connection: G 1/8"
- Weight approx.: 1.6 kg | 3.53 lb
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80 Neo, Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer HiPace 30 Neo Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
