- Compression ratio for N2 1 · 106
- Flange (in) DN 63 ISO-K
- Flange (out) DN 16 ISO-KF/G ¼"
- PN PMP04000
Shopping Cart ( )

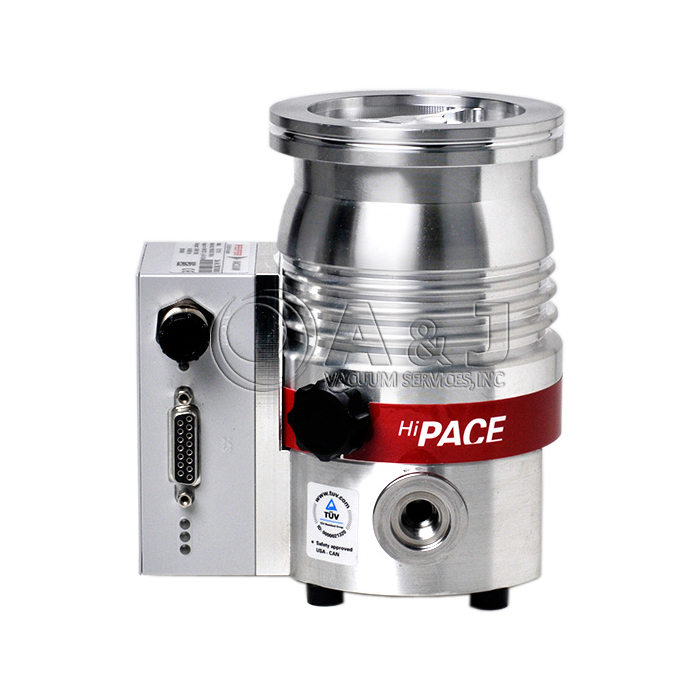

Pfeiffer Vacuum HiPace 60 P Turbo Pump with TC 110 Controller, DN 63 ISO-K, 2000015750 / PM P04 000 A / PMP04000A
Condition:
New
Item#:PN15703
Mfr Part#:2000015750 / PM P04 000 A / PMP04000A
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Vacuum HiPace 60 P Turbo Pump with TC 110 Controller, DN 63 ISO-K, 2000015750 / PM P04 000 A / PMP04000A
Pfeiffer Vacuum HiPace 60 P Turbo Pump Features:
- Powerful HiPace 60 Turbo Pump with a pumping speed of up to 64 l/s (N2)
- Integrated TC 110 drive electronics
- Installation in any orientation
- Simple and reliable system inegration
- Insensitive to dust
HiPace 60 P Turbo Pump / PMP04000A Overview:
The Pfeiffer HiPace60 Turbo Pumps are compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation. The HiPace 60 proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
HiPace60PTurboPump Scope of Delivery:
- Turbopump with electronic drive unit
- Protective cover for the high vacuum connection
- Protective cover for the fore-vacuum connection
- Operating instructions
HiPace60PTurboPump Applications:
- Coating
- Semiconductor manufacturing
- Analytical processes
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80 , Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer Vacuum HiPace 60 P Turbo Pump with TC 110 Controller, DN 63 ISO-K, 2000015750 / PM P04 000 A / PMP04000A
Pfeiffer Vacuum HiPace 60 P Turbo Pump Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | 2 · 106 |
| Compression ratio for H2 | 2 · 102 |
| Compression ratio for He | 3.5 · 102 |
| Compression ratio for N2 | 1 · 106 |
| Cooling method, optional | Air/Water |
| Cooling method, standard | Convection |
| Cooling water flow | 75 l/h |
| Cooling water flow, max | 75 l/h |
| Cooling water flow, min | 75 l/h |
| Cooling water temperature | 5-25 °C | 41-77 °F | 278-298 K |
| Electronic drive unit | with TC 110 |
| Flange (in) | DN 63 ISO-K |
| Flange (out) | DN 16 ISO-KF/G ¼" |
| Fore-vacuum max. for N2 | 4 hPa | 3 Torr | 4 mbar |
| Gas throughput at full rotational speed for Ar | 0.83 hPa·l/s |
| Gas throughput at full rotational speed for H2 | 55 hPa·l/s |
| Gas throughput at full rotational speed for He | 55 hPa·l/s |
| Gas throughput at full rotational speed for N2 | 9.2 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Mounting orientation | Any |
| Operating voltage: V DC | 24 (± 5 %) V DC |
| Permissible magnetic field max. | 4 mT |
| Protection category | IP54 |
| Pumping speed for Ar | 63 l/s |
| Pumping speed for H2 | 28 l/s |
| Pumping speed for He | 48 l/s |
| Pumping speed for N2 | 64 l/s |
| Rotation speed ± 2 % | 90,000 rpm | 90,000 min-1 |
| Rotation speed variable | 50 – 100 % |
| Run-up time | 1 min |
| Sound pressure level | ≤ 48 dB(A) |
| Ultimate pressure according to PNEUROP | < 1 · 10-6 hPa | < 7.5 · 10-7Torr | < 1 · 10-6 mbar |
| Venting connection | G 1/8" |
| Weight | 2.2 kg | 4.85 lb |
A&J Vacuum repair / rebuild and service Pfeiffer HiPace 10, HiPace 30, Hipace 80 , Hipace 300, Hipace 700 Turbo Pumps, PMP03940 Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
