- PN 1373S/MS
- Oustanding Quality
- For Welch Vane Model 1373
- Secondary Kit w/ Mechnical Seal
Shopping Cart ( )
Secondary Kit, Mechanical, for Welch Rotary Vane Vacuum Pump Model 1373, 1373S/MS
Condition:
New
Item#:PN15519
Mfr Part#:1373S/MS
Manufacturer:Welch
Features:
Secondary Kit, Mechanical, for Welch Rotary Vane Vacuum Pump Model 1373, 1373S/MS
Overview
The Welch 1373 Rotary Vane Vacuum Pump Secondary Kit With Mechanical Seal includes everything needed for overhauls on the Welch 1373 Secondary Kit With Mechanical Seal Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Welch Rotary Vane Vacuum Pumps.

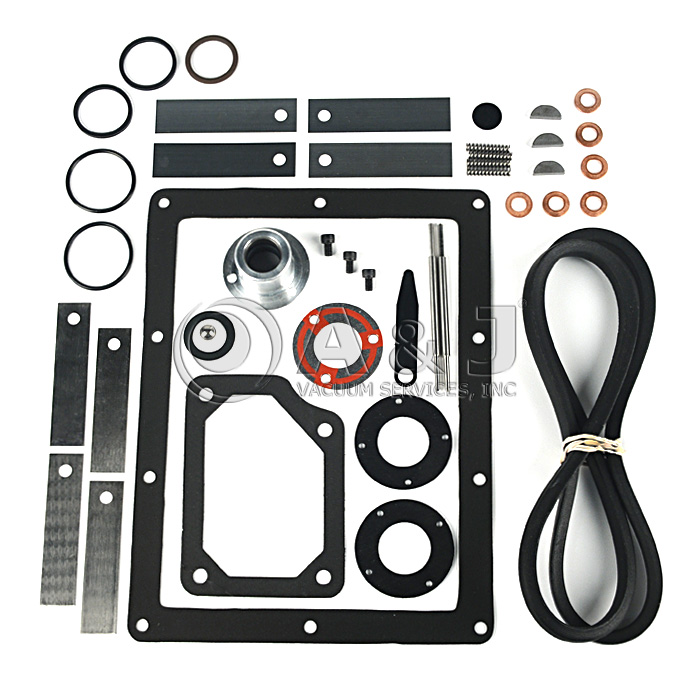

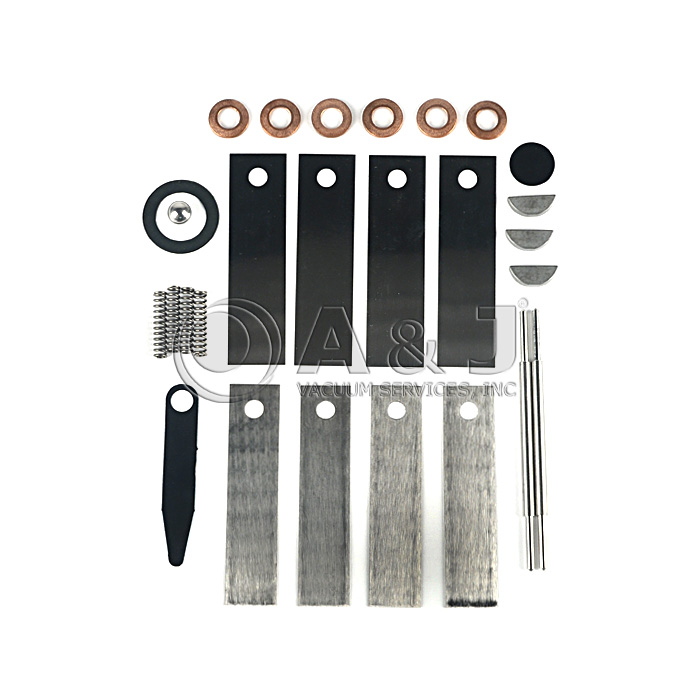

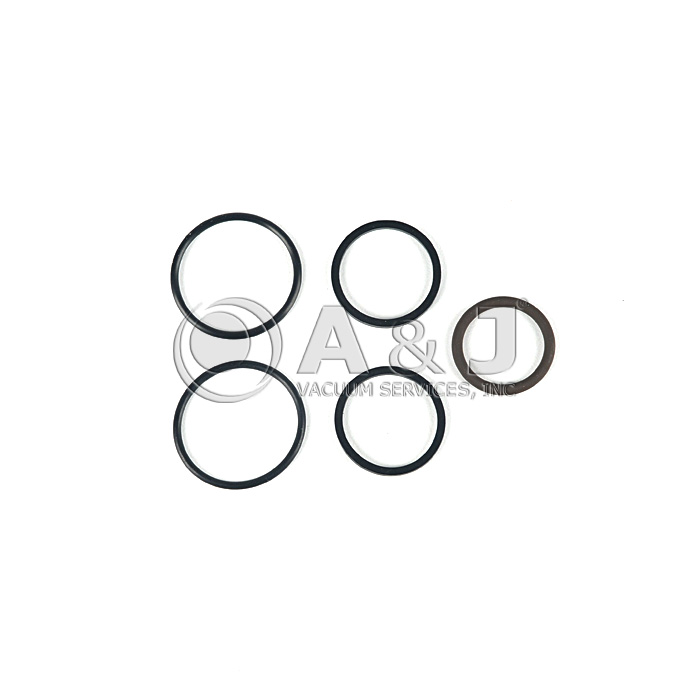

Welch 1373 Secondary Kit With Mechanical Seal contains the following parts:

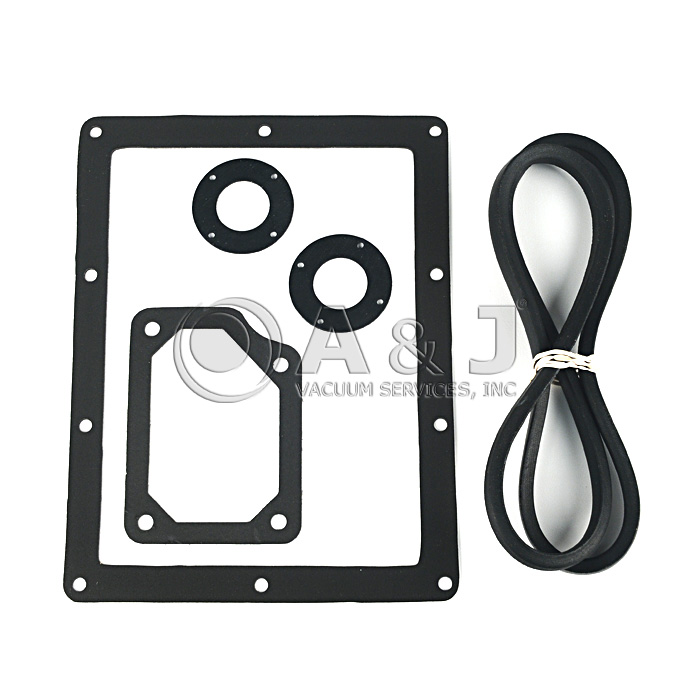

410234 Gasket,1376,1380,1402/1405, qty.1
410403 Gasket,Case,Foam Rubber, qty.1
410696 Holder,Spring, qty.2
410710 V-Belt, qty.1
411266 Washer,Tension, qty.2
411267 Washer,Rubber, qty.2
411304 Spring,Ss, qty.4
411768 Valve,Lower Ex,Stainless Stl., qty.4
411779 Valve,Upper Exhaust, qty.4

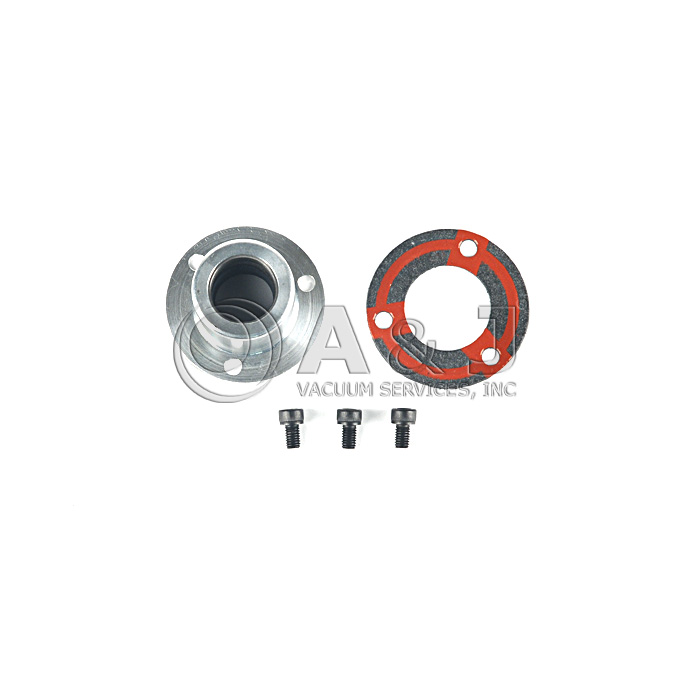

1401d Seal,Shaft,Mech,W/Screws,.750", qty.1
410643 Gasket,Shaft Seal, qty.1
4401200 Ball,Steel, qty.1
A&J Vacuum Repairs / Rebuilds and Services all Welch 1373, 1374, 1376 Vane Pumps including belt driven Welch pumps service pumps and all other Welch vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Secondary Kit, Mechanical, for Welch Rotary Vane Vacuum Pump Model 1373, 1373S/MS
The Welch 1373 Rotary Vane Vacuum Pump Secondary Kit With Mechanical Seal includes everything needed for overhauls on the Welch 1373 Secondary Kit With Mechanical Seal Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Welch Rotary Vane Vacuum Pumps.
Welch 1373 Secondary Kit With Mechanical Seal contains the following parts:
410234 Gasket,1376,1380,1402/1405, qty.1
410403 Gasket,Case,Foam Rubber, qty.1
410696 Holder,Spring, qty.2
410710 V-Belt, qty.1
411266 Washer,Tension, qty.2
411267 Washer,Rubber, qty.2
411304 Spring,Ss, qty.4
411768 Valve,Lower Ex,Stainless Stl., qty.4
411779 Valve,Upper Exhaust, qty.4
1401d Seal,Shaft,Mech,W/Screws,.750", qty.1
410643 Gasket,Shaft Seal, qty.1
4401200 Ball,Steel, qty.1
A&J Vacuum Repairs / Rebuilds and Services all Welch 1373, 1374, 1376 Vane Pumps including belt driven Welch pumps service pumps and all other Welch vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
