- PN721005 / 20721005
- Max. pumping speed at 50/60 Hz: 0.4/0.5 CFM
- Ultimate vacuum (abs.): 100 Mbar
- Perfect for Labs
Shopping Cart ( )
Vacuubrand ME 1 Diaphragm Pump, 100-120V / 200-230 / 50-60Hz, US power cord, 0.5 CFM, 100 mbar, 721005 / 20721005
Condition:
New
Item#:PN23970
Mfr Part#:721005 / 20721005
Manufacturer:BRANDTECH / Vacuubrand
Features:
Vacuubrand ME 1 Diaphragm Pump, 100-120V / 200-230 / 50-60Hz, US power cord, 0.5 CFM, 100 mbar, 721005 / 20721005
Vacuubrand ME 1 Pump is very popular in many common applications used in chemistry, vacuum sample preperation, microbiology research, waste water control and many other analytical processes.
The newly design Vacuubrand ME1 / 20721005 pump offers high performance, light compact design, and easy to use solution which is ideal for vacuum filtrations.
This new ME 1 development was based on succesfull design od Vacuubrand MD 1 which provides well proven and long diaphragm life time.
ME1 is very qiuet nad design with a thought of laboratory use and space saving in every lab.
Vacuubrand ME 1 / 20721005 is also available in chemical corrosion resistant version ME 1C / PN19457
Performance features;
-
Whisper quiet, quick and simple to use
-
Easy to use top mounted On/Off button
-
Ultra low vibration
-
High chemical resistance
-
Space saver
-
Sipmle to use
-
Maintenance free drive system
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Vacuubrand ME 1 Diaphragm Pump, 100-120V / 200-230 / 50-60Hz, US power cord, 0.5 CFM, 100 mbar, 721005 / 20721005
| Technical data | Unit | ME 1 |
|---|---|---|
| Number of heads / stages | 1 / 1 | |
| Max. pumping speed at 50/60 Hz | m3/h | 0.7 / 0.85 |
| Max. pumping speed at 50/60 Hz | cfm | 0.4 / 0.5 |
| Ultimate vacuum (abs.) | mbar/torr | 100 / 75 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Hose nozzle DN 6-10 mm | |
| Outlet connection | Silencer / G1/8" | |
| Rated motor power | kW | 0.04 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |

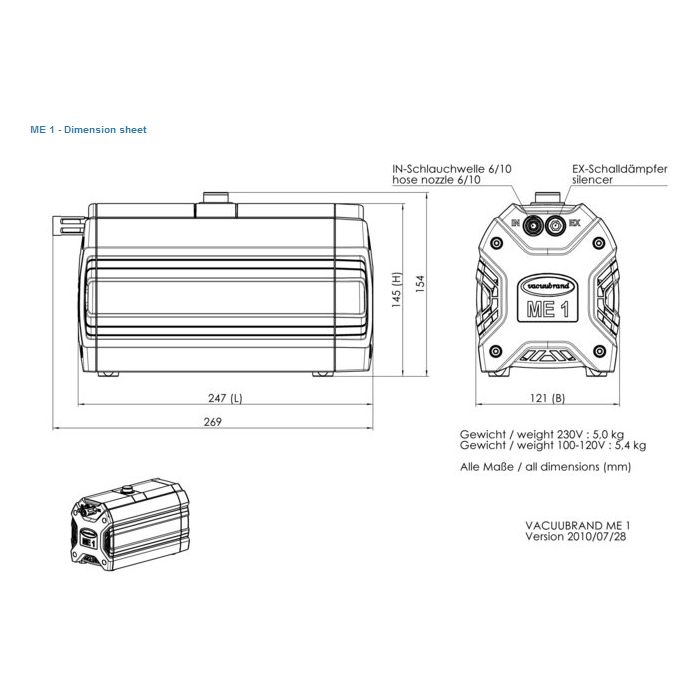

| Dimensions (L x W x H) | mm | 247 x 121 x 145 |
| Weight | kg | 5.0 |
| Noise level at 50 Hz, typ. | dBA | 45 |
| NRTL certification | Canada and the USA | |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pump completely mounted, ready for use, with manual. |
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
