- P/N 54487
- Meets or Exceets OEM specifications
Shopping Cart ( )
Varian SD1400 Major Repair / Rebuild Kit, 54487 KIT with Vanes
Condition:
New
In Stock
Item#:PN19916
Mfr Part#:54487 KIT
Manufacturer:Varian
Features:
Varian SD 1400 Major Repair / Rebuild Kit, 54487 KIT with Vanes for SD-1400 Vacuum Pump
Overview:
The Varian SD1400 Major Repair / Rebuild Kit with Vanes includes everything needed for major overhauls on the Varian SD1400 Rotary Vane Vacuum Pumps.
A&J Vacuum also repair / rebuild and service all Alcatel Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.

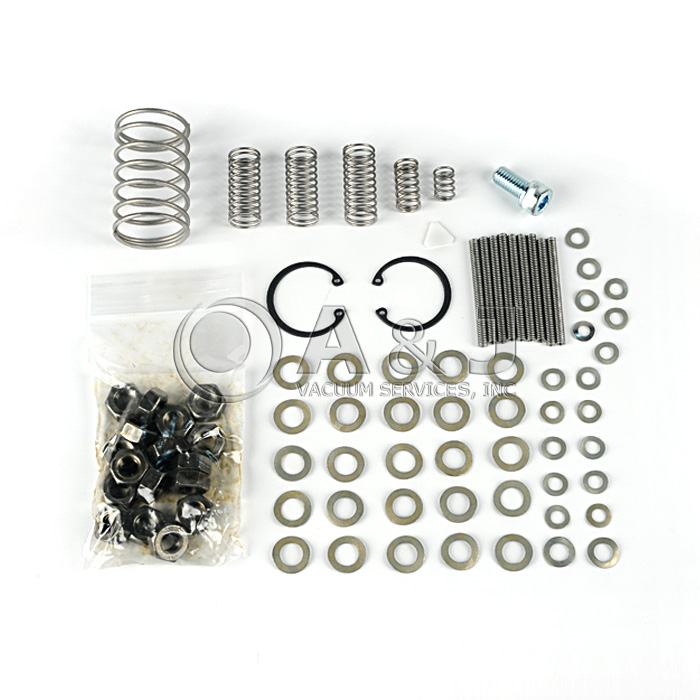

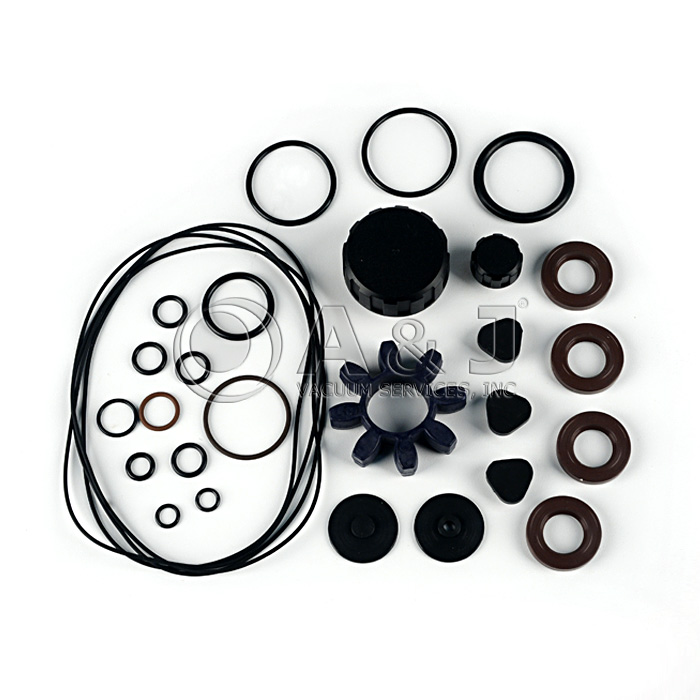

Varian SD1400 Rotary Vane Vacuum Pump Major Repair / Rebuild Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
|
Viton Valve |
A53443 |
3 |
|
Gas Ballast Spring |
A54114 |
1 |
|
Exhaust Valve |
A54134 |
1 |
|
Spring |
A54145 |
1 |
|
Spring |
A54149 |
1 |
|
Membrane |
A54196 |
1 |
|
Clapper |
A54224 |
1 |
|
Coupling |
A54356 |
1 |
|

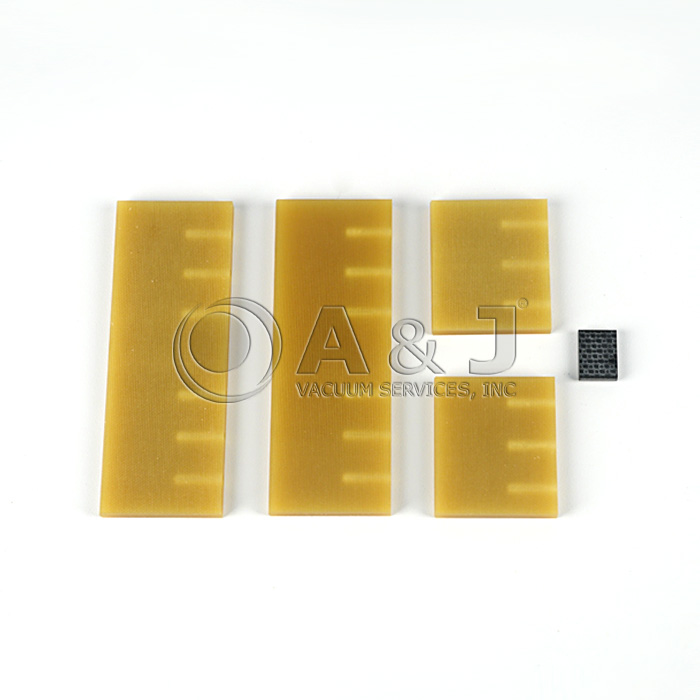

1st Stage Vane |
A54400G |
2 |
|
2nd Stage Vane |
A54401G |
2 |
|
Oil Case Gasket |
A54427 |
1 |
|
Oil Pump Vane |
A65042G |
1 |
|
Felt Pad |
A65538 |
1 |
|
C-Clip |
A71188 |
2 |
|
Nut |
A71217 |
17 |
|
Waved Washer M5 |
A73453 |
1 |
|
Waved Washer M6 |
A73454 |
16 |
|
Waved Washer M8 |
A73455 |
2 |
|
Waved Washer M10 |
A73456 |
25 |
|
Socket Head Screw |
A75024 |
1 |
|
Oil Sight Glass |
A76135 |
1 |
|
O-Ring |
A79051 |
1 |
|
Viton Shaft Seal |
A79101 |
4 |
|
O-Ring |
A79234 |
2 |
|
Stage O-Ring |
A79241 |
4 |
|
O-Ring |
A82024 |
4 |
|
O-Ring |
A82056 |
1 |
|
O-Ring |
A82108 |
1 |
|
O-Ring |
A82109 |
1 |
|
O-Ring |
A82122 |
1 |
|
O-Ring |
A82129 |
1 |
|
Drain Plug |
A82604 |
1 |
|
Fill Plug |
A82925 |
1 |
|
O-Ring |
A84149 |
1 |
|
O-Ring |
A87926 |
1 |
|
Vane Spring |
A87942 |
9 |
|
Valve Spring |
A87954 |
3 |
THERE ARE NO RETURNS ON THIS PRODUCT.
