- P/N 54285
- Meets or Exceeds OEM Specifications
Shopping Cart ( )
Varian SD700 Minor Repair / Rebuild Kit, 54285
Condition:
New
In Stock
Item#:PN19911
Mfr Part#:54285 / P1879301
Manufacturer:Varian
Features:
Overview:

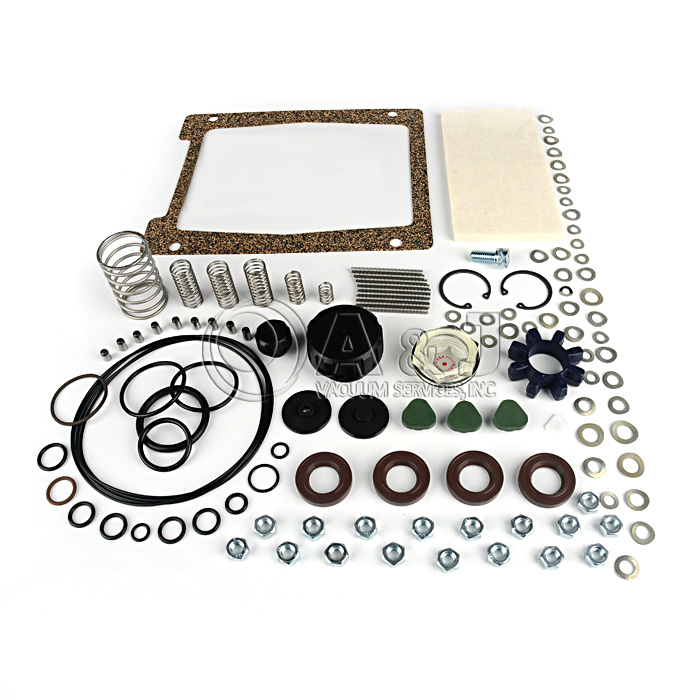

The Varian SD 700 Minor Repair / Rebuild Kit, for SD700 Vacuum Pump, 54285 Vacuum Pump Minor Repair Kit includes everything needed for minor overhauls on the Varian SD700 Rotary Vane Vacuum Pump. P1879301
Varian SD700 Minor Repair Kit / Rebuild Kit contains the following parts:
|
PN 54285 KIT,MINOR,1033/2033 |
||
|
PN |
Desc. |
Qty |
|
103306 |
GASKET,SIGHT GLASS |
1 |
|
105452R |
SIGHT GLASS,OIL,PLASTIC |
1 |
|
320067 |
O'RING,VITON,63.09 X 3.53 MM |
1 |
|
53443 |
VALVE,DISCHRG,VITON 2033/63C |
3 |
|
54091 |
COUPLER,ELSTC,BLUE,2030-2033C |
1 |
|
54114 |
SPRING,GAS BALLAST |
1 |
|
54128 |
GASKET,CASE,2033C |
1 |
|
54134 |
VALVE,EXHAUST,2033/63C |
1 |
|
54145 |
SPRING |
1 |
|
54149 |
SPRING |
1 |
|
54196 |
MEMBRANE,OIL PUMP |
1 |
|
54224 |
CLAPPER,2033/63 |
1 |
|
73446 |
WASHER,WAVED,S.S.,M10 |
4 |
|
73460 |
WASHER,WAVED,S.S.,M6 |
16 |
|
73461 |
WASHER,WAVED,S.S.,M8 |
23 |
|
79234 |
O'RING,BUNA,8 X 2 MM |
2 |
|
82108 |
O'RING,BUNA,9.19 X 2.62 MM |
1 |
|
82109 |
O'RING,BUNA,10.77 X 2.62 MM |
1 |
|
82112 |
O'RING,BUNA,15.54 X 2.62 MM |
1 |
|
65059 |
PAD,FELT,2033-2033CP+ |
1 |
|
65079 |
ASSY,SIGHT GLASS,2033/2063CP+ |
1 |
|
71188 |
C-CLIP,2033/63C |
2 |
|
71338 |
NUT |
1 |
|
75024 |
SCREW,SOCKET HEAD CAP,YLW CH |
1 |
|
76135 |
Sight glass, Window,W/seal |
1 |
|
76261 |
PIN,COTTER,2033/63 |
1 |
|
76261C |
C-CLIP,2033/63 |
1 |
|
79010 |
O'RING,BUNA,128 X 2 MM |
4 |
|
79051 |
O'RING,BUNA,41 X 3 MM |
1 |
|
79100 |
SEAL,SHAFT,BUNA |
3 |
|
79101 |
SEAL,SHAFT,VITON |
1 |
|
82024 |
O'RING,VITON,12.37 X 2.62 MM |
4 |
|
82122 |
O'RING,BUNA,29.3 X 3.6 MM |
1 |
|
82129 |
O'RING,BUNA,40.64 X 5.33 MM |
1 |
|
82604 |
PLUG,DRAIN,PLASTIC,2004A-2063C |
1 |
|
82925 |
PLUG,FILL,2033-2063C |
1 |
|
83633 |
O'RING,BUNA,38 X 2.5 MM |
1 |
|
84149 |
O'RING,BUNA,16 X 2 MM |
1 |
|
87926 |
O'RING,BUNA,44 X 3 MM |
1 |
|
87954 |
SPRING,VALVE |
3 |
|
54451G |
VANE,GX,OIL PUMP |
1 |
|
DRAWING |
Drawing Layout |
1 |
A&J Vacuum also repair / rebuild and service all Alcatel Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
THERE ARE NO RETURNS ON THIS PRODUCT.
P1879301
|
