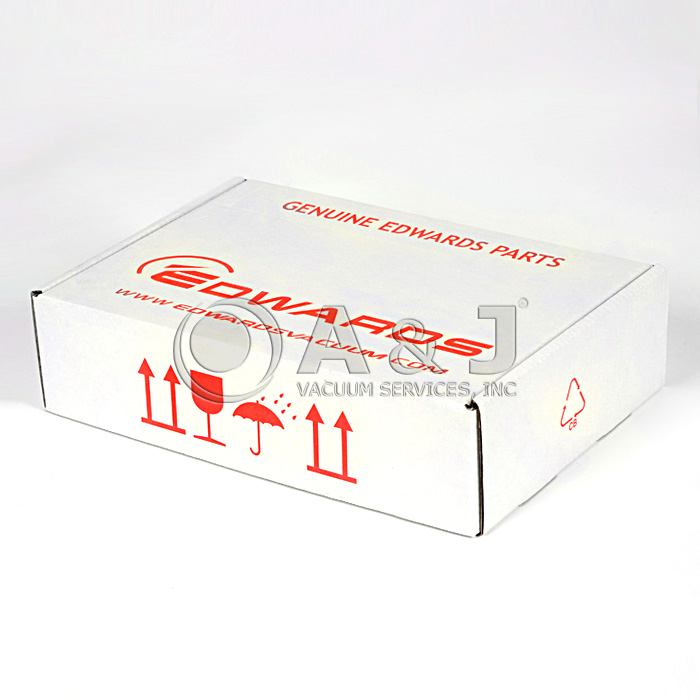

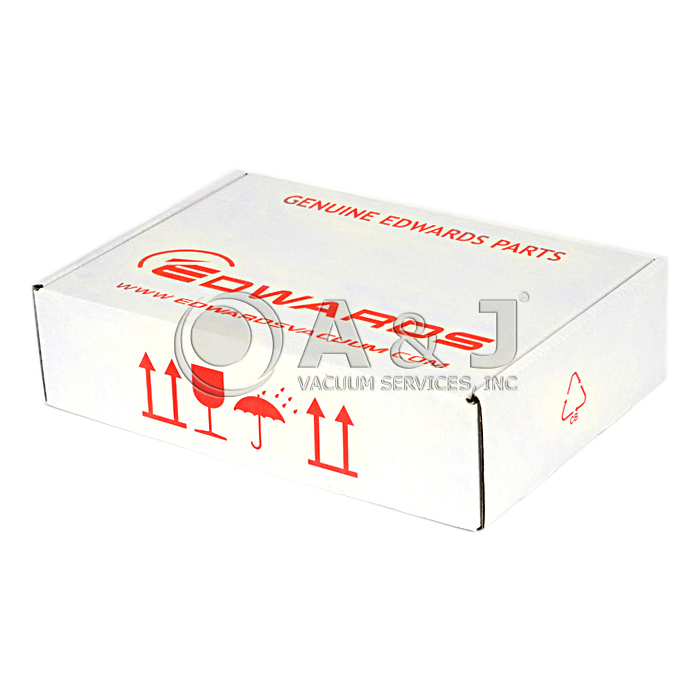

Edwards E2M275 Rotary Vane Vacuum Pump Clean & Overhaul Major Kit, 36701831ED
Condition:
New
Item#:PN06964
Mfr Part#:36701831ED
Manufacturer:Edwards Vacuum
Features:
Edwards E2M275 Major Kit, Clean & Overhaul Major Kit, 36701831ED
Overview:
The Edwards Vacuum E2M275 Clean & Overhaul Kit includes everything needed for major overhauls on the Edwards Vacuum E2M275 Rotary Vane Vacuum Pump.
| A36701831-SPARES KIT MAJOR E2M275 | ||
| Components | description | Quantity |
| A02800016 | PISTON FACE | 1 |
| A20402634 | BLADE HV E1M-275/E2M-275 F32 | 2 |
| A20402636 | LV BLADE E2M175/275 | 2 |
| A00906058 | OIL SIGHT GLASS END CAP | 2 |
| A25904601 | BALLAST VALVE | 1 |
| A27159413 | DISTRIBUTOR RUBBER | 1 |
| A27159506 | HV EXHAUST RUBBER | 1 |
| A34601042 | VALVE PAD | 1 |
| A34601067 | BACK UP WASHER E1/E2M 175/275 | 2 |
| A27159504 | LV EXHAUST RUBBER | 1 |
| A19201007 | BALLAST PISTON ASSY 40/80/175/ | 1 |
| 211284039 | PIN SPLIT SS 1/16X1 LONG | 1 |
| A01601089 | SIGHT GLASS | 1 |
| A20001293 | LABEL - EXHAUST WARNING | 1 |
| A20402539 | OIL PUMP BLADE | 2 |
| A20404013 | ROLLER BEARING NU208 | 2 |
| A20405021 | SHAFT SEAL SLEEVE 35X40X30 | 1 |
| A21071030 | FLEXIBLE COUPLING ELEMENT | 1 |
| A22304032 | FILTER ELEMENT OIL | 1 |
| A22305011 | FILTER ASSY E2M 175/275 | 1 |
| A22305015 | KNITMESH | 1 |
| A22305041 | FILTER | 2 |
| A25972004 | DRIVE PLATE E2M175/275 | 1 |
| A26501020 | PISTON RING | 1 |
| A27102019 | SPRING | 1 |
| A27102022 | SPRING ST/STL | 1 |
| A27102023 | SPRING ST/STL | 2 |
| A27159416 | DIAPHRAGM | 1 |
| A27159428 | GASKET | 1 |
| A27159526 | FILTER GASKET | 1 |
| A27159614 | BALLAST GASKET | 1 |
| A27159615 | BALLAST GASKET | 1 |
| A27159619 | VALVE BODY GASKET | 1 |
| A27159620 | EXHAUST GASKET | 1 |
| A27159621 | ENDPLATE GASKET | 1 |
| A27159625 | LID GASKET | 1 |
| A27159628 | BOX GASKET | 1 |
| B27158170 | ISO63 TRAPPED ORING SEAL (V) | 1 |
| H02104001 | DOWTY BONDED SEAL MK A 1/8"BSP | 1 |
| H02104002 | DOWTY BONDED SEAL MK B 1/4"BSP | 6 |
| H02104004 | DOWTY BONDED SEAL MK D 1/2"BSP | 1 |
| H02104008 | DOWTY BONDED SEAL MK H 1" BSP | 1 |
| H02109076 | SEAL FKM GP 30.42.7 BID | 1 |
| H02109077 | SEAL FKM GP 40.52.7 BID | 3 |
| H02120027 | O-Ring NIT 5.6ID x 2.4SEC | 3 |
| H02122036 | O-RING FKM GP 14.6ID X 2.4SEC | 1 |
| H02125011 | O-Ring NIT 0.424ID x .103SEC | 1 |
| H02125023 | O-Ring NIT 0.921ID x .139SEC | 1 |
| H02125026 | O-Ring NIT 1.109ID x .139SEC | 2 |
| H02125039 | O-Ring NIT 3.609ID x .139SEC | 1 |
| H02125055 | O-Ring NIT 3.350ID x .210SEC | 1 |
| H02125091 | O-Ring NIT 9.475ID x .275SEC | 1 |
| H02125116 | O-Ring NIT 0.299ID x .103SEC | 1 |
| H02125171 | O-Ring NIT 2.687ID x .139SEC | 1 |
| H02125181 | O-Ring NIT 3.140ID x .210SEC | 1 |
| H02126020 | O-RING FKM GP 0.734ID X .139SEC | 2 |
| H02126047 | O-RING FKM GP 2.225ID X .210SEC | 1 |
| H02126050 | O-RING FKM GP 2.625ID X .210SEC | 2 |
We also do minor and major repairs for all Edwards Vacuum Rotary Vane Vacuum Pumps.
Edwards Vacuum E2M275 Clean & Overhaul Major Kit contains the following parts:
This item is non-returnable/non-refundable
Edwards E2M275 Major Kit, Clean & Overhaul Major Kit, 36701831ED
Overview:
The Edwards Vacuum E2M275 Clean & Overhaul Kit includes everything needed for major overhauls on the Edwards Vacuum E2M275 Rotary Vane Vacuum Pump.
| A36701831-SPARES KIT MAJOR E2M275 | ||
| Components | description | Quantity |
| A02800016 | PISTON FACE | 1 |
| A20402634 | BLADE HV E1M-275/E2M-275 F32 | 2 |
| A20402636 | LV BLADE E2M175/275 | 2 |
| A00906058 | OIL SIGHT GLASS END CAP | 2 |
| A25904601 | BALLAST VALVE | 1 |
| A27159413 | DISTRIBUTOR RUBBER | 1 |
| A27159506 | HV EXHAUST RUBBER | 1 |
| A34601042 | VALVE PAD | 1 |
| A34601067 | BACK UP WASHER E1/E2M 175/275 | 2 |
| A27159504 | LV EXHAUST RUBBER | 1 |
| A19201007 | BALLAST PISTON ASSY 40/80/175/ | 1 |
| 211284039 | PIN SPLIT SS 1/16X1 LONG | 1 |
| A01601089 | SIGHT GLASS | 1 |
| A20001293 | LABEL - EXHAUST WARNING | 1 |
| A20402539 | OIL PUMP BLADE | 2 |
| A20404013 | ROLLER BEARING NU208 | 2 |
| A20405021 | SHAFT SEAL SLEEVE 35X40X30 | 1 |
| A21071030 | FLEXIBLE COUPLING ELEMENT | 1 |
| A22304032 | FILTER ELEMENT OIL | 1 |
| A22305011 | FILTER ASSY E2M 175/275 | 1 |
| A22305015 | KNITMESH | 1 |
| A22305041 | FILTER | 2 |
| A25972004 | DRIVE PLATE E2M175/275 | 1 |
| A26501020 | PISTON RING | 1 |
| A27102019 | SPRING | 1 |
| A27102022 | SPRING ST/STL | 1 |
| A27102023 | SPRING ST/STL | 2 |
| A27159416 | DIAPHRAGM | 1 |
| A27159428 | GASKET | 1 |
| A27159526 | FILTER GASKET | 1 |
| A27159614 | BALLAST GASKET | 1 |
| A27159615 | BALLAST GASKET | 1 |
| A27159619 | VALVE BODY GASKET | 1 |
| A27159620 | EXHAUST GASKET | 1 |
| A27159621 | ENDPLATE GASKET | 1 |
| A27159625 | LID GASKET | 1 |
| A27159628 | BOX GASKET | 1 |
| B27158170 | ISO63 TRAPPED ORING SEAL (V) | 1 |
| H02104001 | DOWTY BONDED SEAL MK A 1/8"BSP | 1 |
| H02104002 | DOWTY BONDED SEAL MK B 1/4"BSP | 6 |
| H02104004 | DOWTY BONDED SEAL MK D 1/2"BSP | 1 |
| H02104008 | DOWTY BONDED SEAL MK H 1" BSP | 1 |
| H02109076 | SEAL FKM GP 30.42.7 BID | 1 |
| H02109077 | SEAL FKM GP 40.52.7 BID | 3 |
| H02120027 | O-Ring NIT 5.6ID x 2.4SEC | 3 |
| H02122036 | O-RING FKM GP 14.6ID X 2.4SEC | 1 |
| H02125011 | O-Ring NIT 0.424ID x .103SEC | 1 |
| H02125023 | O-Ring NIT 0.921ID x .139SEC | 1 |
| H02125026 | O-Ring NIT 1.109ID x .139SEC | 2 |
| H02125039 | O-Ring NIT 3.609ID x .139SEC | 1 |
| H02125055 | O-Ring NIT 3.350ID x .210SEC | 1 |
| H02125091 | O-Ring NIT 9.475ID x .275SEC | 1 |
| H02125116 | O-Ring NIT 0.299ID x .103SEC | 1 |
| H02125171 | O-Ring NIT 2.687ID x .139SEC | 1 |
| H02125181 | O-Ring NIT 3.140ID x .210SEC | 1 |
| H02126020 | O-RING FKM GP 0.734ID X .139SEC | 2 |
| H02126047 | O-RING FKM GP 2.225ID X .210SEC | 1 |
| H02126050 | O-RING FKM GP 2.625ID X .210SEC | 2 |
We also do minor and major repairs for all Edwards Vacuum Rotary Vane Vacuum Pumps.
Edwards Vacuum E2M275 Clean & Overhaul Major Kit contains the following parts:
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
