Leybold SV10B and SV16B Rotary Vane Pump Major Repair/Maintenance Kit, 71422230
Condition:
New
In Stock
Item#:PN12409
Mfr Part#:71422230
Manufacturer:Leybold
Features:
Oerlikon / Leybold SV10 and SV16B Rotary Vane Vacuum Pump Major Repair/Maintenance Kit.
We also do minor and major repairs for all Leybold Rotary Vane Vacuum Pumps.

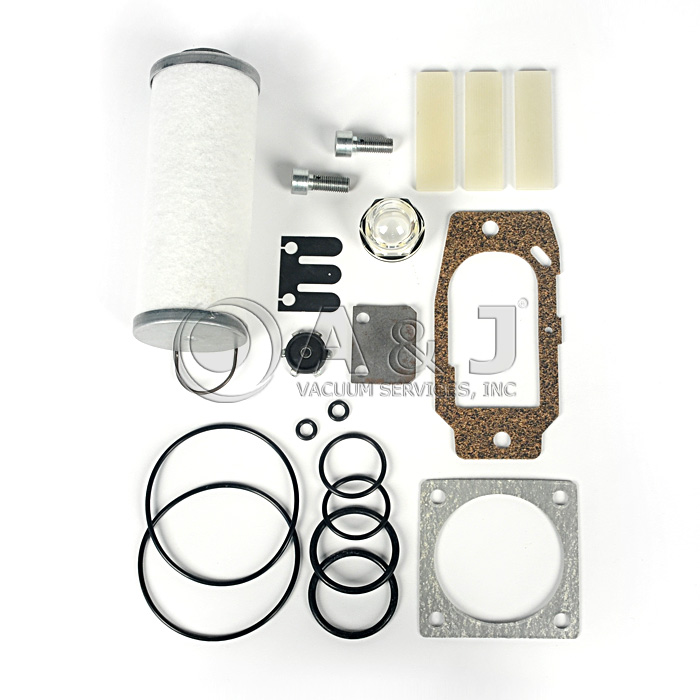

This kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |

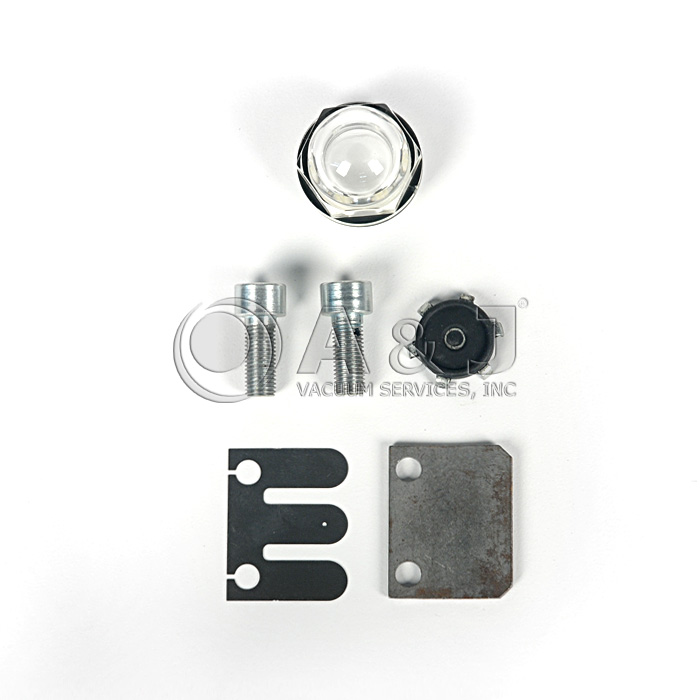

| Sight Glass | 71212428 | 1 |

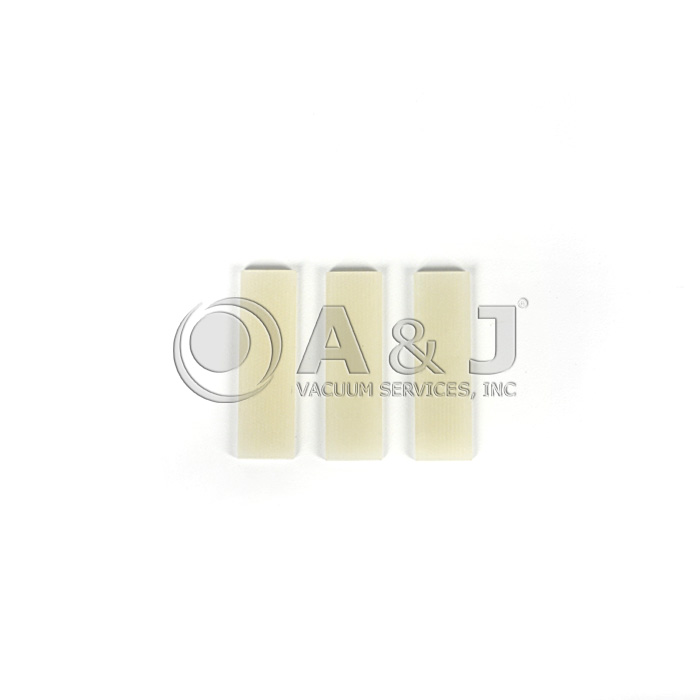

| Vane | 71413150G | 3 |

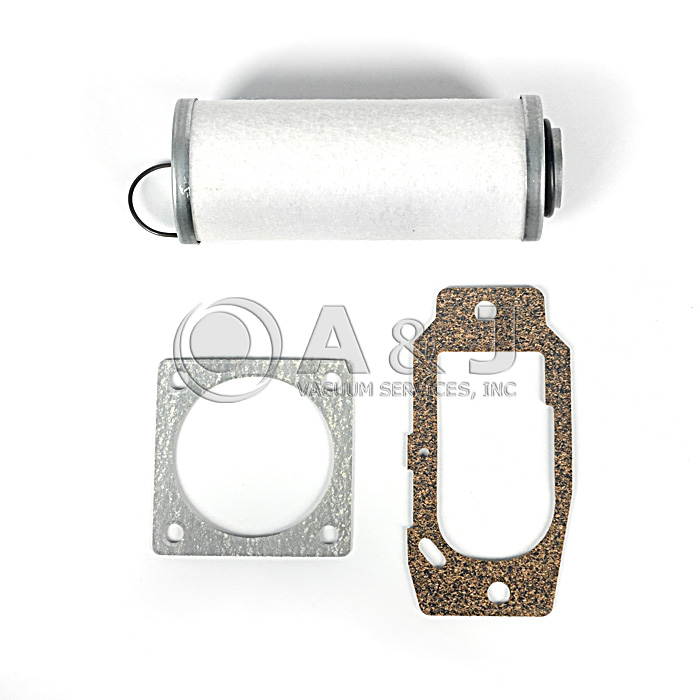

| Exhaust Filter | 71413280 | 1 |
| Stop Valve | 71416360 | 1 |
| Plate Valve | 71416370 | 1 |
| Screw | 71416500 | 2 |

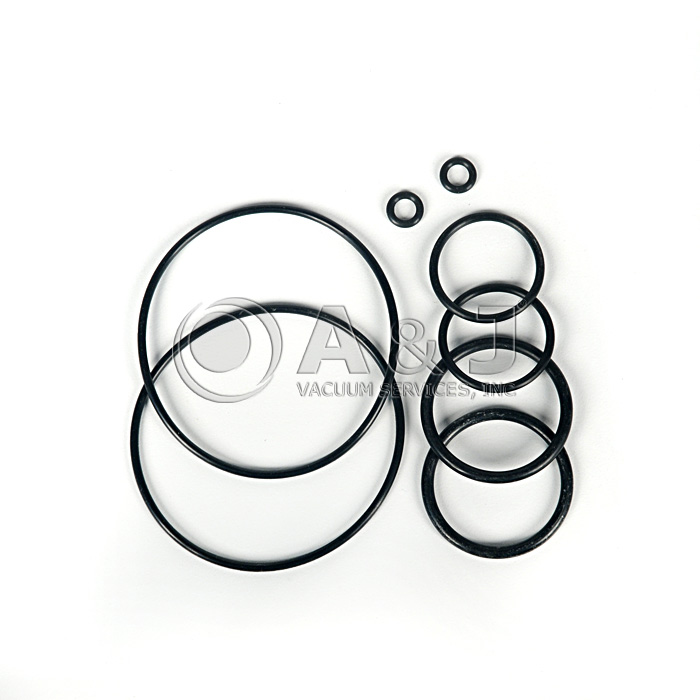

| O-Ring, 34.52 x 3.53 mm | 40023 | 2 |
| O-Ring, 6 x 2.2 mm | 4070088 | 2 |
| O-Ring, 27 x 2.5 mm | 71036722 | 2 |
| Anti-Suckback Valve | 71042993 | 1 |
| Flat Gasket | 71413240 | 1 |
| Flat Gasket | 71416430 | 1 |
| O-Ring, 70 x 2.5 mm | 71413470 | 2 |
THERE ARE NO RETURNS ON THIS PRODUCT.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
