- Includes a Cutting-Edge Rotor and High-Performance Drag Stage Design
- High Pumping Speed for Four Distinct Gases: Nitrogen, Argon, Helium, and Hydrogen
- Utilizes Convection Standard Cooling Method; Advanced Temperature Stability
- Incorporates DN 100 CF Inlet Flange; DN 16 ISO-KF Outlet Flange
Shopping Cart ( )
Leybold Turbovac 250 iX High-Vacuum Turbo Pump, RS 485, DN 100 CF, 820061V3300
Condition:
New
Item#:PN23273
Mfr Part#:820061V3300
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold Turbovac 250 iX High-Vacuum Turbo Pump, RS 485, DN 100 CF, 820061V3300
Leybold Turbovac 250 iX Features:

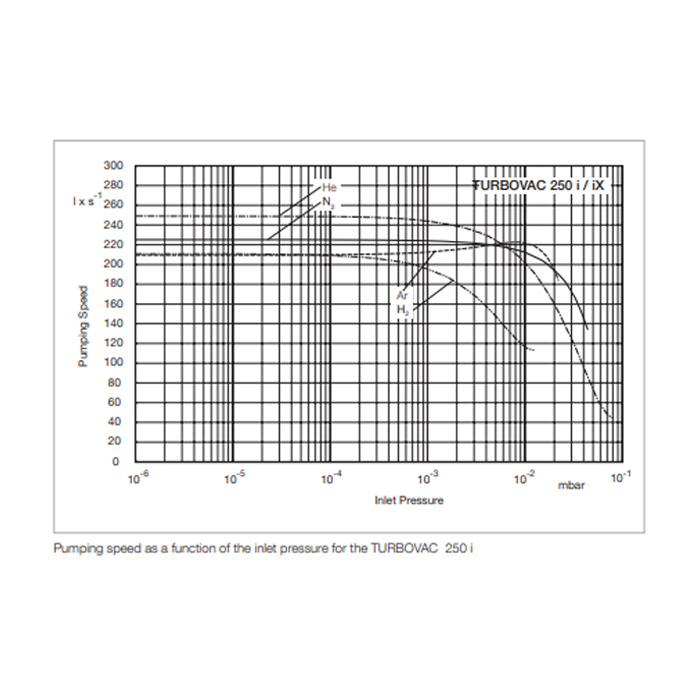

- Ultimate pressure: < 5.0 x 10-10 mbar
- Pumping speed (Ar): 210 l/s
- Pumping speed (He): 250 l/s
- Pumping speed (H₂): 210 l/s
- Pumping speed (N₂): 225 l/s
- High pressure foreline tolerance
- Excellent resistance to vibration due to proven mechanical bearings
- Efficient convection cooling due to a large number of cooling fans
Turbovac 250 iX / 820061V3300 Overview:
With the Leybold Turbovac 250 iX, high functionality meets outstanding performance. Our model 250 iX turbomolecular pump range with an integrated vacuum system controller provides many features that have, until now, been available only in costly external pump control units. With the Leybold Turbovac 250 iX, fore-vacuum pumps, gauges, coolers, valves, and many other accessories can now be easily controlled via the turbo pump. The Turbovac 250 iX turbo pump has a pumping speed of 225 l/s of N2 (Nitrogen).
Designed to offer the best performance-to-size ratio within the ISO 63, 100 and 160 flange size range, the Leybold Turbovac 250 iX features a cutting-edge rotor and drag stage design, contributing to high performance and unparalleled pumping speeds, especially for light gas varieties.
A wide selection of interface options, housing and flange configurations, as well as accessories completes this product line. The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will likewise boost your productivity and reduce the cost of ownership.
Turbovac250iX Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 250iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Leybold Turbovac 250 iX High-Vacuum Turbo Pump, RS 485, DN 100 CF, 820061V3300

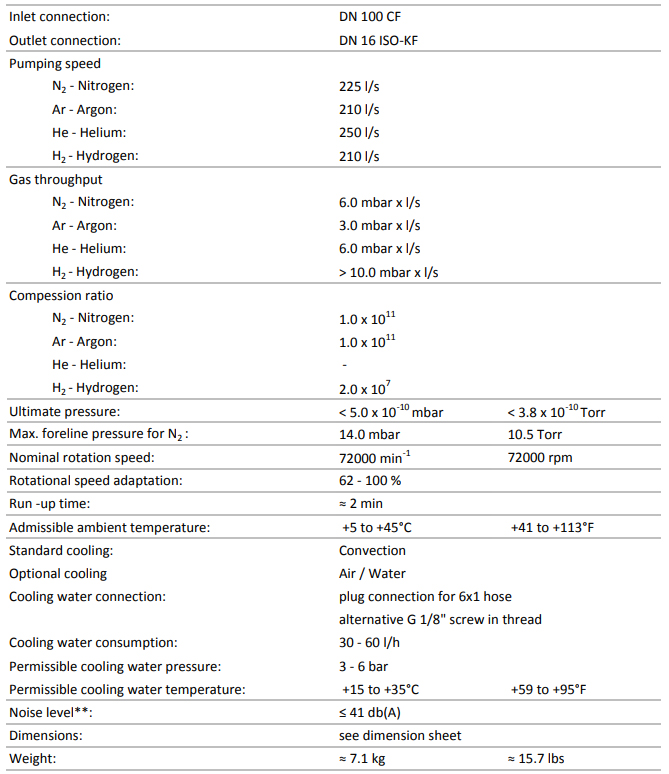

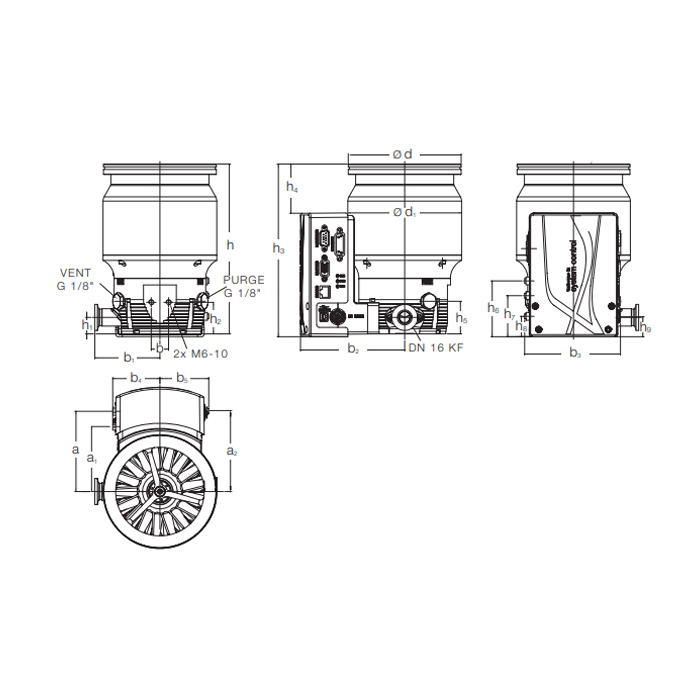

Leybold Turbovac 250 iX Technical Data:
| Connection Cooling |
6x1 mm flexible hose quick connection |
| Connection Outlet Flange | DN 16 ISO-KF (NW16) |
| Connection Inlet Flange | DN 100 CF (6") |
| Cooling Method | Air Cooling (convection) Air Cooling (forced - fan) Water Cooling |
| Dimension Height | 0.205 m |
| Dimension Length | 0.151 m |
| Dimension Width | 0.151 m |
| IP Rating | IP40 |
| Noise / Sound Level | 41.00 db(A) 41.00 db(A) 41.00 db(A) |
| Supply Frequency | DC Voltage |
| Supply Voltage | DC 24V DC 48V |
| Weight | 7.10 kg | 16 lb |
| Connection Inlet / Outlet Flange | DN 100 CF (6") | DN 16 ISO-KF (NW16) |
| Product Certification | CE UL (61010-1 3rd Edition) CSA (C22.2 No.61010-1-12) |
| Connection Purge Gas, Gas Ballast, Vent | 1/8" BSPP (or G 1/8") Female 1/8" BSPP (or G 1/8") Female |
| Temperature Ambient Operation Max | 40.00 °C |
| Temperature Ambient Storage Max | 70.00 °C |
| Temperature Ambient Operation Min | 5.00 °C |
| Temperature Ambient Storage Min | -15.00 °C |
| Magnetic Field Resistance Max (covering worst direction - come and consult us for more details) | 5.500 × 10⁻³ T |
| Dry or Wet Pump | Dry |
| Product Pressure Range | High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar Ultra High Vacuum: 1·10⁻⁷ - 1·10⁻¹¹ mbar |
| High / Medium / Rough Vacuum Classification | High Vacuum Pump |
| Vacuum Pump Technology | Turbomolecular Pump - hybrid bearing oil free |
| Compression Ratio Air Nitrogen | 1.000 × 10¹¹ |
| Compression Ratio Helium | 1.000 × 10⁸ |
| Compression Ratio Hydrogen | 5.000 × 10⁷ |
| Power Consumption Max | 240 W |
| Power Total Rated | 240 W |
| Pressure Ultimate | 5.000 × 10⁻¹⁰ mbar |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 225.00 l/s |
| Pumping Speed Argon | 210.00 l/s |
| Pumping Speed Helium | 250.00 l/s |
| Pumping Speed Hydrogen | 210.00 l/s |
| Ramp Up Time | 120 s |
| Nominal rotational speed | 1200 Hz |
| Pressure Backing Max | 14 mbar |
| Compression Ratio Argon | 1.000 × 10¹¹ |
| Communication Interface Protocol | USS Universal Serial Interface Protocol |
| Communication Interfaces Customer | RS485 (serial) REMOTE X1 (Parallel I/O) USB |
| Connection electrical comms interface connector | DSUB 9-PIN - Female DSUB HD 15-PIN - Female (high density) USB type B - Female ANYBUS socket IP20 for all modules |
| Installation | Any orientation |
| variantTmpPerformanceModel | TURBOVAC iX - Xtention box controller |
| Flow Cooling Water Min | 8.333 × 10⁻³ l/s |
| Temperature Cooling Water Max | 35.00 °C |
| Temperature Cooling Water Min | 15.00 °C |
| Flow Cooling Water Max | 0.017 l/s |
| Pressure Permissible Supply Cooling Water - Min and Max | 4000.00 mbar 4000.00 mbar |
A&J Vacuum Services offers full repair and service of Leybold Turbovac 250iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
