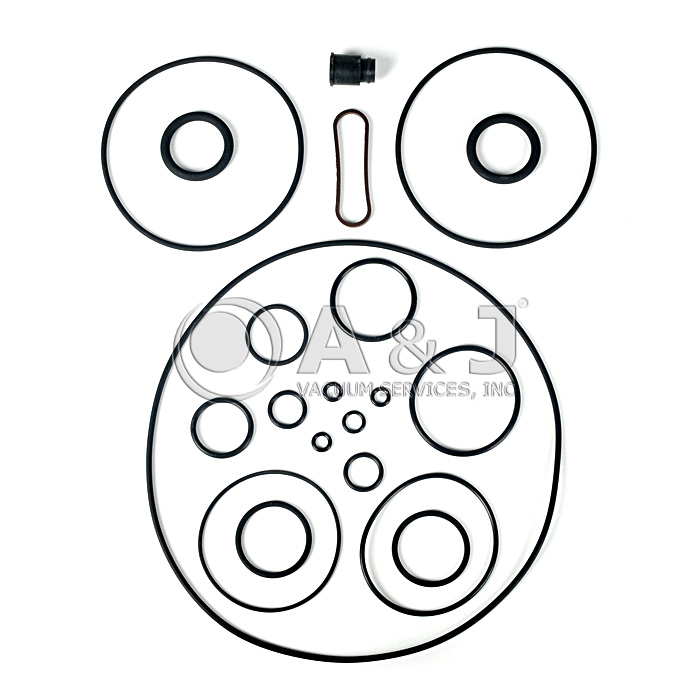

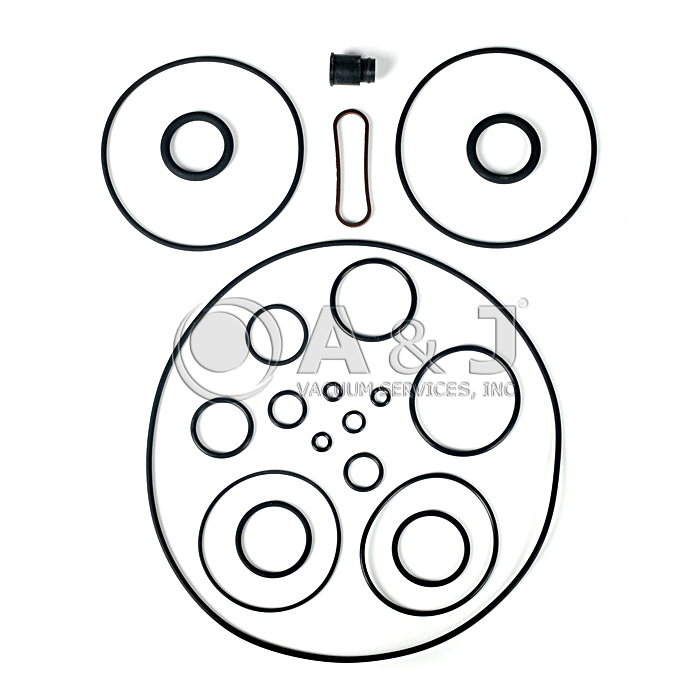

Pfeiffer Vacuum Duo 20M and Duo 20MC Vacuum Pump Seal Kit Set, 2000021195 / PK E30 008 AT / PKE30008AT
Pfeiffer Duo 20M and Duo 20MC Seal Kit Set Features:
Pfeiffer DUO20 Seal Kit Includes:
|
Part Number
|
Description
|
Quantity
|
| 194109 | Sight Glass Gasket |
1
|
| 320212 | O-Ring, 62 x 2.5 mm |
1
|
| 320213 | O-Ring, 205 x 3 mm |
1
|
| 360054 | Coupling |
1
|
| 900178 | O-Ring, 26 x 3 mm |
1
|
| 4070088 | O-Ring, 6 x 2.2 mm |
3
|
| 4070259 | O-Ring, 15 x 2.5 mm |
2
|
| 4070542 | O-Ring, 32 x 3 mm |
2
|
| 23949217 | O-Ring, 100 x 3 mm |
2
|
| 23963115 | O-Ring, 38 x 3 mm |
1
|
| 23970149 | O-Ring, 8 x 2 mm |
1
|
| 23970211 | O-Ring, 50 x 3 mm |
1
|
| 23970436 | O-Ring, 27 x 2.5 mm |
1
|
| 48652700 | O-Ring, 66 x 2 mm |
1
|
| 02124025 | O-Ring, 28 x 5 mm |
2
|
We Also Service and Repair ALL Pfeiffer Vacuum Rotary Vane Pumps.
Duo 20M and Duo 20MC Seal Kit Set / PKE30008AT Overview:
DuoLine rotary vane pumps cover all applications in the low and medium vacuum range of up to 20-3 mbar. These pumps offer reliable operation even for such critical industrial applications as drying processes, metallurgical processes or resin potting and casting systems – either as a standalone pump or as a backing pump in our roots pumping stations or turbo pumping stations.
The use of a magnetic coupling minimizes maintenance requirements and leads to considerable cost savings per pump and maintenance interval.
Reliable, clean, low maintenance. Compact design - Excellent performance data. Integrated safety and gas ballast valve. Various motor voltages afford worldwide employment. Contain no non-ferrous metals. M=magnetically coupled.
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Rotary Vane Pumps along with all other Pfeiffer Rotary Vane Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum Duo 20M and Duo 20MC Vacuum Pump Seal Kit Set, 2000021195 / PK E30 008 AT / PKE30008AT
Pfeiffer Duo 20M and Duo 20MC Seal Kit Set Technical Data:
List of parts (refer to images to see which parts are included) -
- 2 - Rotor
- 3 - Hydraulic pump
- 4 - Pump cylinder
- 5 - Support plate
- 6 - Bearing cover
- 7 - Vanes, rough stage
- 8 - Vanes, medium stage
- 9 - Hydraulic vane
- 10 - Compression spring, vanes
- 18 - Magnetic coupling, drive side
- 20 - Magnetic coupling, pump side
- 22 - Washer
- 24 - Can
- 27 - Intermediate flange for motor
- 30 - Housing, vacuum safety valve
- 32 - Valve plate, vacuum safety valve
- 34 - Valve cover, vacuum safety valve
- 35 - Strainer
- 36 - Cover plate
- 42 - Gas ballast valve housing
- 44 - Silencer nozzle
- 51 - Plate spring
- 76 - Rapid action coupling
- 96 - Exhaust valve, (stage 1)
- 101 - Punched disk
- 102 - Valve plate
- 104 - Valve plate
- 106 - Hydraulic piston
- 108 - Compression spring
- 110 - Sight glass
- 113 - O-ring
- 114 - Rubber foot
- 116 - Flange
- 138 - O-ring
- 141 - O-ring
- 144 - O-ring
- 145 - O-ring
- 147 - O-ring
- 148 - O-ring
- 149 - O-ring
- 152 - O-ring
- 154 - O-ring
- 155 - O-ring
- 156 - O-ring
- 158 - O-ring
- 162 - O-ring
- 180 - Allan head screw
- 183 - Allan head screw
- 184 - Allan head screw
- 185 - Allan head screw
- 188 - Allan head screw
- 193 - Compression spring, over pressure valve
- 195 - Ball
- 198 - Operating fluid drain screw
- 204 - Circlip
- 207 - Compression spring
- 208 - Washer
- 220 - Screw
- 250 - Compression spring
- 252 - Allan head screw
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Rotary Vane Pumps along with all other Pfeiffer Rotary Vane Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum DUO 20 Seal kit PKE30008-AT, PK E30 008-AT
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
