Leybold D2A Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 10166

Main image
Image 1 Image 2 Image 3 Image 4 Image 5
Condition: New
In Stock
Item#:PN01544
Mfr Part#:10166
Manufacturer:Leybold
PRICE:
$320.00
Web savings:
$25.00
YOU PAY:
$295.00
Request a repair estimate Request sales quote Financing available
New Leybold D2A Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 10166
Features:
  • P/N 10166
  • For Leybold D2A Pump
  • Vanes Included
  • Overview
  • Specifications
  • Parts Lists
  • Service & Repair

Leybold D2A Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 10166

Overview:

The Leybold D2A Major Repair / Rebuild Kit includes everything needed for major overhauls on the Leybold D2A Rotary Vane Vacuum Pump.

We also do minor and major repairs for all Oerlikon / Leybold Rotary Vane Vacuum Pumps.

Leybold D2A Rotary Vane Vacuum Pump Major Repair / Rebuild Kit contains the following parts:

DESCRIPTION PART NO. QTY

1st/2nd Stage Vane

L20010878

6

Screw Plug

L20127105

3

Coupling Key

L22116065

1

Spring

L22161199

1

Spring

L22162144

1

Retaining Ring

L23103101

1

Retaining Ring

L23105107

1

Case Gasket

L23811123

1

Gasket

L23820147

2

Flat Gasket

L23925227

1

Viton Shaft Seal

L23953124

2

Oil Plug Seal

L23955165

4

Oil Plug Seal

L23955165T

4

Sight Glass Gasket

L23955172

1

O-Ring

L23970148

3

O-Ring

L23970176

2

O-Ring

L23970409

4

O-Ring

L23970410

1

Viton ASB Nib

L23973131

1

Buna ASB Nib

L23973131B

1

Gas Ballast Gasket

L23973133

1

Oil Filter

L39026121

1

Valve

L40050135

1

ASB Disc Valve

L40050136

1

Valve Plate

L40164109

1

Spring

L45174424

1

Stiffening Washer

L45174425

1

Coupling

L70100147

1

Mounting Bolt

L72000129

2

Sight Glass Tube

L72211003

1

Flat Gasket

L72590000

2

Flat Gasket

L72590001

2

O-Ring

L72591000

2

O-Ring

L72591001

2


A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D2A, D 2 A, D4A, D8A, D16A vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Leybold D2A Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 10166

Overview:

The Leybold D2A Major Repair / Rebuild Kit includes everything needed for major overhauls on the Leybold D2A Rotary Vane Vacuum Pump.

We also do minor and major repairs for all Oerlikon / Leybold Rotary Vane Vacuum Pumps.

Leybold D2A Rotary Vane Vacuum Pump Major Repair / Rebuild Kit contains the following parts:

DESCRIPTION PART NO. QTY

1st/2nd Stage Vane

L20010878

6

Screw Plug

L20127105

3

Coupling Key

L22116065

1

Spring

L22161199

1

Spring

L22162144

1

Retaining Ring

L23103101

1

Retaining Ring

L23105107

1

Case Gasket

L23811123

1

Gasket

L23820147

2

Flat Gasket

L23925227

1

Viton Shaft Seal

L23953124

2

Oil Plug Seal

L23955165

4

Oil Plug Seal

L23955165T

4

Sight Glass Gasket

L23955172

1

O-Ring

L23970148

3

O-Ring

L23970176

2

O-Ring

L23970409

4

O-Ring

L23970410

1

Viton ASB Nib

L23973131

1

Buna ASB Nib

L23973131B

1

Gas Ballast Gasket

L23973133

1

Oil Filter

L39026121

1

Valve

L40050135

1

ASB Disc Valve

L40050136

1

Valve Plate

L40164109

1

Spring

L45174424

1

Stiffening Washer

L45174425

1

Coupling

L70100147

1

Mounting Bolt

L72000129

2

Sight Glass Tube

L72211003

1

Flat Gasket

L72590000

2

Flat Gasket

L72590001

2

O-Ring

L72591000

2

O-Ring

L72591001

2


A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D2A, D 2 A, D4A, D8A, D16A vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Get started with your repair:

We can have a repair estimate ready for your equipment within the hour of submission.

Request a repair estimate

Start your equipment repair process by creating a Service RMA.

Generate Service RMA

High quality service guaranteed

A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.

We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

AJVS repair process:
Repair Steps
  1. Full incoming inspection and run up time check, vibration check, drive inspection.
  2. Full disassembly of the pump, decontamination and cleaning.
  3. Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
  4. Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
  5. Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:

  • Turbo Pumps
  • Rotary Vane Pumps
  • Dry Vacuum Pumps
  • Leak Detectors
  • Scroll Dry Pumps
  • Vacuum Boosters
  • Diaphragm Dry Pumps
Deals & Promotions
  • Edwards ELD500 Wet Portable Leak Detector With Integral Oil Sealed Rotary Vane Pump, 100-120V 60Hz, D13510906 ELD 500
    Item#: PN23588 Mfr Part#: D13510906
    Price: $37,268.00
    Web savings: $9,988.01
    $27,279.99
    Details Add to cart
  • Pfeiffer HiScroll 6 Dry Scroll Pump with Manual Gas Ballast, 3.59 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, ATEX, 2000026552 / PD S10 000 B / PDS10000B
    Item#: PN23774 Mfr Part#: 2000026552 / PD S10 000 B / PDS10000B
    Price: $7,030.00
    Web savings: $1,680.00
    $5,350.00
    Details Add to cart
  • Leybold Scrollvac 3 Plus Scroll Pump, Oil-Free Dry Pump, 1-phase, 50/60 Hz, 115 V, 3.5 m3/h, 142030V310
    Item#: PN41078 Mfr Part#: 142030V310
    Price: $4,968.00
    Web savings: $1,218.00
    $3,750.00
    Details Add to cart
  • Pfeiffer Adixen ASM 340 W, Helium Leak Detector Wet Version, Configurable I/O Interface Board, 100-130 V, 50/60 Hz JSVA00A2ML9A
    Item#: PN19754 Mfr Part#: JSVA00A2ML9A
    Discontinued
    Details Replacement
  • Pfeiffer HiScroll 18 Dry Scroll Pump with Manual Gas Ballast, Pressure Sensor Included, 10.65 cfm, 100 - 127 V, 200 - 240 VAC, Single Phase, 50/60 HZ, 2000026597 / PDS30010B / PD S30 010 B
    Item#: PN23779 Mfr Part#: 2000026597 / PDS30010B / PD S30 010 B
    Price: $11,220.00
    Web savings: $1,020.00
    $10,200.00
    Details Add to cart
  • Edwards nXDS6iC Dry Scroll Vacuum Pump, Corrosive, 3.6 CFM / 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A73502983
    Item#: PN15783 Mfr Part#: A73502983
    Price: $9,993.00
    Web savings: $3,697.41
    $6,295.59
    Details Add to cart
  • Pfeiffer HiCube 80 Eco Turbo Pumping Station Package, Includes HiPace 80 Turbo Pump (DN 63 CF-F), PKR361 Gauge, MVP 015-2 Diaphragm Pump, DCU 002 Control Unit, PKR 361 Transmitter Gauge (CF 40), 3m Cable, PM 163 936 BT / PM163936BT
    Item#: PN17351 Mfr Part#: PM 163 936 BT / PM163936BT
    Discontinued
    Details Replacement
  • Leybold UL200 Helium Leak Detector Bench top unit, 115 VAC with Internal Wet Roughing pump. UL 200, 115 VAC
    Item#: PN22195 Mfr Part#: 18493
    Price upon request
    Details CONTACT US
  • Pfeiffer Adixen ASM 340 D, Helium Leak Detector Dry Version, Universal Voltage 90-240 V, 50/60 Hz, KSBA00A2MM9A, Configurable I/O 37 pins, RS-232 and USB. Like New !
    Item#: PN17195 Mfr Part#: KSBA00A2MM9A
    Price upon request
    Details CONTACT US
  • Pfeiffer HiCube 300 Eco Turbo Pumping Station, Includes HiPace 300 Turbo Pump ISO 100, MVP 030-3 DC Diaphragm Vacuum Pump and DCU 002 Control Unit, 100-240 V 50/60 Hz, PMS7620000 / PM 025 019 AT / PM025019AT
    Item#: PN20408 Mfr Part#: PMS7620000 / PM 025 019 AT / PM025019AT
    Price: $17,000.00
    Web savings: $5,050.00
    $11,950.00
    Details Add to cart
  • Edwards EMF 20 Oil Mist Exhaust Filter, Includes Mist Element and Odor Element, A46229000
    Item#: PN00844 Mfr Part#: A46229000
    Price: $900.00
    Web savings: $150.01
    $749.99
    Details Add to cart
  • Pfeiffer ASM 390 Mobile Helium Leak Detector with ACP 40 Dry Scroll Pump and SplitFlow 80, ASM390, 2000034669 / CSGB01G2MM9A
    Item#: PN22455 Mfr Part#: 2000034669 / CSGB01G2MM9A
    Price: $56,000.00
    Web savings: $6,005.00
    $49,995.00
    Details Add to cart
  • Leybold Scrollvac 3S Plus Scroll Pump with Inlet Valve, Oil-Free Dry Pump, 1-phase, 50/60 Hz, 115 V, 3.5 m3/h, 142030V410
    Item#: PN41098 Mfr Part#: 142030V410
    Price: $5,219.00
    Web savings: $1,064.00
    $4,155.00
    Details Add to cart
  • Pfeiffer Adixen ASM 340 D, Helium Leak Detector Dry Version, Universal Voltage 90-240 V, 50/60 Hz, KSBA00A2MM9A, Configurable I/O 37 pins, RS-232 and USB. Like New !
    Item#: PN17195 Mfr Part#: KSBA00A2MM9A
    Price upon request
    Details CONTACT US

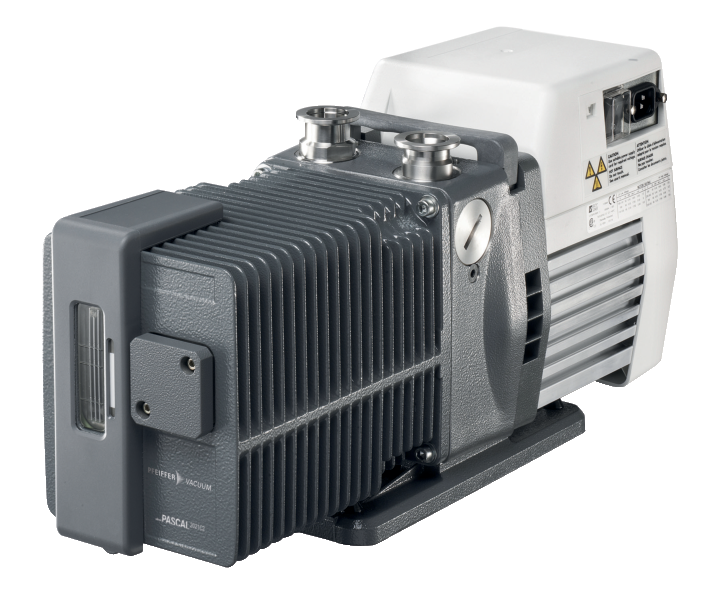

  • Pfeiffer Adixen 2005 SD Vacuum Pump Pascal Rotary Vane Single Phase, 90-132 V, 50/60 Hz, 205SDMLAM, 2005SD
