Varian SD1400 Minor Repair / Rebuild Kit , 54485
Condition:
New
In Stock
Item#:PN19917
Mfr Part#:54485
Manufacturer:Varian
Features:
Overview:
The Varian SD1400 Rotary Vane Vacuum Pump Minor Repair / Rebuild Kit includes everything needed for minor overhauls on the Varian SD1400 Rotary Vane Vacuum Pumps.
A&J Vacuum also repair / rebuild and service all Alcatel Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.

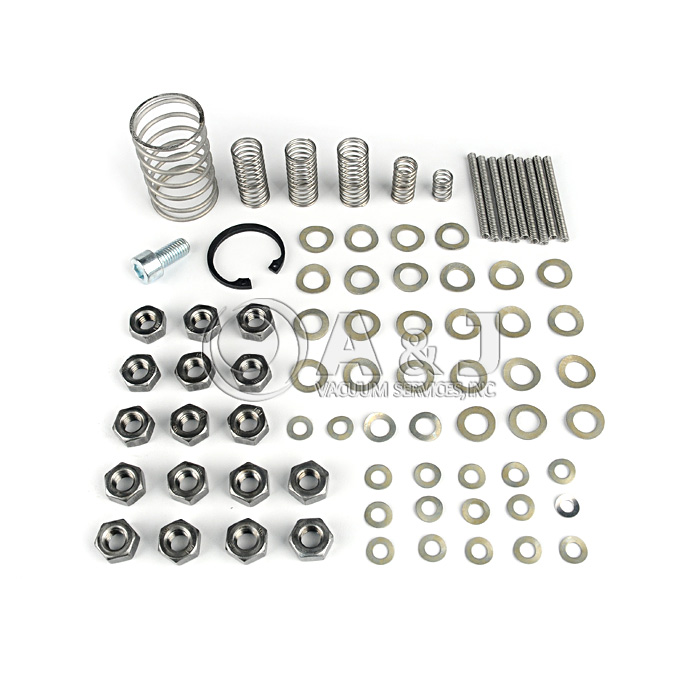

Varian SD1400 Minor Repair / Rebuild Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
|
Viton Valve |
A53443 |
3 |
|
Gas Ballast Spring |
A54114 |
1 |
|
Exhaust Valve |
A54134 |
1 |
|
Spring |
A54145 |
1 |
|
Spring |
A54149 |
1 |
|
Membrane |
A54196 |
1 |
|
Clapper |
A54224 |
1 |
|
Coupling |
A54356 |
1 |
|

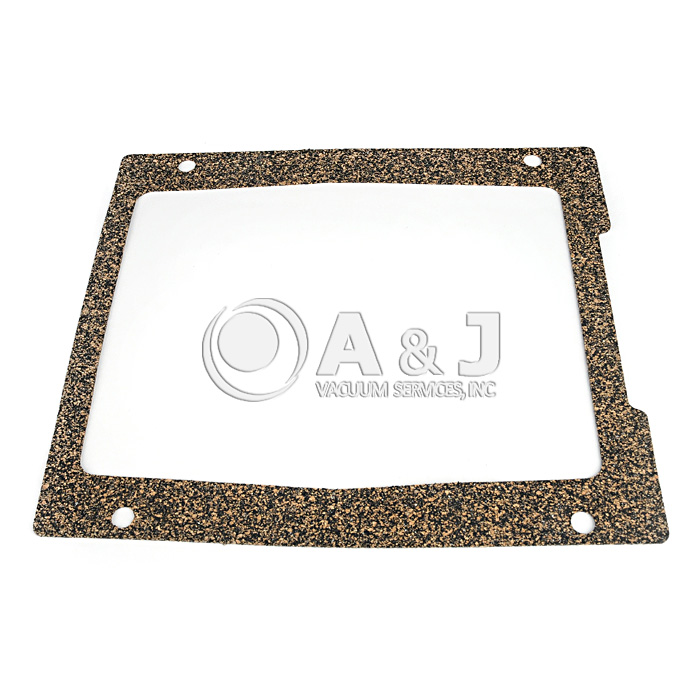

Oil Case Gasket |
A54427 |
1 |
|

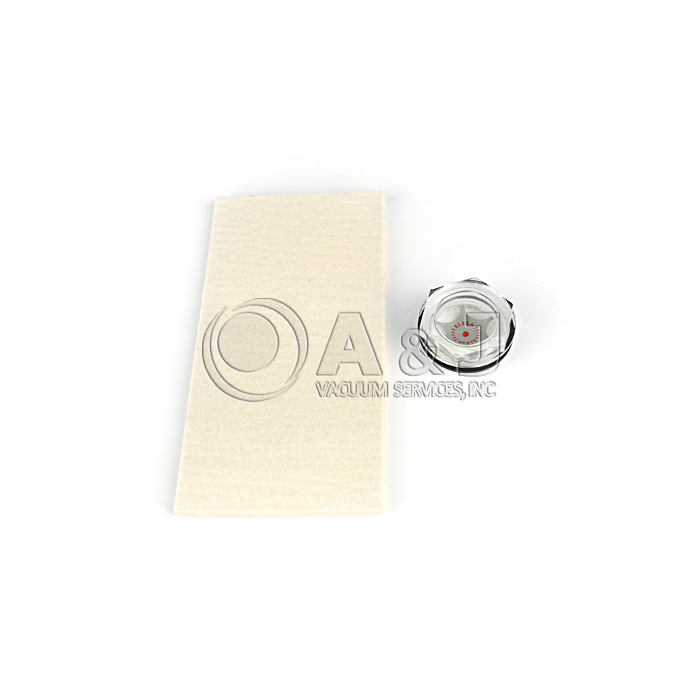

Felt Pad |
A65538 |
1 |
|
C-Clip |
A71188 |
2 |
|
Nut |
A71217 |
17 |
|
Waved Washer M5 |
A73453 |
1 |
|
Waved Washer M6 |
A73454 |
16 |
|
Waved Washer M8 |
A73455 |
2 |
|
Waved Washer M10 |
A73456 |
25 |
|
Socket Head Screw |
A75024 |
1 |
|
Oil Sight Glass |
A76135 |
1 |
|
O-Ring |
A79051 |
1 |
|
Viton Shaft Seal |
A79101 |
4 |
|
O-Ring |
A79234 |
2 |
|
Stage O-Ring |
A79241 |
4 |
|
O-Ring |
A82024 |
4 |
|
O-Ring |
A82056 |
1 |
|
O-Ring |
A82108 |
1 |
|
O-Ring |
A82109 |
1 |
|
O-Ring |
A82122 |
1 |
|
O-Ring |
A82129 |
1 |
|
Drain Plug |
A82604 |
1 |
|
Fill Plug |
A82925 |
1 |
|
O-Ring |
A84149 |
1 |
|
O-Ring |
A87926 |
1 |
|
Vane Spring |
A87942 |
9 |
|
Valve Spring |
A87954 |
3 |
THERE ARE NO RETURNS ON THIS PRODUCT.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
