- P/N 54288KIT
- Meets or Exceets OEM Specifications
Shopping Cart ( )
Varian SD700 Major Repair / Rebuild Kit, 54288KIT
Condition:
New
In Stock
Item#:PN19915
Mfr Part#:54288Kit / P1936301
Manufacturer:Varian
Features:
Overview:
The Varian SD700 Major Repair / Rebuild Kit includes everything needed for major overhauls on theVarian SD700 Rotary Vane Vacuum Pump.
A&J Vacuum also repair / rebuild and service all Alcatel Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.

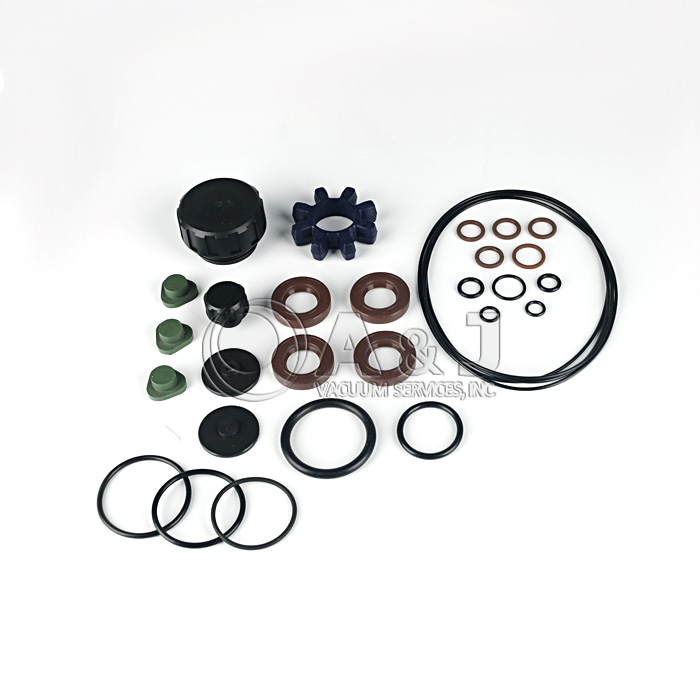

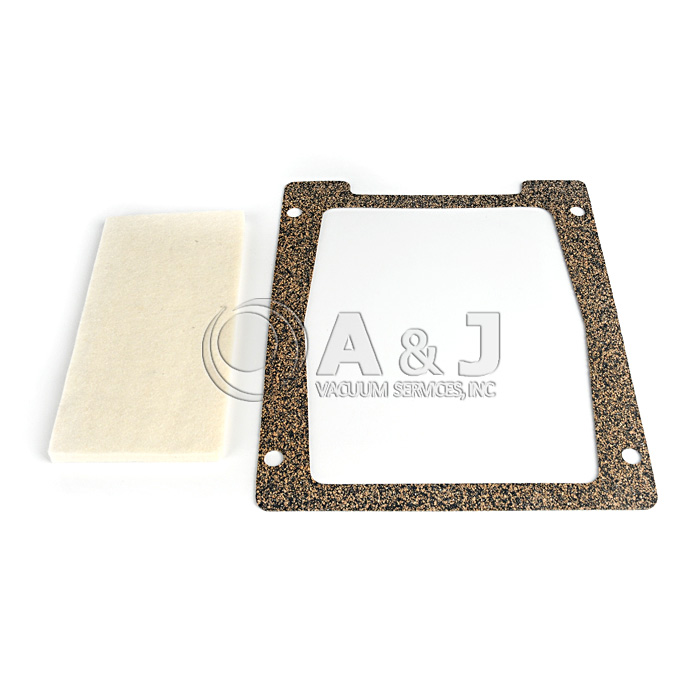

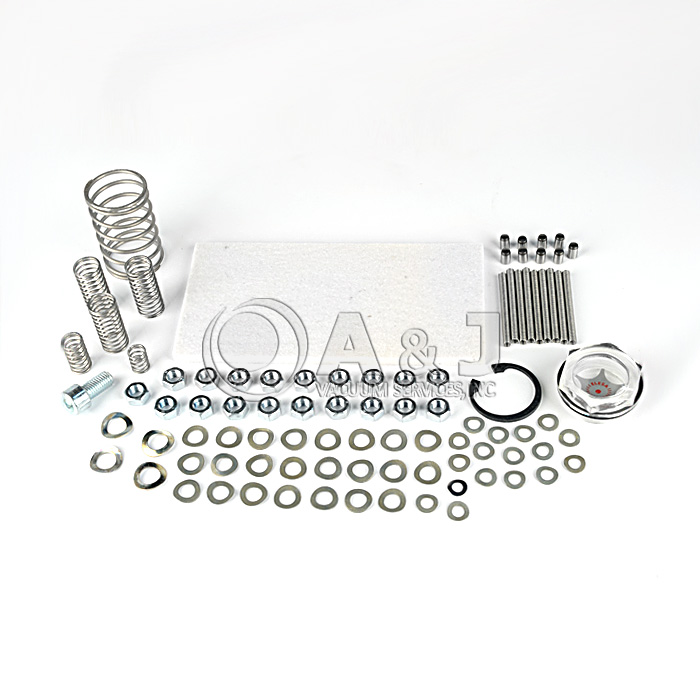

Varian SD 700 Major Repair/Rebuild Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
| Viton Valve | A53443 | 3 |
| Coupling | A54091 | 1 |
| Gas Ballast Spring | A54114 | 1 |
| Oil Case Gasket | A54128 | 1 |
| Exhaust Valve | A54134 | 1 |
| Spring | A54145 | 1 |
| Spring | A54149 | 1 |
| Membrane | A54196 | 1 |
| Clapper | A54224 | 1 |
| Oil Pump Vane | A65044 | 1 |
| Felt Pad | A65059 | 1 |
| Centering Pin | A71040 | 9 |
| C-Clip | A71188 | 2 |
| Nut | A71214 | 17 |
| Waved Washer M5 | A73453 | 1 |
| Waved Washer M6 | A73454 | 16 |
| Waved Washer M8 | A73455 | 23 |
| Waved Washer M10 | A73456 | 4 |
| Socket Head Screw | A75024 | 1 |
| Oil Sight Glass | A76135 | 1 |
| Stage O-Ring | A79010 | 4 |
| O-Ring | A79051 | 1 |
| Viton Shaft Seal | A79101 | 4 |
| O-Ring | A79234 | 2 |
| O-Ring | A82024 | 4 |
| O-Ring | A82056 | 1 |
| O-Ring | A82108 | 1 |
| O-Ring | A82109 | 1 |
| O-Ring | A82112 | 1 |
| O-Ring | A82122 | 1 |
| O-Ring | A82129 | 1 |
| Drain Plug | A82604 | 1 |
| Fill Plug | A82925 | 1 |
| O-Ring | A84149 | 1 |
| O-Ring | A87926 | 1 |
| 1st Stage Vane | A87941G | 2 |
| Vane Spring | A87942 | 9 |
| Vane Spring | A87954 | 3 |
| 2nd Stage Vane | A87996G | 2 |
THERE ARE NO RETURNS ON THIS PRODUCT.
Varian SD 700 Major Repair / Rebuild Kit for 2033 Vacuum Pump, 54288, P1936301
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
