Welch 1400 Rotary Vane Vacuum Pump Primary Kit With Mechanical Seal, 1400PI/MS (OEM 1400K-04)

Condition: New

In Stock

Item#:PN15554

Mfr Part#:1400PI/MS

Manufacturer:Welch

Price upon request

Request a repair estimate Request sales quote Financing available

New Welch 1400 Rotary Vane Vacuum Pump Primary Kit With Mechanical Seal, 1400PI/MS (OEM 1400K-04)

Features:

Overview
Parts Lists
AJVS Brochures
Service & Repair

Overview:

The Welch 1400 Primary Kit With Mechanical Seal includes everything needed for light overhauls on the Welch 1400 Rotary Vane Vacuum Pump.

We also do minor and major repairs for all Welch Rotary Vane Vacuum Pumps.

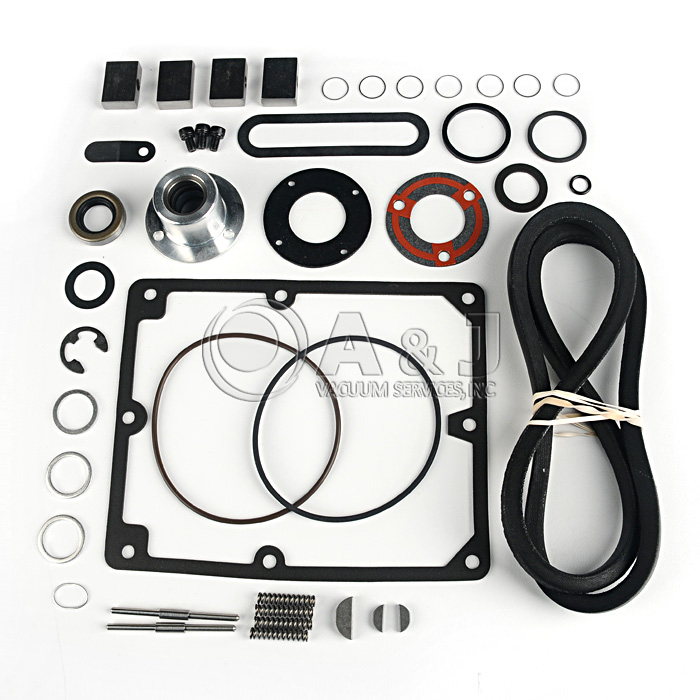

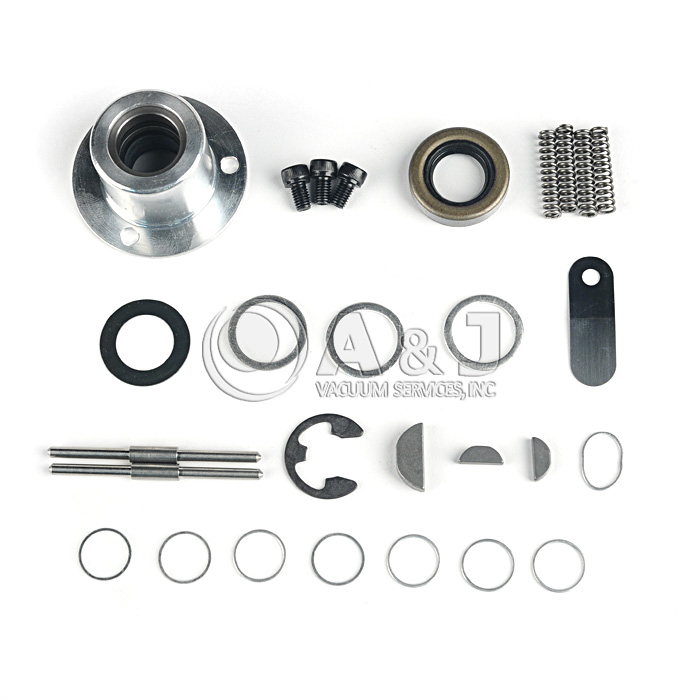

The Welch 1400 Rotary Vane Vacuum Pump Primary Kit With Mechanical Seal contains the following parts:

DESCRIPTION	PART NO.	QTY
Mechanical Shaft Seal Assembly	1401E	1
Seal Gasket	W410056	1
Intake Cover Gasket	W410383	1
Shaft Seal	W410578	1
Woodruff Key	W410613	2
Woodruff Key	W410624	1

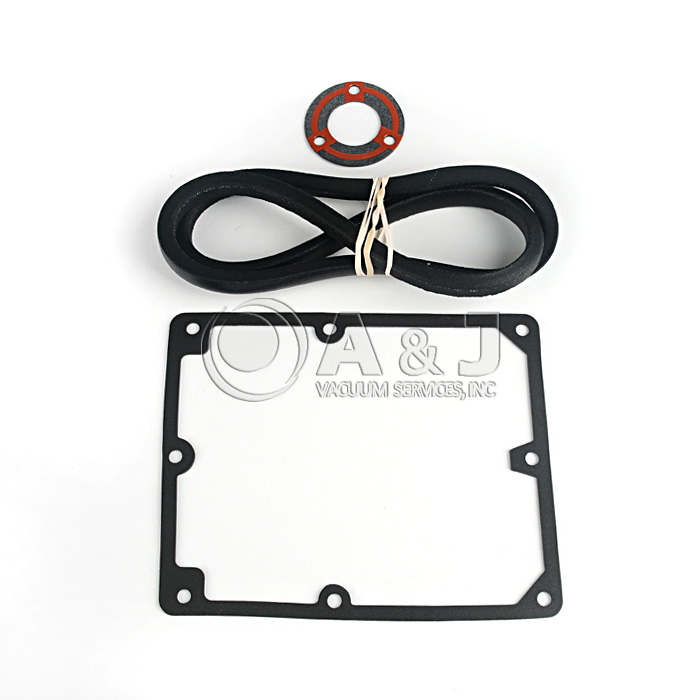

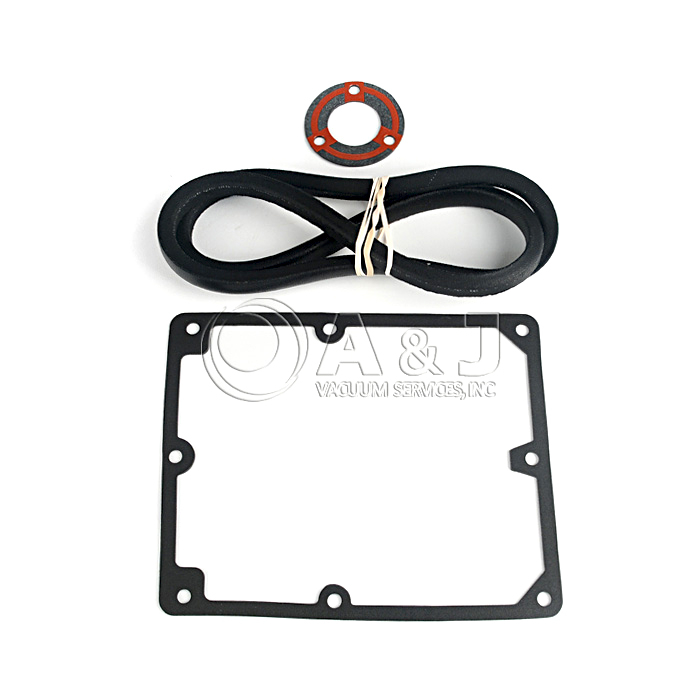

V-Belt	W410708	1
Case Gasket	W411052	1
Aluminum Washer	W411056	8

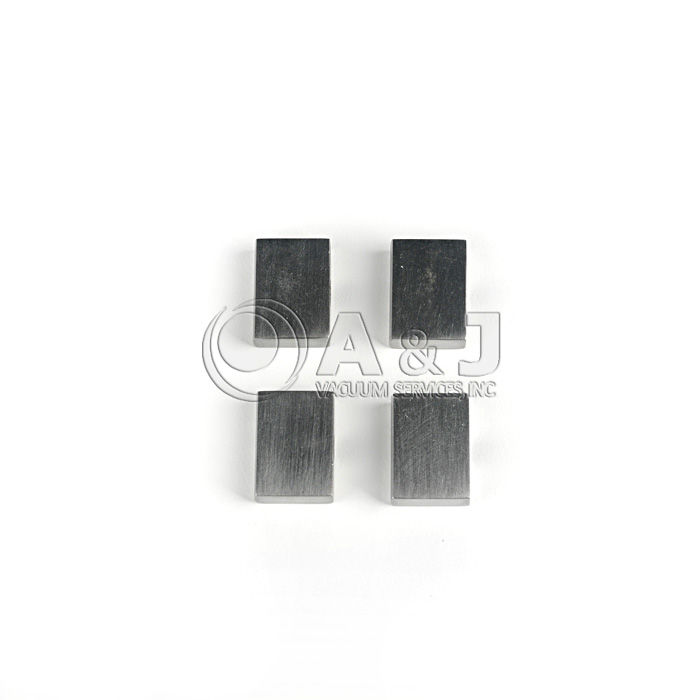

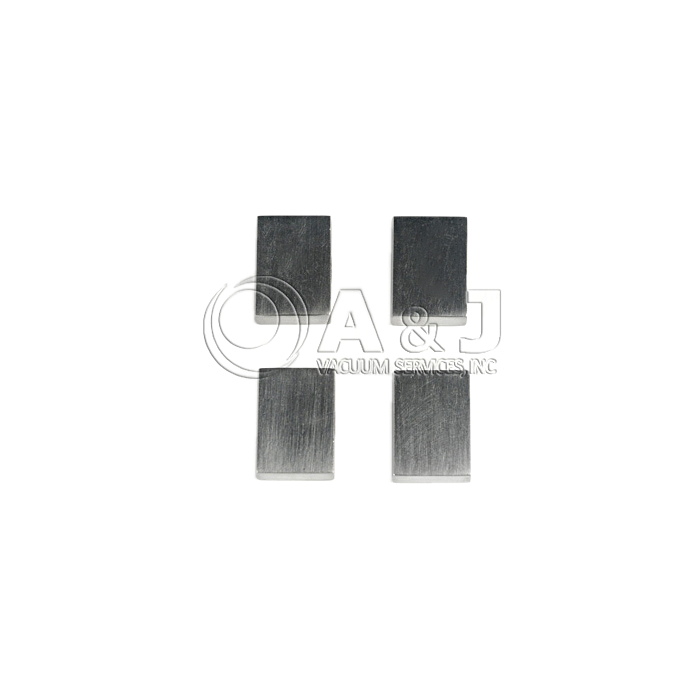

1st Stage Vane	W411059	4
Spring Holder	W411063	2
Aluminum Washer	W411137	3
Retaining Ring	W411150	1
Exhaust Valve	W411239	1
Tension Washer	W411266	1
Rubber Washer	W411267	1
Thrust Washer	W411285	1
Vane Spring	W411304	4

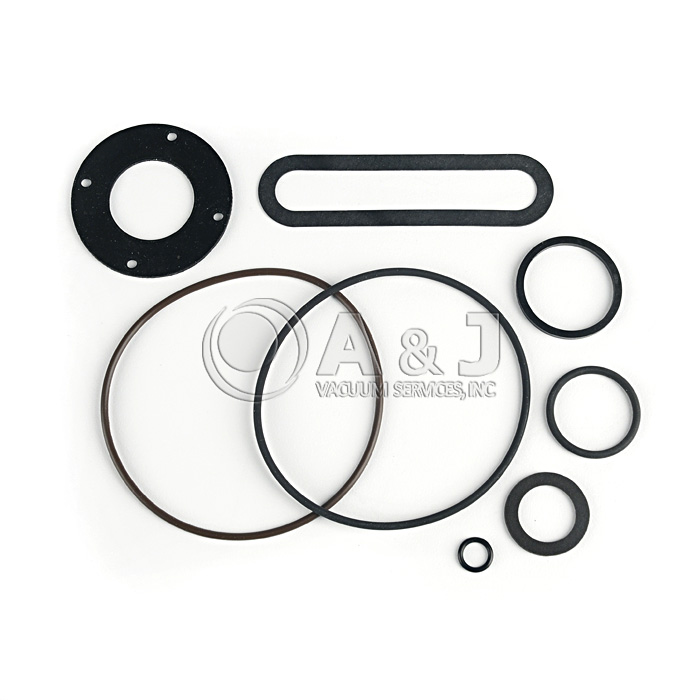

O-Ring	W411742	1
O-Ring	W618665	1
O-Ring	W619378	1
O-Ring	W660183	1

THERE ARE NO RETURNS ON THIS PRODUCT.

Welch_1400_Primary_Kit_Mech_Seal_Parts_List.pdf

AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf

Get started with your repair:

We can have a repair estimate ready for your equipment within the hour of submission.

Request a repair estimate

Start your equipment repair process by creating a Service RMA.

Generate Service RMA

High quality service guaranteed

A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.

We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

AJVS repair process:

Repair Steps

Full incoming inspection and run up time check, vibration check, drive inspection.
Full disassembly of the pump, decontamination and cleaning.
Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
