Welch 1405 Rotary Vane Vacuum Pump Primary Kit With Mechanical Seal, 1405PI/MS-01 (New Style) - do not use

Condition: New

Item#:PN15574

Mfr Part#:

Manufacturer:Welch

Price upon request

Request a repair estimate Request sales quote Financing available

New Welch 1405 Rotary Vane Vacuum Pump Primary Kit With Mechanical Seal, 1405PI/MS-01 (New Style)

Features:

Overview
Parts Lists
Service & Repair

Overview:

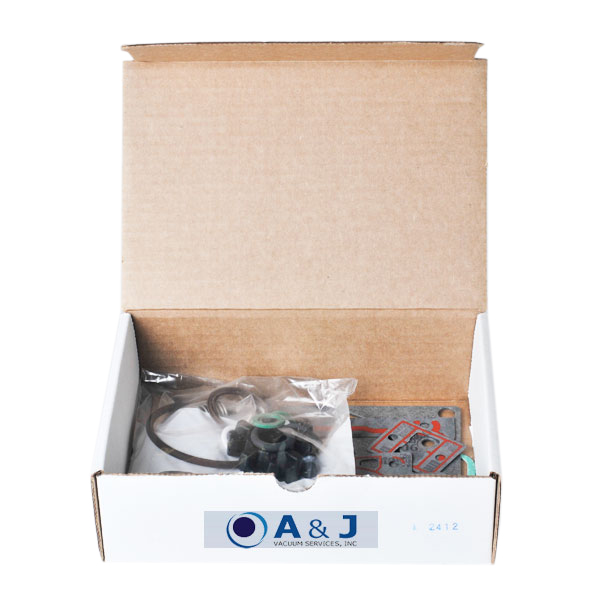

The Welch 1405 Primary Kit With Mechanical Seal includes everything needed for light overhauls on the Welch 1405 Rotary Vane Vacuum Pump.

We also do minor and major repairs for all Welch Rotary Vane Vacuum Pumps.

Welch 1405 Primary Kit With Mechanical Seal contains the following parts:

DESCRIPTION	PART NO.	QTY
Mechanical Shaft Seal Assembly	1401D	1
Intake Cover Gasket	W410234	1
Case Gasket	W410403	1
Thrust Washer	W410508	1
Woodruff Key	W410613	2
Woodruff Key	W410624	2
V-Belt	W410710	1
1st Stage Vane	W410959	2
Pressure Relief Valve	W410992	1
Vane Spring	W411304	6
2nd Stage Vane	W411487	2
Spring Holder	W411685	2
O-Ring	W411742	1
Thrust Disk Washer	W411766	3
Upper Exhaust Valve	W412153	1
Lower Exhaust Valve	W412154	1
Valve Spring	W412158	2
Valve Block Spacer	W412159	1
Steel Ball	W4401200	1
Valve	W618314A	2
Copper Washer	W618456A	6
O-Ring	W619284A	1

THERE ARE NO RETURNS ON THIS PRODUCT.

This item is non-returnable/non-refundable

Welch_1405_Primary_Kit_Mech_Seal_NStyle_Parts_List.pdf

Get started with your repair:

We can have a repair estimate ready for your equipment within the hour of submission.

Request a repair estimate

Start your equipment repair process by creating a Service RMA.

Generate Service RMA

High quality service guaranteed

A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.

We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

AJVS repair process:

Repair Steps

Full incoming inspection and run up time check, vibration check, drive inspection.
Full disassembly of the pump, decontamination and cleaning.
Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
