Oerlikon / Leybold D10E Rotary Vane Pump Minor Repair / Rebuild Kit, 20040039MINOR
Condition:
New
In Stock
Item#:PN11804
Mfr Part#:20040039MINOR
Manufacturer:Leybold
Features:
Oerlikon / Leybold D10E Rotary Vane Vacuum Pump Minor Repair / Rebuild Kit, 20040039MINOR
The Leybold D10E Minor Repair Kit includes everything needed for minor overhauls on the Leybold D10E Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Leybold Rotary Vane Vacuum Pumps.

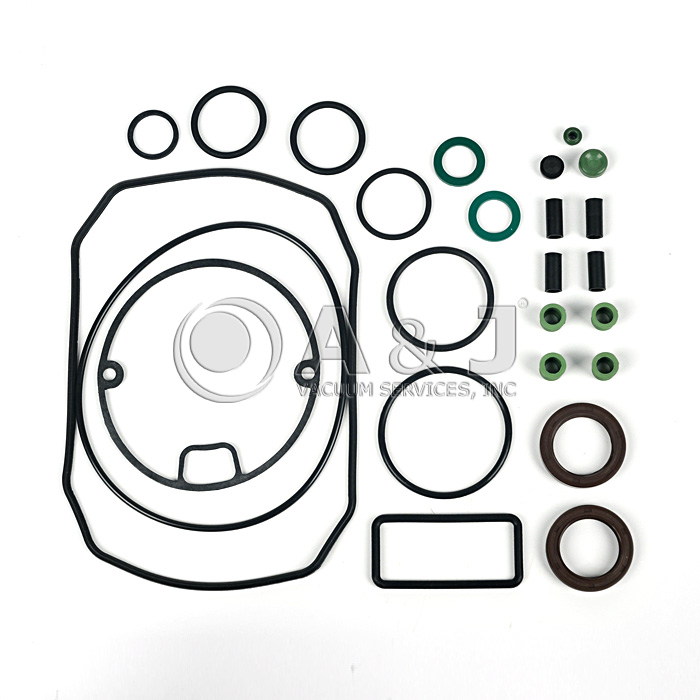

D10E Minor Maintenance Repair Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
| Viton Gasket | P23955165 | 2 |
| Viton O-Ring | 20010289 | 2 |
| Viton O-Ring | 23980211 | 1 |
| Viton O-Ring | 23970436 | 1 |
| Float Seal | 23973146 | 1 |
| Sight Glass Gasket | 300044 | 1 |
| Gasket | 300045 | 1 |
| Flat Seal Gasket | 300048 | 1 |
| Oil Box Gasket | 300050 | 1 |
| Shaft Seal | 310049 | 1 |
| Shaft Seal | 310050 | 1 |
| Viton O-Ring | 320118 | 1 |
| Viton O-Ring | 320119 | 1 |
| Non-Return Valve | 34861028 | 1 |
| Coupler Sleeve | 360052 | 4 |
| Valve | 40050135 | 1 |
| Orifice Washer | 420032 | 1 |
| Spacer Ring | 440022 | 1 |
| Spacer Ring | 440023 | 1 |
| Vane Pin | 450031 | 1 |
| Restrictor Retainer | 490020 | 1 |
| Compression Spring | 490021 | 1 |
| Compression Spring | 490022 | 1 |
| Compression Spring | 490023 | 1 |
| Compression Spring | 490025 | 1 |
| Compression Spring | 490026 | 1 |
| Valve | 580032 | 1 |
| Tandem Valve | 580033 | 1 |
| Bracket Valve | 580035 | 1 |
| Spacer Valve | 580036 | 1 |
| Holder Valve | 580037 | 1 |
| Stopper Valve | 580038 | 1 |
| Tube Insert | 640013 | 4 |

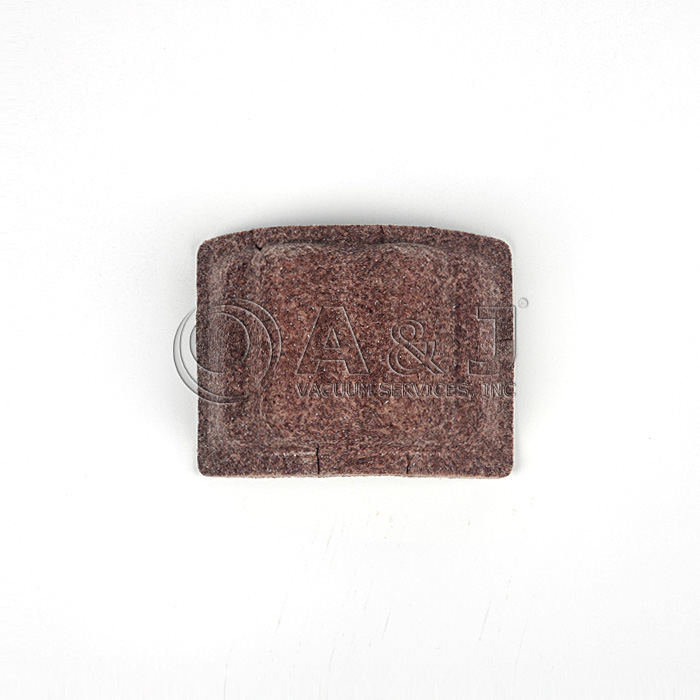

| Filter | 720011 | 1 |
| Front Locking Carton | U30007193 | 1 |
THERE ARE NO RETURNS ON THIS PRODUCT.
