- For Pfeiffer ASM 340 iILeak Detector
- P/N 805143
- OEM Wheeled Cart
- 200-240 VAC 50/60 Hz Electrical Connections
Shopping Cart ( )

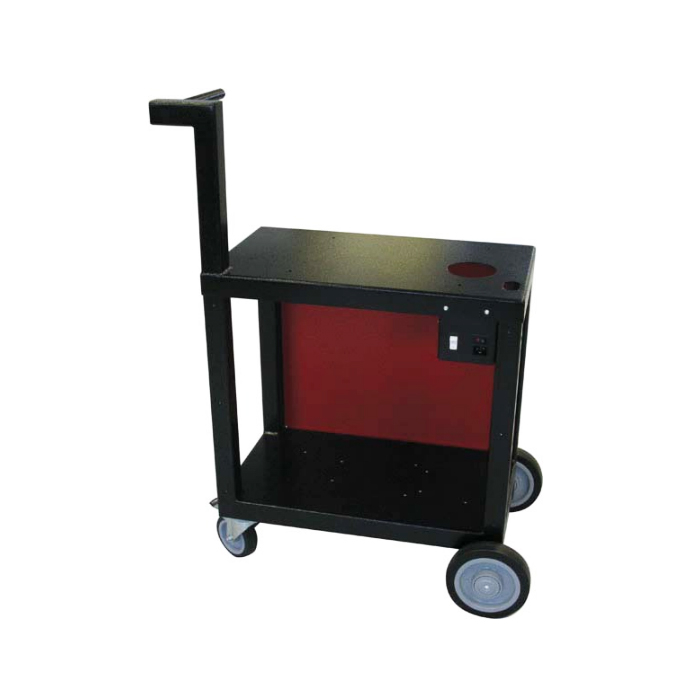

Pfeiffer ADIXEN ASM 340i Leak Detector Cart, Wheeled with Electrical Box, 200-240 V 50/60 Hz Hz, P/N 805143
Condition:
New
Item#:PN40673
Mfr Part#:805143 / 220 VAC
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer ADIXEN ASM 340i Leak Detector Cart, Wheeled with Electrical Box, 220-240 V 50/60 Hz, P/N 805143
New Pfeiffer Vacuum ASM 340 i Detector Wheeled Cart - Product Overview:

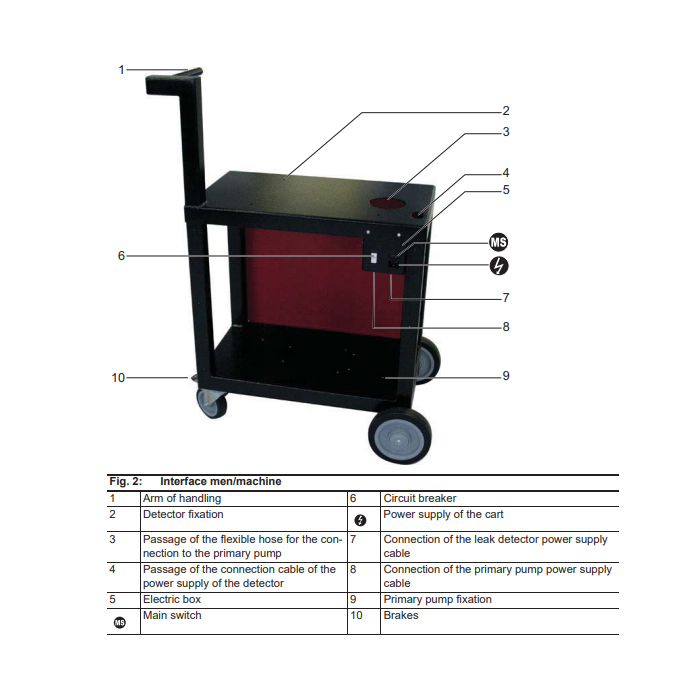

Pfeiffer Adixen ASM340i Leak Detector Cart with flexable helium bottle holder. The cart has a ergonomic handle and puts the ASM 340 i at a convenient workinh height. Flexible backing pump mounting on the bottom of the cart.
Scope of Delivery of ASM 340 i Cart / 220-240 VAC;
- 1 cart
- 1 power cable for Europe (France/Germany) and/or 1 power cable for US
- 1 cable for power supply connection between the detector and the electric box
- 1 cable for power supply connection between the primary pump and the electric box
- 4 screws CHc 6x16 and 4 washers for detector fixation
- 4 screws CHc 6x10 and 4 washers for primary pump fixation
- 1 operating instructions
Pfeiffer Adixen ASM Leak Detector is Available in Three Models: Wet, Dry, I version
- WET version with an integrated oil sealed rotary vane pump
- DRY version with an integrated helium optimised diaphragm pump
- I version without a primary pump, ideal for trolley mounting along with a larger primary pump such as a Pfeiffer Pascal Reries or ACP Series pumps
Click Here for Pfeiffer ASM 340i Leak Detection Cart
A&J Vacuum services and repairs Pfeiffer Adixen ASM 340 i Leak Detectors along with all other Edwards Vacuum Leak Detectors available on our website. Please contact us for information concerning our service and repair program, or click http://www.ajvs.com/service.php to access our Services page. We likewise offer Emergency service and repair upon request. For additional information, Please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier and business partner.
This item is non-returnable/non-refundable
Pfeiffer ADIXEN ASM 340i Leak Detector Cart, Wheeled with Electrical Box, 90-130 V 50/60 Hz, P/N 805142
New Pfeiffer Vacuum ASM 340 i Detector Wheeled Cart - Product Overview:
Pfeiffer Adixen ASM340i Leak Detector Cart with flexable helium bottle holder. The cart has a ergonomic handle and puts the ASM 340 i at a convenient workinh height. Flexible backing pump mounting on the bottom of the cart.

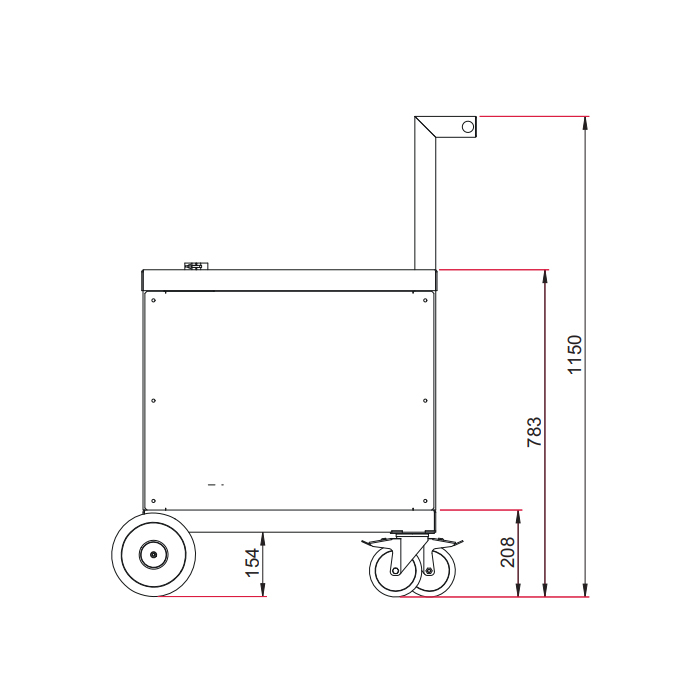

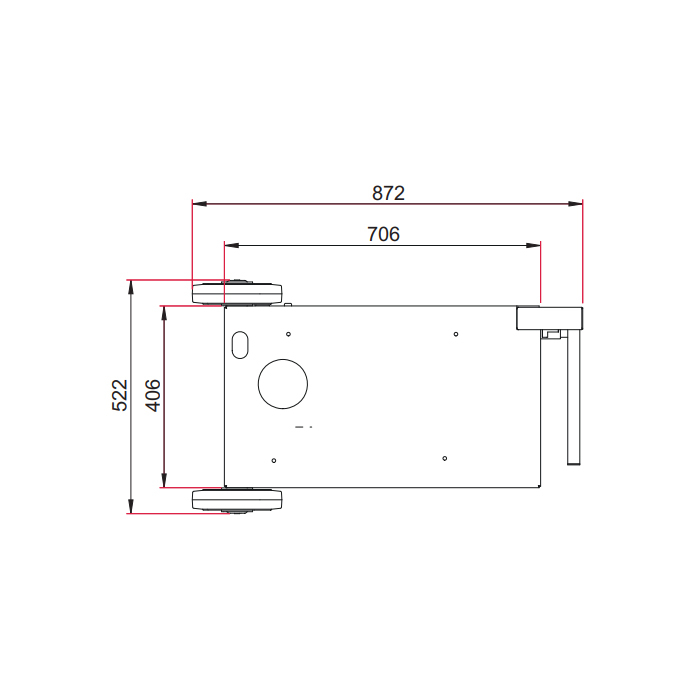

ASM 340 i Cart Specifications / 805134;
Main Power Supply
- 200-240 VAC 50/60 Hz
- Circuit Braker 10 A
- Power Consumption Max. 1500 W
- Protection Category: IP 20
- Weight (Empty Cart) 49 kg
- Maximum Weight (cart/detector/pumping/accesories/parts to be tested) 138 kg
Scope of Delivery of ASM 340 i Cart;
- 1 cart
- 1 power cable for Europe (France/Germany) and/or 1 power cable for US
- 1 cable for power supply connection between the detector and the electric box
- 1 cable for power supply connection between the primary pump and the electric box
- 4 screws CHc 6x16 and 4 washers for detector fixation
- 4 screws CHc 6x10 and 4 washers for primary pump fixation
- 1 operating instructions
