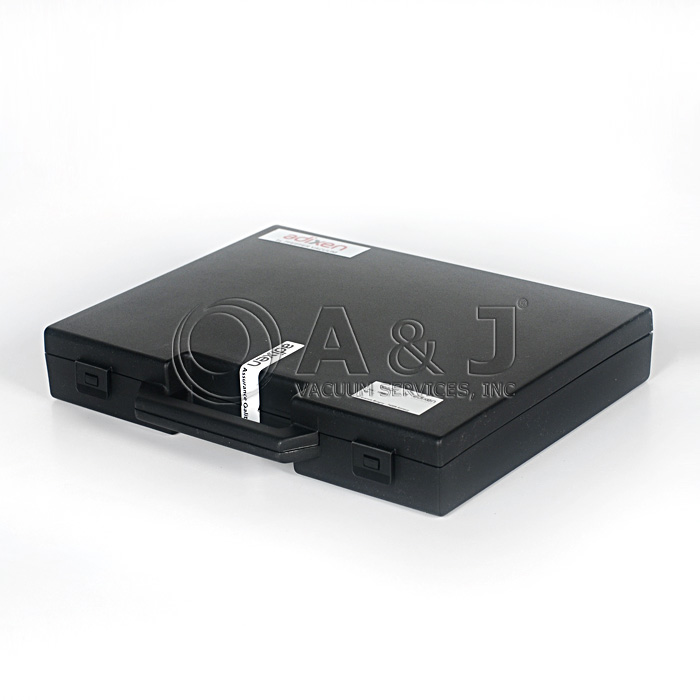

Pfeiffer Adixen Helium Spray Gun Probe with Accessories and Compact Case, 2000046756 / 109951
Condition:
New
In Stock
Item#:PN17213
Mfr Part#:2000046756 / 109951
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Adixen Helium Spray Gun Probe with Accessories and Compact Case, 2000046756 / 109951
The Pfeiffer Adixen Helium Spray Gun Probe PN 109951 Overview:
Spraying helium in order to detect a leak is usually very easy, especially if you need fast and rough detection. Spraying helium could also become a technical challenge when you need to pinpoint very fine leaks, more so, when they are located in areas with difficult access. The Pfeiffer Adixen Helium Spray Gun is easy to use and a multipurpose tool that allows you to work in various test conditions. The controlled flow of helium from the spray gun allows you to keep a very low helium background, protect the detector against any helium pollution and avoid erroneous results by detecting very fine leaks.

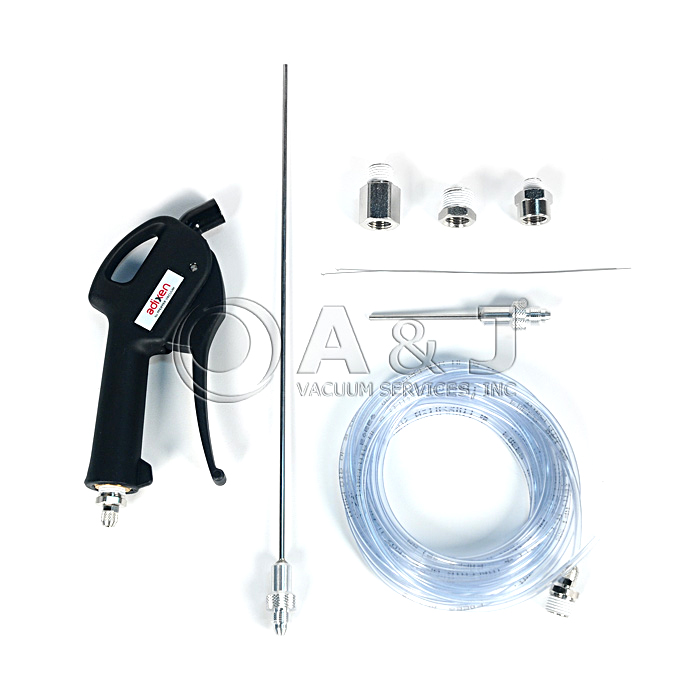

The Pfeiffer Adixen Helium Spray Gun Probe PN 109951 comes with the following parts:
- Spray Gun
- 5 m Plastic Tube with M 1/4 G Connector
- 9 cm Nozzle
- 30 cm Nozzle
- 2 Needles
- M 1/4 NPT Connector
- M 3/8 G Connector
- M 1/8 G Connector
The Pfeiffer Adixen Helium Spray Gun Probe PN 109951 compatible with the following Leak Detectors:
- ASM 310
- ASM 340 Dry
- ASM 340 Wet
- ASM 182 T
- ASM 182 TD+
- ASM 390
- ASM 392
- ASM 192 T2D+
- ASM 380
Click Here for Pfeiffer Helium Spray Kit Data Sheet
A&J Vacuum Services offers full repair/service of Pfeiffer Leak Detectors, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
