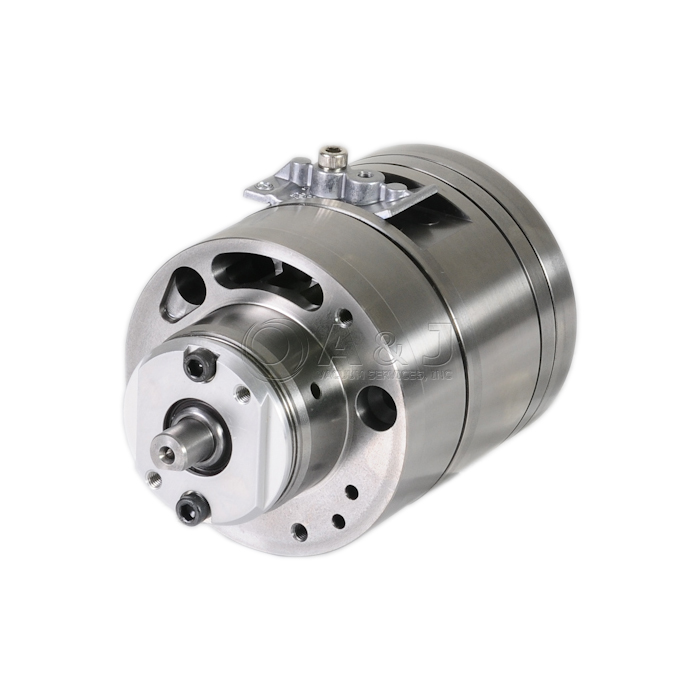

Inner Modules of Edwards RV 12 pumps are fully assembled using new components, and are tested and ready for installation.
Module designed for RV pump with the following part numbers, A65501906, A65501904, A65501905
Modules inlcude all required gaskets.
Qty. 2 - 20525-047 Spring 9.7 x 7.8 x 18 x 0.7 mm
Qty. 1 - 20526-048 Spring 12.3 x 9.6 x 16 x 1.3 mm
Qty. 1 - 20527-049 Spring 14.5 x 12 x 50 1.1 mm
Qty. 1 - A21071077 Coupling Element
Qty. 1 - A25908123 Exhaust Diaphragm
Qty. 1 - A25908226 Oil Pressure Valve
Qty. 1 - A25908226 Dump Valve Body
Qty. 1 - A26501036 Gas Ballast Valve Pad
Qty. 1 - A26501040 U Seal
Qty. 1 - 23712-039 Viton O-ring 7.6 id x 2.4
Qty. 1 - 23724-070 Nitrile O-Ring 32.5 id x 3.0
Qty. 1 - 23724-071 Nitrile O-Ring 49.5 id x 3.0
Qty. 1 - 23724-073 Nitrile O-Ring 21.5 id x 3.0
Qty. 1 - H02120037 O-Ring 15.6 id x 2.4
Qty. 1 - H02122031 Viton O-Ring 9.6 id x 2.4
Qty. 1 - H02122036 Viton O-Ring 14.6 id x 2.4
Qty. 1 - H02122055 Viton O-Ring 57.6 id x 2.4
Qty. 1 - H02122083 Viton O-Ring 69.5 id x 3.0
Qty. 1 - H02126026 Viton O-Ring 27.8 id x 3.4
Qty. 1 - A27160005 Gasket (Oil Box)
Qty. 1 - A27160006 Gasket (Printed)
Qty. 1 - A27160007 Gasket (Top Plate)
A&J Vacuum also repair / rebuild and service all Edwards RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, E2M12 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
THERE ARE NO RETURNS ON THIS PRODUCT.

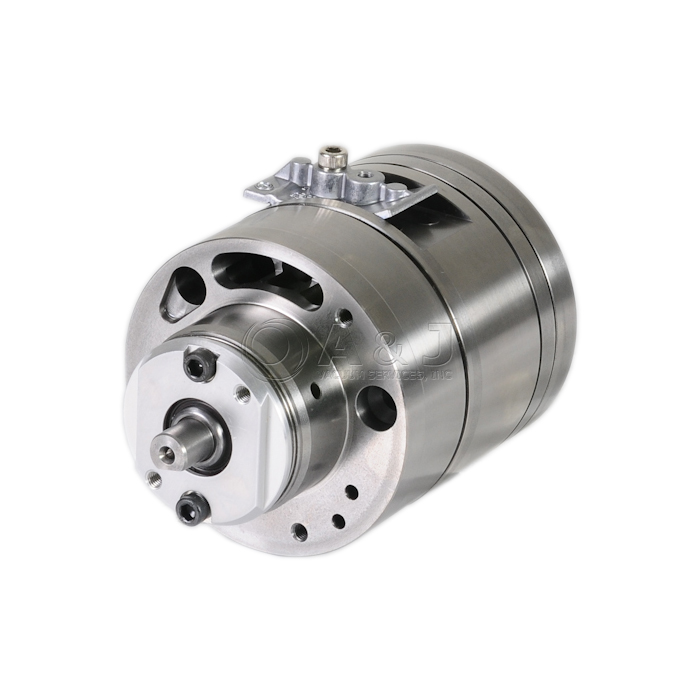

Inner Modules are fully assembled using new components, and are tested and ready for installation.
Modules inlcude all required gaskets.
Qty. 2 - 20525-047 Spring 9.7 x 7.8 x 18 x 0.7 mm
Qty. 1 - 20526-048 Spring 12.3 x 9.6 x 16 x 1.3 mm
Qty. 1 - 20527-049 Spring 14.5 x 12 x 50 1.1 mm
Qty. 1 - A21071077 Coupling Element
Qty. 1 - A25908123 Exhaust Diaphragm
Qty. 1 - A25908226 Oil Pressure Valve
Qty. 1 - A25908226 Dump Valve Body
Qty. 1 - A26501036 Gas Ballast Valve Pad
Qty. 1 - A26501040 U Seal
Qty. 1 - 23712-039 Viton O-ring 7.6 id x 2.4
Qty. 1 - 23724-070 Nitrile O-Ring 32.5 id x 3.0
Qty. 1 - 23724-071 Nitrile O-Ring 49.5 id x 3.0
Qty. 1 - 23724-073 Nitrile O-Ring 21.5 id x 3.0
Qty. 1 - H02120037 O-Ring 15.6 id x 2.4
Qty. 1 - H02122031 Viton O-Ring 9.6 id x 2.4
Qty. 1 - H02122036 Viton O-Ring 14.6 id x 2.4
Qty. 1 - H02122055 Viton O-Ring 57.6 id x 2.4
Qty. 1 - H02122083 Viton O-Ring 69.5 id x 3.0
Qty. 1 - H02126026 Viton O-Ring 27.8 id x 3.4
Qty. 1 - A27160005 Gasket (Oil Box)
Qty. 1 - A27160006 Gasket (Printed)
Qty. 1 - A27160007 Gasket (Top Plate)
A&J Vacuum Repair / Rebuild and Service All EDWARDS RV Series PUMPS, nXDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
THERE ARE NO RETURNS ON THIS PRODUCT.

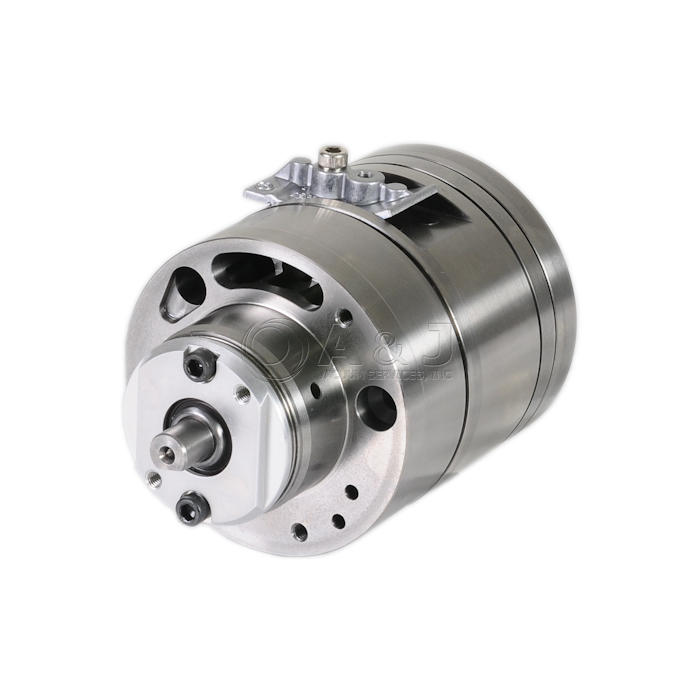

Inner Modules are fully assembled using new components, and are tested and ready for installation.
