Unequal Tee, Branch Reducer, KF 25/ KF 16, NW 25/ NW 16, Stainless Steel Vacuum Hardware, Polished, PN07697

Unequal Tee, Branch Reducer KF 25 / KF 16 Dimensions:

• A: 2.05 in / 52 mm

• B: 1.48 in / 37.5 mm

• C: 1.57 in / 40 mm

• D: 1.18 in / 30 mm

• E: 1 in / 25.4 mm

• F: 0.75 in / 19.05 mm

Overview

Unequal Tee, Branch Reducer, KF 25/ KF 16, NW 25/ NW 16, Stainless Steel Vacuum Hardware, PN07697

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40.

Unequal tees, branch reducers, are made out of stainless steel. These assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your Unequal Tee, Branch Reducer KF-25/KF-16.

The Unequal Tess, Branch Reducers are available in the following sizes:

• NW 25 / NW 16

• NW 40 / NW 16

• NW 40 / NW 25

• NW 50 / NW 16

• NW 50 / NW 25

• NW 50 / NW 40

Unequal Tee, Branch Reducer, KF 40/ KF 16, NW 40/ NW 16, Stainless Steel Vacuum Hardware, PN07698

Unequal Tee, Branch Reducer KF 40 / KF 16 Dimensions:

• A: 2.40 in / 61 mm

• B: 2.05 in / 52 mm

• C: 2.17 in / 55 mm

• D: 1.18 in / 30 mm

• E: 1.5 in / 38.1 mm

• F: 0.75 in / 19.05 mm

Overview

Unequal Tee, Branch Reducer, KF 40/ KF 16, NW 40/ NW 16, Stainless Steel Vacuum Hardware, PN07698

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40.

Unequal tees, branch reducers, are made out of stainless steel. These assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your Unequal Tee, Branch Reducer KF-40/KF-16.

The Unequal Tess, Branch Reducers are available in the following sizes:

• NW 25 / NW 16

• NW 40 / NW 16

• NW 40 / NW 25

• NW 50 / NW 16

• NW 50 / NW 25

• NW 50 / NW 40

Unequal Tee, Branch Reducer, KF 40/ KF 25, NW 40/ NW 25, Stainless Steel Vacuum Hardware, PN07699

Unequal Tee, Branch Reducer KF 40 / KF 25 Dimensions:

• A: 2.40 in / 61 mm

• B: 2.28 in / 57.8 mm

• C: 2.17 in / 55 mm

• D: 1.57 in / 40 mm

• E: 1.5 in / 38.1 mm

• F: 1 in / 25.40 mm

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40.

Unequal tees, branch reducers, are made out of stainless steel. These assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your Unequal Tee, Branch Reducer KF-40/KF-25.

Unequal Tee, Branch Reducer, KF 40/ KF 25, NW 40/ NW 25, Stainless Steel Vacuum Hardware, PN07699

The Unequal Tess, Branch Reducers are available in the following sizes:

• NW 25 / NW 16

• NW 40 / NW 16

• NW 40 / NW 25

• NW 50 / NW 16

• NW 50 / NW 25

• NW 50 / NW 40

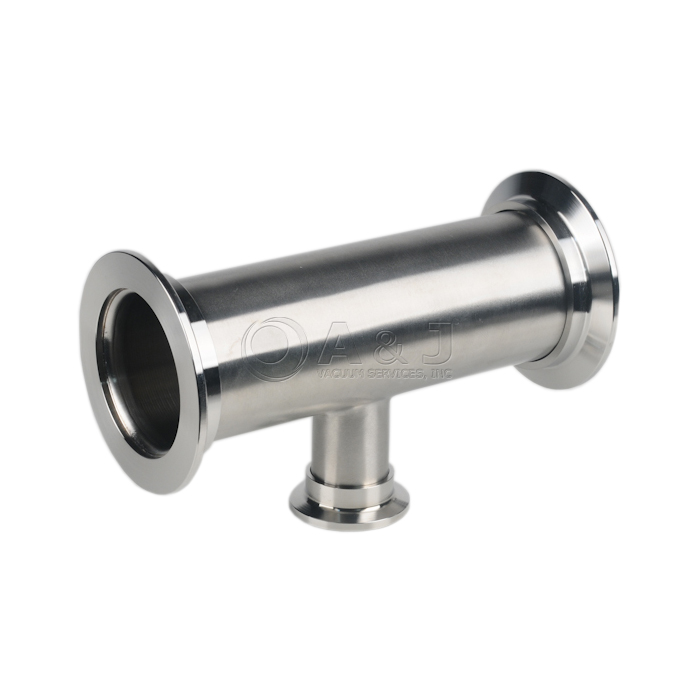

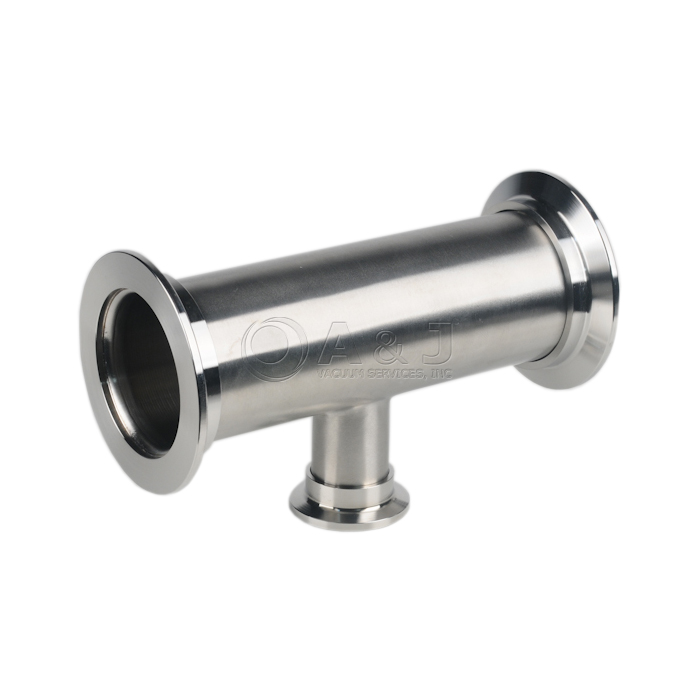

Unequal Tee, Branch Reducer, KF 50/ KF 16, NW 50/ NW 16, Stainless Steel Vacuum Hardware, PN07700

Unequal Tee, Branch Reducer KF 50 / KF 16 Dimensions:

• A: 3.15 in / 80 mm

• B: 2.29 in / 58.2 mm

• C: 2.95 in / 75 mm

• D: 1.18 in / 30 mm

• E: 2 in / 50.8 mm

• F: 0.75 in / 19.05 mm

Overview

Unequal Tee, Branch Reducer, KF 50/ KF 16, NW 50/ NW 16, Stainless Steel Vacuum Hardware, PN07700

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40.

Unequal tees, branch reducers, are made out of stainless steel. These assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your Unequal Tee, Branch Reducer KF-50/KF-16.

The Unequal Tess, Branch Reducers are available in the following sizes:

• NW 25 / NW 16

• NW 40 / NW 16

• NW 40 / NW 25

• NW 50 / NW 16

• NW 50 / NW 25

• NW 50 / NW 40

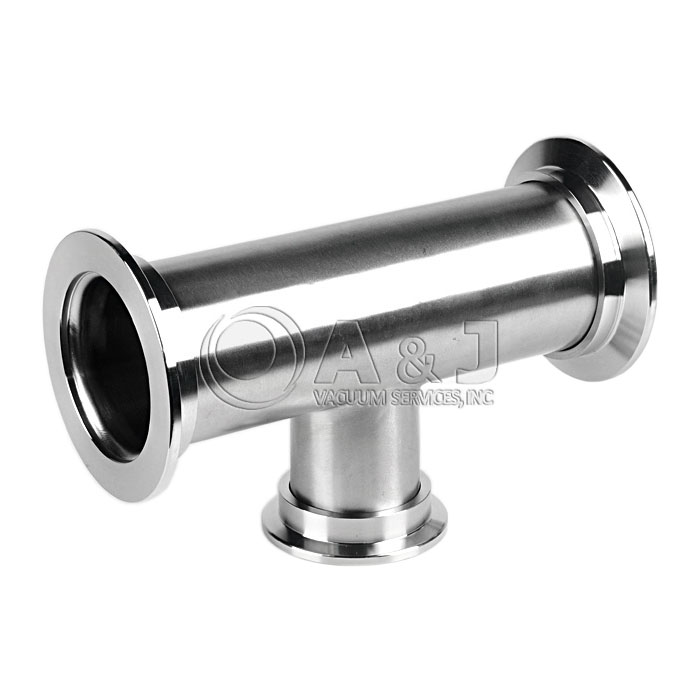

Unequal Tee, Branch Reducer, KF 50/ KF 40, NW 50/ NW 40, Stainless Steel Vacuum Hardware, PN07702

Unequal Tee, Branch Reducer KF 50 / KF 40 Dimensions:

• A: 3.15 in / 80 mm

• B: 2.65 in / 67.3 mm

• C: 2.95 in / 75 mm

• D: 2.17 in / 55 mm

• E: 2 in / 50.8 mm

• F: 1.5 in / 38.1 mm

Overview

Unequal Tee, Branch Reducer, KF 50/ KF 40, NW 50/ NW 40, Stainless Steel Vacuum Hardware, PN07702

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40.

Unequal tees, branch reducers, are made out of stainless steel. These assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your Unequal Tee, Branch Reducer KF-50/KF-40.

The Unequal Tess, Branch Reducers are available in the following sizes:

• NW 25 / NW 16

• NW 40 / NW 16

• NW 40 / NW 25

• NW 50 / NW 16

• NW 50 / NW 25

• NW 50 / NW 40

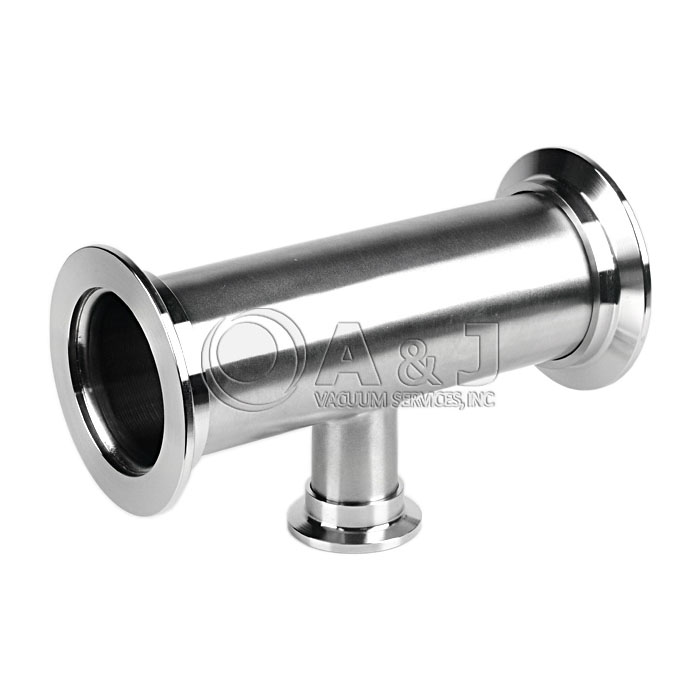

Unequal Tee, Branch Reducer, KF 50/ KF 25, NW 50/ NW 25, Stainless Steel Vacuum Hardware, Sand Blasted, PN24600

Unequal Tee, Branch Reducer KF 50 / KF 25 Dimensions:

• A: 3.15 in / 80 mm

• B: 2.52 in / 64.1 mm

• C: 2.95 in / 75 mm

• D: 1.57 in / 40 mm

• E: 2 in / 50.8 mm

• F: 1 in / 25.4 mm

Overview

Unequal Tee, Branch Reducer, KF 50/ KF 25, NW 50/ NW 25, Stainless Steel Vacuum Hardware, PN07701

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40.

Unequal tees, branch reducers, are made out of stainless steel. These assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your Unequal Tee, Branch Reducer KF-50/KF-25.

The Unequal Tess, Branch Reducers are available in the following sizes:

• NW 25 / NW 16

• NW 40 / NW 16

• NW 40 / NW 25

• NW 50 / NW 16

• NW 50 / NW 25

• NW 50 / NW 40

Unequal Tee, KF 25 to KF 16, NW 25 to NW 16 Reducer Tee, Stainless Steel, Bead Blasted, PN31609

Overview

This reducer tee has two KF 25 flanges and one KF 16 flange.

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40.

Unequal tees / branch reducers are made out of stainless steel. These assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your Unequal Tee, Branch Reducer KF-25/KF-16.

The Unequal Tess, Branch Reducers are available in the following sizes:

• NW 25 / NW 16

• NW 40 / NW 16

• NW 40 / NW 25

• NW 50 / NW 16

• NW 50 / NW 25

• NW 50 / NW 40

Unequal Tee, Branch Reducer, KF 50/ KF 25, NW 50/ NW 25, Stainless Steel Vacuum Hardware, Polished, PN07701

Unequal Tee, Branch Reducer KF 50 / KF 25 Dimensions:

• A: 3.15 in / 80 mm

• B: 2.52 in / 64.1 mm

• C: 2.95 in / 75 mm

• D: 1.57 in / 40 mm

• E: 2 in / 50.8 mm

• F: 1 in / 25.4 mm

Overview

Unequal Tee, Branch Reducer, KF 50/ KF 25, NW 50/ NW 25, Stainless Steel Vacuum Hardware, PN07701

The flanges, or the vacuum flange fittings, are available in the following sizes KF10, KF-16, KF-25, KF-40, KF-50 with corresponding flange sizes NW-10, NW-16, NW-25, NW-40.

Unequal tees, branch reducers, are made out of stainless steel. These assemblies consist of two flanges, a centering ring, and an aluminum clamp. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the o-ring, which is held in place by a metal centering ring, to generate vacuum seal.

Please refer to Recommended Products Section at the bottom of this page to choose corresponding clamps and rings for your Unequal Tee, Branch Reducer KF-50/KF-25.

The Unequal Tess, Branch Reducers are available in the following sizes:

• NW 25 / NW 16

• NW 40 / NW 16

• NW 40 / NW 25

• NW 50 / NW 16

• NW 50 / NW 25

• NW 50 / NW 40
