Found 3 products

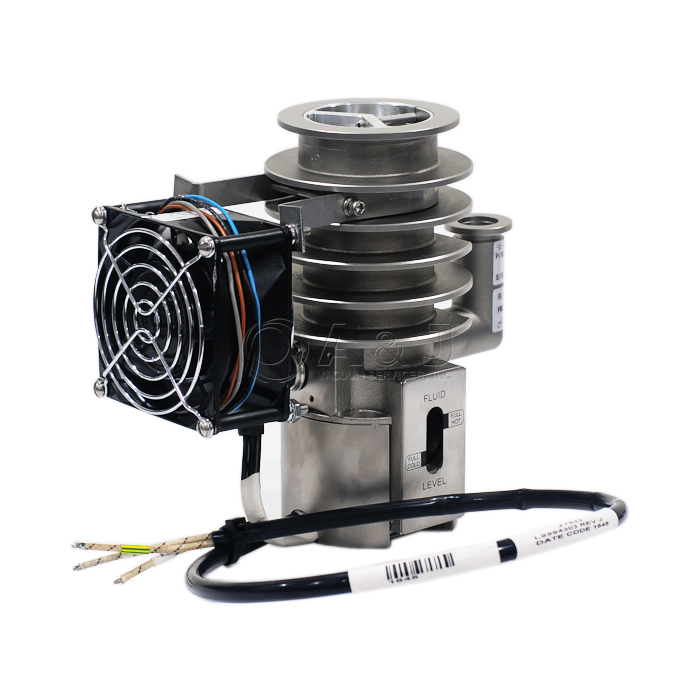

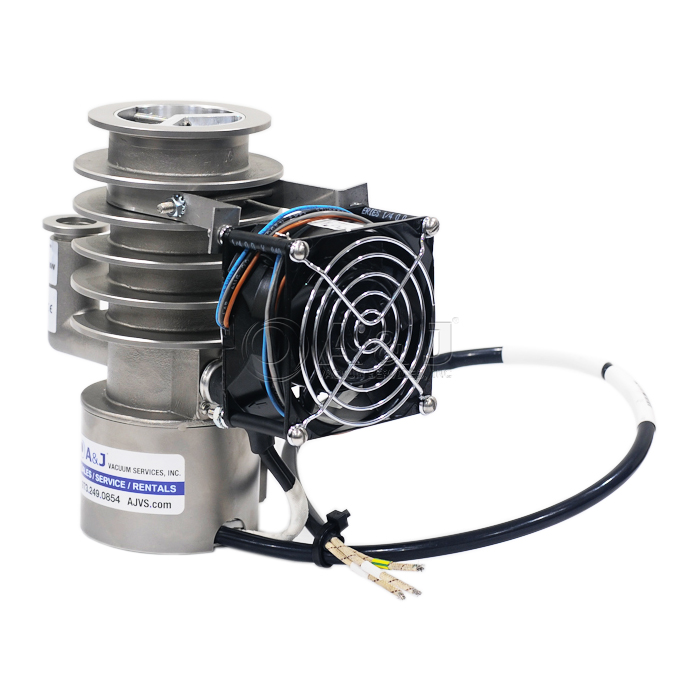

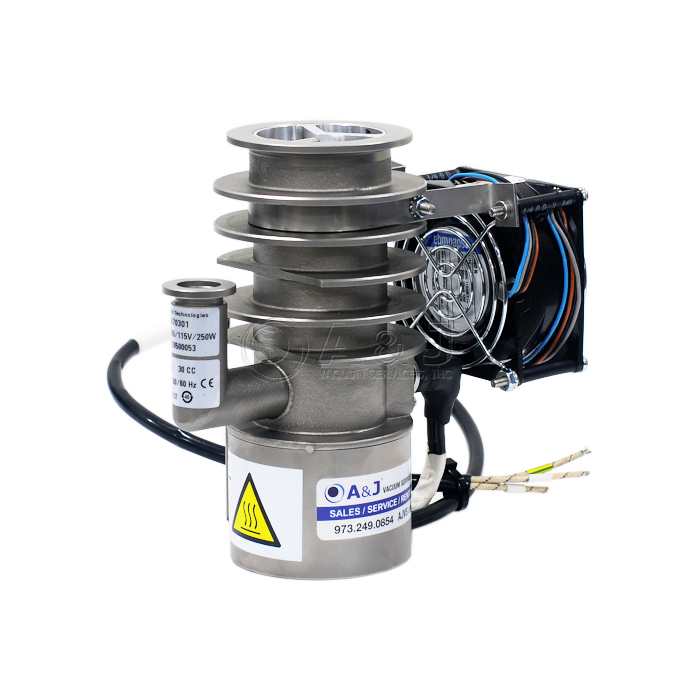

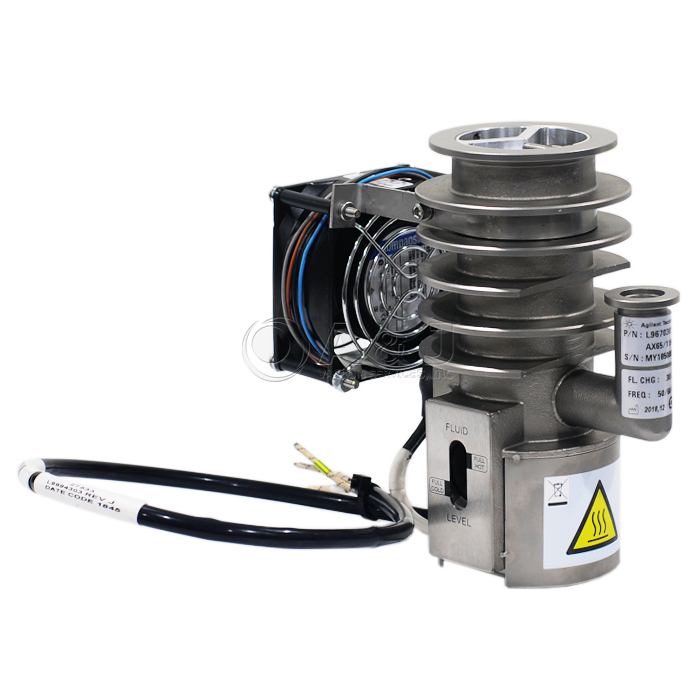

Agilent AX-65 Diffusion Pump, 115 VAC, KF-50 Inlet Flange, Standard Cold Cap, 250 Watt Heater, L9670301, AX65 , Air Cooling, Santovac 5 Oil
Item#: PN22528 Mfr Part#: L9670301 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent AX-65 Diffusion Pump, 115 VAC, KF-50 Inlet Flange, Standard Cold Cap, 250 Watt Heater, L9670301, AX65 with Air Cooling Fan



Agilent Technologies Difussion pump model AX-65 is air cooled high vacuum pump with pumping speed at 65 l/sec. air and 90 l/sec He.

Agilent Varian AX pump comes with Fully optimized Jet, Agilent produces vapor jets that deliver the highest throughput, highest pressure stability, and tolerable forline pressure available, while reducing ackstreaming to a absolute minimum.

These AX-65 pump comes with standard KF-16 outlet flange. Large oil level sight glass offers clear view of oil level.

Mounted cooling fan included with each pump (P/N 661300138)

Overtemperature thermal switch set to open at 365°F(182 °C)

Use 250W heater with polyphenyl ether fluids (such as DC-705 and Santovac 5).

Use 200W heater for other fluids.

AX 65 Diffusion Pump Pumping Speed:

  • Air: 65 l/s

  • He: 90 l/s

Operating Range

  • Torr    3x10−3 to <5x10−8

  • Mbar  3.9x10−3 to <6.5x10−8

Throughput (Air), Max. Optimum Range

  • Torr-l/s     0.19

  • Mbar-l/s   0.25

Forepressure, Max. No Load

  • Torr    0.75

  • mbar  1.00

Forepressure, Max. Full Load

  • Torr    0.60

  • mbar  0.78

Backstreaming Rate at Pump Inlet

  • mg/cm2/min <2x10-4

Recommended Backing Pump: > 2.5 m3/hr or 1.5 CFM

Warmup Time: 10 Minutes

Cooldown Time: 10 Minutes (with quick cool coil)

Fluid Charge: 30 cc, Santovac 5 oil is recomended for this Pump

Electrical Requirements: 115 VAC Single Phase, 50/60 Hz

Pump Power: 250 Watts

A&J Vacuum Services, Inc. provides full service and repairs on all AX-65 and VHS pump series.



1. Agilent Varian Jet assembly with top hat and shield for AX-65 Diffusion Pump, L9674301 - PN22534

2. Agilent Varian Cold Cap for AX-65 Diffusion Pump, L9675301 - PN22536

3. Agilent Inlet Baffle AX-65 Diffusion Pump, L9706001, Varian Inlet Baffle - PN22537

4. Agilent Jet Alignment Kit AX-65 Diffusion Pump, L9995301, Varian Jet Alignment Kit - PN22538

5. Agilent Heater Harness 90 VAC, 250 Watt for AX-65 Diffusion Pump, L9994301, Varian Heater Harness for Santovac 5 Oil - PN22539

5. Agilent Heater Harness 115 VAC, 250 Watt for AX-65 Diffusion Pump, L9994303, Varian Heater Harness for Santovac 5 Oil - PN22540

5. Agilent Heater Harness 165 VAC, 250 Watt for AX-65 Diffusion Pump, L9994302, Varian Heater Harness for Santovac 5 Oil - PN22549

5. Agilent Heater Harness 220 VAC, 250 Watt for AX-65 Diffusion Pump, L9994304, Varian Heater Harness for Santovac 5 Oil - PN22550

5. Agilent Heater Harness 115 VAC, 200 Watt for AX-65 Diffusion Pump, L9994307, Varian Heater Harness for CMP 704 Oil - PN22551

5. Agilent Heater Harness 220 VAC, 200 Watt for AX-65 Diffusion Pump, L9994308, Varian Heater Harness for CMP 704 Oil - PN22552

6. Agilent Over Temperature Thermal Switch, Normally Closed for AX-65 Diffusion Pump Heater Harness (Set to open at 365 °F), Varian L9964001 - PN22553

7. Agilent Optional Thermal Switch, Normally Open Pump Ready Switch for AX-65 Diffusion Pump Heater Harness (Set to close at 170 °F), Varian L9964002 - PN22554

8. Agilent Varian Fan, Universal Voltage for AX-65 Diffusion Pump, 115-230 VAC, Fan Only 661300138 - PN22555

9. Agilent Varian Exhaust Foreline Baffle for AX-65 Diffusion Pump, L9676301- PN22556

12. Agilent Varian Bottom Insulation for AX-65 Diffusion Pump, (1 required with heater harness), L9701002 - PN22557



A&J Vacuum also repair / rebuild and service all Agilent Varian AX-65 and VHS Diffusion  Vacuum Pumps along with all other Agilent and Varian Turbo Pumps, Varial Scroll Pumps, Agilent scroll Pumps and all other Agilent Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Condition: New
Agilent AX-65 Diffusion Pump, 115 VAC, ISO-63 Inlet Flange, Standard Cold Cap, 250 Watt Heater, L9670301, AX65 , Air Cooling, Santovac 5 Oil
Item#: PN22558 Mfr Part#: L9707301 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent AX-65 Diffusion Pump, 115 VAC, ISO-63 Inlet Flange, Standard Cold Cap, 250 Watt Heater, L9670301, AX65, Air Cooling, Santovac 5 Oil, AX65 with Air Cooling Fan



Agilent Technologies Difussion pump model AX-65 is air cooled high vacuum pump with pumping speed at 65 l/sec. air and 90 l/sec He.

Agilent Varian AX pump comes with Fully optimized Jet, Agilent produces vapor jets that deliver the highest throughput, highest pressure stability, and tolerable forline pressure available, while reducing ackstreaming to a absolute minimum.

These AX-65 pump comes with standard KF-16 outlet flange. Large oil level sight glass offers clear view of oil level.

Mounted cooling fan included with each pump (P/N 661300138)

Overtemperature thermal switch set to open at 365°F(182 °C)

Use 250W heater with polyphenyl ether fluids (such as DC-705 and Santovac 5).

Use 200W heater for other fluids.

AX 65 Diffusion Pump Pumping Speed:

  • Air: 65 l/s

  • He: 90 l/s

Operating Range

  • Torr    3x10−3 to <5x10−8

  • Mbar  3.9x10−3 to <6.5x10−8

Throughput (Air), Max. Optimum Range

  • Torr-l/s     0.19

  • Mbar-l/s   0.25

Forepressure, Max. No Load

  • Torr    0.75

  • mbar  1.00

Forepressure, Max. Full Load

  • Torr    0.60

  • mbar  0.78

Backstreaming Rate at Pump Inlet

  • mg/cm2/min <2x10-4

Recommended Backing Pump: > 2.5 m3/hr or 1.5 CFM

Warmup Time: 10 Minutes

Cooldown Time: 10 Minutes (with quick cool coil)

Fluid Charge: 30 cc, Santovac 5 oil is recomended for this Pump

Electrical Requirements: 115 VAC Single Phase, 50/60 Hz

Pump Power: 250 Watts

A&J Vacuum Services, Inc. provides full service and repairs on all AX-65 and VHS pump series.



1. Agilent Varian Jet assembly with top hat and shield for AX-65 Diffusion Pump, L9674301 - PN22534

2. Agilent Varian Cold Cap for AX-65 Diffusion Pump, L9675301 - PN22536

3. Agilent Inlet Baffle AX-65 Diffusion Pump, L9706001, Varian Inlet Baffle - PN22537

4. Agilent Jet Alignment Kit AX-65 Diffusion Pump, L9995301, Varian Jet Alignment Kit - PN22538

5. Agilent Heater Harness 90 VAC, 250 Watt for AX-65 Diffusion Pump, L9994301, Varian Heater Harness for Santovac 5 Oil - PN22539

5. Agilent Heater Harness 115 VAC, 250 Watt for AX-65 Diffusion Pump, L9994303, Varian Heater Harness for Santovac 5 Oil - PN22540

5. Agilent Heater Harness 165 VAC, 250 Watt for AX-65 Diffusion Pump, L9994302, Varian Heater Harness for Santovac 5 Oil - PN22549

5. Agilent Heater Harness 220 VAC, 250 Watt for AX-65 Diffusion Pump, L9994304, Varian Heater Harness for Santovac 5 Oil - PN22550

5. Agilent Heater Harness 115 VAC, 200 Watt for AX-65 Diffusion Pump, L9994307, Varian Heater Harness for CMP 704 Oil - PN22551

5. Agilent Heater Harness 220 VAC, 200 Watt for AX-65 Diffusion Pump, L9994308, Varian Heater Harness for CMP 704 Oil - PN22552

6. Agilent Over Temperature Thermal Switch, Normally Closed for AX-65 Diffusion Pump Heater Harness (Set to open at 365 °F), Varian L9964001 - PN22553

7. Agilent Optional Thermal Switch, Normally Open Pump Ready Switch for AX-65 Diffusion Pump Heater Harness (Set to close at 170 °F), Varian L9964002 - PN22554

8. Agilent Varian Fan, Universal Voltage for AX-65 Diffusion Pump, 115-230 VAC, Fan Only 661300138 - PN22555

9. Agilent Varian Exhaust Foreline Baffle for AX-65 Diffusion Pump, L9676301- PN22556

12. Agilent Varian Bottom Insulation for AX-65 Diffusion Pump, (1 required with heater harness), L9701002 - PN22557



A&J Vacuum also repair / rebuild and service all Agilent Varian AX-65 and VHS Diffusion  Vacuum Pumps along with all other Agilent and Varian Turbo Pumps, Varial Scroll Pumps, Agilent scroll Pumps and all other Agilent Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Condition: New
Agilent AX-65 Diffusion Pump, 220 VAC, KF-50 Inlet Flange, Standard Cold Cap, 250 Watt Heater, L9670302, AX65 , Air Cooling, Santovac 5 Oil
Item#: PN22587 Mfr Part#: L9670302 Manufacturer: Agilent Technologies / Varian
Price upon request

Agilent AX-65 Diffusion Pump, 220 VAC, KF-50 Inlet Flange, Standard Cold Cap, 250 Watt Heater, L9670302, AX65 , Air Cooling, Santovac 5 Oil



Agilent Technologies Difussion pump model AX-65 is air cooled high vacuum pump with pumping speed at 65 l/sec. air and 90 l/sec He.

Agilent Varian AX pump comes with Fully optimized Jet, Agilent produces vapor jets that deliver the highest throughput, highest pressure stability, and tolerable forline pressure available, while reducing ackstreaming to a absolute minimum.

These AX-65 pump comes with standard KF-16 outlet flange. Large oil level sight glass offers clear view of oil level.

Mounted cooling fan included with each pump (P/N 661300138)

Overtemperature thermal switch set to open at 365°F(182 °C)

Use 250W heater with polyphenyl ether fluids (such as DC-705 and Santovac 5).

Use 200W heater for other fluids.

AX 65 Diffusion Pump Pumping Speed:

  • Air: 65 l/s

  • He: 90 l/s

Operating Range

  • Torr    3x10−3 to <5x10−8

  • Mbar  3.9x10−3 to <6.5x10−8

Throughput (Air), Max. Optimum Range

  • Torr-l/s     0.19

  • Mbar-l/s   0.25

Forepressure, Max. No Load

  • Torr    0.75

  • mbar  1.00

Forepressure, Max. Full Load

  • Torr    0.60

  • mbar  0.78

Backstreaming Rate at Pump Inlet

  • mg/cm2/min <2x10-4

Recommended Backing Pump: > 2.5 m3/hr or 1.5 CFM

Warmup Time: 10 Minutes

Cooldown Time: 10 Minutes (with quick cool coil)

Fluid Charge: 30 cc, Santovac 5 oil is recomended for this Pump

Pump Power: 250 Watts

A&J Vacuum Services, Inc. provides full service and repairs on all AX-65 and VHS pump series.



1. Agilent Varian Jet assembly with top hat and shield for AX-65 Diffusion Pump, L9674301 - PN22534

2. Agilent Varian Cold Cap for AX-65 Diffusion Pump, L9675301 - PN22536

3. Agilent Inlet Baffle AX-65 Diffusion Pump, L9706001, Varian Inlet Baffle - PN22537

4. Agilent Jet Alignment Kit AX-65 Diffusion Pump, L9995301, Varian Jet Alignment Kit - PN22538

5. Agilent Heater Harness 90 VAC, 250 Watt for AX-65 Diffusion Pump, L9994301, Varian Heater Harness for Santovac 5 Oil - PN22539

5. Agilent Heater Harness 115 VAC, 250 Watt for AX-65 Diffusion Pump, L9994303, Varian Heater Harness for Santovac 5 Oil - PN22540

5. Agilent Heater Harness 165 VAC, 250 Watt for AX-65 Diffusion Pump, L9994302, Varian Heater Harness for Santovac 5 Oil - PN22549

5. Agilent Heater Harness 220 VAC, 250 Watt for AX-65 Diffusion Pump, L9994304, Varian Heater Harness for Santovac 5 Oil - PN22550

5. Agilent Heater Harness 115 VAC, 200 Watt for AX-65 Diffusion Pump, L9994307, Varian Heater Harness for CMP 704 Oil - PN22551

5. Agilent Heater Harness 220 VAC, 200 Watt for AX-65 Diffusion Pump, L9994308, Varian Heater Harness for CMP 704 Oil - PN22552

6. Agilent Over Temperature Thermal Switch, Normally Closed for AX-65 Diffusion Pump Heater Harness (Set to open at 365 °F), Varian L9964001 - PN22553

7. Agilent Optional Thermal Switch, Normally Open Pump Ready Switch for AX-65 Diffusion Pump Heater Harness (Set to close at 170 °F), Varian L9964002 - PN22554

8. Agilent Varian Fan, Universal Voltage for AX-65 Diffusion Pump, 115-230 VAC, Fan Only 661300138 - PN22555

9. Agilent Varian Exhaust Foreline Baffle for AX-65 Diffusion Pump, L9676301- PN22556

12. Agilent Varian Bottom Insulation for AX-65 Diffusion Pump, (1 required with heater harness), L9701002 - PN22557



A&J Vacuum also repair / rebuild and service all Agilent Varian AX-65 and VHS Diffusion  Vacuum Pumps along with all other Agilent and Varian Turbo Pumps, Varial Scroll Pumps, Agilent scroll Pumps and all other Agilent Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Condition: New
