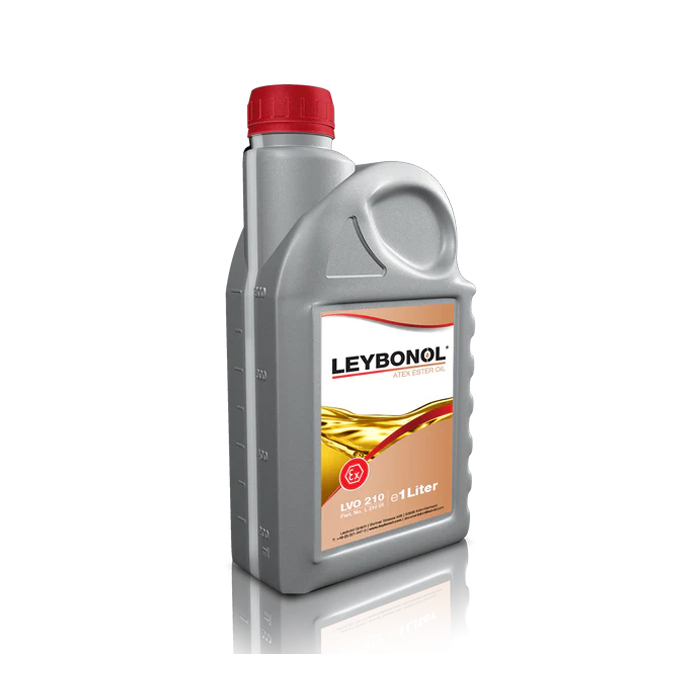

Leybold Leybonol LVO 210 Ester Oil, 1 Liter, L21001

Leybold Leybonol LVO 210 Ester Oil Features:

• Viscosity:
  • 97 mm2/s at 40 °C (104 °F)
  • 5.5 mm2/s at 100 °C (212 °F)
• Flash Point: 250 °C | 482 °F
• Density at 15 °C (59 °F): 960 kg/m3
• Pour Point: -33 °C | ‐27 °F

Leybonol LVO 210 Ester Oil / L21001 Overview:

Ester oils are organic compounds that are particularly noted for their high thermal stability and resistance to cracking, especially when compared to mineral oils. While they generally offer good chemical resistance, this can vary depending on the specific type of ester oil. However, they tend to have lower compatibility with elastomers and reduced resistance to hydrolysis relative to mineral oils.

Ester oils are not suitable for applications involving the pumping of acids, halogens, or alkaline substances such as ammonia, particularly in the presence of moisture.

The LVO210 oil is being used with Leybold TRIVAC B pumps, SP-Line, E + DK, RUVAC, DRYVAC, SOGEVAC (≥ SV 100, ≥ SV 40 B) SV 40 Cat. 1 (i)/2 (o) IIB + H2 and SV 40 B to 630 B, Cat. 2 (i)/2 (o) and 3 (i)/3 (o).

A&J Vacuum repair / rebuild and service all Leybold Oerlikon  Vacuum Pumps, Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Leybold Leybonol LVO 210 Ester Oil, 20 Liters, L21020

Leybold Leybonol LVO 210 Ester Oil Features:

• Viscosity:
  • 97 mm2/s at 40 °C (104 °F)
  • 5.5 mm2/s at 100 °C (212 °F)
• Flash Point: 250 °C | 482 °F
• Density at 15 °C (59 °F): 960 kg/m3
• Pour Point: -33 °C | ‐27 °F

Leybonol LVO 210 Ester Oil / L21020 Overview:

Ester oils are organic compounds that are particularly noted for their high thermal stability and resistance to cracking, especially when compared to mineral oils. While they generally offer good chemical resistance, this can vary depending on the specific type of ester oil. However, they tend to have lower compatibility with elastomers and reduced resistance to hydrolysis relative to mineral oils.

Ester oils are not suitable for applications involving the pumping of acids, halogens, or alkaline substances such as ammonia, particularly in the presence of moisture.

The LVO210 oil is being used with Leybold TRIVAC B pumps, SP-Line, E + DK, RUVAC, DRYVAC, SOGEVAC (≥ SV 100, ≥ SV 40 B) SV 40 Cat. 1 (i)/2 (o) IIB + H2 and SV 40 B to 630 B, Cat. 2 (i)/2 (o) and 3 (i)/3 (o).

A&J Vacuum repair / rebuild and service all Leybold Oerlikon  Vacuum Pumps, Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Leybold Leybonol LVO 210 Ester Oil, 5 Liters, L21005

Leybold Leybonol LVO 210 Ester Oil Features:

• Viscosity:
  • 97 mm2/s at 40 °C (104 °F)
  • 5.5 mm2/s at 100 °C (212 °F)
• Flash Point: 250 °C | 482 °F
• Density at 15 °C (59 °F): 960 kg/m3
• Pour Point: -33 °C | ‐27 °F

Leybonol LVO 210 Ester Oil / L21005 Overview:

Ester oils are organic compounds that are particularly noted for their high thermal stability and resistance to cracking, especially when compared to mineral oils. While they generally offer good chemical resistance, this can vary depending on the specific type of ester oil. However, they tend to have lower compatibility with elastomers and reduced resistance to hydrolysis relative to mineral oils.

Ester oils are not suitable for applications involving the pumping of acids, halogens, or alkaline substances such as ammonia, particularly in the presence of moisture.

The LVO210 oil is being used with Leybold TRIVAC B pumps, SP-Line, E + DK, RUVAC, DRYVAC, SOGEVAC (≥ SV 100, ≥ SV 40 B) SV 40 Cat. 1 (i)/2 (o) IIB + H2 and SV 40 B to 630 B, Cat. 2 (i)/2 (o) and 3 (i)/3 (o).

A&J Vacuum repair / rebuild and service all Leybold Oerlikon  Vacuum Pumps, Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Leybold Leybonol LVO 310 PAO Oil, 1 Liter, L31001

Leybold Leybonol LVO 310 PAO Oil Features:

• Viscosity:
  • 29 mm2/s at 40 °C (104 °F)
  • 5.5 mm2/s at 100 °C (212 °F)
• Flash Point: 230 °C | 446 °F
• Density at 15 °C (59 °F): 820 kg/m3
• Pour Point: < -54 °C | < ‐65 °F

Leybonol LVO 310 PAO Oil / L31001 Overview:

Polyalphaolefin (PAO) oils are synthetic hydrocarbons with a paraffin-like composition but a more uniform molecular structure. They offer superior thermal and chemical resistance compared to mineral oils.

Thanks to their excellent low-temperature flow characteristics, they are suitable for use in cold environments. Their compatibility with elastomers and resistance to hydrolysis are similar to those of mineral oils.

H1 registration by NSF. Constituents approved by the FDA under CFR 178-3570. In accordance with USDA - H1.

The LVO300 oil is being used with Leybold TRIVAC up to D 16 B.

A&J Vacuum repair / rebuild and service all Leybold Oerlikon  Vacuum Pumps, Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Leybold Leybonol LVO 700 Synthetic Cyclic Hydrocarbon Oil, 5 Liters, L70005

Leybold Leybonol LVO 700 Synthetic Cyclic Hydrocarbon Oil Features:

• Viscosity at 40 °C (104 °F): 31 mm2/s
• Flash Point: > 210 °C | 410 °F
• Density at 15 °C (59 °F): 904 kg/m3
• Pour Point: < -42 °C | < -44 °F

Leybonol LVO 700 Synthetic Cyclic Hydrocarbon Oil / L70005 Overview:

All special lubricants are grouped under the LEYBONOL LVO 7xx series, designed for use in specialized applications. For instance, LEYBONOL LVO700 is an H1-registered, highly stable lubricant developed for vacuum pumps. It is specifically formulated for applications where contact with chemically active substances is unavoidable.

The LVO700 oil is being used with Leybold SOGEVAC BI-series ≤ SV 120 BI (FC).

Replaces LVO200.

A&J Vacuum repair / rebuild and service all Leybold Oerlikon  Vacuum Pumps, Helium Leak Detectors  along with all other  Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Leybold Leybonol LVO 702 Synthetic cyclic hydrocarbon oil, 1 Liter, L70201, LVO702, direct replacement for LVO-700 oil.

This Leybold LVO702 is a direct replacement Synthetic cyclic hydrocarbon oil for Leybold HE200, LVO 200 and LVO 700 Vacuum pump oil.

Leybold LVO 702 Vacuum Pump oil is the original Leybold Vacuum Pump oil for large selection of Leybold Vacuum Pumps.

This oil also replaces the discontinued LVO 110.

The Leybold LVO702 oil is being used with Leybold Sogevac BI Series pumps, Leybold Trivac A series and B series vacuum pumps.

Leybold LVO702 can be mixed with Leybold LVO700 oil, we strongly recomend full oil replacement with new LVO 702.

Leybold LVO-702 has Very high thermal stability and highly resistant against oxidation and decomposition.

LVO 702 Oil has a potential for Very long lifetime, up to 3 years in clean application.

Viscosity:

• 31.3 mm2/s at 40°C

Oerlikon Leybold Leybonol LVO 700 mineral oils are products distilled and refined from crude oil. These do not consist of precisely defined compounds but rather consist of a complex mixture. The way in which the mineral oil is pre-treated and its composition is decisive as to the applications it will be suited for.

Depending on the distribution of the hydrocarbons and the dominance of certain properties, mineral oils are grouped according to paraffin-base, naphthenic and aromatic. For the purpose of attaining especially low ultimate pressures, mineral oils must be selected on the basis of a core fraction. The thermal and chemical resistance of mineral oils has been found to be adequate in the majority of applications. They offer a high degree of compatibility with elastomers and resistance to hydrolysis.

This Oil is designed to be used with the following Oerlikon Leybold Trivac Rotary Vane Pumps:

• D2A
• D4A
• D8A
• D16A
• D30A
• D60A
• D90A
• D2.5E
• D1.6B
• D4B
• D8B
• D16B
• D25B
• D65B

This Oil is designed to be used with the following Oerlikon Leybold Ruvac Pumps:

• WA/WAU 251
• WA/WAU 501
• WA/WAU 501H
• WA/WAU 1001
• WA/WAU 1001H
• WA/WAU 2001
• WA/WAU 2001H
• RA 3001, RA 5001

This Oil is designed to be used with the following Oerlikon Leybold E DK Rotary Piston Pumps:

• DK50
• DK100
• DK200
• E75
• E225
• E250
