Found 5 products
Item#: PN07689 Mfr Part#: KF16EL90A Manufacturer: AJVS
PRICE: $78.00
WEB SAVINGS: $6.00
YOU PAY: $72.00

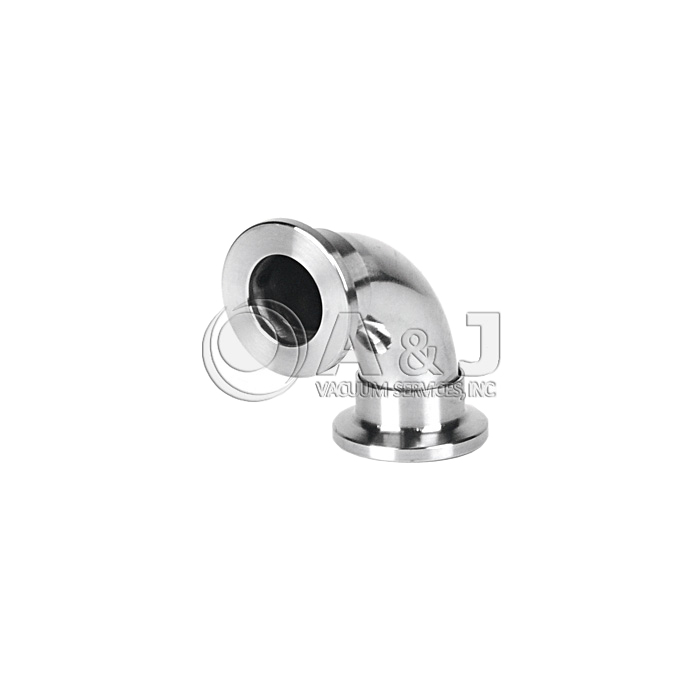

Elbow 90 KF-16 Vacuum Fittings NW 16, Stainless Steel 304, ISO-KF 90 Degrees. Also known as QF16 Vacuum Flange.

KF-16 Elbow Overview:



These KF-16  Elbows vacuum Fittings (90 Degrees) are available in the following sizes: NW 16, NW 25, NW 40, NW 50.

The KF 16 Vacuum Elbows (90 Degrees) are made out of  304 Stainless Steel.



  • A: 1.51 in / 38.3 mm
  • B: 0.75 in / 19.05 mm
  • C: 1.18 in / 30 mm
  • R: 1.13 in / 28.6 mm



Additional Flange Sizes avaialble below:

Click Here KF-25 Vacuum Elbow 90 Degrees, KF 25 , PN07690

Click Here KF-40 Vacuum Elbow 90 Degrees, KF 40, PN07691

Click Here KF-50 Vacuum Elbow 90 Degrees, KF-50, PN07692

Click Here for entire KF Vacuum Components Selection



KF (also referred to as NW) vacuum fittings assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.




Condition: New In Stock
Item#: PN07690 Mfr Part#: KF25EL90A Manufacturer: AJVS
PRICE: $89.00
WEB SAVINGS: $6.00
YOU PAY: $83.00

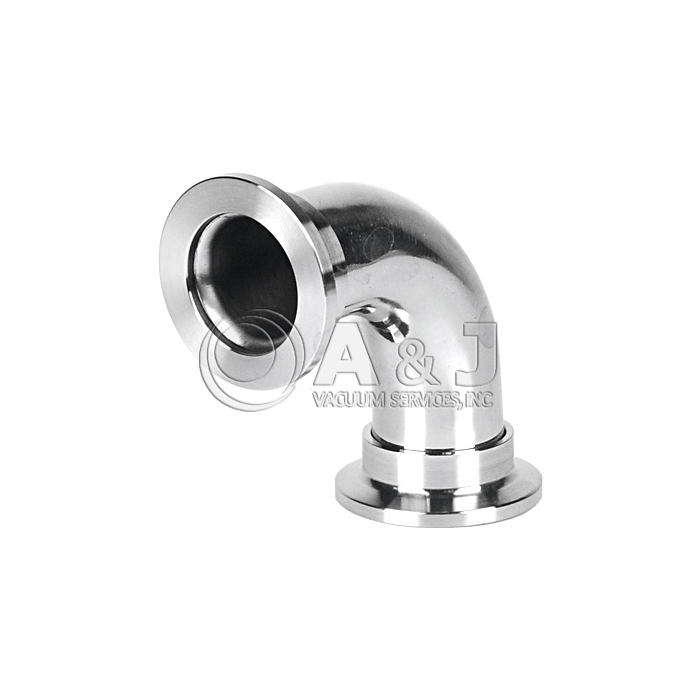

Elbow 90 KF-25 Vacuum Fittings NW 25, Stainless Steel 304, ISO-KF 90 Degrees. Also known as QF25 Flange.

KF-25 Elbow Overview:



The Elbows (90 Degrees) are available in the following sizes: NW 16, NW 25, NW 40, NW 50.

The Elbows (90 Degrees) are made out of  304 Stainless Steel.



  • A: 2.21 in / 56.2 mm
  • B: 1 in / 25.4 mm
  • C: 1.57 in / 40 mm
  • R: 1.5 in / 38.1 mm



Additional Flange Sizes avaialble below:

Click Here KF-16 Vacuum Elbow 90 Degrees, KF 16 , PN07689

Click Here KF-40 Vacuum Elbow 90 Degrees, KF 40, PN07691

Click Here KF-50 Vacuum Elbow 90 Degrees, KF-50, PN07692



KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.






Condition: New In Stock
Item#: PN07691 Mfr Part#: KF40EL90A Manufacturer: AJVS
PRICE: $113.00
WEB SAVINGS: $3.00
YOU PAY: $110.00

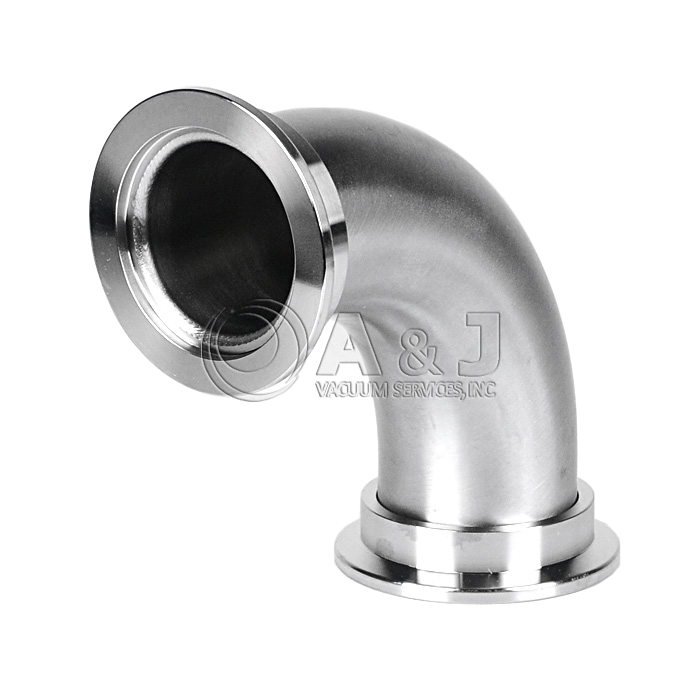

Elbow 90 KF-40 Vacuum Fittings NW 40, Stainless Steel 304, ISO-KF 90 Degrees. Also known as QF40 Flange.

KF-40 Elbow Overview:



The Elbows (90 Degrees) are available in the following sizes: NW 16, NW 25, NW 40, NW 50.

The Elbows (90 Degrees) are made out of  304 Stainless Steel.



  • A: 3.09 in / 78.4 mm
  • B: 1.5 in / 38.1 mm
  • C: 2.17 in / 55 mm
  • R: 2.25 in / 57.2 mm



Additional Flange Sizes avaialble below:

Click Here KF-25 Vacuum Elbow 90 Degrees, KF 16 , PN07689

Click Here KF-40 Vacuum Elbow 90 Degrees, KF 25, PN07690

Click Here KF-50 Vacuum Elbow 90 Degrees, KF-50, PN07692



KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Overview:

The Elbows (90 Degrees) are available in the following sizes: NW 16, NW 25, NW 40, NW 50.

The Elbows (90 Degrees) are made out of Stainless Steel.

KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.








Condition: New In Stock
Item#: PN07692 Mfr Part#: KF50EL90A Manufacturer: AJVS
PRICE: $144.00
WEB SAVINGS: $5.50
YOU PAY: $138.50

Elbow 90 KF-50 Vacuum Fittings NW 50, Stainless Steel 304, ISO-KF 90 Degrees. Also known as QF50 Flange.

KF-50 Elbow Overview:



The Elbows (90 Degrees) are available in the following sizes: NW 16, NW 25, NW 40, NW 50.

The Elbows (90 Degrees) are made out of  304 Stainless Steel.



  • A: 4.21 in / 107 mm
  • B: 2 in / 50.8 mm
  • C: 2.95 in / 75 mm
  • R: 3 in / 76.2 mm



Additional Flange Sizes avaialble below:

Click Here KF-25 Vacuum Elbow 90 Degrees, KF 16 , PN07689

Click Here KF-25 Vacuum Elbow 90 Degrees, KF 25, PN07690

Click Here KF-40 Vacuum Elbow 90 Degrees, KF-40, PN07691



KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.

Overview:

The Elbows (90 Degrees) are available in the following sizes: NW 16, NW 25, NW 40, NW 50.

The Elbows (90 Degrees) are made out of Stainless Steel.

KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.




Condition: New In Stock
Item#: PN15846 Mfr Part#: PN15846 Manufacturer: AJVS
PRICE: $74.00
WEB SAVINGS: $8.01
YOU PAY: $65.99

Zero Length Elbow (90 Degrees) with KF 25. Also known as QF25 Flange.



KF-25 Zero Length Elbow Overview:

This elbow is designed to save space in your instrument while giving the same functionality as a full sized 90 degree kf-25 elbow.

KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.


Condition: New In Stock
