Agilent TwisTorr 84 FS Turbo Pump with ISO 63 Inlet Flange, 67 l/sec Pumping Speed, X3502-64010, X350264010
The Agilent Technologies TwisTorr 84 FS is a turbomolecular pump for high and ultra-high vacuum applications. The TwisTorr 84 FS is equipped with new and improved bearings and its TwisTorr drag state technology enables high compression of gases such as Helium and Hydrogen. The TwisTorr 84 FS is designed to pump any type of non corrosive gas and can be used with a smaller backing pump (5 m3/h).
The Agilent Varian TwisTorr 84 FS pumping action is obtained through a high speed turbine (max. 81000 rpm) driven by a high performance 3-phase electric motor. The TwisTorr 84 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.
The TwisTorr 84 FS pump consists of a high frequency motor and a high-strength aluminum alloy turbine fitted with 9 bladed stages and 3 TwisTorr drag stages which are in the form of four disks. The turbine rotates counterclockwise when viewed from the high vacuum flange end. The TwisTorr 84 FS rotor is supported by permanently lubricated ceramic ball bearings. The static blades are precisely situated with the help of spacer rings and are made of stainless steel. The TwisTorr stators are in the form of machined disks with parallel spiral pumping channels. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1350 Hz.
The Agilent TwisTorr 84 FS turbomolecular pump can be water cooled or air cooled. In order to prevent the pump from overheating, a thermistor sensor is mounted near the upper bearing.
Agilent Technologies TwisTorr 84FS ISO 63, X3502-64010, X350264000, Turbo Pump Dimensions
Agilent Technologies TwisTorr 84FS Turbo Pump
Pumping Speed vs. Inlet Pressure
Agilent Technologies TwisTorr 84 FS Turbo Pump Applications
-
Mass Spectrometry and Analytical Instrumentation, including GC/MS, LC/MS, ICP-MS, TOF.
-
Vacuum in Research and Development, including high energy physics, fusion technology, general research.
-
Industrial Vacuum Processing, including thin film deposition, device processing, and general processes such as vacuum furnaces.
-
Nanotechnology Instrumnets, including electron microscopy, focused ion beam systems, surface analysis, semiconductor manufacturing.
Please click here to view operating instructions for Agilent Varian TwisTorr 84 FS Turbo Pump.
Please click here to learn more about the Agilent Varian TwissTorr Turbo Pump Family and view Agilent Technologies TwissTorr Brochure.
A&J Vacuum repairs / rebuilds and services all Agilent TwisTorr Turbo Pumps, including Agilent TwissTorr 304 FS, Agilent TwisTorr 84 FS, along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Turbo Pumps, and Turbo Pump Systems. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Varian Cooling Fan for Varian TV 301 Navigator Turbo Pumps.
Varian V 250 Cooling Fan with Bracket, 24V DC, 9699007, 9699008
Overview:
This Cooling Fan is designed to be used with the following Turbomolecular Pumps:
- Varian TV 250 969-9007 (V 250 9699007)
- Varian TV 250 969-9008 (V 250 9699008)
The Turbo V250 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 Macrotorr stages. The turbine rotates in an counter clockwise direction when viewed from the high vacuum flange end.
The turbine is made of high-strength, light aluminium alloy, and is machined from a single block of aluminium. The turbine blades have five different angles, from 42° to 10°, while the Macrotorr stages are in form of discs.
Varian TV801 / Agilent TV801 DN160 ISO-K Pump Mounting Brackets with Bolts, 1013382 (Demo Unit)
Mounting Bracket designed to mount Varian TV 801 SCIEX Turbo Pump, DN 160 ISO-F, 8698933R001, turbo Pump on SCIEX unit.

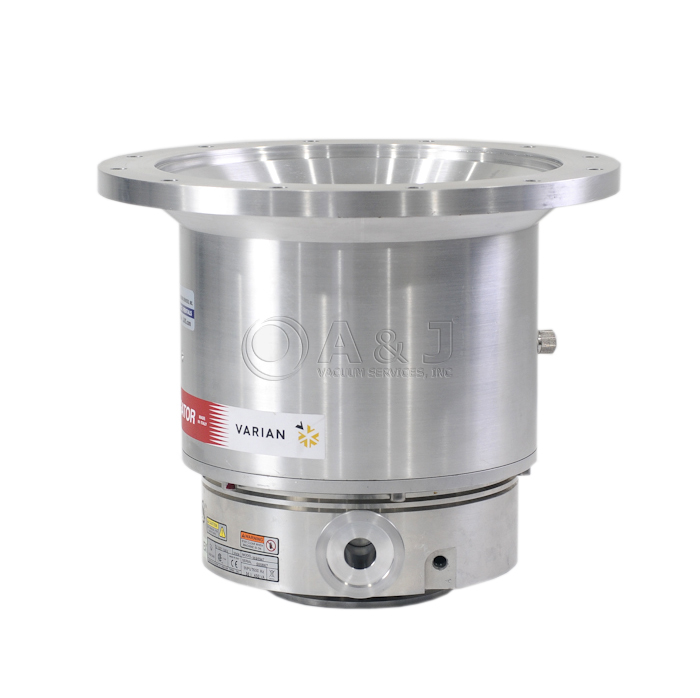

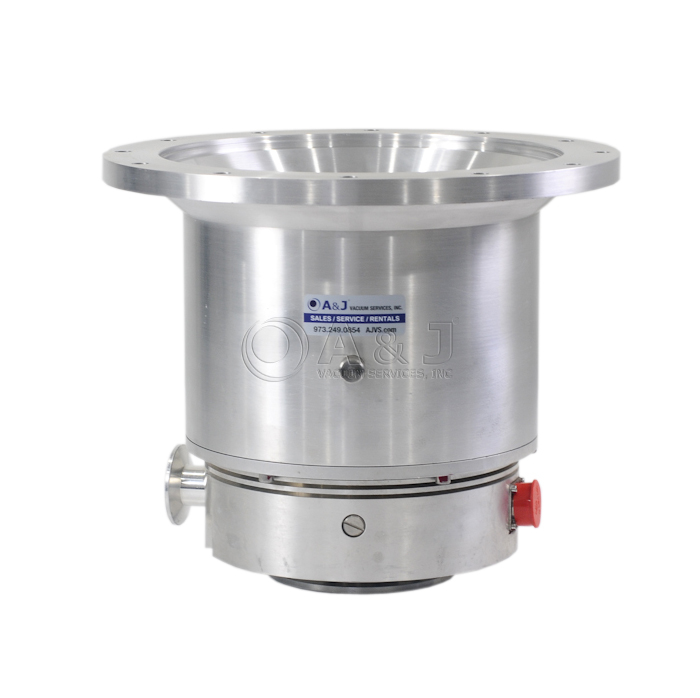

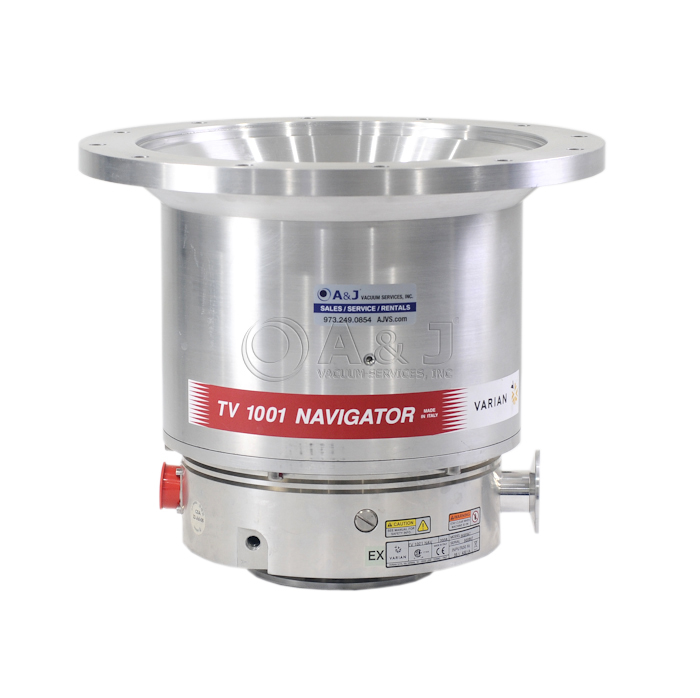

Remanufactured Varian TV 1001 Navigator Turbo Pump, ISO 250, Pump Only, 9698947, Agilent TV 1001
Varian TV 1001 Overview:
The Varian TV 1001 Navigator 9698947 is an integrated system with a turbomolecular pump for high and ultra-high vacuum applications with its relevant controller. The system can pump any type of gas or gas compound. It is not suitable for pumping liquids or solid particles. The pumping action is obtained through a high speed turbine (max. 38000 rpm) driven by a high-performance 3-phase electric motor.
The TV 1001 Navigator 969-8947 is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum. It is equipped with auxiliary connectors to supply an additional fan, to control the vent valve, to be controlled from a remote site by means of an host computer connected through a serial line (RS232 or RS485).
The TV 1001 9698947 Tubro Pump is available in six different models that differ only in the high vacuum flange. The pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 4 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The Macrotorr stages are in the form of four discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel.
These Varian TV 1001 9698947 are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 715 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
The pump 969-8947 Varian 1001 TV can be water cooled or air cooled: in the first case the customer can use the dedicated channels on the pump body, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange.
The connection of the forevacuum on the side of the pump is a KF 40 NW flange. The dedicated controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of two PCBs which include power supply and 3-phase output, analog and input/output section, microprocessor and digital section. The power supply, together with the 3-phase output, converts the single phase AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the pump. The controller can be operated by a remote host computer via the serial connection. A Windows based software is available (optional).
Varian TV 1001 Pumping Speed:
Varian TV 1001 Dimensions:
Click Here for Varian TV 1001 Manual
Click Here for Varian V Series Brochure
A&J Vacuum Services offers full repair/service of Varian TV 1001 969-8947 Pumps, along with all other brands offered on our website. AJVS also services Varian / Agilent Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
