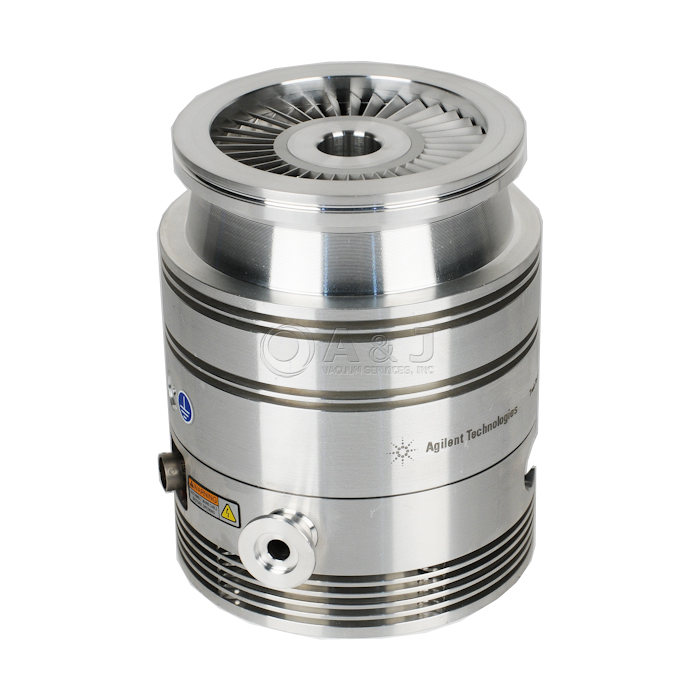

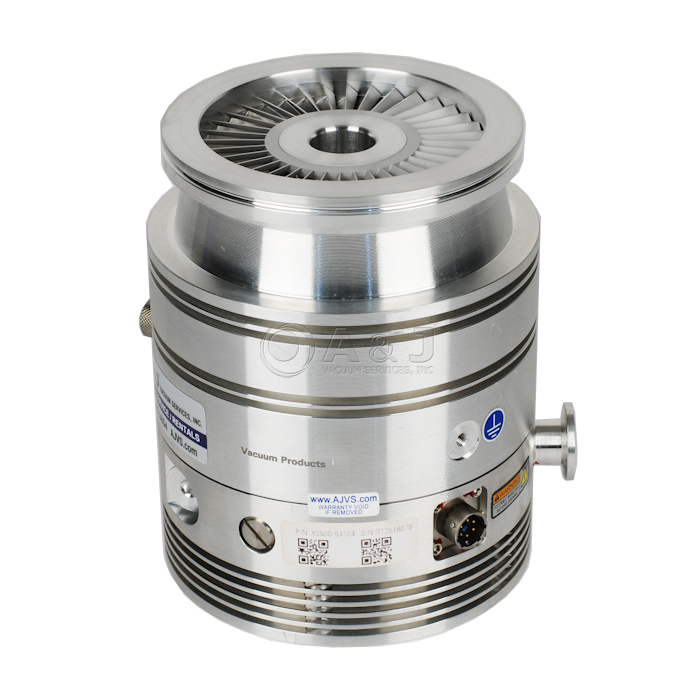

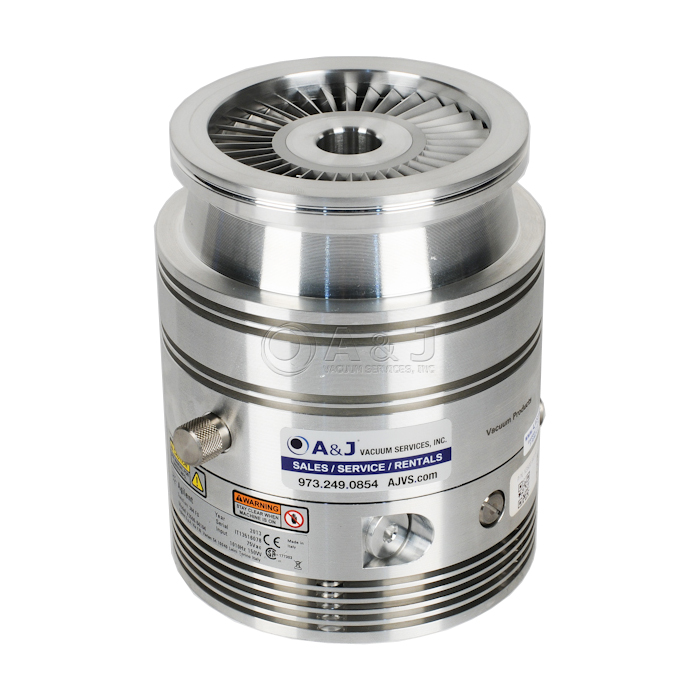

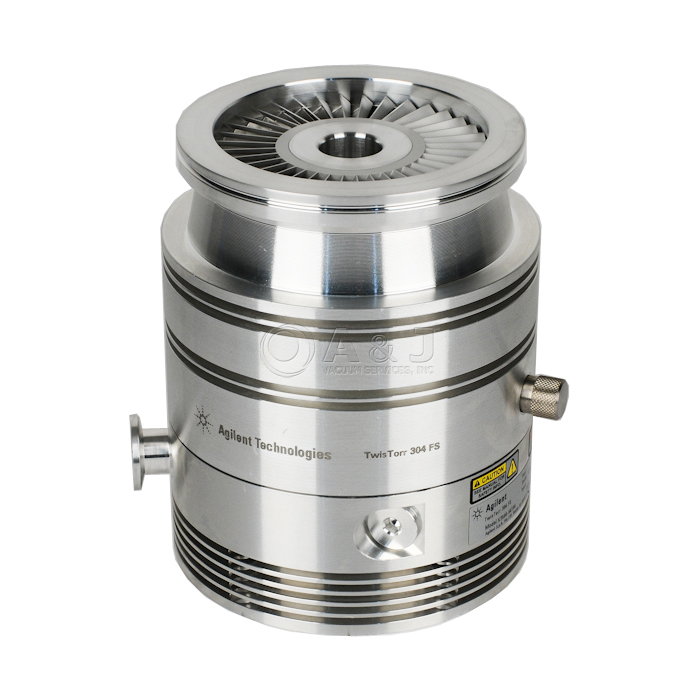

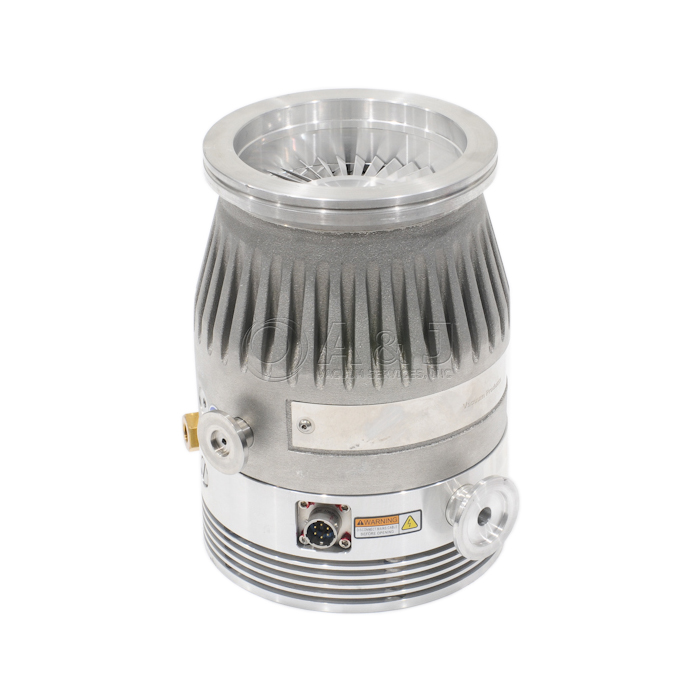

Agilent Varian TwisTorr304 FS Turbo Pump with ISO 100, 250 l/sec Pumping Speed Water Cooled, X350064000
Agilent TwisTorr 304 Overview
The Agilent Varian TwisTorr 304 FS is a Turbo Molecular pump with ISO 100 "X3500-64000" for high and ultra-high vacuum applications. Agilent Varian TwissTor 304 FS is a replacement for well known Varian TV 301 9698918 Turbo Pump. TwissTor 304 FS has new and Improved floating suspension bearings. Twisstor Drag stage technology create high compression rations for gases like Helium and Hydrogen to deliver high tolerance of forline pressure, permiting use of smaller backing pump.
TwisTorr 304 is able pump any type of non-corrosive gas or gas compound.
Agilent Varian TwisTorr 304 FS pumping action is obtained through a high speed turbine (max. 60000 rpm) driven by a high-performance 3-phase electric motor. The TwisTorr 304 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.

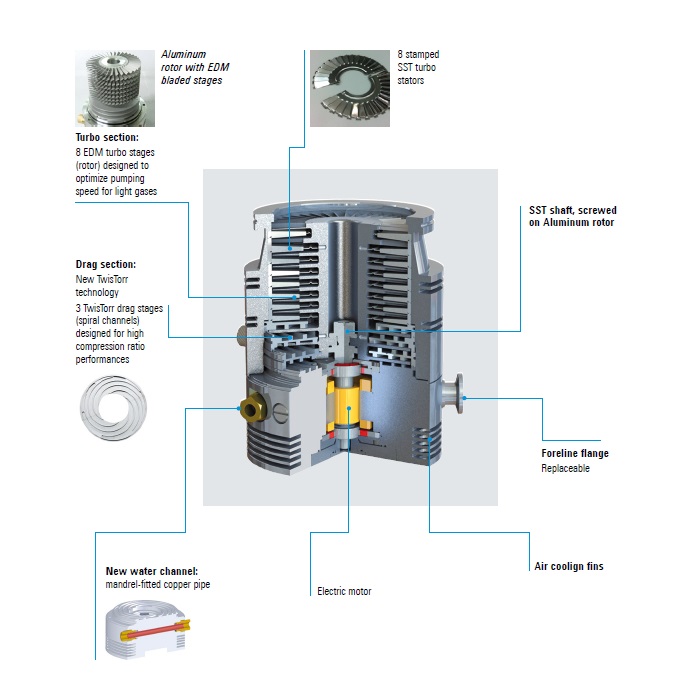

The Agilent Varian TwisTorr 304 FS X3500-64000 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 TwisTorr drag stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The TwisTorr stages are in the form of three disks.
Recomended Agilent Varian Forline Backing Pump is Varian Agilent SH-110 P/N EXSH01101UNIV Dry Pump, or Agilent DS-102 P/N 9499315 Rotary Vane Pump
The TwisTor 304 FS turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. Varian TwisTorr 304 stators are in the form of selfpositioning machined disks. On each disk there are parallel spiral pumping channels designed to pump in centrifugal direction on one side and in centripetal direction on the other side. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1010 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Ordering Info for Agilent Varian TwisTorr 304 FS: X3500-64000
Agilent Varian TwisTorr Applications Include:
- Mass Spectrometry Time of Flight (TOF Systems)
- Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- ICP-MS Mass Spectrometry
Industrial Applications:
- Optical Coating
- Metal Coating
- High Vacuum Furnaces
- LCD Screens manufature
- Solid State Media Storeage
- Semiconductor process
- Gas Analysis
- Surface Analysis
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development

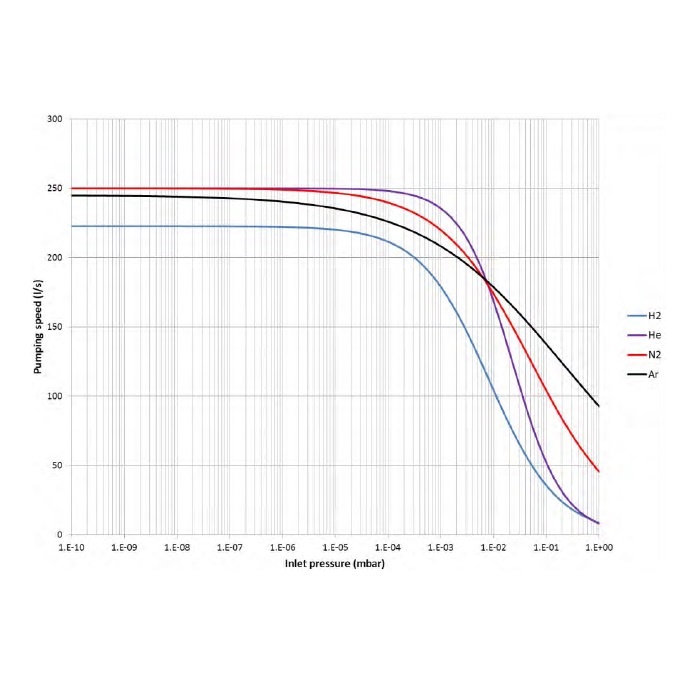

Agilent Pumping Speed vs. Inlet Pressure:
Agilent TwisTorr 304 Dimensions:
Click Here for Agilent TwisTorr 304 FS Manual
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64000 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Agilent Varian TwisTorr304 FS Turbo Pump with CFF 6" Conflat Flange, 255 l/sec Pumping Speed Water Cooled, X350064001
Agilent TwisTorr 304 Overview
The Agilent Varian TwisTorr 304 FS is a Turbo Molecular pump with CFF 6 "X3500-64001" for high and ultra-high vacuum applications. Agilent Varian TwissTor 304 FS is a replacement for well known Varian TV 301 9698918 Turbo Pump. TwissTor 304 FS has new and Improved floating suspension bearings. Twisstor Drag stage technology create high compression rations for gases like Helium and Hydrogen to deliver high tolerance of forline pressure, permiting use of smaller backing pump.
TwisTorr 304 is able pump any type of non-corrosive gas or gas compound.
Agilent Varian TwisTorr 304 FS pumping action is obtained through a high speed turbine (max. 60000 rpm) driven by a high-performance 3-phase electric motor. The TwisTorr 304 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.
The Agilent Varian TwisTorr 304 FS X3500-64001 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 TwisTorr drag stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The TwisTorr stages are in the form of three disks.
Recomended Agilent Varian Forline Backing Pump is Varian Agilent SH-110 P/N EXSH01101UNIV Dry Pump, or Agilent DS-102 P/N 9499315 Rotary Vane Pump
The TwisTor 304 FS turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. Varian TwisTorr 304 stators are in the form of selfpositioning machined disks. On each disk there are parallel spiral pumping channels designed to pump in centrifugal direction on one side and in centripetal direction on the other side. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1010 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Ordering Info for Agilent Varian TwisTorr 304 FS: X3500-64001
Agilent Varian TwisTorr Applications Include:
- Mass Spectrometry Time of Flight (TOF Systems)
- Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- ICP-MS Mass Spectrometry
Industrial Applications:
- Optical Coating
- Metal Coating
- High Vacuum Furnaces
- LCD Screens manufature
- Solid State Media Storeage
- Semiconductor process
- Gas Analysis
- Surface Analysis
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development
Agilent Pumping Speed vs. Inlet Pressure:
Agilent TwisTorr 304 Dimensions:
Click Here for Agilent TwisTorr 304 FS Manual
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64001 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.

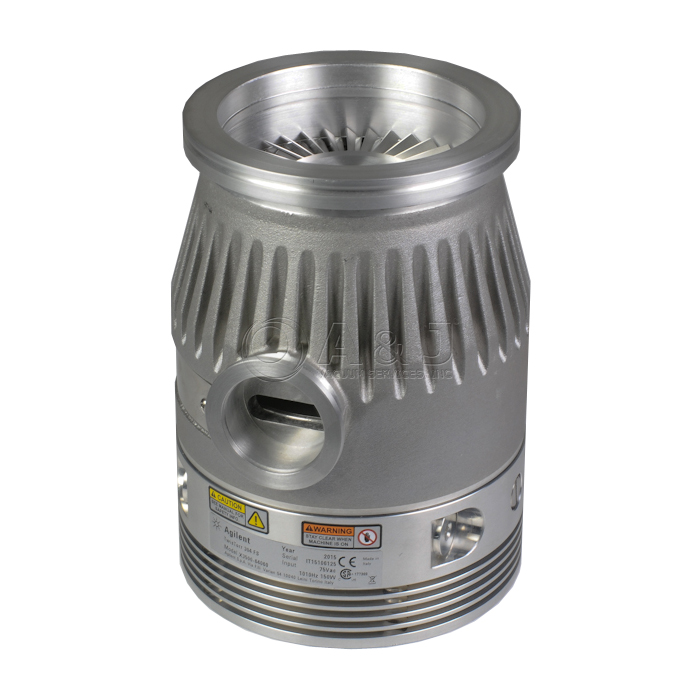

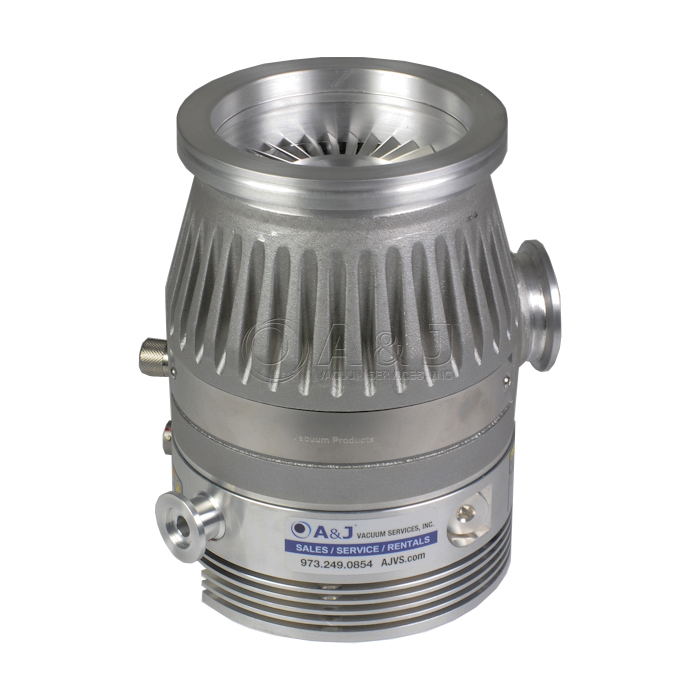

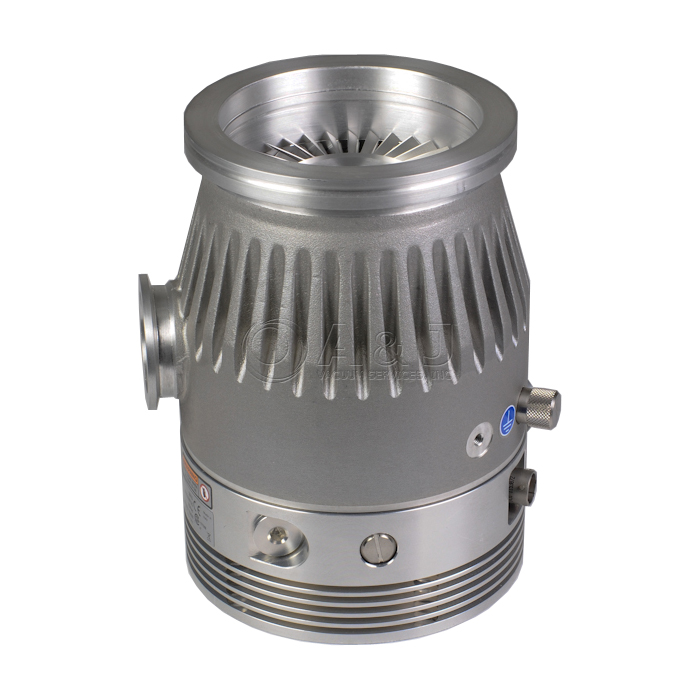

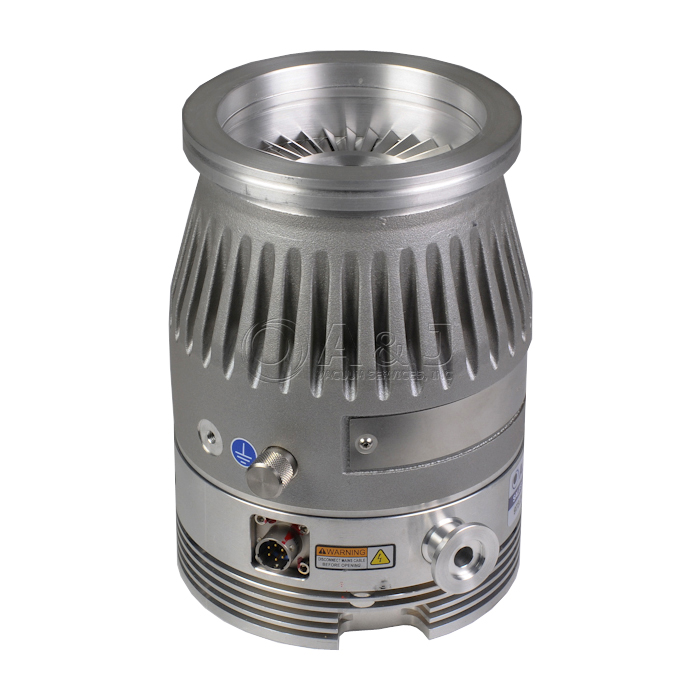

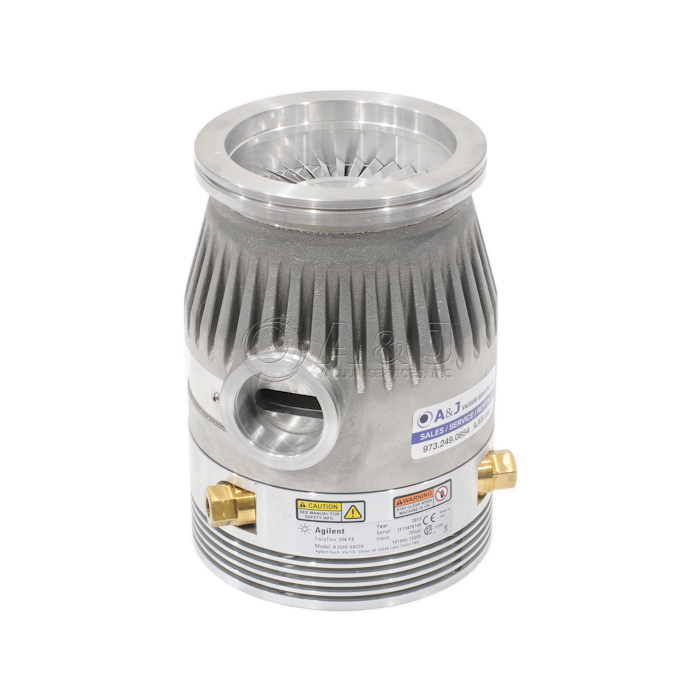

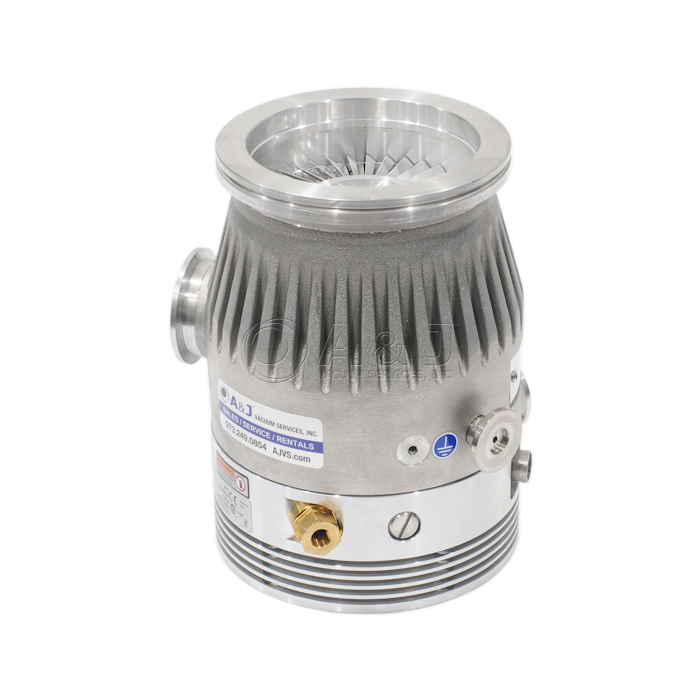

Agilent TwisTorr 304 Split Flow Turbo Pump for Agilent 7200 Accurate-Mass/Q-TOF GC/MS System with ISO 100, 250 l/sec Pumping Speed Air Cooled, X3500-64060, X3500060
Agilent TwisTorr 304 Overview
The Agilent Instrument TwisTorr 304 FS Air Cooled is a Turbo Molecular pump with ISO 100 X3500-64060 for high and ultra-high vacuum applications. Agilent Technologies TwissTor 304 FS is a replacement for well known Varian TV 301 9698918M00 Air Cooled Turbo Pump. TwissTor 304 FS has new and Improved floating suspension bearings. Twisstor Drag stage technology create high compression rations for gases like Helium and Hydrogen to deliver high tolerance of forline pressure, permiting use of smaller backing pump.
TwisTorr 304 is able pump any type of non-corrosive gas or gas compound.
Air Cooled Agilent Technologies TwisTorr 304 FS pumping action is obtained through a high speed turbine (max. 60000 rpm) driven by a high-performance 3-phase electric motor. The TwisTorr 304 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.
The Agilent Instrument Pump TwisTorr 304 FS X3500-64060 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 TwisTorr drag stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The TwisTorr stages are in the form of three disks.
Recomended Agilent Varian Forline Backing Pump is Varian Agilent SH110 P/N EXSH01101UNIV Dry Pump, or Agilent DS102 P/N 9499315 Rotary Vane Pump
The TwisTor 304 FS turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. Varian TwisTorr 304 stators are in the form of selfpositioning machined disks. On each disk there are parallel spiral pumping channels designed to pump in centrifugal direction on one side and in centripetal direction on the other side. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1010 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Ordering Info for Agilent Varian TwisTorr 304 FS: X3500-64060 Air Cooled with DN 100 ISO Inlet Flange
Agilent Varian TwisTorr Applications Include:
- Mass Spectrometry Time of Flight (TOF Systems)
- Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- ICP-MS Mass Spectrometry
Industrial Applications:
- Optical Coating
- Metal Coating
- High Vacuum Furnaces
- LCD Screens manufature
- Solid State Media Storeage
- Semiconductor process
- Gas Analysis
- Surface Analysis
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development
Agilent Technology and Innovation:
Agilent Pumping Speed vs. Inlet Pressure:
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64060 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Agilent TwisTorr304 FS Turbo Pump with ISO 160, 255 l/sec Pumping Speed Water Cooled, X350064002
Agilent TwisTorr 304 Overview
The Agilent Varian TwisTorr 304 FS is a Turbo Molecular pump with ISO 160 "X3500-64002" for high and ultra-high vacuum applications. Agilent Varian TwissTor 304 FS is a replacement for well known Varian TV 301 9698918 Turbo Pump. TwissTor 304 FS has new and Improved floating suspension bearings. Twisstor Drag stage technology create high compression rations for gases like Helium and Hydrogen to deliver high tolerance of forline pressure, permiting use of smaller backing pump.
TwisTorr 304 is able pump any type of non-corrosive gas or gas compound.
Agilent Varian TwisTorr 304 FS pumping action is obtained through a high speed turbine (max. 60000 rpm) driven by a high-performance 3-phase electric motor. The TwisTorr 304 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.
The Agilent Varian TwisTorr 304 FS X3500-64002 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 TwisTorr drag stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The TwisTorr stages are in the form of three disks.
Recomended Agilent Varian Forline Backing Pump is Varian Agilent SH-110 P/N EXSH01101UNIV Dry Pump, or Agilent DS-102 P/N 9499315 Rotary Vane Pump
The TwisTor 304 FS turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. Varian TwisTorr 304 stators are in the form of selfpositioning machined disks. On each disk there are parallel spiral pumping channels designed to pump in centrifugal direction on one side and in centripetal direction on the other side. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1010 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Ordering Info for Agilent Varian TwisTorr 304 FS: X3500-64002
Agilent Varian TwisTorr Applications Include:
- Mass Spectrometry Time of Flight (TOF Systems)
- Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- ICP-MS Mass Spectrometry
Industrial Applications:
- Optical Coating
- Metal Coating
- High Vacuum Furnaces
- LCD Screens manufature
- Solid State Media Storeage
- Semiconductor process
- Gas Analysis
- Surface Analysis
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development
Agilent Pumping Speed vs. Inlet Pressure:
Agilent TwisTorr 304 Dimensions:
Click Here for Agilent TwisTorr 304 FS Manual
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64000 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Agilent Technologies TwisTorr304 FS Turbo Pump with CFF 8" Conflat Flange, 255 l/sec Pumping Speed Water Cooled, X350064003
Agilent TwisTorr 304 Overview
The Agilent Varian TwisTorr 304 FS is a Turbo Molecular pump with ISO 100 "X3500-64003" for high and ultra-high vacuum applications. Agilent Varian TwissTor 304 FS is a replacement for well known Varian TV 301 9698918 Turbo Pump. TwissTor 304 FS has new and Improved floating suspension bearings. Twisstor Drag stage technology create high compression rations for gases like Helium and Hydrogen to deliver high tolerance of forline pressure, permiting use of smaller backing pump.
TwisTorr 304 is able pump any type of non-corrosive gas or gas compound.
Agilent Varian TwisTorr 304 FS pumping action is obtained through a high speed turbine (max. 60000 rpm) driven by a high-performance 3-phase electric motor. The TwisTorr 304 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.
The Agilent Varian TwisTorr 304 FS X3500-64003 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 TwisTorr drag stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The TwisTorr stages are in the form of three disks.
Recomended Agilent Varian Forline Backing Pump is Varian Agilent SH-110 P/N EXSH01101UNIV Dry Pump, or Agilent DS-102 P/N 9499315 Rotary Vane Pump
The TwisTor 304 FS turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. Varian TwisTorr 304 stators are in the form of selfpositioning machined disks. On each disk there are parallel spiral pumping channels designed to pump in centrifugal direction on one side and in centripetal direction on the other side. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1010 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Ordering Info for Agilent Varian TwisTorr 304 FS: X3500-64003
Agilent Varian TwisTorr Applications Include:
- Mass Spectrometry Time of Flight (TOF Systems)
- Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- ICP-MS Mass Spectrometry
Industrial Applications:
- Optical Coating
- Metal Coating
- High Vacuum Furnaces
- LCD Screens manufature
- Solid State Media Storeage
- Semiconductor process
- Gas Analysis
- Surface Analysis
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development
Agilent Pumping Speed vs. Inlet Pressure:
Agilent TwisTorr 304 Dimensions:
Click Here for Agilent TwisTorr 304 FS Manual
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64000 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.

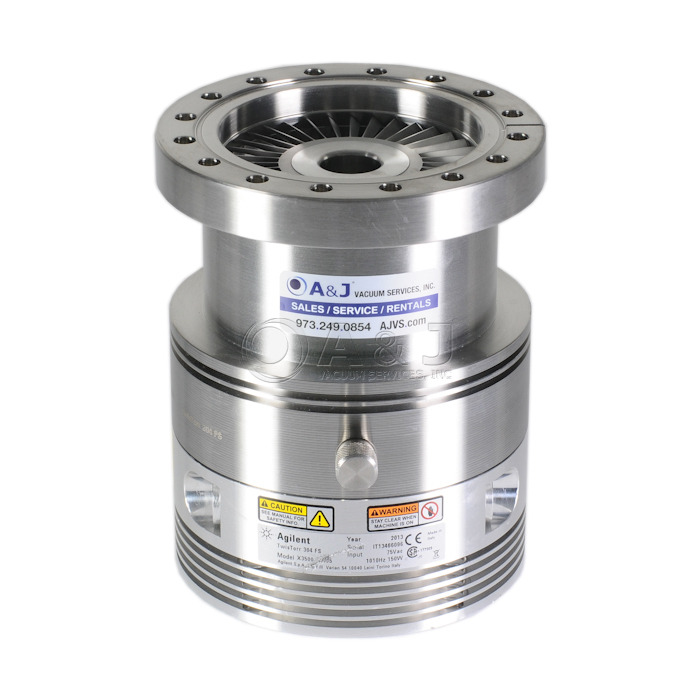

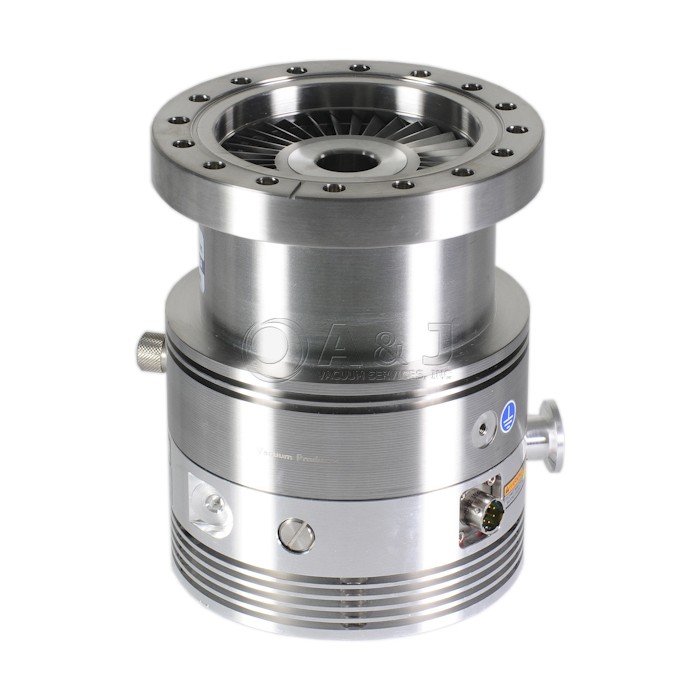

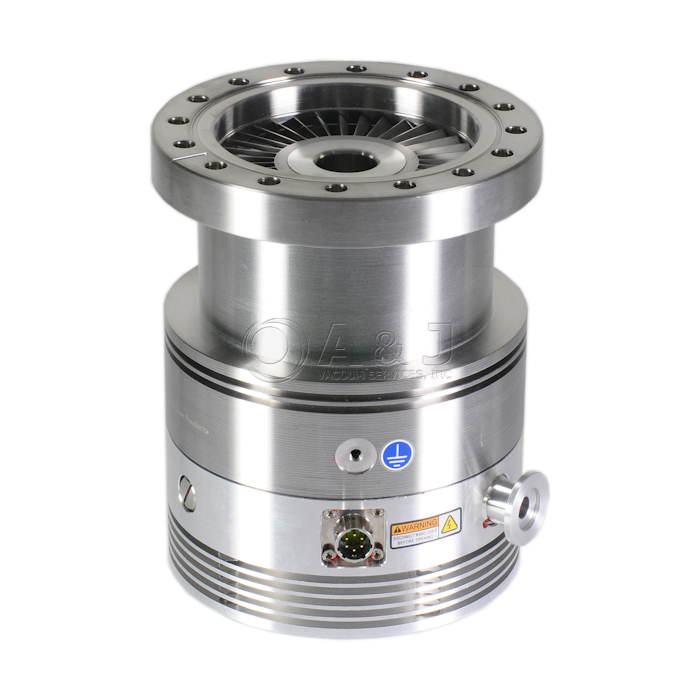

Agilent TwisTorr304 FS Turbo Pump with CFF 6" Conflat Flange, 250 l/sec Pumping Speed Air Cooled, X350064005, X3500-64005
Agilent TwisTorr 304 Overview
This rebuilt TwisTorr304 turbo pump is also used in Agilent 5977 GCMS Mass Spectometers.
The Agilent Instrument TwisTorr 304 FS Air Cooled is a Turbo Molecular pump with ISO 100 X3500-64004 for high and ultra-high vacuum applications. Agilent Technologies TwissTor 304 FS is a replacement for well known Varian TV 301 9698918 Air Cooled Turbo Pump. TwissTor 304 FS has new and Improved floating suspension bearings. Twisstor Drag stage technology create high compression rations for gases like Helium and Hydrogen to deliver high tolerance of forline pressure, permiting use of smaller backing pump.
TwisTorr 304 is able pump any type of non-corrosive gas or gas compound.
Air Cooled Agilent Technologies TwisTorr 304 FS pumping action is obtained through a high speed turbine (max. 60000 rpm) driven by a high-performance 3-phase electric motor. The TwisTorr 304 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.
The Agilent Instrument Pump TwisTorr 304 FS X3500-64004 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 TwisTorr drag stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The TwisTorr stages are in the form of three disks.
Recomended Agilent Varian Forline Backing Pump is Varian Agilent SH110 P/N EXSH01101UNIV Dry Pump, or Agilent DS102 P/N 9499315 Rotary Vane Pump
The TwisTor 304 FS turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. Varian TwisTorr 304 stators are in the form of selfpositioning machined disks. On each disk there are parallel spiral pumping channels designed to pump in centrifugal direction on one side and in centripetal direction on the other side. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1010 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Ordering Info for Agilent Varian TwisTorr 304 FS: X3500-64005 Air Cooled with CFF 6" Inlet Flange
Agilent Varian TwisTorr Applications Include:
- Mass Spectrometry Time of Flight (TOF Systems)
- Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- ICP-MS Mass Spectrometry
Industrial Applications:
- Optical Coating
- Metal Coating
- High Vacuum Furnaces
- LCD Screens manufature
- Solid State Media Storeage
- Semiconductor process
- Gas Analysis
- Surface Analysis
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development
Agilent Pumping Speed vs. Inlet Pressure:
Agilent TwisTorr 304 Dimensions:
Click Here for Agilent TwisTorr 304 FS Manual
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64004 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Agilent Varian TwisTorr304 FS Turbo Pump with ISO 160, 255 l/sec Pumping Speed Air Cooled Unit, X350064006, X3500-64006
Agilent TwisTorr 304 Overview
This rebuilt TwisTorr304 turbo pump is also used in Agilent 5977 GCMS Mass Spectometers.
The Agilent Instrument TwisTorr 304 FS Air Cooled is a Turbo Molecular pump with ISO 100 X3500-64004 for high and ultra-high vacuum applications. Agilent Technologies TwissTor 304 FS is a replacement for well known Varian TV 301 9698918 Air Cooled Turbo Pump. TwissTor 304 FS has new and Improved floating suspension bearings. Twisstor Drag stage technology create high compression rations for gases like Helium and Hydrogen to deliver high tolerance of forline pressure, permiting use of smaller backing pump.
TwisTorr 304 is able pump any type of non-corrosive gas or gas compound.
Air Cooled Agilent Technologies TwisTorr 304 FS pumping action is obtained through a high speed turbine (max. 60000 rpm) driven by a high-performance 3-phase electric motor. The TwisTorr 304 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.
The Agilent Instrument Pump TwisTorr 304 FS X3500-64004 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 TwisTorr drag stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The TwisTorr stages are in the form of three disks.
Recomended Agilent Varian Forline Backing Pump is Varian Agilent SH110 P/N EXSH01101UNIV Dry Pump, or Agilent DS102 P/N 9499315 Rotary Vane Pump
The TwisTor 304 FS turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. Varian TwisTorr 304 stators are in the form of selfpositioning machined disks. On each disk there are parallel spiral pumping channels designed to pump in centrifugal direction on one side and in centripetal direction on the other side. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1010 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Ordering Info for Agilent Varian TwisTorr 304 FS: X3500-64006 Air Cooled with DN 160 ISO Inlet Flange
Agilent Varian TwisTorr Applications Include:
- Mass Spectrometry Time of Flight (TOF Systems)
- Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- ICP-MS Mass Spectrometry
Industrial Applications:
- Optical Coating
- Metal Coating
- High Vacuum Furnaces
- LCD Screens manufature
- Solid State Media Storeage
- Semiconductor process
- Gas Analysis
- Surface Analysis
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development
Agilent Pumping Speed vs. Inlet Pressure:
Agilent TwisTorr 304 Dimensions:
Click Here for Agilent TwisTorr 304 FS Manual
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64004 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Agilent Varian TwisTorr304 FS Turbo Pump with CFF 8" Conflat Flange, 255 l/sec Pumping Speed Air Cooled, X350064007
Agilent TwisTorr 304 Overview
This rebuilt TwisTorr304 turbo pump is also used in Agilent 5977 GCMS Mass Spectometers.
The Agilent Instrument TwisTorr 304 FS Air Cooled is a Turbo Molecular pump with ISO 100 X3500-64004 for high and ultra-high vacuum applications. Agilent Technologies TwissTor 304 FS is a replacement for well known Varian TV 301 9698918 Air Cooled Turbo Pump. TwissTor 304 FS has new and Improved floating suspension bearings. Twisstor Drag stage technology create high compression rations for gases like Helium and Hydrogen to deliver high tolerance of forline pressure, permiting use of smaller backing pump.
TwisTorr 304 is able pump any type of non-corrosive gas or gas compound.
Air Cooled Agilent Technologies TwisTorr 304 FS pumping action is obtained through a high speed turbine (max. 60000 rpm) driven by a high-performance 3-phase electric motor. The TwisTorr 304 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.
The Agilent Instrument Pump TwisTorr 304 FS X3500-64004 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 TwisTorr drag stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The TwisTorr stages are in the form of three disks.
Recomended Agilent Varian Forline Backing Pump is Varian Agilent SH110 P/N EXSH01101UNIV Dry Pump, or Agilent DS102 P/N 9499315 Rotary Vane Pump
The TwisTor 304 FS turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. Varian TwisTorr 304 stators are in the form of selfpositioning machined disks. On each disk there are parallel spiral pumping channels designed to pump in centrifugal direction on one side and in centripetal direction on the other side. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1010 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Ordering Info for Agilent Varian TwisTorr 304 FS: X3500-64007 Air Cooled with CFF 8" Inlet Flange
Agilent Varian TwisTorr Applications Include:
- Mass Spectrometry Time of Flight (TOF Systems)
- Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- ICP-MS Mass Spectrometry
Industrial Applications:
- Optical Coating
- Metal Coating
- High Vacuum Furnaces
- LCD Screens manufature
- Solid State Media Storeage
- Semiconductor process
- Gas Analysis
- Surface Analysis
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development
Agilent Pumping Speed vs. Inlet Pressure:
Agilent TwisTorr 304 Dimensions:
Click Here for Agilent TwisTorr 304 FS Manual
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64004 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Agilent TwisTorr 304 FS (Split Flow) SF Turbo Pump with ISO 100, 250 l/sec Pumping Speed Water Cooled Pump, X3500-64010, X350064010
Agilent TwisTorr 304 Overview
The Agilent Varian TwisTorr 304 FS SF (Split Flow) is a Turbo Molecular pump with ISO 100 "X3500-64010" for high and ultra-high vacuum applications. Agilent Varian TwissTor 304 FS is a replacement for well known Varian TV 301 969-8917 Turbo Pump. TwissTor 304 FS has new and Improved floating suspension bearings. Twisstor Drag stage technology create high compression rations for gases like Helium and Hydrogen to deliver high tolerance of forline pressure, permiting use of smaller backing pump.
TwisTorr 304 is able pump any type of non-corrosive gas or gas compound.
Agilent Varian TwisTorr 304 FS pumping action is obtained through a high speed turbine (max. 60000 rpm) driven by a high-performance 3-phase electric motor. The TwisTorr 304 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.
The Agilent Varian TwisTorr 304 FS Split Flow Unit X3500-64010 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 TwisTorr drag stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The TwisTorr stages are in the form of three disks.
Recomended Agilent Varian Forline Backing Pump is Varian Agilent SH110 P/N EXSH01101UNIV Dry Pump, or Agilent DS-102 P/N 9499315 Rotary Vane Pump
The TwisTor 304 Split Flow turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. Varian TwisTorr 304 SF stators are in the form of selfpositioning machined disks. On each disk there are parallel spiral pumping channels designed to pump in centrifugal direction on one side and in centripetal direction on the other side. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1010 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Agilent Varian TwisTorr Applications Include:
- Mass Spectrometry Time of Flight (TOF Systems)
- Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- ICP-MS Mass Spectrometry
Industrial Applications:
- Optical Coating
- Metal Coating
- High Vacuum Furnaces
- LCD Screens manufature
- Solid State Media Storeage
- Semiconductor process
- Gas Analysis
- Surface Analysis
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development
Agilent Technology and Innovation:
Agilent Pumping Speed vs. Inlet Pressure:
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64060 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Agilent TwisTorr304 FS Turbo Pump with ISO 100, 250 l/sec Pumping Speed Air Cooled, X350064104, special pump used in Agilent’s 5977 GCMS Mass Spec.
Agilent TwisTorr 304 Overview
This TwisTorr304 is a special pump used in Agilent 5977 GCMS Mass Spectometers.
The Agilent Varian TwisTorr 304 FS is a Turbo Molecular pump with ISO 100 "X3500-64104" for high and ultra-high vacuum applications. Agilent Varian TwissTor 304 FS is a replacement for well known Varian TV 301 9698918 Turbo Pump. TwissTor 304 FS has new and Improved floating suspension bearings. Twisstor Drag stage technology create high compression rations for gases like Helium and Hydrogen to deliver high tolerance of forline pressure, permiting use of smaller backing pump.
TwisTorr 304 is able pump any type of non-corrosive gas or gas compound.
Agilent Varian TwisTorr 304 FS pumping action is obtained through a high speed turbine (max. 60000 rpm) driven by a high-performance 3-phase electric motor. The TwisTorr 304 FS is free of contaminating agents and, therefore, is suitable for applications requiring a "clean" vacuum.
The Agilent Varian TwisTorr 304 FS X3500-64104 pump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 3 TwisTorr drag stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. The TwisTorr stages are in the form of three disks.
Recomended Agilent Varian Forline Backing Pump is Varian Agilent SH-110 P/N EXSH01101UNIV Dry Pump, or Agilent DS-102 P/N 9499315 Rotary Vane Pump
The TwisTor 304 FS turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. Varian TwisTorr 304 stators are in the form of selfpositioning machined disks. On each disk there are parallel spiral pumping channels designed to pump in centrifugal direction on one side and in centripetal direction on the other side. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 54 Vac three-phase at 1010 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
Ordering Info for Agilent Varian TwisTorr 304 FS: X3500-64104
Agilent Varian TwisTorr Applications Include:
- Mass Spectrometry Time of Flight (TOF Systems)
- Gas Chromatography Mass Spectometry (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- ICP-MS Mass Spectrometry
Industrial Applications:
- Optical Coating
- Metal Coating
- High Vacuum Furnaces
- LCD Screens manufature
- Solid State Media Storeage
- Semiconductor process
- Gas Analysis
- Surface Analysis
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development
Agilent Pumping Speed vs. Inlet Pressure:
Agilent TwisTorr 304 Dimensions:
Click Here for Agilent TwisTorr 304 FS Manual
A&J Vacuum also repair / rebuild and service all Agilent Instrument TwisTorr 304 X3500-64000 Pumps Vacuum Pumps and Agilent Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
